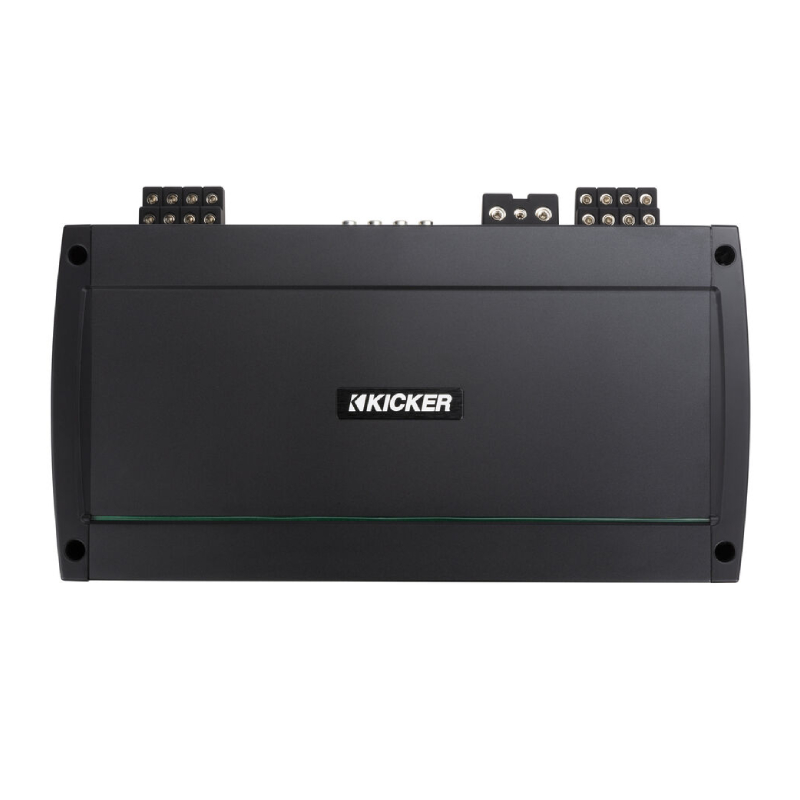

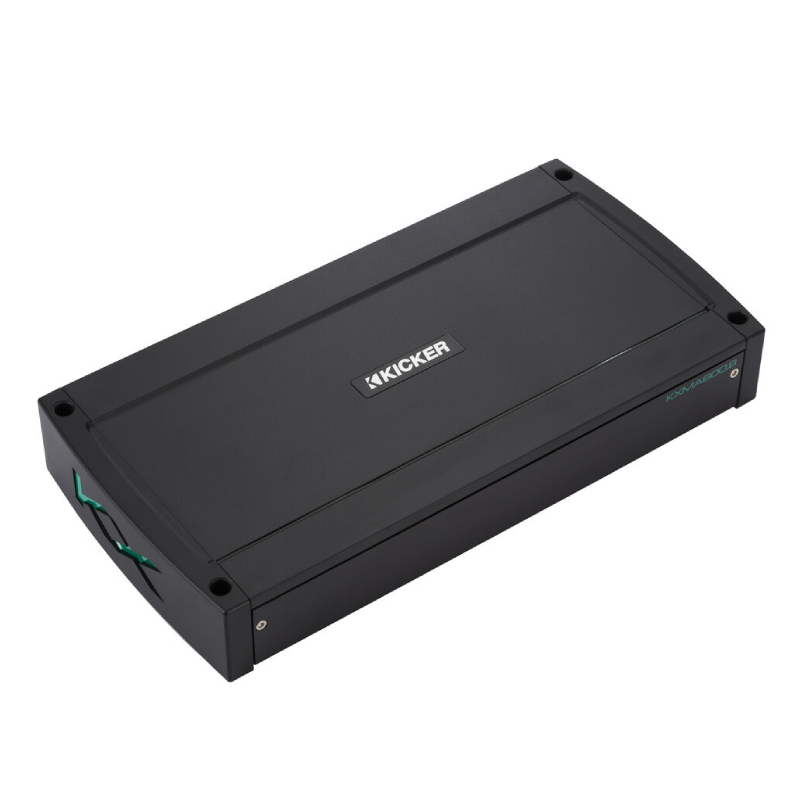

Kicker 48KXMA8008 KXMA Series 8-Channel 100W RMS x 8 at 2 Ohms, Class-D Full Range Marine Amplifier
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • KXMA Series 8-Channel Class-D Full Range Marine Amplifier
- • (4) 2" screws
- • (4) Flat-washers
- • 3mm Hex key
- • Amplifier information sheet (English/ Spanish/ French/ German)
- • Power chart
- • Kicker power certification
- • Owner's Manual
Why Choose Kicker 48KXMA8008 Marine Amplifier?
Unleash the Waves of Sound!
The Kicker 48KXMA8008 is an 8-channel Class-D marine amplifier that delivers up to 800 watts RMS of power at 2 ohms. It is designed to provide high-quality sound for marine audio systems and is built to withstand harsh marine environments. The KXMA8008 features a conformal-coated circuit board that protects against moisture and dust, and it also has a UV-resistant powder-coated chassis for added durability.
Elevate Your Marine Audio Experience
The KXMA8008 is equipped with a full-range RCA output that can be used to drive additional amplifiers, and it also has a remote level control port for convenient adjustment of subwoofer levels. This amplifier supports bridged and stereo modes, allowing you to configure it to best suit your specific audio setup.
Where Power Meets Precision in Marine Audio Excellence!
Following KICKER Real Marine™ protocol, power terminals meet stringent ABYC/NMMA standards, while thick gasketing protects the control cover from unwanted moisture. Even the aluminum chassis is UV-treated for extra-long life. All KICKER marine amplifiers also utilize conformal-coated circuit boards to protect the heart of the amp from water damage. Overall, the Kicker 48KXMA8008 is a powerful and durable marine amplifier that delivers high-quality sound and offers a range of tuning options for a customizable audio experience.
Fine-Tune Your Marine Sound to Perfection
This amplifier offers a variety of tuning options, including adjustable crossovers, a 6 dB bass boost, and a variable subsonic filter. Additionally, the KXMA8008 features Fail-Safe Integration Technology (FIT2) circuitry, which eliminates noise and interference caused by onboard electronics in marine systems. It also has a built-in muting circuit that protects your speakers from loud pops and other audio anomalies.
Frequently Asked Questions (FAQ)
- • Why won't the amplifier turn on after installation?
A blown fuse, poor ground connection, weak battery, or missing remote turn-on signal is usually the cause. Verify the power, ground, fuse, and remote wiring before troubleshooting the amplifier.
- • Can this amplifier power eight marine speakers?
Yes. It is designed to power multiple compatible marine speakers as long as the total speaker impedance stays within the recommended specifications.
- • Why does the amplifier keep entering protection mode?
Protection mode is commonly triggered by overheating, a wiring short, or a speaker load below the recommended impedance. Inspect all wiring connections and allow the amplifier to cool before powering it back on.
- • Is this amplifier suitable for saltwater boating?
Yes. It features marine-grade construction that resists moisture, corrosion, UV exposure, and vibration for long-lasting performance.
- • Why is there power but no sound from one or more channels?
This is often caused by loose speaker wiring, disconnected RCA cables, or incorrect channel configuration. Verify all audio connections and amplifier settings before assuming there is a hardware problem.
- • Why does the amplifier get hot during extended use?
Some heat is expected when operating at high output for long periods. Ensure the amplifier has adequate ventilation and is not mounted inside a sealed compartment.
- • Can I bridge channels to power a subwoofer?
Yes, if the amplifier supports bridged operation and the connected subwoofer meets the recommended impedance requirements. Follow the manufacturer's wiring diagram for the proper bridged configuration.
- • Why do I hear alternator or engine noise through the speakers?
Electrical interference is usually caused by poor grounding or signal cables routed alongside power wiring. Improving the ground connection and separating signal cables from power wires often resolves the issue.
- • Should I install marine-grade wiring with this amplifier?
Yes. Marine-grade power and speaker wire offer superior protection against corrosion, moisture, vibration, and saltwater exposure.
- • Can I expand my marine audio system in the future?
Yes. You can add compatible amplifiers, speakers, or marine subwoofers if your boat's charging system has enough capacity to support the additional equipment.
- Maximum Power : 800 Watts
- Number of Channels : 8
- Frequency Response : 10-20000 Hz
- Built In Crossovers : Yes
- Amplifier Class : D
- Fuse Rating : 1x120 A
- Promo : Yes
Features:
- Marine-Ready 8-Channel Amplifier: Kicker KXMA800.8 is essentially four 2-channel amps in one chassis, configurable to power 8, 7, 6, 5, or 4 channels. Built for marine environments with ABYC/NMMA-compliant terminals, anti-corrosive inputs/outputs, gasket-protected controls, conformal-coated circuit boards, stainless-steel screws, and UV-treated aluminum chassis. Note: Not waterproof—avoid direct water exposure.
- Class-D Efficient Power: Compact Class-D design delivers high power efficiently: 50W RMS x 8 at 4Ω, 100W RMS x 8 at 2Ω, or 200W RMS x 4 bridged at 4Ω (@14.4V, ≤1% THD+N).
- Input Level Selection: Dual 2-position switches allow Amp1/Amp2 and Amp3/Amp4 to select High (speaker-level) or Low (line-level) input.
- Fader Control: Three On/Off switches let you set the number of input channels connected; Amp1 input can feed all channels if faders are off.
- Auto Turn-On Options: Three modes: +12V remote (preferred), DC offset from speaker-level input, or signal-sensing audio. Using DC offset or signal-sense makes REM terminal a +12V output for additional amps.
- Protection LED: Red Protect LED signals issues: flickering = low voltage; solid red = overheating, shorted output, or voltage outside 10–16V.

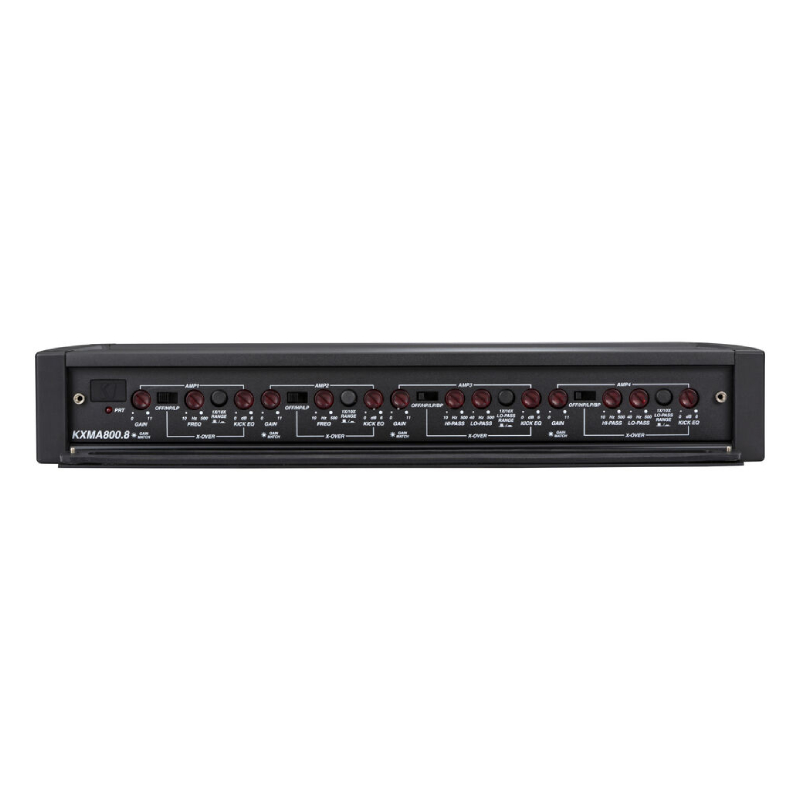

- Amp1/Amp2 Controls: Independent rotary gain (Low 125mV–5V, High 250mV–10V) with clipping LED, 3-position crossover (Off/HP/LP, 24dB/oct), frequency dial (10–500Hz x1 or 100–5,000Hz x10), KickEQ+ Bass Boost (+0–6dB at 40Hz).
- Amp3/Amp4 Controls: Independent rotary gain, 4-position crossover (Off/HP/LP/Bandpass, 24dB/oct), HP/LP frequency dials, low-pass range switch (x1/x10), and KickEQ+ Bass Boost (+0–6dB at 40Hz).

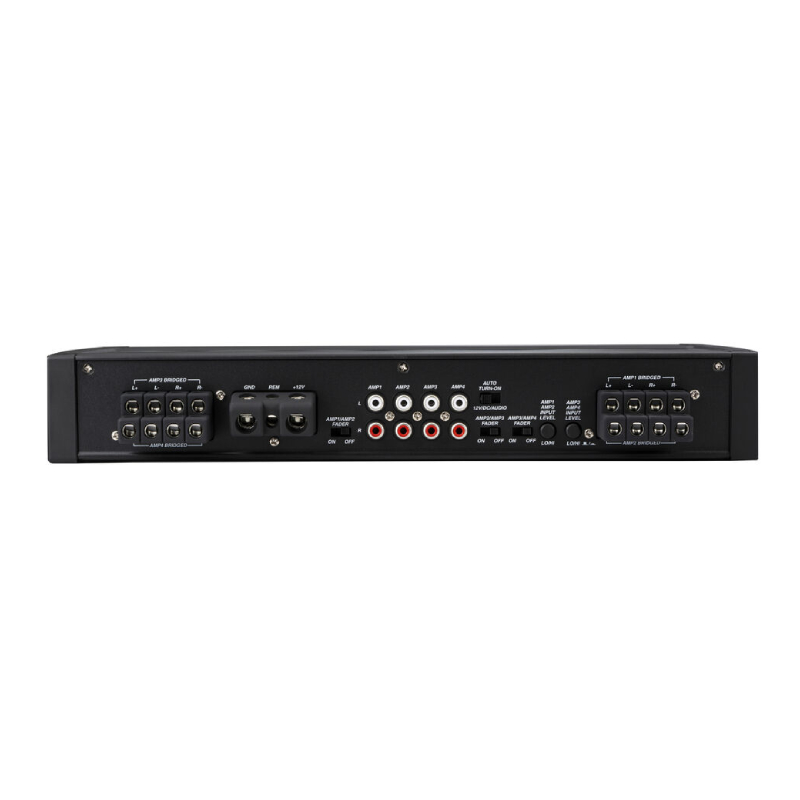

- Wire Connections: Screw-down power, ground, REM, and speaker terminals. Power/ground up to 4 AWG, REM/speaker up to 8 AWG, ABYC/NMMA compliant.
- Fuse Requirement: No onboard fuse; install 125A inline fuse near the battery.
- Input Signal Flexibility: Accepts high (speaker-level) or low (line-level) inputs via four pairs of RCA; optional Kicker KiSL adapter recommended for speaker-level inputs. Sensitivity: 0.125–5V (low) / 0.25–10V (high).
- Dimensions: Width 14.73", Height 2.19", Depth 8.43" (8.78" including wires).
Specifications:
- RMS Power Output (Watts x Channels): 50 x 8
- Frequency Response at Rated RMS Power: 1k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 95 dB
- Input Voltage: 14.4v
- Peak Power Output (Watts x Channels): 150 x 8
- Power at 2 Ohms (Watts x Channels): 100 x 8
- Bridged Power (Watts x Channels): 200 x 4
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Amplifier Class: D
- Low-Pass Crossover Frequency: 10–5000 Hz
- Low-Pass Slope (dB/octave): 24 dB/octave
- High-Pass Crossover Frequency: 10–5000 Hz
- High-Pass Slope (dB/octave): 24 dB/octave
- Bass Boost: 0–6 dB
- Bass Boost Frequency: 40 Hz
- Fan Cooled: No
- Fuse Rating: 125
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Height: 2-1/4 inches
- Width: 14-3/4 inches
- Depth: 8-13/16 inches
- UPC: 713034020653
- Weight: 7.3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
This amp got some serious power! If you got lot of speakers on your boat up to 8 then you won’t have any problems adding up a new amp as it can deliver 100 watts each on its eight channels @ 2 ohms. Its really got some Kick for your boat ride
-
I love the sound quality of this amp. there was a noticeable improvement from my old amplifier. Setting it up with its controls can be a hassle though. As long as you don't have to tweak the controls all the time, then this amp is really such a steal!
