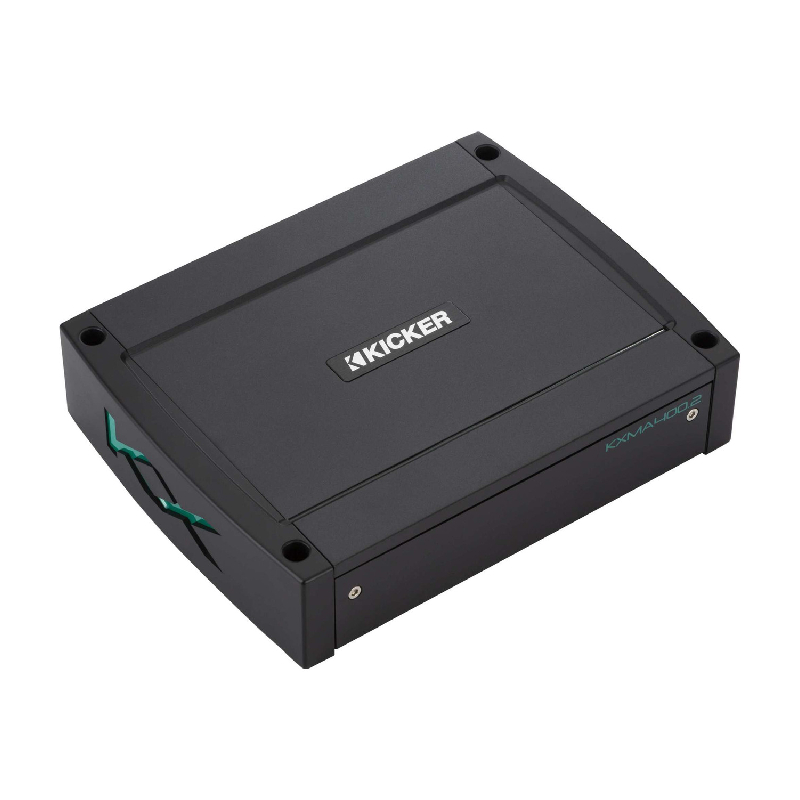

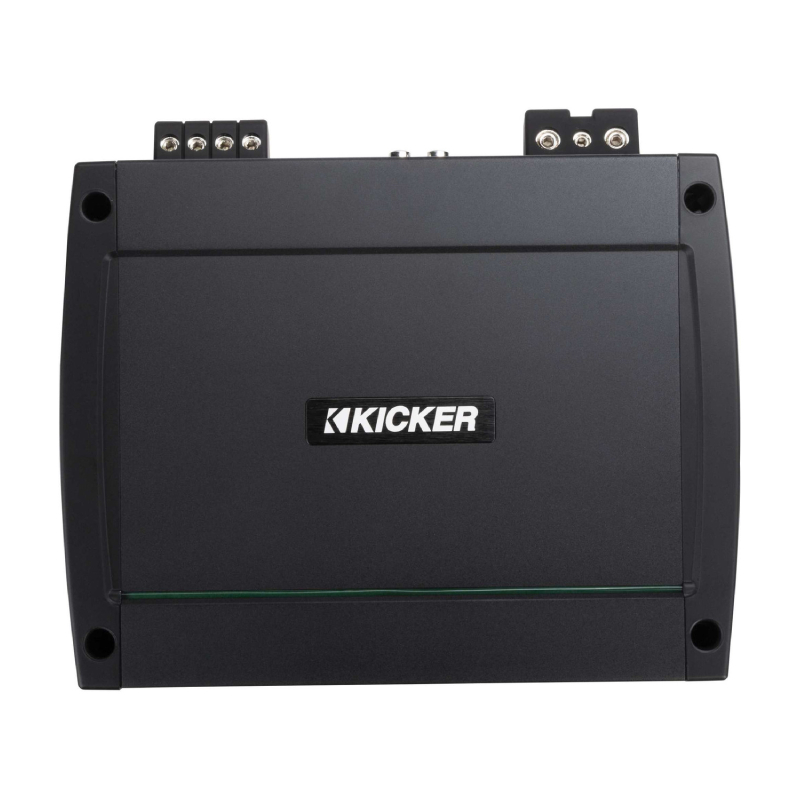

Kicker 48KXMA4002 KXMA Series 2-Channel 200W RMS x 2 at 2 Ohms, Class-D Marine Amplifier
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2-Channel marine amplifier
- • (4) 2" screws
- • (4) Flat-washers
- • 3mm Allen key
- • Power chart
- • Kicker power certification
- • Amplifier information sheet
- • Owner's Manual
Why Choose Kicker 48KXMA4002 Marine Amplifier?
Marine-Grade Class D Amplifier with KickEQ™ Bass Boost
Designed for harsh marine conditions, this amplifier features REAL MARINE™ construction with anti-corrosive terminals, stainless-steel screws, conformal-coated circuit boards, and ABYC/NMMA-compliant power connections for maximum durability. Its efficient Class D design delivers powerful sound while staying cool and compact, and the adjustable KickEQ™ Bass Boost (0–6 dB at 40 Hz) adds deep, punchy low-end with a simple turn of the knob.
Precision DSP Amplifier with Advanced Tuning
This amplifier features a variable 24 dB crossover for customizable high-pass, low-pass, or band-pass settings, optimizing speaker performance while protecting components. The DSP-controlled preamp ensures clean, distortion-free audio across all frequencies, and the gain control with “Gain Match” LED indicator simplifies setup by showing the optimal input signal.

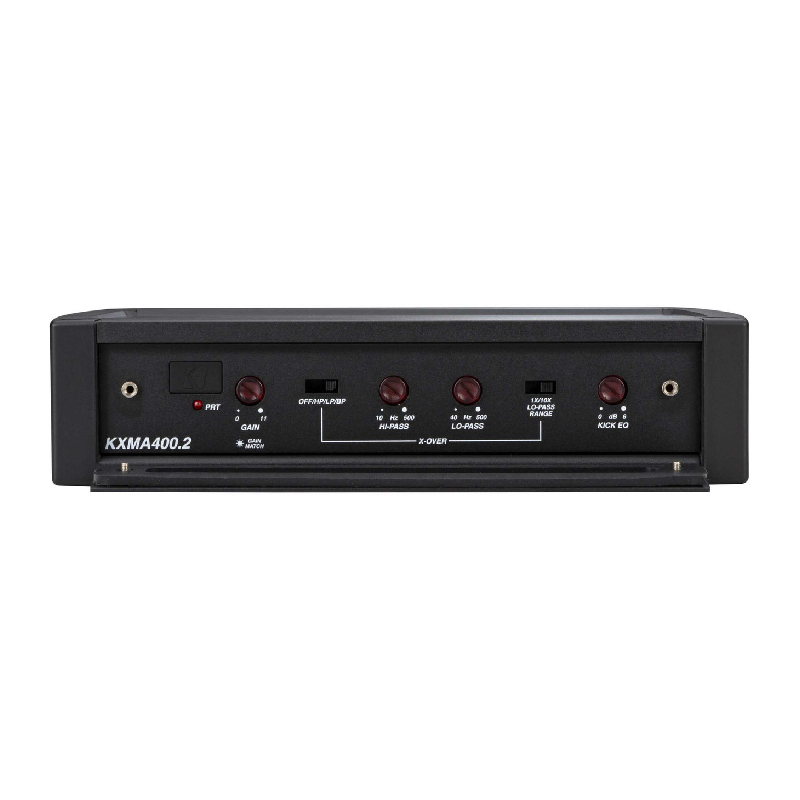

Marine Amplifier with Protected Controls and Expandable Design

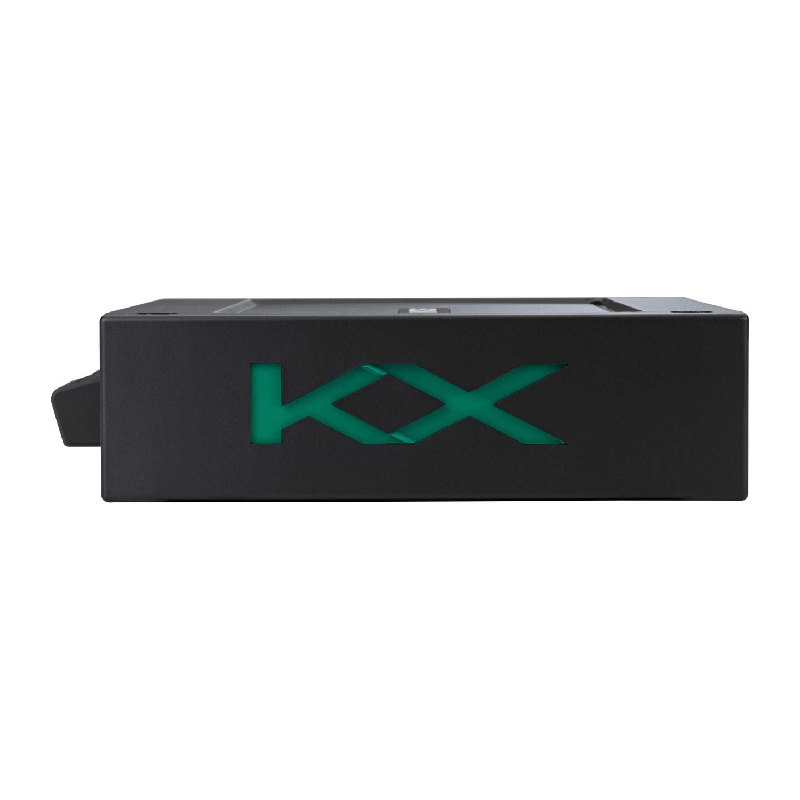

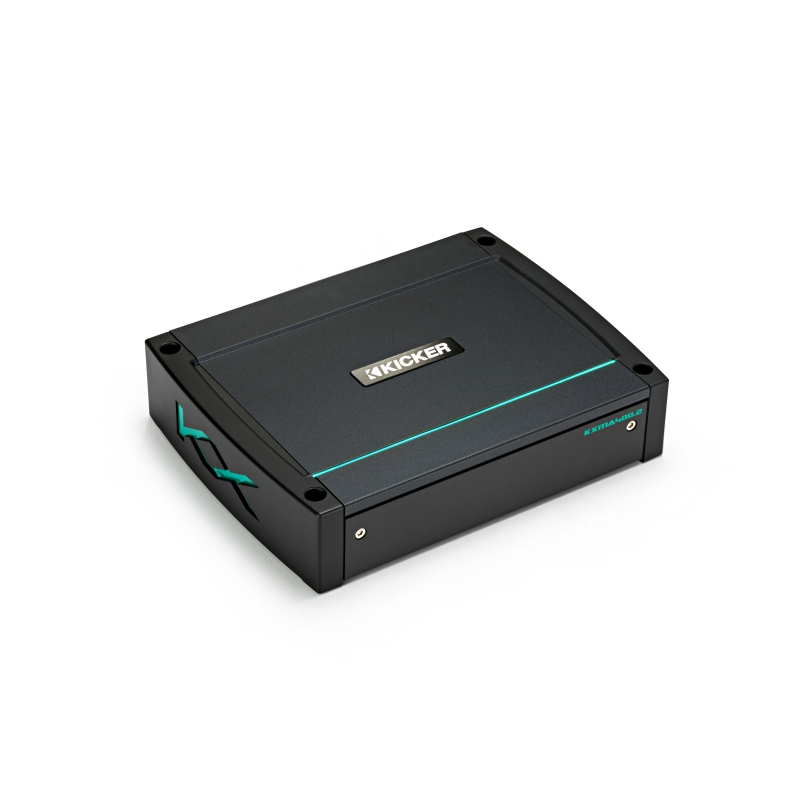

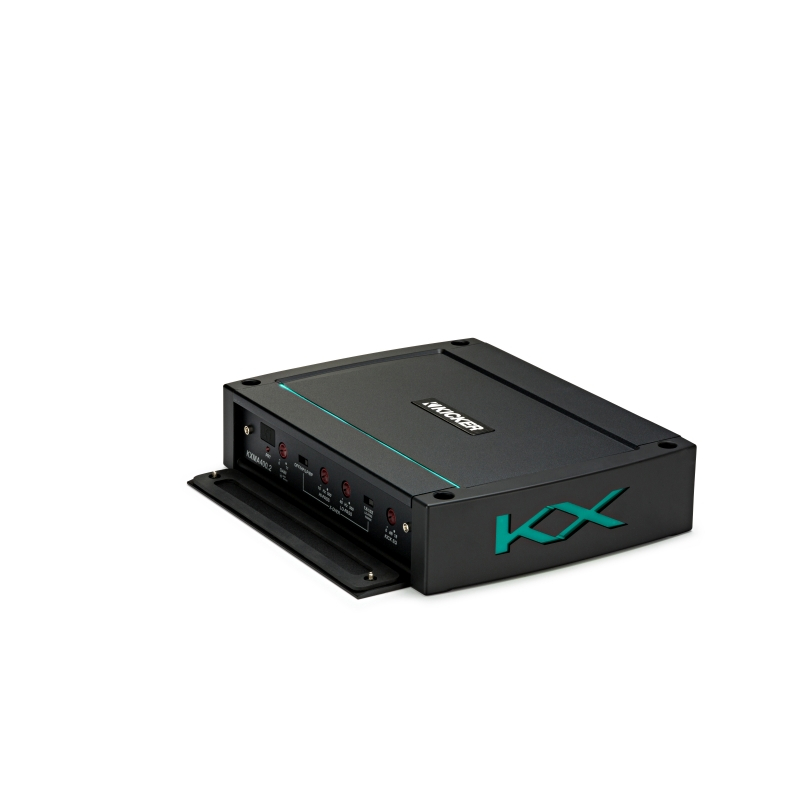

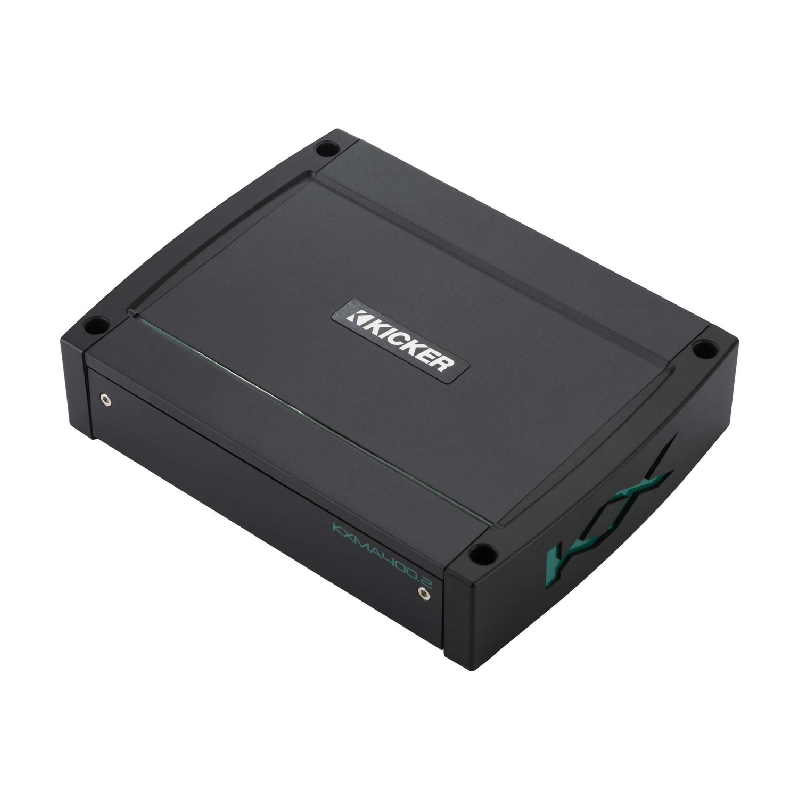

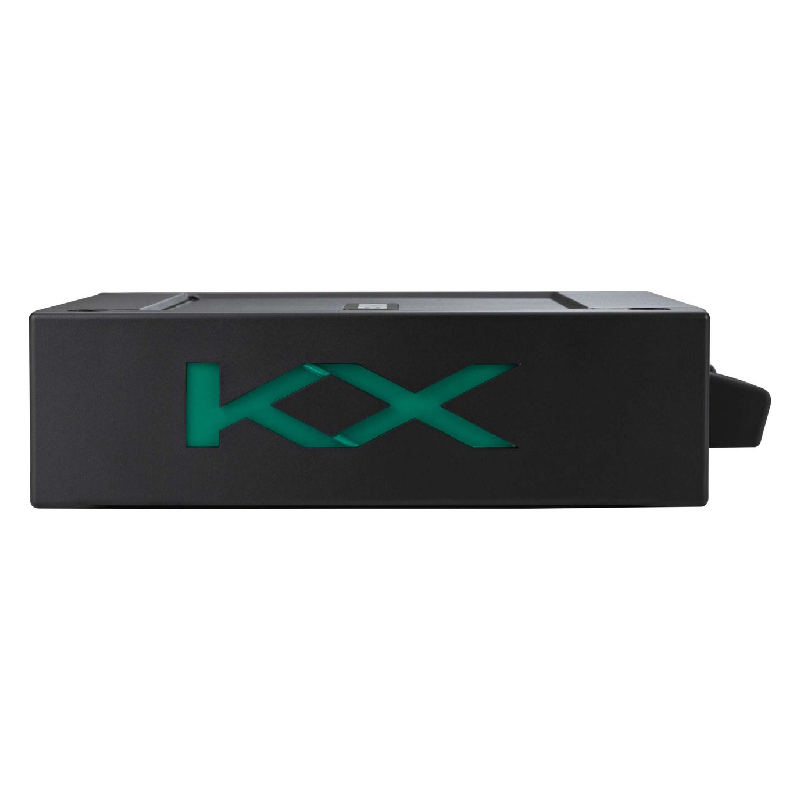

Featuring a gasket-sealed control panel, this amplifier protects crossover, gain, and KickEQ™ settings from moisture while allowing easy adjustments. Full-range RCA outputs simplify adding additional amplifiers without extra wiring, and the black anodized aluminum chassis with a top-mounted teal LED light pipe provides durability and style. Included stainless-steel mounting hardware ensures secure, corrosion-resistant installation in marine environments.
Frequently Asked Questions (FAQ)
- • Why won't the amplifier power on after installation?
Check the battery connection, ground wire, remote turn-on lead, and inline fuse for proper installation. A poor ground or blown fuse is one of the most common reasons the amplifier will not power up.
- • Can this amplifier be installed on a saltwater boat?
Yes. Its marine-grade construction is designed to resist corrosion, moisture, and UV exposure when properly mounted.
- • Why does the amplifier enter protect mode?
Protection mode is typically caused by overheating, a wiring short, or an incompatible speaker load. Verify the speaker impedance and inspect all wiring before restarting the system.
- • Can I bridge the amplifier for a single speaker or subwoofer?
Yes, if the amplifier supports bridged operation and the connected load meets the recommended impedance. Always follow the manufacturer's wiring diagram to avoid damage.
- • Why does the amplifier get hot during extended use?
Some heat is normal when delivering continuous power. Make sure the amplifier has adequate ventilation and is not mounted inside a sealed compartment.
- • Why do I hear engine whine through my speakers?
Ground loops or signal cables routed too close to power wiring can introduce electrical noise. Check the grounding point and separate signal cables from power cables whenever possible.
- • Can I use this amplifier with my factory marine stereo?
Yes. It works with many factory and aftermarket marine head units using compatible audio connections.
- • Why does the sound distort when I raise the volume?
Amplifier clipping, excessive gain, or incorrect crossover settings are common causes of distortion. Proper tuning helps deliver cleaner sound and protects your speakers.
- • Why does the amplifier shut off while playing music?
Low system voltage, overheating, or an overloaded speaker configuration can activate the protection circuit. Check the charging system, cooling airflow, and speaker wiring to resolve the issue.
- Number of Channels : 2
- Frequency Response : 10-20000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 2x200 Watts
- Amplifier Class : D
- Fuse Rating : 1x60 A
- Promo : Yes
Features:
- Compact Marine Power Solution: The Kicker KXMA400.2 is a 2-channel marine amplifier delivering strong, clean power with a bridgeable design for flexible system setups, built with marine-grade terminals, stainless-steel hardware, conformal-coated circuit boards, and ABYC/NMMA-compliant power and ground connections
- Efficient Class-D Performance: Advanced Class-D amplification provides high output in a compact chassis while minimizing heat and electrical strain
- Flexible Power Output Options: Delivers 100W RMS x 2 @ 4Ω, 200W RMS x 2 @ 2Ω, or 400W RMS x 1 bridged @ 4Ω at 14.4V with ≤1% THD+N
- High or Low Input Compatibility: 2-position input level switch supports both speaker-level and line-level inputs for easy integration with factory or aftermarket systems
- Precision Gain Control with Clipping Indicator: Variable input gain (125mV–5V Low / 250mV–10V High) includes an illuminated “Optimal Input” LED to help prevent distortion
- Advanced Crossover Control: Selectable Off, High-Pass, Low-Pass, or Bandpass crossover modes with a 24dB/octave slope for precise system tuning
- Wide Frequency Adjustment Range: High-pass filter adjustable from 10–500Hz and low-pass filter adjustable from 40–500Hz or 400–5000Hz via x1/x10 range switch
- KickEQ+ Bass Enhancement: Built-in bass boost adds up to +6dB at 40Hz for deeper, more impactful low-end response
- Multiple Auto Turn-On Options: Choose between +12V remote turn-on, DC offset sensing, or audio signal sensing; REM terminal outputs +12V when using DC Offset or Audio modes
- Built-In Protection Monitoring: Red PRT LED alerts you to low voltage, thermal shutdown, shorted speaker outputs, or improper operating voltage

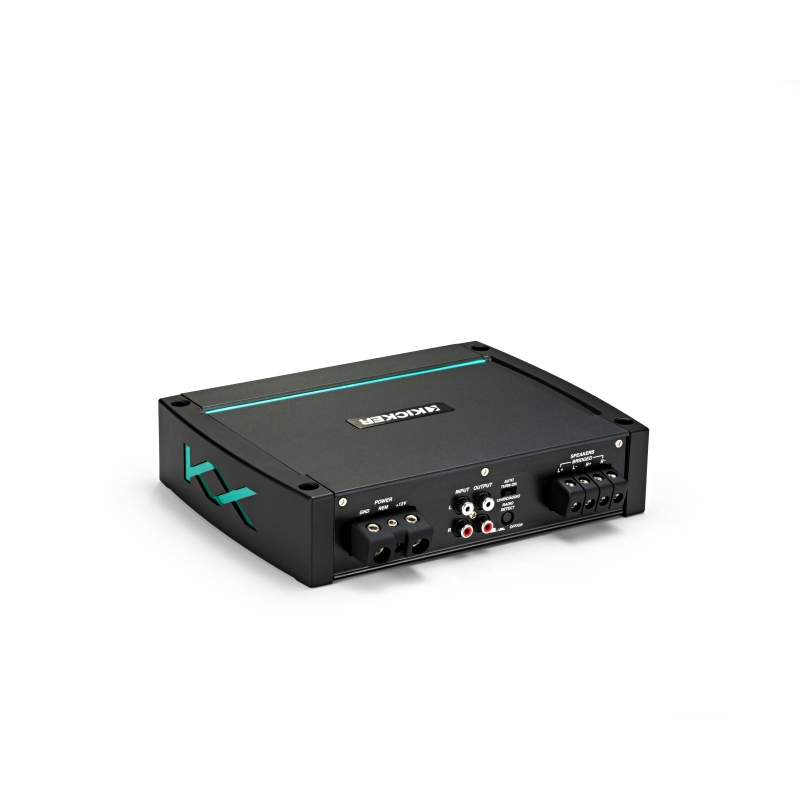

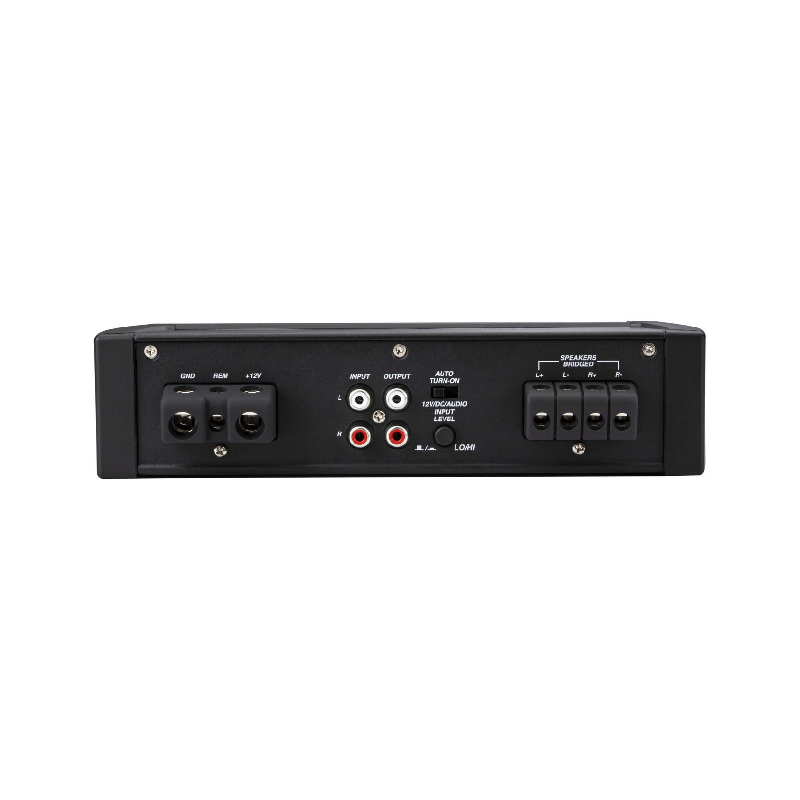

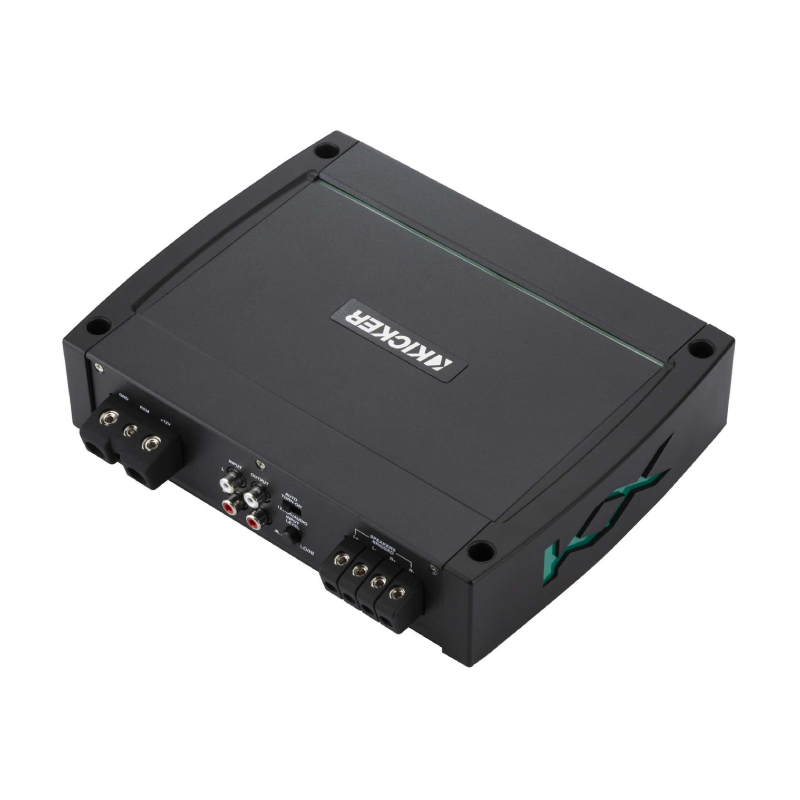

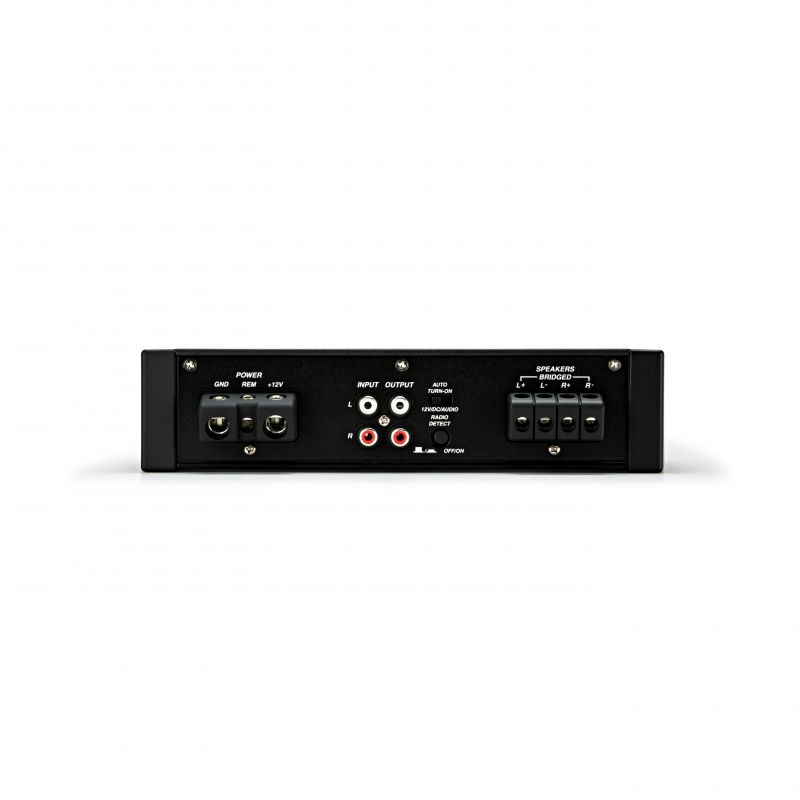

- Marine-Grade Wiring Terminals: Screw-down power, ground, REM, and speaker terminals accept recommended 8 AWG power/ground wiring and meet ABYC/NMMA standards
- External Fuse Protection Required: No onboard fuse—installation requires an external 60A fuse within 18" of the battery for safe operation
- Signal Pass-Through Capability: RCA line outputs allow easy expansion by feeding signal to additional amplifiers
- Compact Installation Footprint: Measures 9.62" wide x 2.19" high x 8.26" deep (not including wire), ideal for tight marine installations
- Marine Use Advisory: Designed for marine environments but not waterproof; should not be mounted in locations exposed to direct water contact
Specifications:
- RMS Power Output (Watts x Channels): 100 x 2
- Frequency Response at Rated RMS Power: 1k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 95 dB
- Input Voltage: 14.4v
- Peak Power Output (Watts x Channels): ---
- Power at 2 Ohms (Watts x Channels): 200 x 2
- Bridged Power (Watts x Channels): 400 x 1
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Amplifier Class: D
- Low-Pass Crossover Frequency: 40 Hz – 5000 Hz
- Low-Pass Slope (dB/octave): 24 dB/octave
- High-Pass Crossover Frequency: 10 Hz – 500 Hz
- High-Pass Slope (dB/octave): 24 dB/octave
- Bass Boost: 0–6 dB
- Bass Boost Frequency: 40 Hz
- Fan Cooled: No
- Fuse Rating: 60
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Height: 2-1/4 inches
- Width: 9-5/8 inches
- Depth: 8-5/16 inches
- UPC: 713034020615
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Set at 4 ohms bridged mode, the amplifier is pushing my 300 watt marine sub louder than eeveer before. The lows are just fantastic with the setup i have now.
