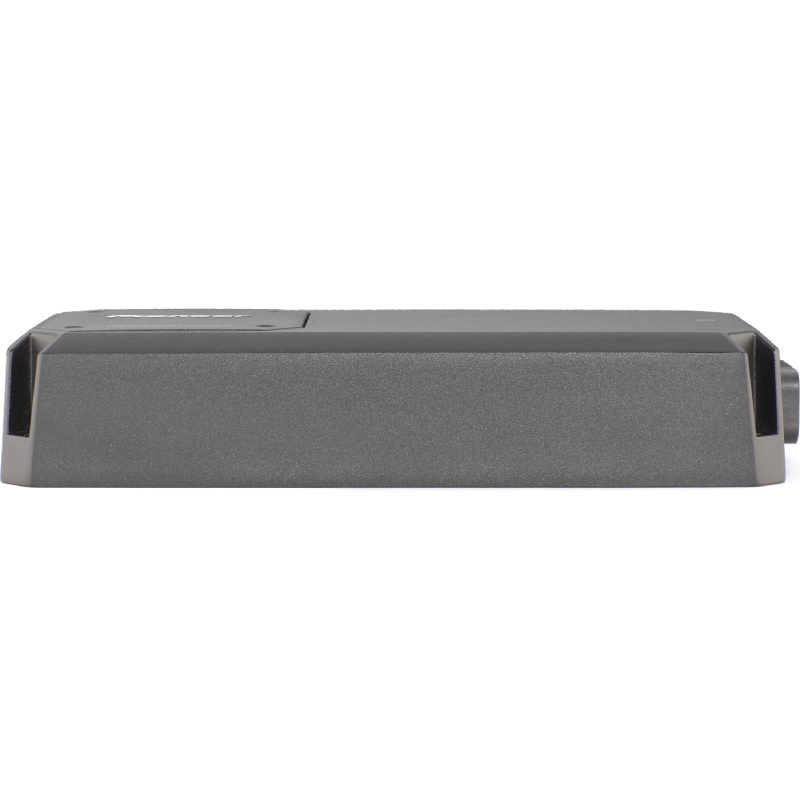

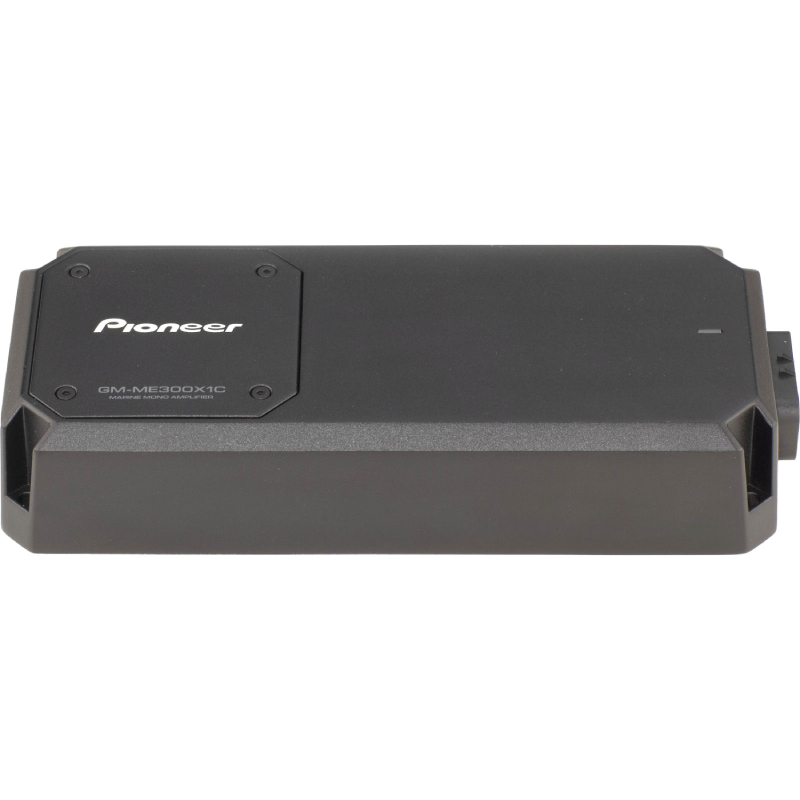

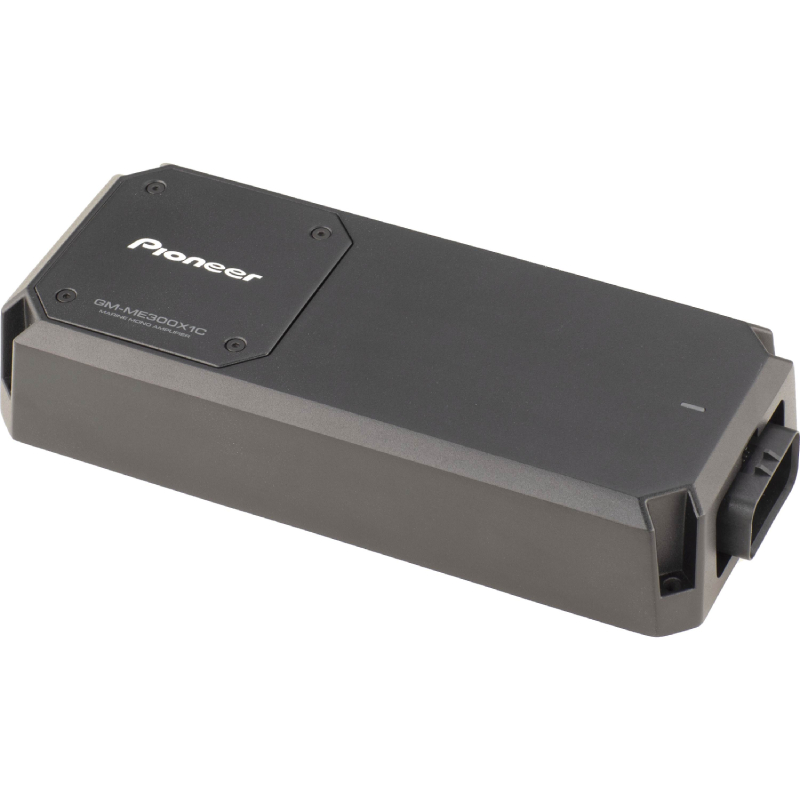

Pioneer GM-ME300X1C A-Series 6x9" 300W x 1 RMS @2Ohms, 600W Max Power Class D Monoblock Marine Subwoofer Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

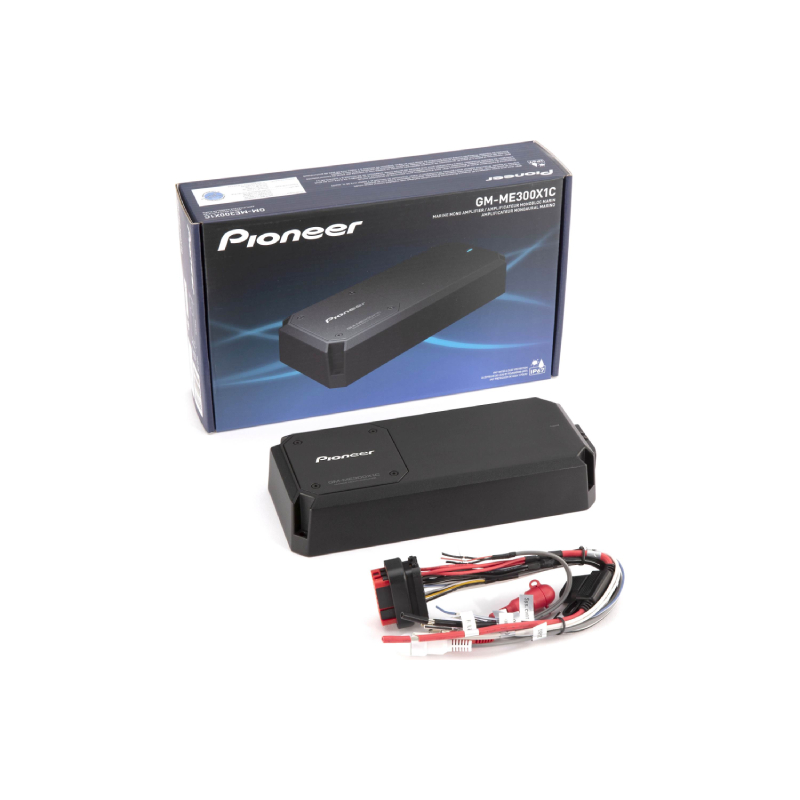

What's Inside?
- • 1-Channel Marine Subwoofer Amplifier

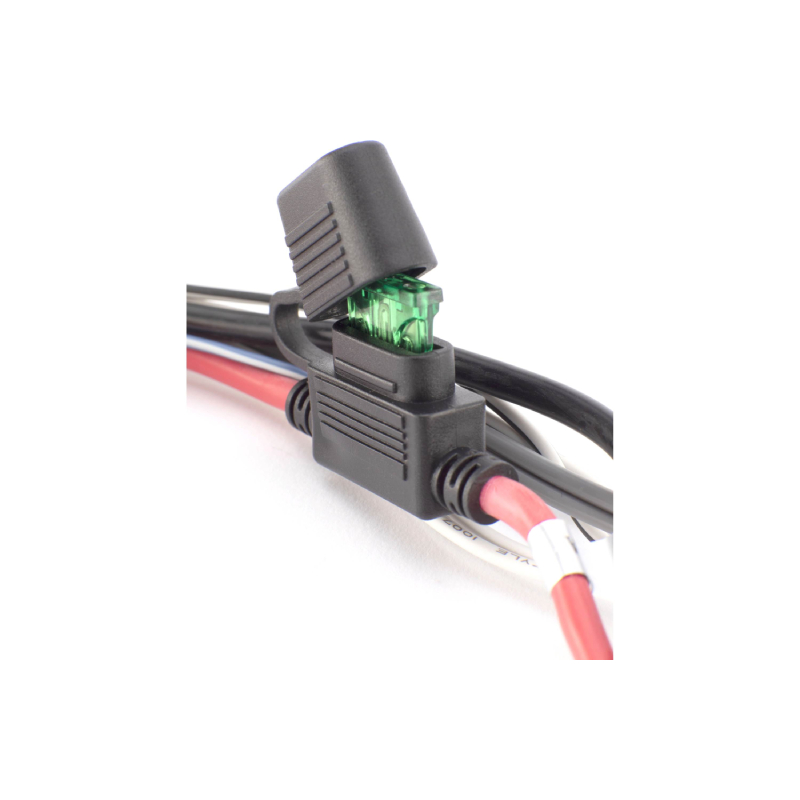

- • (1) 30-amp ATO fuse in-line (installed)

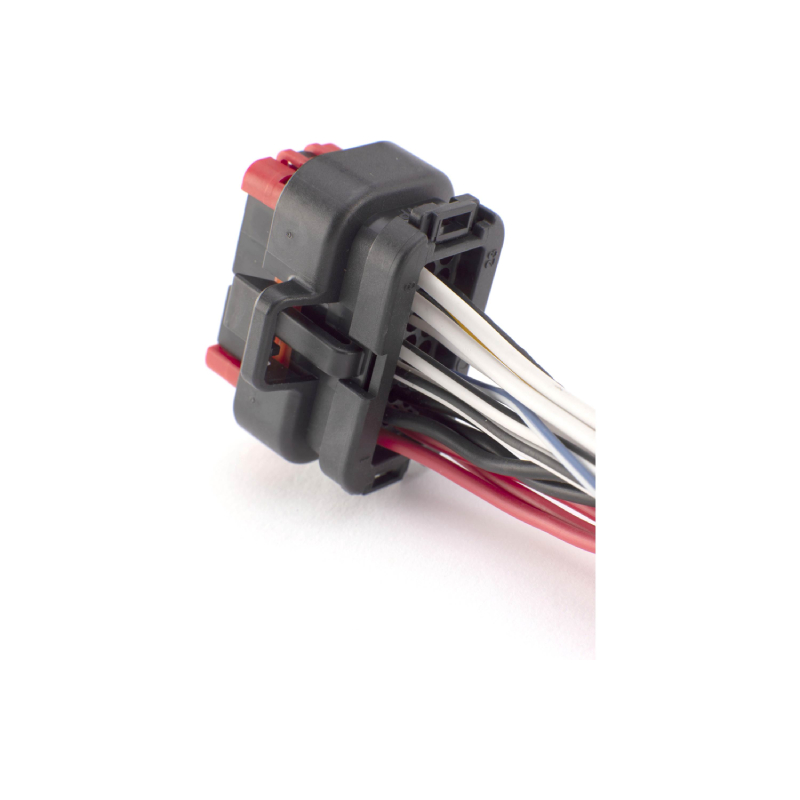

- • (1) Power Harness

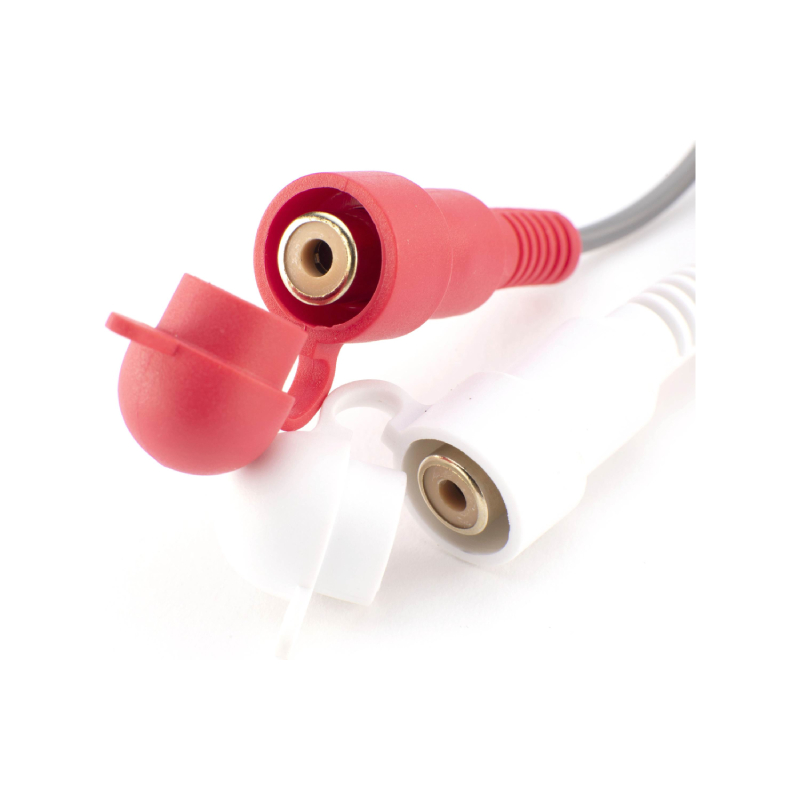

- • (1) Speaker Line Input RCA Cable
- •(4) Installation Screws
- • (2) Supplied Tool (2)
- • Owner's manual (English/ French/Spanish)
- • 1 Year Warranty sheet
Digital controlled Class-D Amplifier Circuit
This amplifier features a 32-bit floating-point DSP to modulate the input signal which improves audio performance for the highest levels of accuracy, stability, channel symmetry, and high signal-to-noise performance.
Dust and Waterproof Design
This marine amplifier is IP67 rated for dust and water resistance when installed with the included control panel cover. Total protection against dust ingress and protection against short periods of immersion in water (maximum 30 minutes at 1 meter/3.28ft. depth).
Pioneer is a Class D Marine Amplifier features an MCU design, utilizing a microprocessor to enable and control the amplifier’s audio, power and protection circuits.
Protection Control System (PCS)
Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.
SAE J1171 Certified
This amplifier is SAE J1171 certified for external ignition protection of Marine Electrical Devices. This recommended practice covers all electrical devices suitable for use in marine engine compartments and fuel tank spaces.
- Maximum Power : 600 Watts
- Number of Channels : 1
- Frequency Response : 10-240 Hz
- RMS Power Output : 2x300 Watts
- RMS Power Range : 75x1 Watts
- Amplifier Class : D
- Fuse Rating : 30 A
Features:
- Compact marine mono Class-D amplifier, IP67 rated, SAE J1171 certified + ABYC / NMMA compliant
- PCS (Protection Control System)

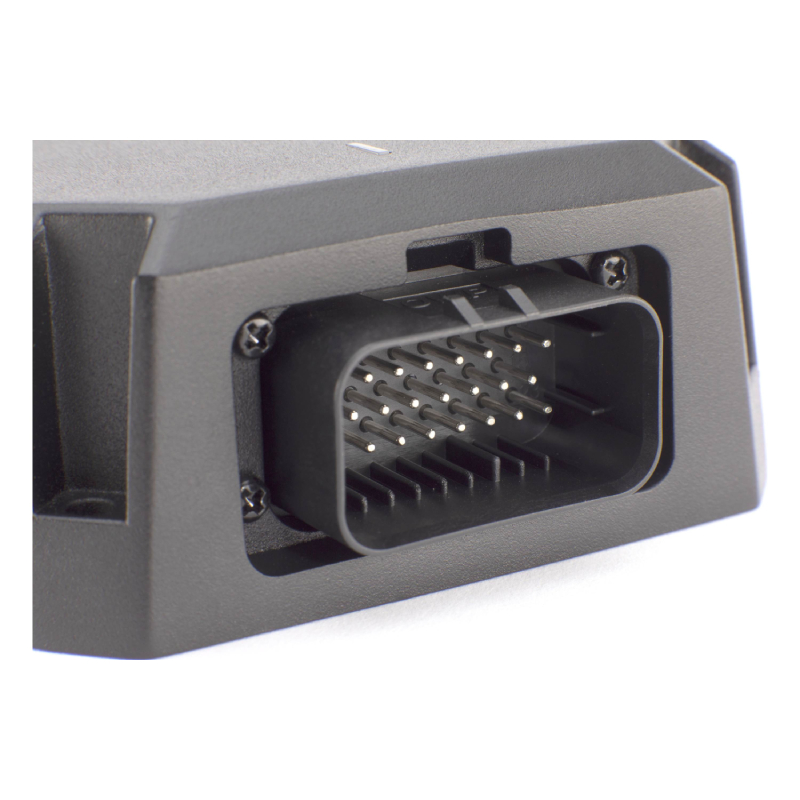

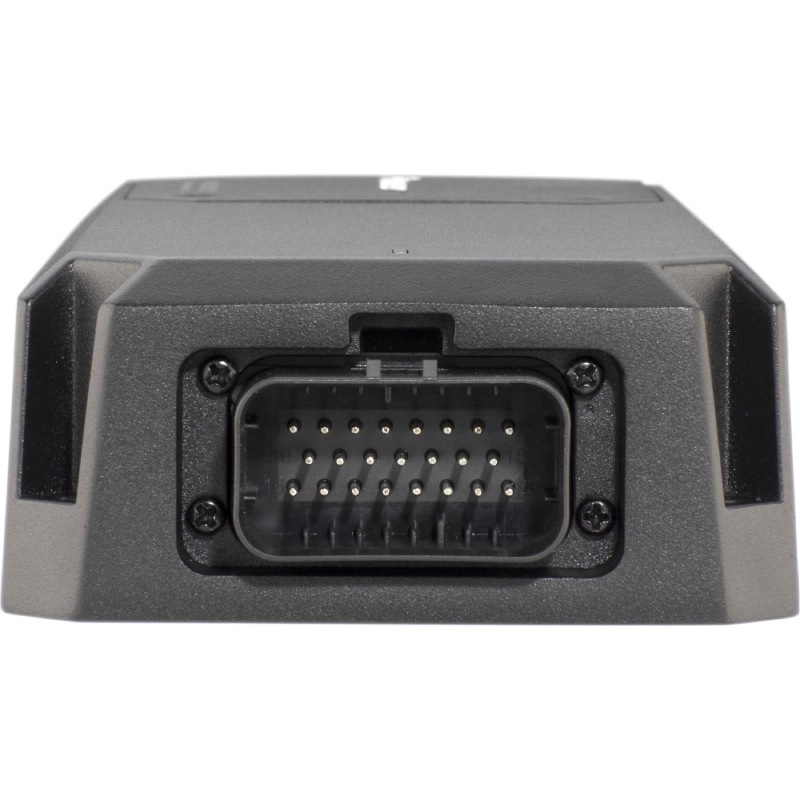

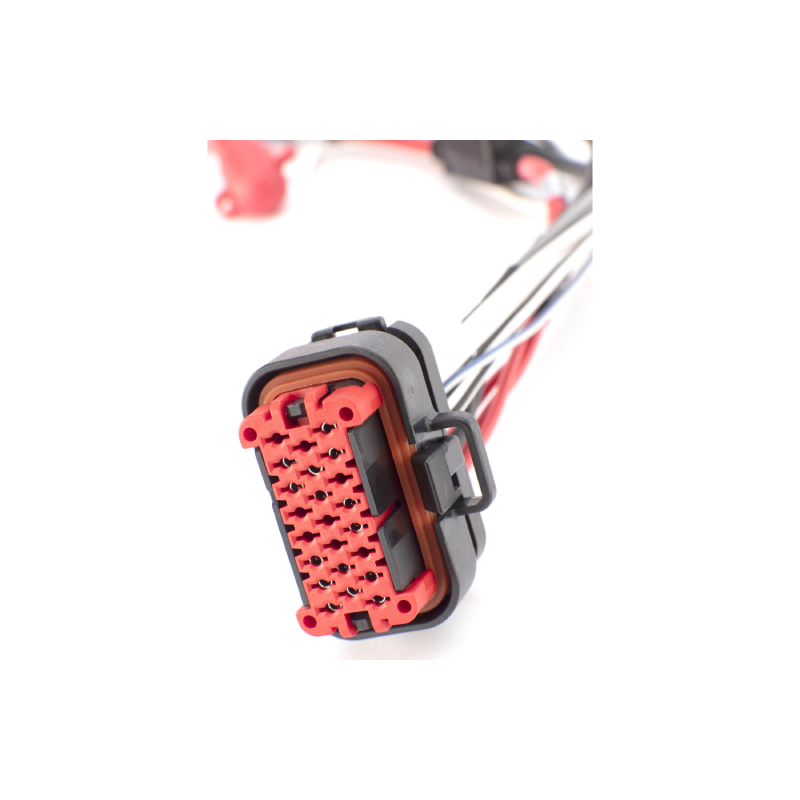

- Waterproof detachable connector

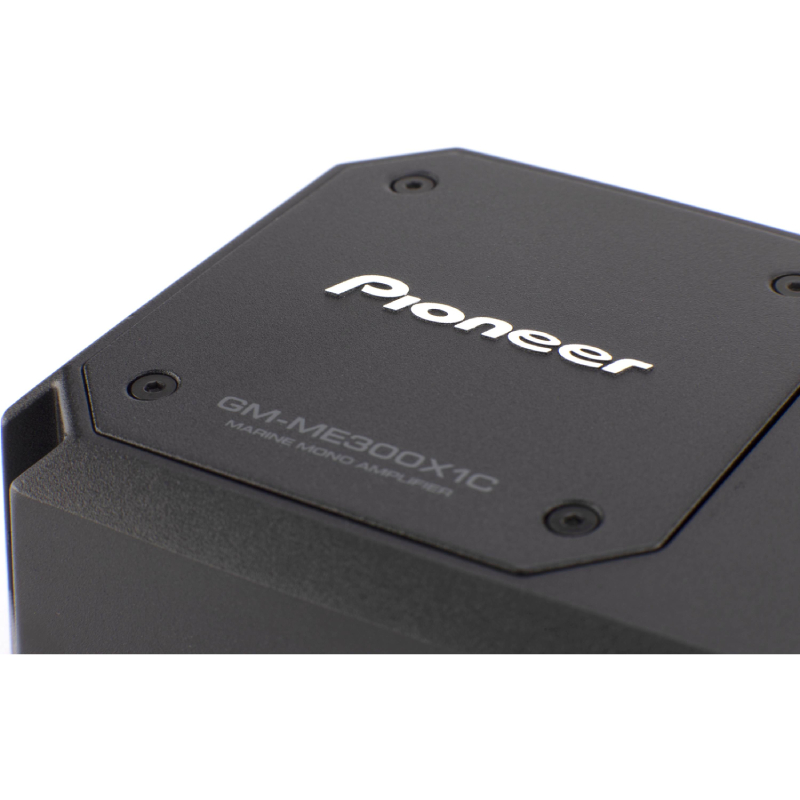

- Rotatable badge

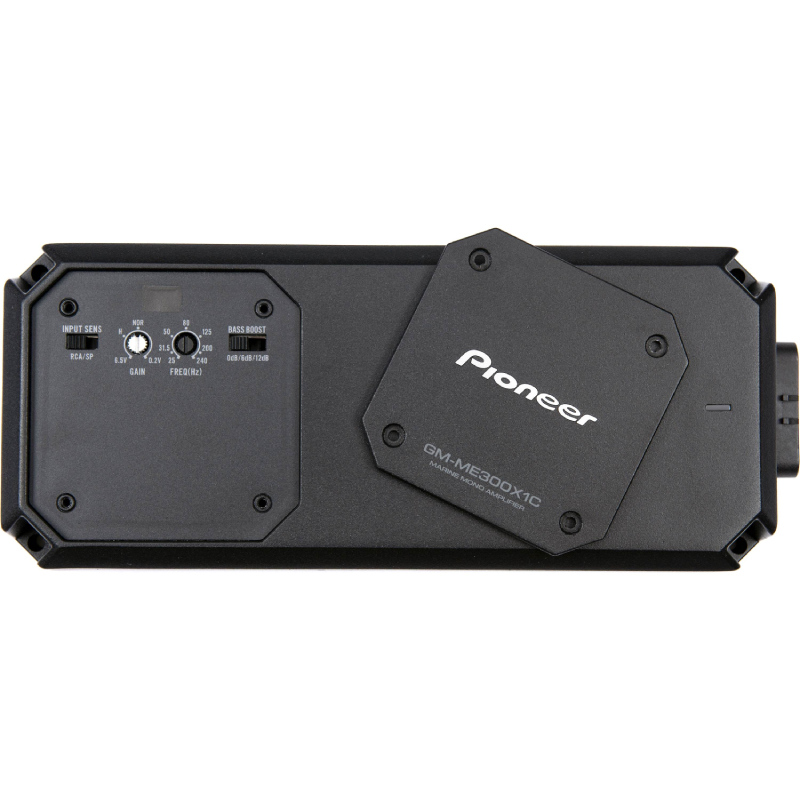

- Adjustment Settings on the top chassis
- 21-step precise frequency selection (LPF)
- Microcomputer controlled
Specifications:
- CEA-2006 Compliant: Yes
- Ingress Protection: IP67
- SAE J1171:Yes
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 5.6 A x 1-Channel - 4 Ohm / 6.3 A x 1-Channel - 2 Ohm
- Bass Boost: 50 Hz - Frequency
- Continuous-Power-Output: 300 W x 1-Channel - 4 Ohm / 300 W x 1-Channel - 2 Ohm
- Crossover Network Subwoofer Channel: LPF - 25Hz to 240 Hz
- Crossover Network Subwoofer Slope: -12 dB/oct.
- Frequency Response – Subwoofer Channel: 10 Hz to 240 Hz
- Fuse Rating: 30A x1
- Input Level @Gain Max: 0.2 V to 6.5 V - RCA / 0.8 V to 16 V - Speaker
- Nominal Power Output: 2 Ohm - 300W x 1 / 4 Ohm - 300W x 1
- RCA Input: 2-Channel
- RMS Power Output: 2 Ohm - 300W RMS x 1 / 4 Ohm - 300W RMS x 1
- Signal to Noise: 75 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD - Subwoofer: =/< 1% ( 20 Hz to 240 Hz)
- Class: D
- Grounding System: Negative
- High Quality Audio Components: Yes
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Rubber Covers Included: RCA
- Terminal Type: Plug
- Unit Weight: 2.9
- UPC: 884938463645
- Weight: 3
