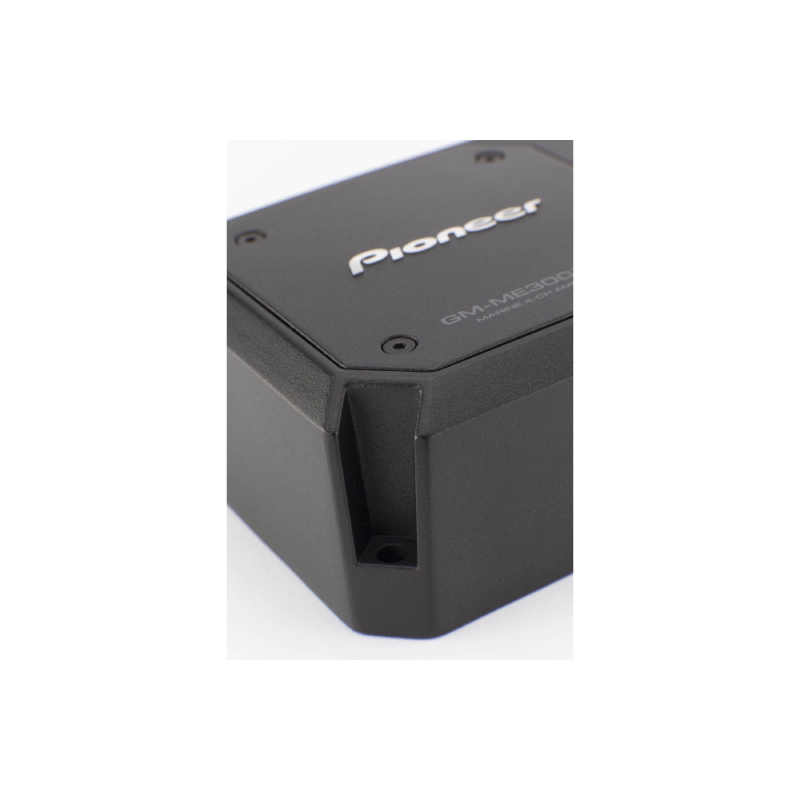

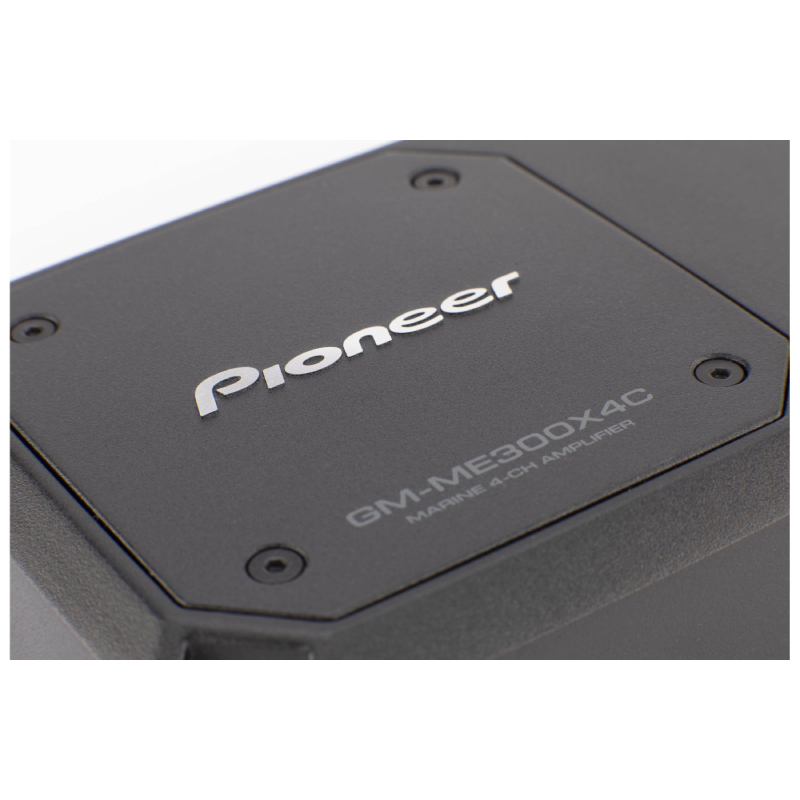

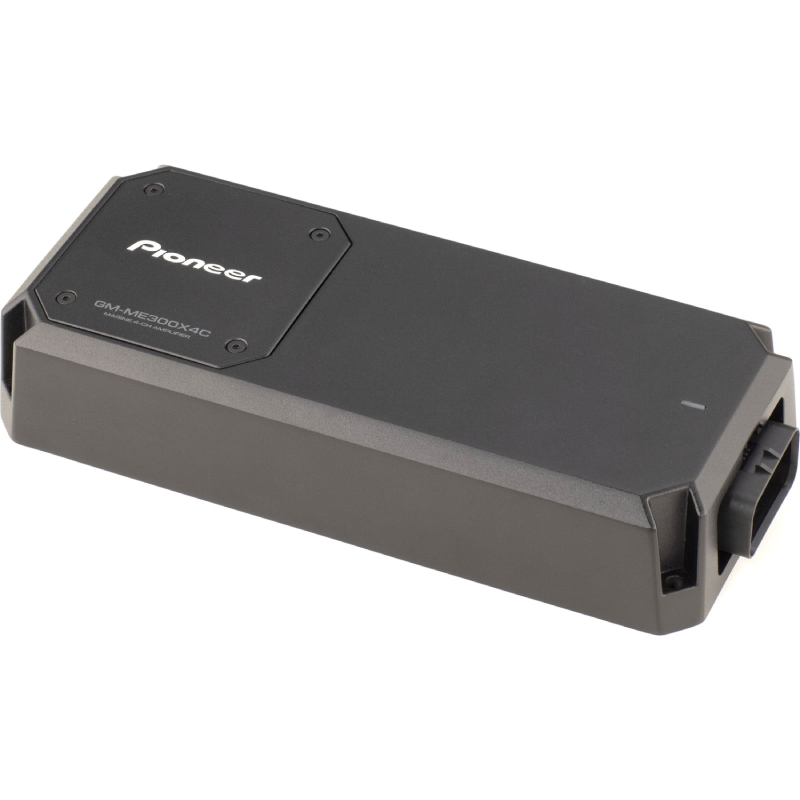

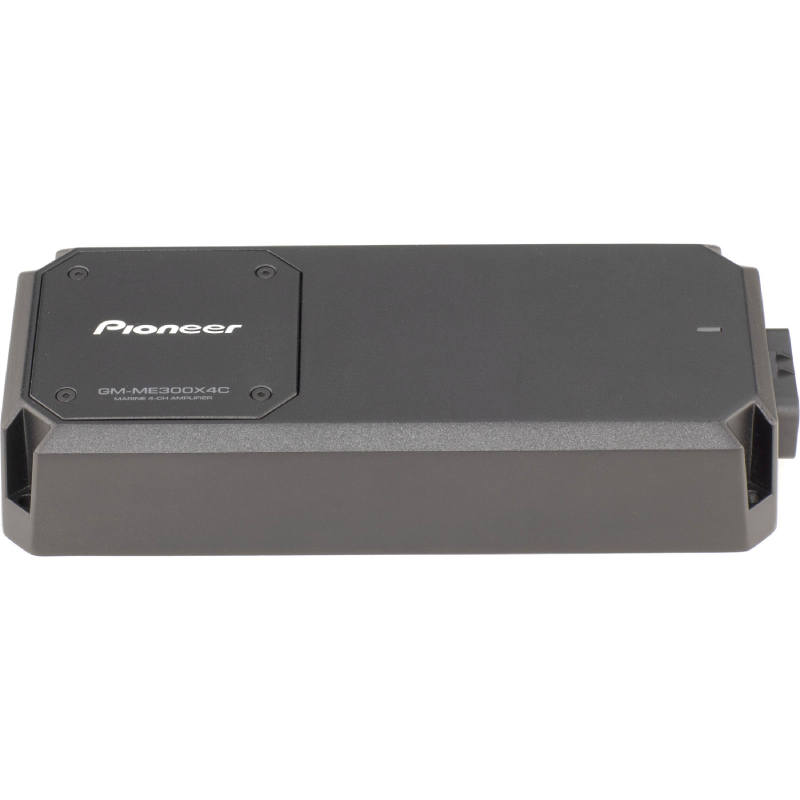

Pioneer GM-ME300X4C Series 6.5" 75W x 4 RMS @2Ohms, 300W Max Power Class D 4-Channel Weatherproof Compact Marine Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

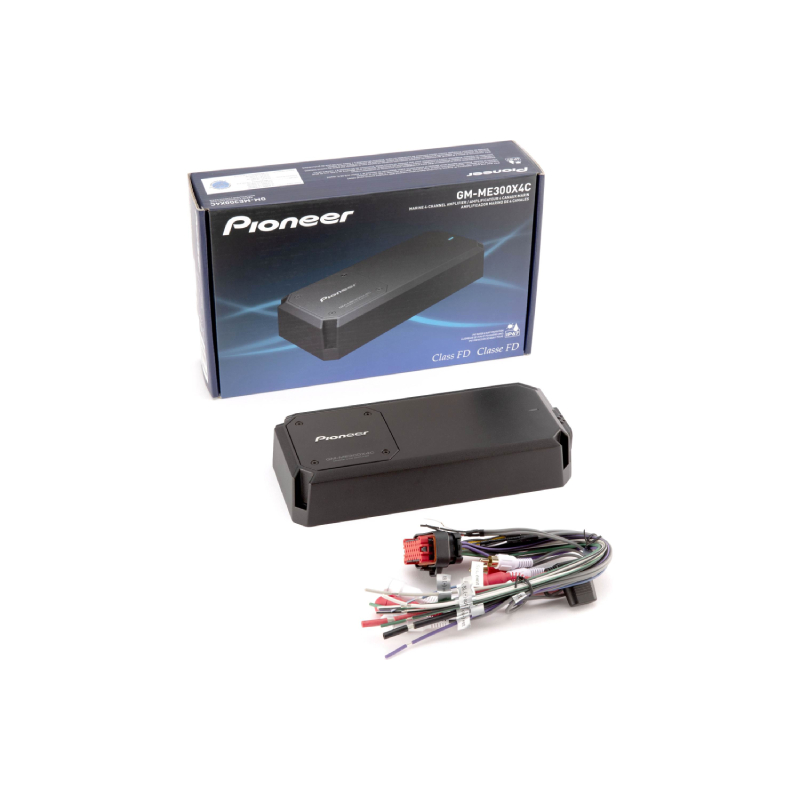

What's Inside?
- • 4-Channel Marine Amplifier
- • One 30-amp ATO fuse in-line (installed)

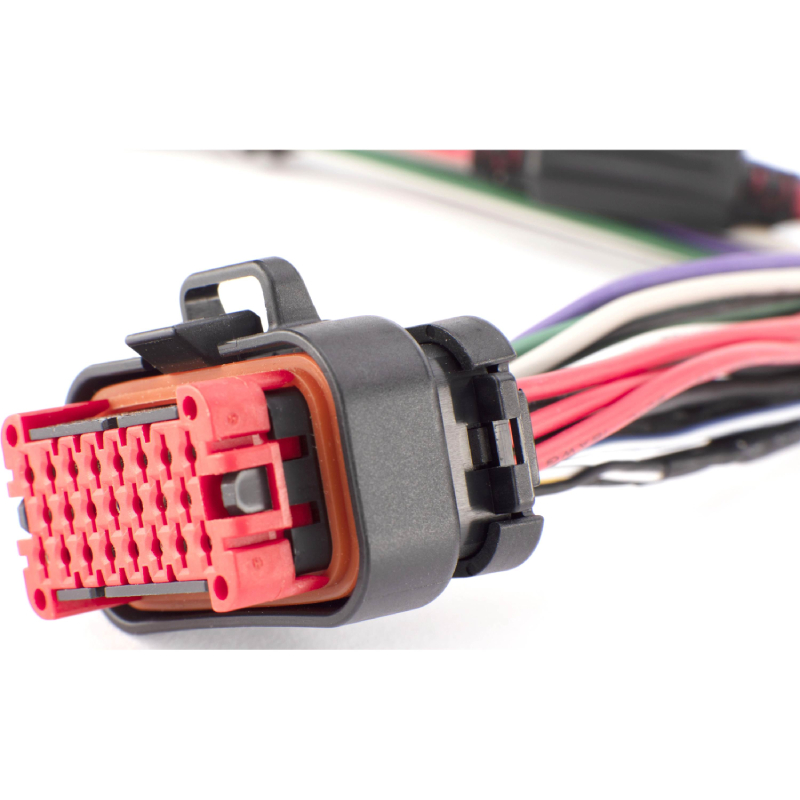

- • Power Harness (1)

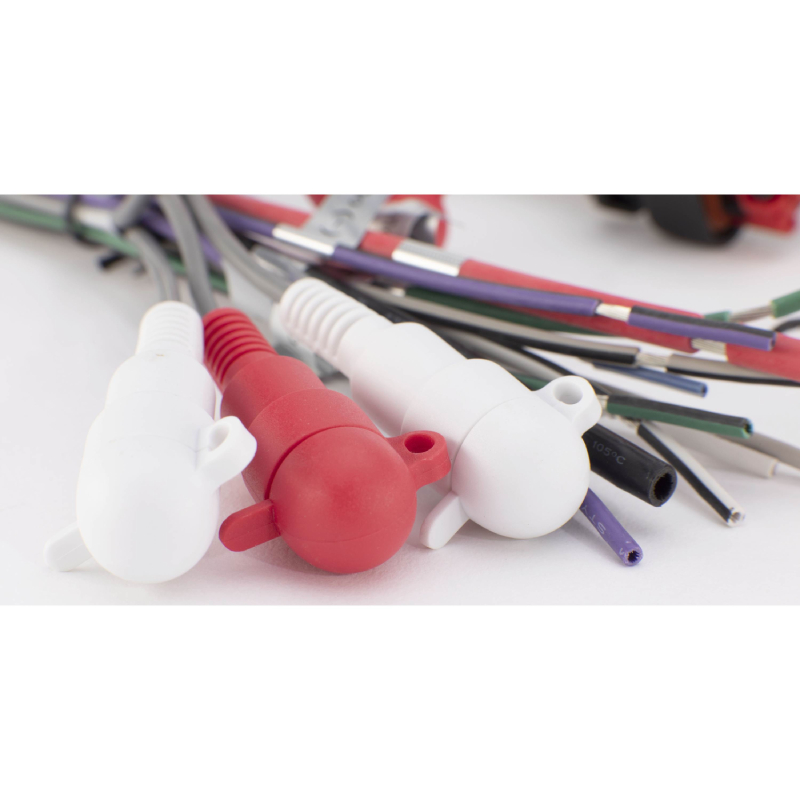

- • Speaker Line Input RCA Cable (2)
- • Installation Screws X 4
- • Supplied Tool (2)
- • Owner's manual (English/ French/Spanish)
- • 1 Year Warranty sheet
Class D Audio Amplifier with Micro Controller Unit design (MCU)
Pioneer is a Class D Marine Amplifier features an MCU design, utilizing a microprocessor to enable and control the amplifier’s audio, power and protection circuits.
Protection Control System (PCS)
Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.
PCB Layout and Design
The PCB for this Pioneer amplifier is made of a glass epoxy substrate which is strong, water-resistant, and provides good insulation between layers to minimize interference while promoting accurate signal with increased electrical connectivity.
- Maximum Power : 300 Watts
- Number of Channels : 4
- Frequency Response : 10-50000 Hz
- Amplifier Class : D
- Fuse Rating : 30 A
Features:
- Class-D audio amplifier
- IP67 rated
- PCS (Protection Control System)
- 21-step frequency selection (LPF/HPF)
- Selectable Power Mode (Mono/ 2CH)
- Bridge Selector switch controlled by Microcomputer
Specifications:
- CEA-2006 Compliant: Yes
- Ingress Protection: IP67
- SAE J1171: Yes
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 5.8 A x 4-Channel - 4 Ohm / 6.6 A x 4-Channel - 2 Ohm
- Continuous-Power-Output: 75 W x 4-Channel - 4 Ohm / 75 W x 4-Channel - 2 Ohm / 150 W x 2-Channel - 4 Ohm (Mono)
- Crossover Network Channel: HPF - A/B Ch 40Hz-500Hz / LPF - A/B Ch 40Hz-500Hz
- Crossover Network Channel Slope: -12db/oct (A/B Ch)
- Frequency Response Channel: 10 Hz to 50 kHz (+0dB,-3dB) A/B Ch
- Fuse Rating: 30A
- Input Level @Gain Max: 0.2 V to 6.5 V - RCA / 0.8 V to 16 V - Speaker
- RCA Input:4-Channel
- RMS Power Output: 2 Ohm - 75W RMS x 4 / 4 Ohm - 75W RMS x 4 / 4 Ohm Mono - 150W RMS x 2
- Signal to Noise: 75 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD-A/B/C Channel: =/< 1% ( 20 Hz to 20kHz) A/B Ch
- Class: D
- Grounding System: Negative
- High Quality Audio Components: Yes
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Rubber Covers Included: RCA
- Terminal Type: Plug
- Unit Weight: 3.1
- UPC: 884938463652
- Weight: 4
