SSV Works WP3-PN3O4A Honda Pioneer 1000 4 Speaker Overhead Weather Proof Audio System
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Overhead speaker enclosure (attached 10' wiring harness)
- • (2) Enclosure mounting brackets
- • (2) J-Brackets
- • (2) J-Bracket rubber inserts
- • (12) M6 x 16mm screws
- • (2) M6 x 30mm screws
- • (16) Flat-washers
- • (4) Lock-nuts
- • (2) Aluminum spacers
- • Fuse holder w/ 6" leads (10A fuse installed)
- • Crimp-on ring terminal
- • (5) 7.5" wire-ties
- • Owner's Manual
Weather Proof

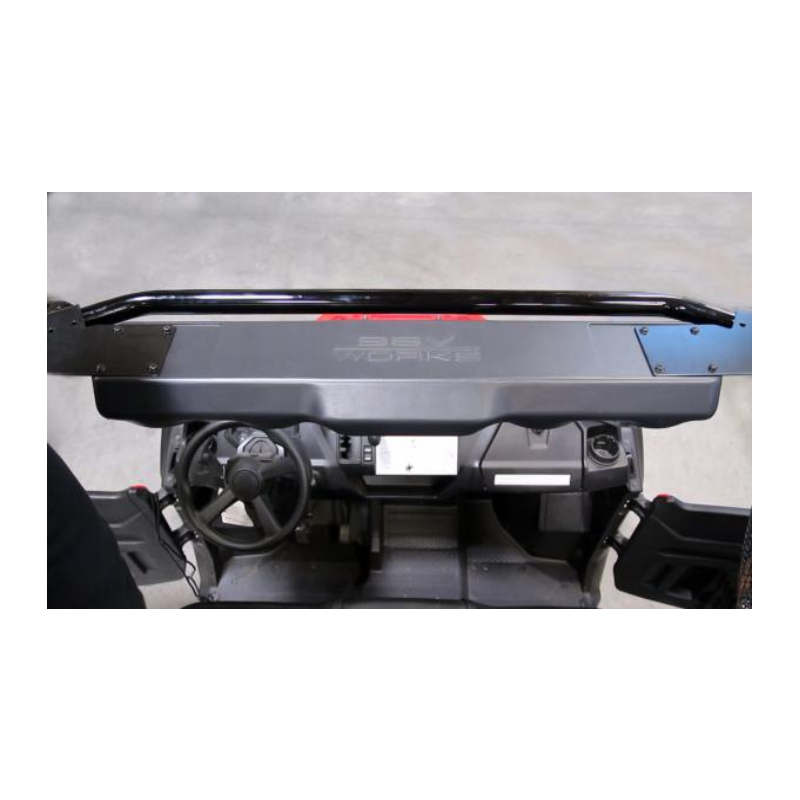

The WP-PN304 provides Hi-Def stereo sound and mounts overhead to your Honda Pioneer 1000 stock cage; Installs in 15 minutes with a simple 2 wire hook up and is totally weather proof. No more radios..Simply connect your Smartphone or MP3 player wirelessly via Bluetooth. System features a built-in 50 watt x4 ultra-efficient low power consumption digital amp designed around UTV's charging system, waterproof speakers, includes AM/FM tuner for local radio reception with internal antenna. Like all SSV Works systems, the enclosure is constructed of fiberglass for maximum durability and the best sound quality. All systems include wiring, mounting hardware and step-by-step instructions. - Optional RCA low-level output for system expansion (requires WP-HRCA adapter)
Frequently Asked Questions (FAQ)
- • Why does the system lose audio after driving through deep water?
Moisture can reach connectors or wiring even when the audio components are designed for powersports use. Inspect plugs, terminals, and cable connections after significant water exposure.
- • Why does the audio cut out only when the vehicle is moving?
Off-road vibration can expose a loose connector, damaged wire, or poorly secured component. Check the wiring for movement and make sure connections are firmly seated.
- • What causes the speakers to sound muffled after a muddy ride?
Mud or debris around the speaker area can affect sound output. Carefully clean the exterior and inspect the grille or speaker opening without damaging the components.
- • Why is there a delay or interruption when switching audio sources?
Bluetooth devices and source units can take a moment to reconnect or change inputs. Confirm the selected source and allow the device to complete its connection before troubleshooting the speakers.
- • Why does the system shut down when playing music loudly?
A power supply issue, excessive electrical load, overheating, or amplifier protection can cause the audio system to shut down. Check the power, ground, fuse, and amplifier status.
- • What should I check if only one channel stops working?
Start by checking the affected speaker's wiring and connector. Swapping the channel connections can help determine whether the problem is with the speaker, cable, or source channel.
- • Can repeated washing cause intermittent audio problems?
High-pressure water can force moisture into connectors and areas that are not designed to withstand direct spray. Avoid spraying electrical connections directly and inspect them if intermittent operation develops.
- • Why does the audio become distorted when the vehicle battery is under load?
Voltage fluctuations can affect amplifier performance, particularly when other high-current accessories are operating. Check the battery, charging system, power wiring, and amplifier connections.
- • Why does the system sound fine at low volume but become noisy at higher volume?
The issue may be caused by amplifier clipping, an overly sensitive input level, poor gain adjustment, or a weak power connection. Proper system tuning can usually narrow down the cause.
- • What can I do if the system stops working after sitting unused?
Check the battery voltage and all main power connections first. Corrosion, a discharged battery, or a loose terminal can prevent the system from powering up even when the audio components are otherwise functional.
Features:

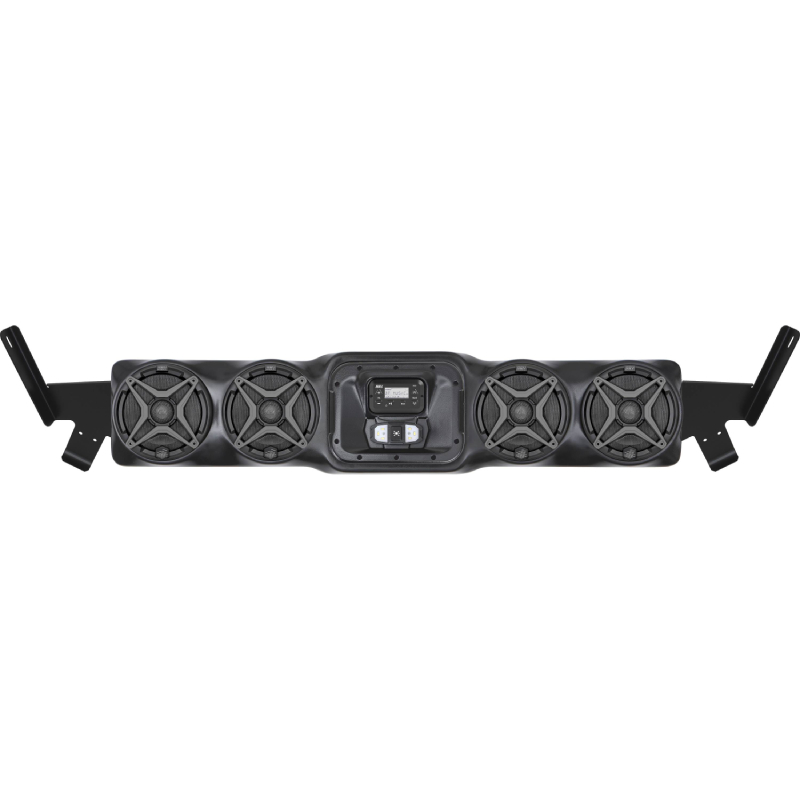

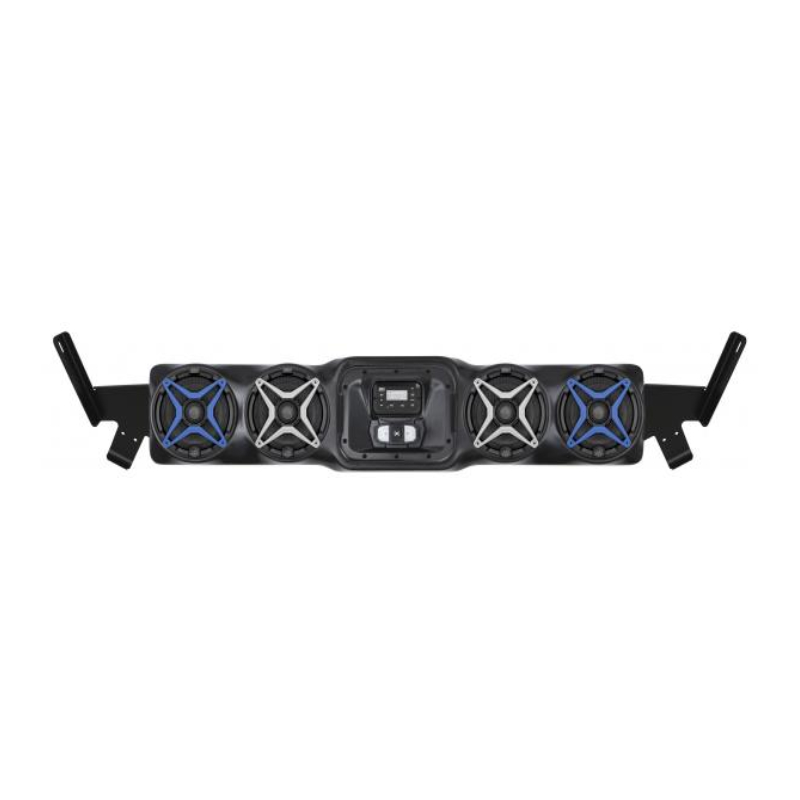

- sound bar includes MRB3 digital media receiver, four WP-A6 speakers, and a dome light
- designed for easy, plug-and-play installation on your Honda Pioneer 1000
MRB3 Digital Media Receiver Specs:
- marine/powersports digital media receiver (no CD player)
- hideaway module includes AM/FM tuner and amplifier
- power specs: 200 total watts peak — 25 watts RMS (50 peak) x 4 channels
- built-in Bluetooth music streaming (30' range)
- glove-friendly buttons
- weatherproof wiring harness
- highly legible LED display (black on white)

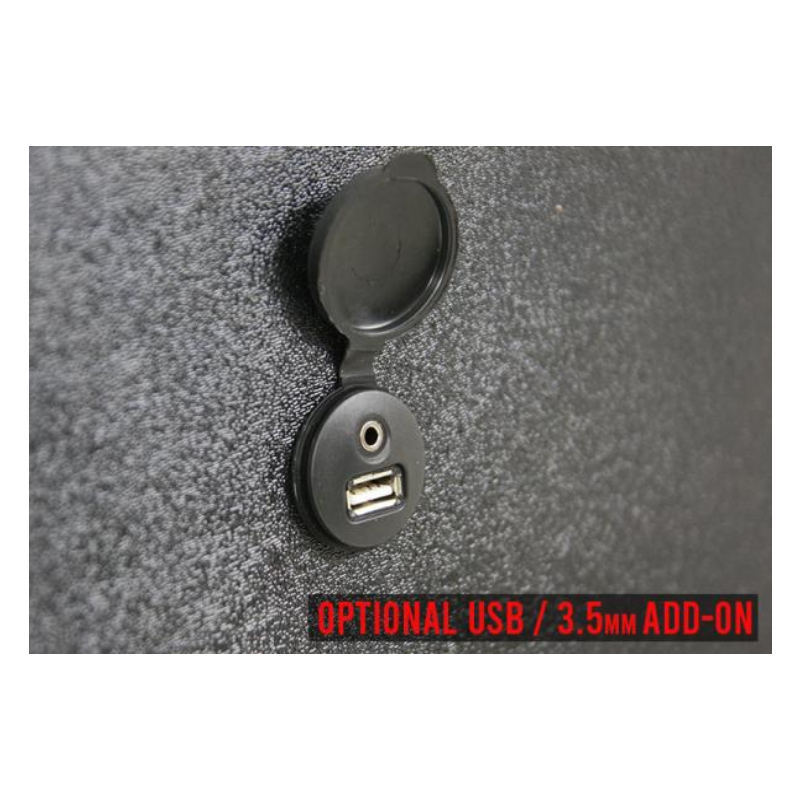

- inputs: 3.5 mm AUX input; USB input
- outputs: 2-channel 4-volt preamp outputs
- warranty: 1 year
WP-A6 Speaker Specs:
- 6-3/4" speakers made for off-roading (four)
- 1" titanium tweeter mounted on grille
- weather-resistant poly woofer
- Santoprene rubber surround
- paintable speaker grilles
- positive lock connectors keep speaker wires secure
- impedance: 4 ohms
- power handling: up to 60 watts RMS (120 watts peak)
- warranty: 1 year (speakers); limited lifetime (enclosure)
- UPC: 815172013983
- Weight: 30
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
