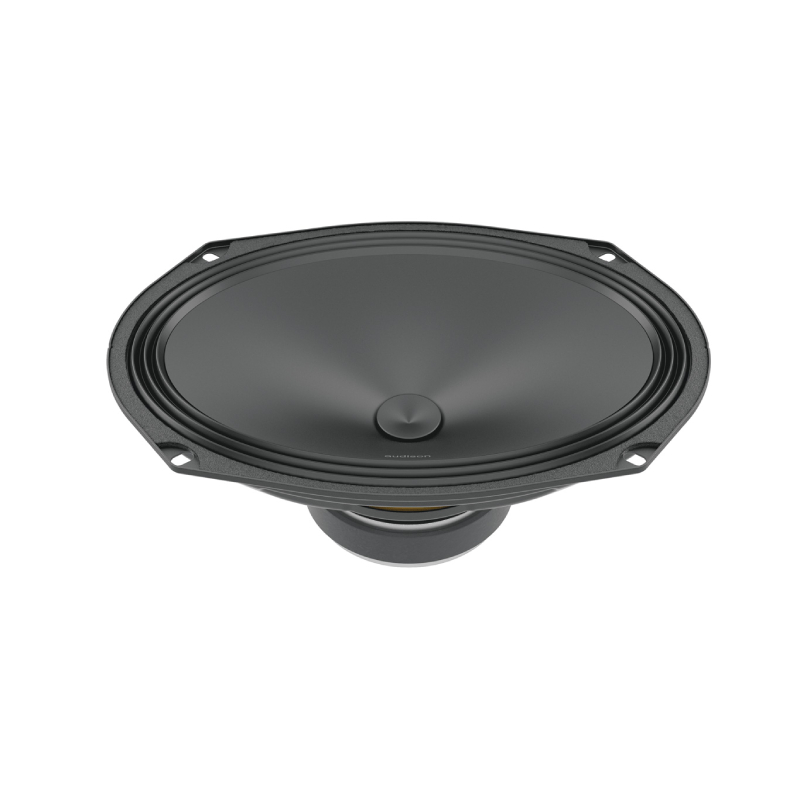

Audison AP 690 - PRIMA Series 6x9" 300W Peak Power Handling at 4-Ohms, Woofer Component System
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
High Power Handling and Impeccable Control
AP 690 is ideal for car models with doors equipped to house elliptical speakers. The R&D team optimized the electro-acoustic parameters for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation.The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
- Diameter : 6x9 Inch
- Maximum Power : 300 Watts
- Sensitivity : 95 dB
- Impedance : 4 Ohm
- Frequency Response : 40-5000 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 100 Watts
Features:

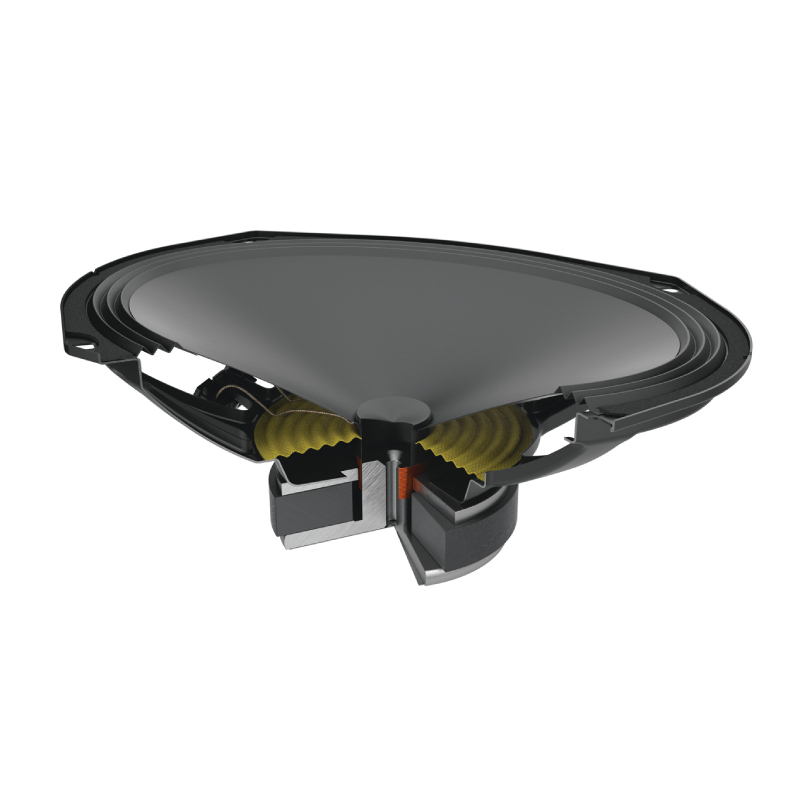

- 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- Reduced mounting depth, providing ease of installation in OEM placements.
- “Triple Wave” surround profile for maximum excursion linearity
- Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
Specifications:
- Size: 6 x 9 in.
- Power Handling:
- 100 W: Continuous Power
- 300 W: Peak Power
- Impedance: 4 Ohms
- Frequency Response: 40 ÷ 5k Hz
- Sensitivity: 95 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent treated paper cone
- UPC: 8018823131841
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
