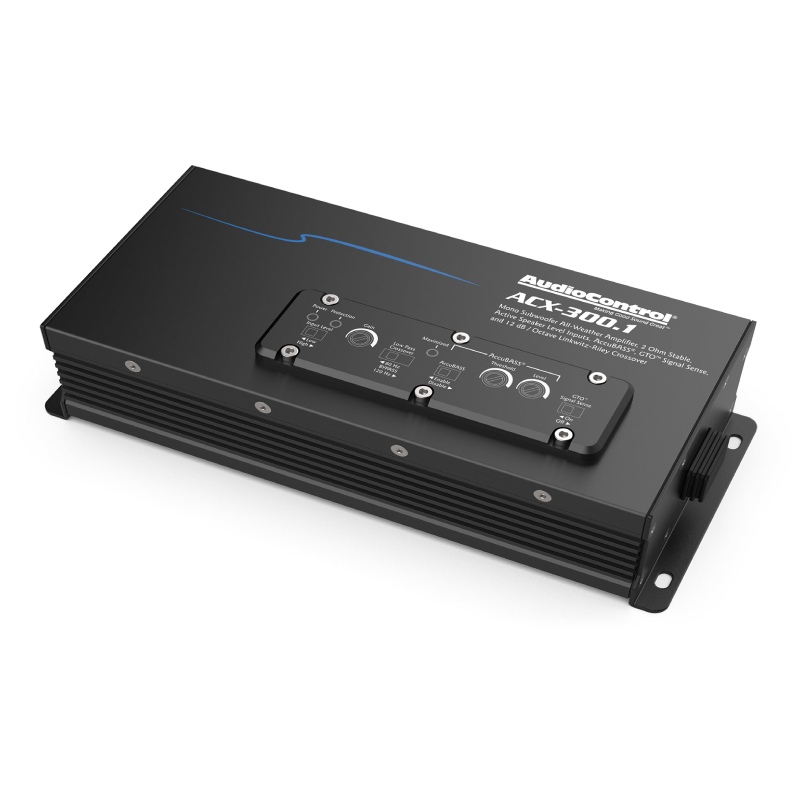

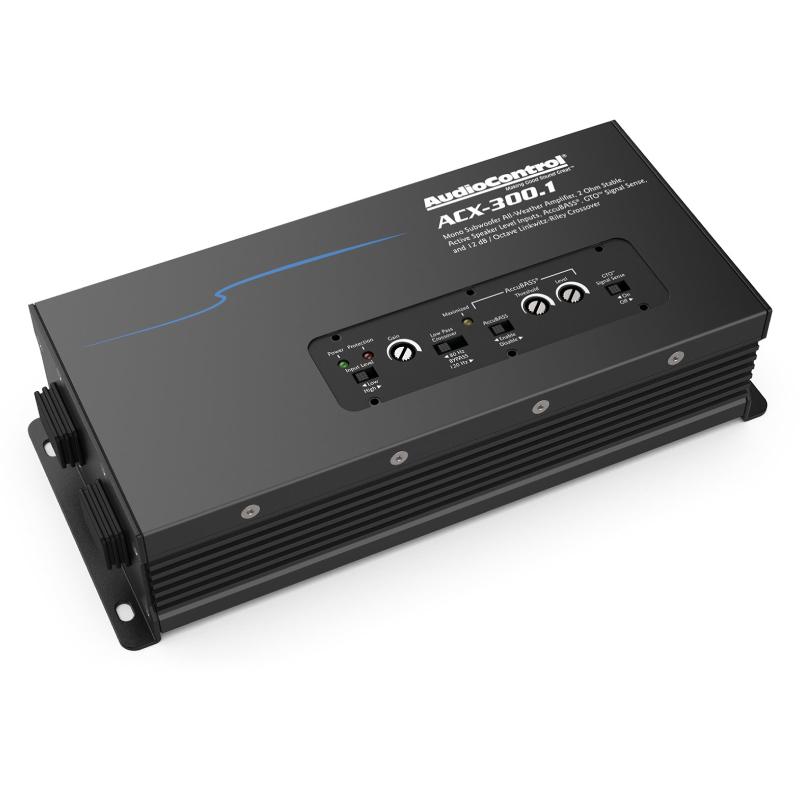

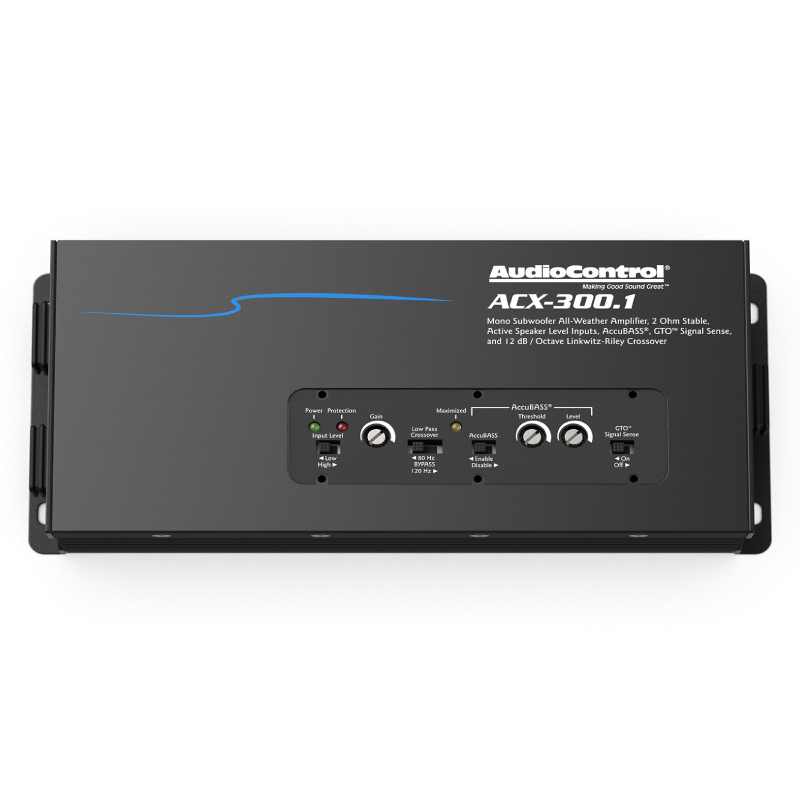

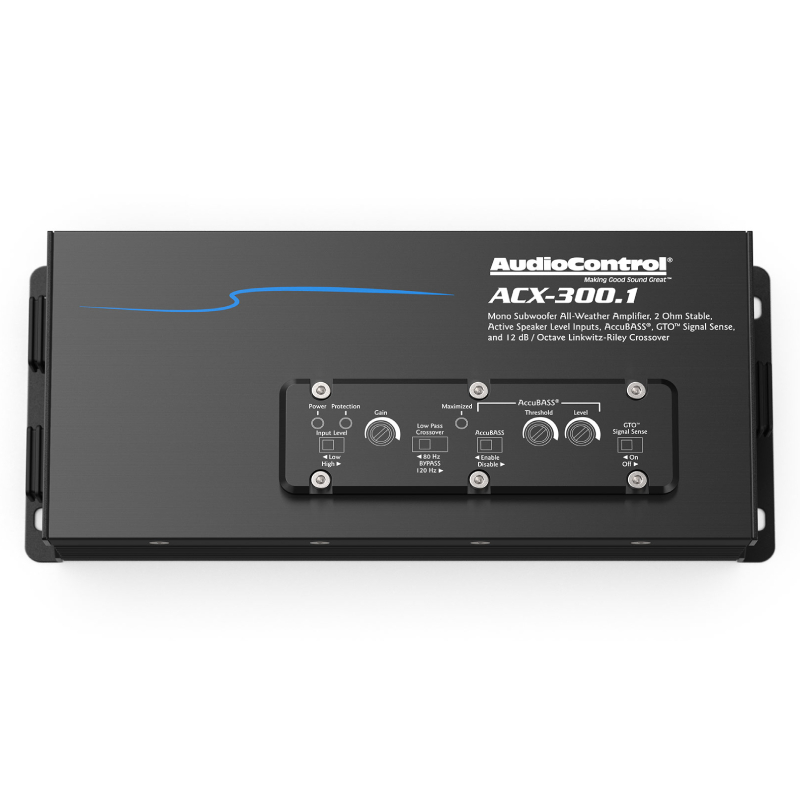

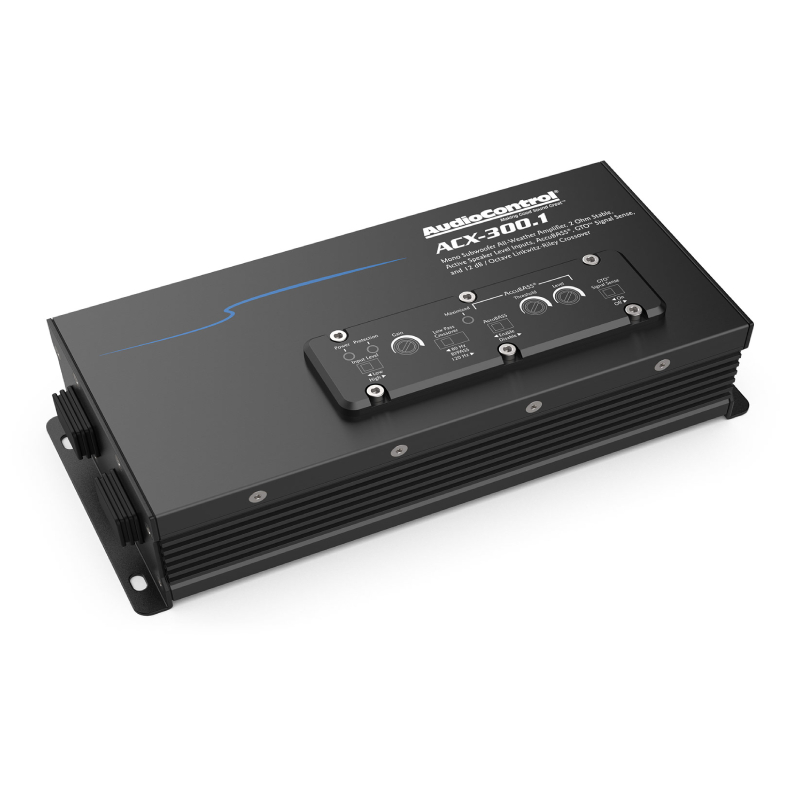

AudioControl ACX Series Monoblock All-Weather Marine Amplifier
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Mono amplifier (attached 12" power/ground/input/output harnesses)
- •7" Power & ground harness (10 ga.)
- •16.5' ACR-1 Remote Level Control cable w/ a RJ-14 plug on one end and a male 3.5mm plug on other end (ACR-1 Remote Level Control not included)
- •Power & ground connector (empty)
- •(2) Crimp-on terminals for power & ground harness
- •Harness locking pin
- •2 Rubber grommets
- •Four 3/4" screws
- •Quickstart guide
- •Owner's Manual
Ensures Powerful and High-quality Sound on the Water
The AudioControl ACX-300.1 marine amplifier is built to withstand the challenging marine environment while delivering exceptional audio performance. Designed specifically for boat and watercraft applications, this amplifier ensures powerful and high-quality sound on the water.
Delivers Efficient Performance
With an RMS power output of 300 watts RMS at 2 ohms, the ACX-300.1 marine amplifier provides the necessary power to drive your marine speakers or subwoofer with clarity and precision. Its Class D amplifier technology delivers efficient performance with minimal heat generation, ensuring reliable operation in harsh marine conditions.
Protected Against Moisture
Equipped with marine-grade components and conformal coating, the ACX-300.1 is protected against moisture, salt, and UV rays. This ensures long-lasting durability and resistance to corrosion, allowing it to thrive in marine environments.
Features a Compact and Sleek Design
The ACX-300.1 features a compact and sleek design, making it easy to install in limited spaces on your boat. Its adjustable crossover and bass boost controls allow you to fine-tune the audio output to match your preferences and the acoustics of your vessel.
- Low Frequency Response : 26 Hz
- High Frequency Response : 22000 Hz
- Number of Channels : 1
- Frequency Response : 26-22000 Hz
Features:
- Overview: The AudioControl ACX-300.1 all-weather amplifier is a compact mono amp designed for your boat, ATV, UTV, motorcycle, and more. The all-weather amp can provide 175 watts RMS into a 4? load and 300 watts RMS into a 2? load. The ACX-300.1 also features both RCA line-level and speaker-level inputs, making it ideal for OEM and aftermarket headunits.
- High-/Low-Level Inputs: The ACX-300.1 includes two built-in 12" RCA inputs that can accept either high- or low-level input signals. If running high-level signals, RCA to speaker-wire adapters must be used (sold separately), or the RCA connectors must be cut off and the bare-ended wire used.
- AccuBASS: The patented AccuBASS processing circuit compensates for factory bass rolloff to improve bass performance, especially with most factory installed sound systems. The circuit has two rotary controls: the Threshold lets you dial in the level at which the AccuBASS will begin to work, and a Level control that adjusts the amount of AccuBASS compensation.
- Crossovers: The ACX-300.1 includes a 12 dB/octave Linkwitz-Riley low-pass filter with a 3-position switch to change the crossover point. Choices include 80Hz, 120Hz, or Bypass.
- Gain Maximized LEDs: The mono amp's inputs include a Gain control to the properly set the overall output level. A Maximized LED indicator will light to let you know when the output signal has reached its optimum performance level, helping to avoid running a distorted signal to your speakers.
- GTO (Great Turn On) Signal Sense: If you are connecting the amplifier to a factory stereo, or an aftermarket unit without preamp outputs and a remote turn-on lead, the GTO Signal Sense circuitry can turn on the amplifier when an audio signal is detected on either the line-level or speaker-level inputs. After a period of time with no signal input, the amp will turn itself off.
- Optional Wired Remote Control: The ACX-300.1 amplifier features a female 3.5mm jack on a built-in 12" harness, letting you connect an optional ACR-1 wired remote control (sold separately). A 16.5' ACR-1 connection cable is provided, with a male 3.5mm connector on one end and an RJ-14 connector on the other end, that connects to the wired controller.
- All-Weather Construction: The ACX-300.1 amp has been constructed to withstand outdoor environments and carries an IPX6 waterproof rating, making it impervious to weather. A removable cover-plate on top of the amp protects the controls and LED indicators from dust and moisture ingress. The cover-plate screws require a 2.5mm hex bit for removal (not included). All wire harnesses on the amp are built-in for added weather resistance
- Mounting: The AudioControl ACX-300.1 features built-in mounting flanges on either end of the amp, with two pre-drilled holes in each, allowing the amp to be mounted in a variety of locations. Four 3/4" screws are provided for mounting.
Specifications:
- 1 x 300 watts @ 2 ohms
- 1 x 175 watts @ 4 ohms
- Preamp/Speaker Level Inputs: 2
- Input Voltage Low: 500 mV – 6 Vrms
- Input Voltage Range High: 1 Vrms – 12 Vrms
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.05%
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
- Recommended Fuse Rating: 30A
- Dimensions: 9.0″W x 3.875″D x 2.25″H
- UPC: 851523007829
- Weight: 5
