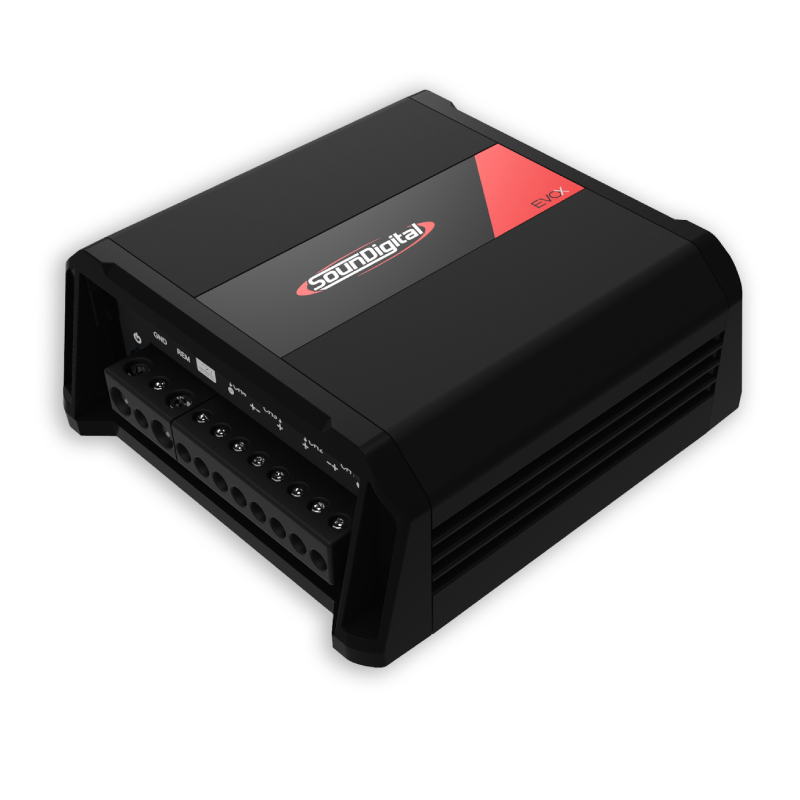

SounDigital  400.4 EVOX 4OHMS-OB

EVOX Series 4 Channel 4-ohm Amplifier - (Open Box)

Item #80006

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Available alternative products:


Huge Saving on Other items:


SounDigital EVO X 400-Watt Amplifier

Driving a small vehicle doesn’t mean you need small audio to go with it. The SounDigital 400.4 four-channel car amplifier is designed to pack a punch when you have limited space to work with. Each of the channels puts out 100 watts of power to bump up the performance of your front and rear speakers. You can also bridge the amplifier to a two-channel design, doubling the power for a front speaker–only setup. Use it with two-ohm or four-ohm electronics to experience high performance in a compact size.

If you like to crank up the music or go on long trips, the SounDigital EVO X is prepared for that. Dynamic thermal dissipation and recovery reduce the operating temperature, making the amplifier more efficient with less distortion. SounDigital has also added spring-like devices that extend the amp’s lifespan by absorbing vibrations from the engine or bumps in the road.

Crank up the volume in compact and subcompact cars by adding a SounDigital 400-watt EVO X series amp to a factory or aftermarket stereo systems. OnlineCarStereo.com has a low price guarantee and lifetime technical support on this amplifier evolution.



SPECIFICATIONS


  • Maximum Power : 400 Watts
  • Number of Channels : 4
  • Frequency Response : 5-22000 Hz
  • Fuse Rating : 20 A

FEATURES


Dynamic Thermal Dissipation

A system that provides a faster heat exchange with the environment, increasing the efficiency of the amplifier resulting in lower levels of distortion during long working periods.

Reduced Size

The technology used in the SounDigital products brings both high performance and power in a small chassis, providing installation solutions for vehicles with limited space and finishing.

Dynamic Thermal Recovery – DTR

The DTR is a dynamic thermal recovery system which always maintains a high efficiency of the amplifier by accelerating the thermal exchange of electronic components with the heatsink.

  • Aluminum heatsink
  • Conductive copper layer
  • Electronic component
  • Vibration Absorption Device

SounDigital added a new device to the EVO X products which act like springs, reducing the impact of vibration on the electronic circuit board, thereby increasing the life and reliability of the amplifiers.

Features:

  • 400.4 EVOX – 4 ohms
  • Power @ 12.6V @ 4ohms: 4 X 66 WRMS
  • Power @ 12.6V @ 2ohms: 4 X 100 WRMS
  • Power @ 12.6V @ 1 ohms: N/A
  • Bridge Power @ 12.6V @ 4ohms: 2 X 200 WRMS
  • Bridge Power @ 12.6V @ 2ohms: N/A
  • Power @ 14.4V @ 4ohms: 4 X 74 WRMS
  • Power @ 14.4V @ 2ohms: 4 X 112 WRMS
  • Power @ 14.4V @ 1 ohms: N/A
  • Bridge Power @ 14.4V @ 4ohms: 2 X 223 WRMS
  • Bridge Power @ 14.4V @ 2ohms: N/A
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 19 A
  • Current Draw (Max): 39 A
  • Recommended Fuse (Music): 20 A
  • Total Efficiency: 82%
  • Damping Factor: 200
  • Frequency Response (-3dB): 5Hz – 22kHz
  • SNR: 88dB
  • Crossover HPF: 45Hz – 850Hz
  • Crossover LPF: 45Hz – 850Hz
  • THD + N (10% Rated Power): 0.1%
  • Product Dimensions: 4.8 x 4.4 x 2.0 in
  • UPC:
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 90 Days Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
