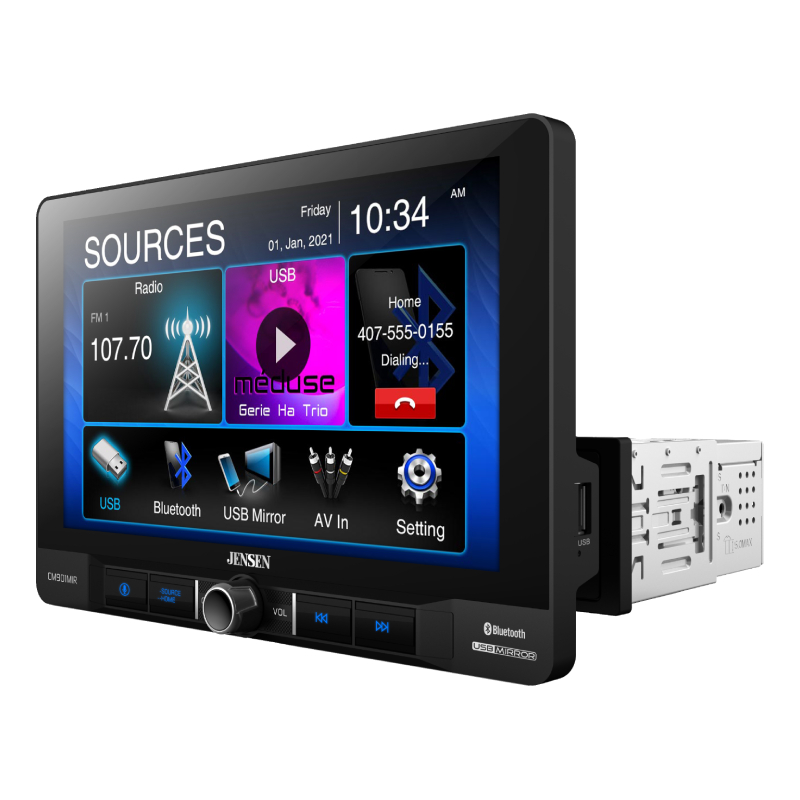

Jensen CM901MIR Digital multimedia receiver
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •9" Touchscreen monitor. Source unit (15A fuse)
- •Mounting sleeve (pre-installed)
- •Trim-ring
- •Wiring harness
- •AV/Preout harness
- •Microphone with visor-clip (attached 13' cable terminated by a right-angle male mono-minijack connector)
- •Self-adhesive bracket
- •(6) Panel covers
- •(5) Top-mounting screws
- •(4) LCD mounting screws
- •(4) ISO-screws
- •Rear-support stud
- •Hex-nut
- •(2) Lock-washers
- •Flat-washer
- •(2) Removal tools
- •Quick Start Guide
- •Installation Guide
- •Operating Guide
Phone Mirroring for Apple and Android Devices
Jensen's equipped the CM901MIR with phone mirroring for Apple and Android devices. Connect your phone via USB and you'll see your smartphone's display on the receiver. The adjustable 9" touchscreen display can be swiveled, tilted, and pivoted for the optimal viewing angle. It's great for watching video content when you're parked, and also serves as a monitor for optional
Siri and Google Assistant for Voice Control
A dedicated push-to-talk on the face of the receiver activates Siri and Google Assistant for voice control of your phone. The CM901MIR's built-in Bluetooth wireless technology adds the convenience you've come to expect. You'll be able to access your phonebook and make hands-free calls, plus stream music complete with artist information.
Three Sets of High-voltage Preamp Outputs
You can connect and charge a smartphone or access media on thumb drives with the front-mounted USB port. Three sets of high-voltage preamp outputs let you add amplifiers to power your speakers and subs. It's simple to adjust your sound on the fly with the graphic EQ's user-definable preset and seven preset curves, and the tuner's 30 presets let you store a whole city's worth of favorite stations.
- Satellite Radio Ready : No
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- HD Radio : No
- Front USB Input : Yes
- Preamp Outputs : 3
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
- USB Mirroring : Yes
Features:
- 9" Touchscreen Monitor: The Jensen CM901MIR includes a large 9" touchscreen LCD monitor with LED backlit and a resolution of 1,152,000. The large display is easy to see and navigate. The large touchscreen display maximizes your driving experience by making it easy to navigate and manage your music and apps effortlessly with the utmost convenience. The 9" capacitive monitor attaches and plugs into the front of the CM901MIR's separate source unit which mounts in a standard 2" single-DIN opening in a variety of vehicles.
- Single-DIN Source Unit: The included source unit fits in a standard 2" single-DIN opening (applicable kit, harness, etc. will be required and sold separately for your vehicle). Once the source unit is mounted in the dash, the 9" touchscreen monitor attaches and plugs into the front of the source unit using the integrated wiring harness and included hardware. All of the CM901MIR's inputs and outputs are found on the rear-panel of the source unit, except for a USB-A 2.0 port that is located on the side of the 9" touchscreen monitor.
- Hard-Key Controls: In addition to its 9" touchscreen, the Jensen CM901MIR offers front-panel hard-key controls that consist of a 3-way rotary knob and 4 push-buttons that operate frequently used functions such as Power On/Off, Volume Up/Down, Source Selection, Voice Commands, and Menu.
- Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.
- Hands-Free Communication: The CM901MIR supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The included external microphone carries on your side of the conversation, while your car's speakers are used to hear the other person. You can increase or decrease the volume level of a call, using the head unit's rotary knob on the front panel. You can also transfer calls between the receiver and your Bluetooth enabled phone.
- Wireless Audio Streaming: The Jensen CM901MIR allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause, Previous/Next Track) from the CM901MIR. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit will also display song/artist information (no album art) from a connected Bluetooth audio device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.
- USB Screen Mirroring: Through the USB port (located on the side of the touchscreen monitor) and a Bluetooth connection, the Jensen CM901MIR can mirror the screen of your Apple iPhone (iOS 12.1+) with Lightning connector or Android smartphone (OS 4.4+) on its 7" LCD touchscreen monitor. You'll also be able to hear audio from your mirrored device through your car speakers. USB Mirroring allows you to integrate your favorite apps with the Jensen receiver. Enjoy entertainment apps and more through the Jensen CM901MIR. You can even position the screen in either a landscape (horizontal) or portrait (vertical) orientation when mirroring your mobile device. The Jensen receiver does not offer touchscreen control of your mobile device; you will continue to use your mobile device's touchscreen for control.
Specifications:
- 9" Extra-large touchscreen LCD (1024x600)

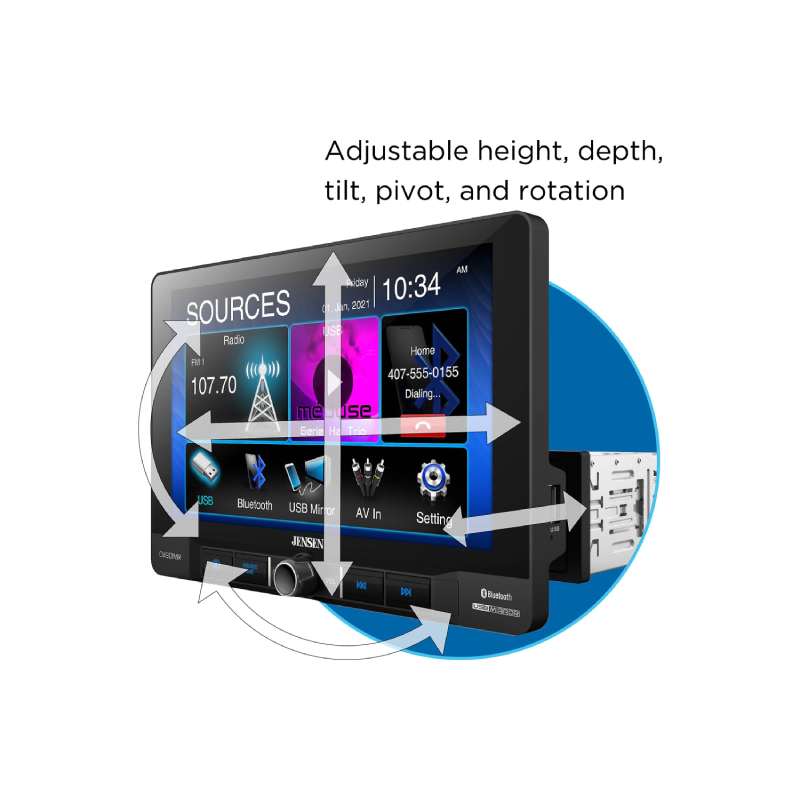

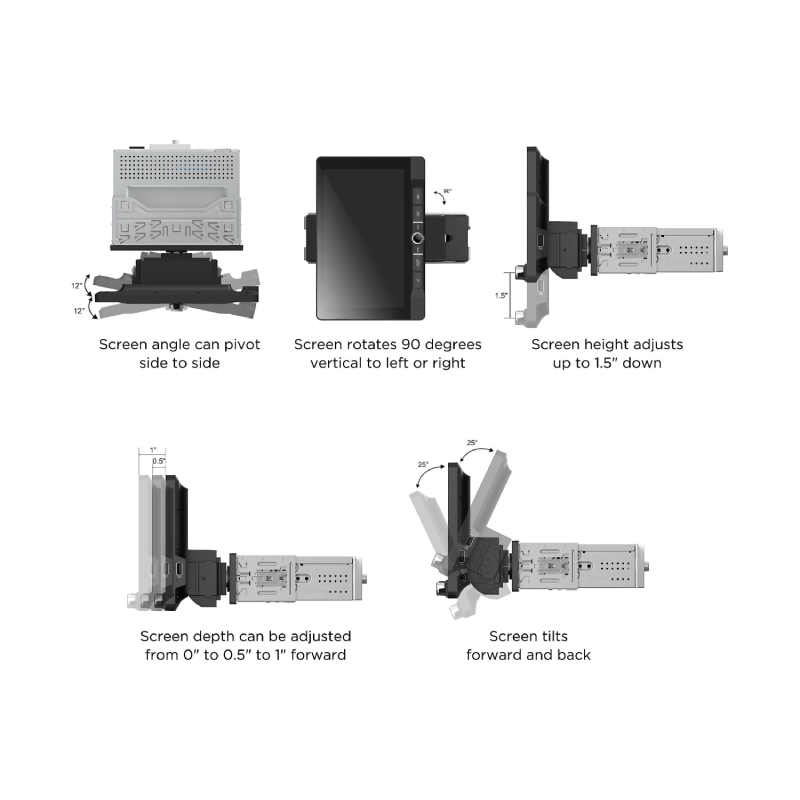

- Screen Adjustments: Height, depth, Tilt, Pivot and Rotation
- USB Screen Mirroring for smartphones (Apple®/Android™)
- (Mirroring is enabled only when the vehicle is in park and the parking brake engaged)
- Bluetooth® with hands-free calling, music streaming, phonebook support (HFP, A2DP, AVRCP, PBAP)
- Inputs:
- Front USB input (1.5A)
- Rear RCA A/V input
- Back-up camera input (RCA)
- Steering Wheel Control input (SWC adapter required)
- Outputs:
- 3 Pairs of 4V preamp outputs (F/R/S)
- Power: 240 Watts (60 W x 4) MOSFET
- Push-to-talk button to access smartphone voice assistant
- Media playback: USB
- File formats: MP4/MP3/FLAC
- Audio: 8 Band graphic EQ
- Audio: 8 EQ presets (Pop, Rock, Jazz, Classical, Electric, Flat, Soft & Custom)
- Time Alignment
- Tuner: AM/FM with 30 stations presets (18FM/12AM)
- Digital media unit – will not play CDs/DVDs
- UPC:
- Weight: 8
