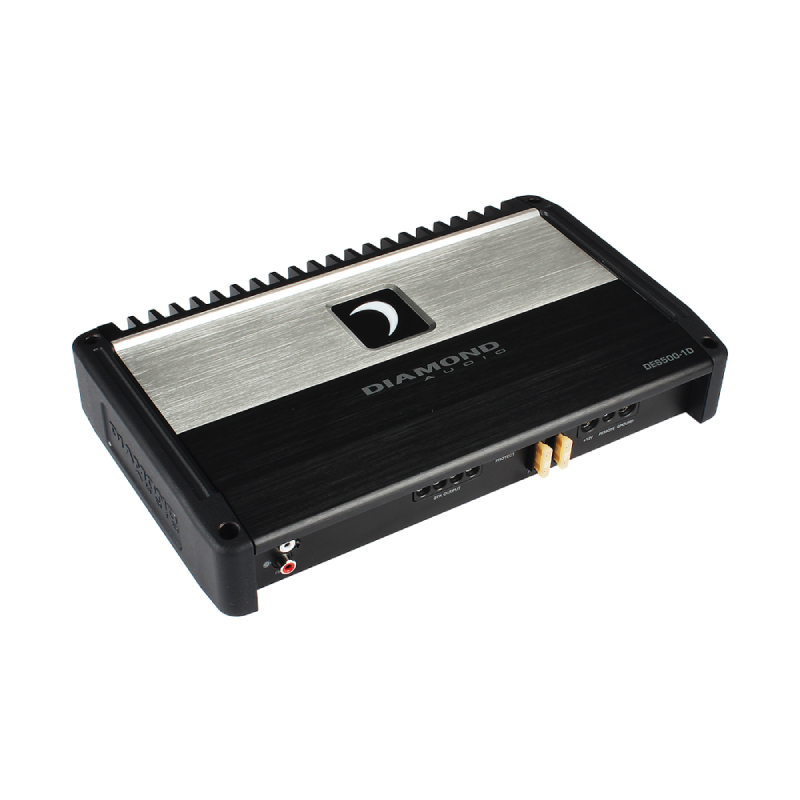

Diamond Audio  DES500.1D

Diamond Elite Series 500WX1@1Ohm, 500WX1@2Ohms, Class D Full Range Mono Sub Amplifier

Item #80601

Product Highlights

  • Diamond Elite Series Mono Sub Amplifier
  • 500W x1 @ 1 Ohm / 500W x1 @ 2 Ohms
  • Class D Full Range Design
  • High-Performance Audio Output
  • Durable and Reliable Construction

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 500 Watts
  • Number of Channels : 1
  • Amplifier Class : D
  • Fuse Rating : 30x2 A

FEATURES


Features:

  • Latest High-Efficiency Full-Range Digital Topology
  • Surface Mount Component Technology with 4-Layer PCB

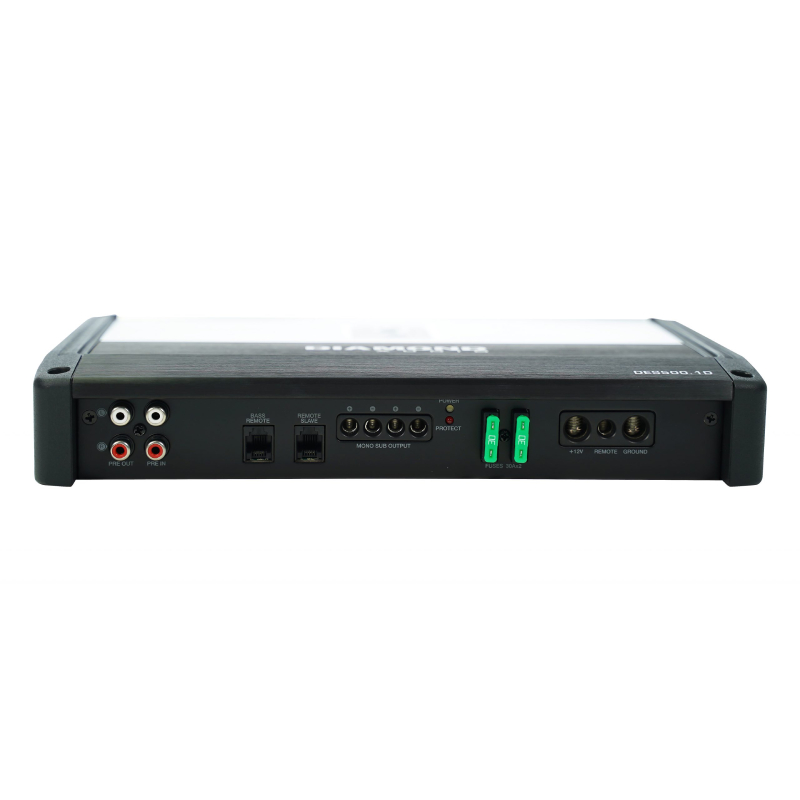

  • Common Compact Size with Single-Sided Connections and Top Mount Controls
  • Handles HI and LO level input up to 12V
  • Switched Speaker Level Turn On Options (VOX/DC Offset/REM)

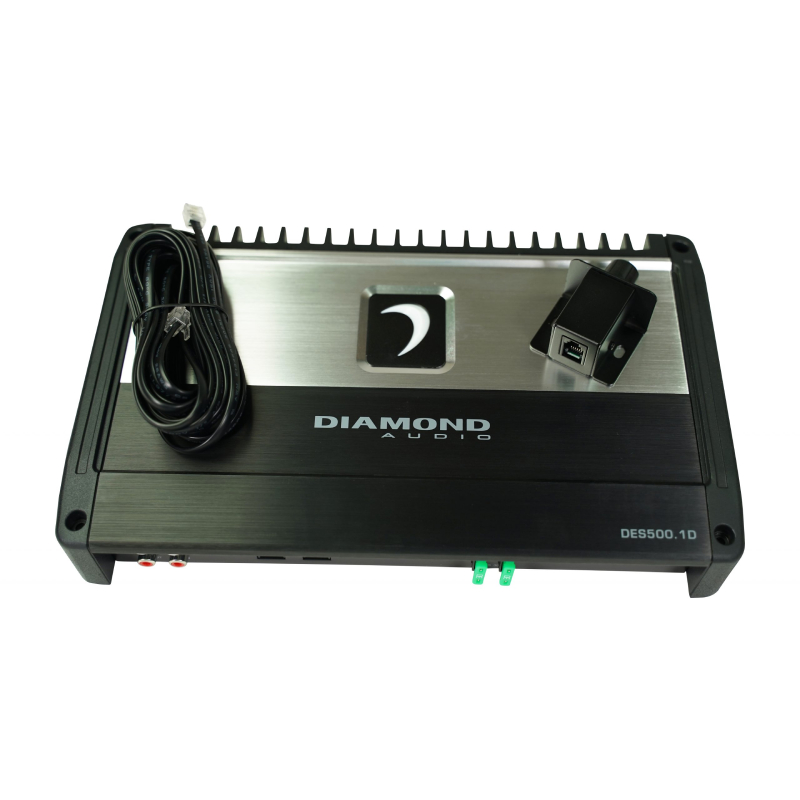

  • Remote Bass Level Control Included
  • Fully Variable 35Hz – 350Hz 12dB per Octave Crossovers
  • 0 -180 Degrees of Phase adjustment
  • Bass Boost EQ Up To 12dB



Specifications:

  • RMS Power (1 Ω): 500W X 1 RMS
  • RMS Power (2 Ω): 500 W X 1 RMS
  • RMS Power (4 Ω): 450 W X 1 RMS
  • Topology: Monoblock Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.05%
  • S-N Ratio (A-weighted @ 1W): -77.2dBA
  • S-N Ratio (A-weighted @ 1W): -98.9dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES- UP to 35 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: 22 KΩ
  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: N/A
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 30Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz
  • Fuse Rating (ATC): N/A
  • Dimentions- Length x Width x Height (inches): 8.56″ x 5.27″ x 1.75″
  • Dimentions- Length x Width x Height (mm): 217.6 x 133.9 x 44.5 mm

For more Information:

DES500.1D Owner's Manual

  • UPC: 765531603884
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
