Diamond Audio  HXM800.2D Hot Deal

MOTORSPORT Hex Series 300WX2 @4Ohms Full Range Class D 2-Channel Marine Amplifier

Item #80616

Condition:   Brand New

Product Highlights

  • MOTORSPORT Hex Series 2-Channel Marine Amplifier
  • 300W x 2 @ 4O
  • Full Range Class D
  • High-Performance Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$409.95

Reg. Price $599.99  Save $190.04

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Brand Banner

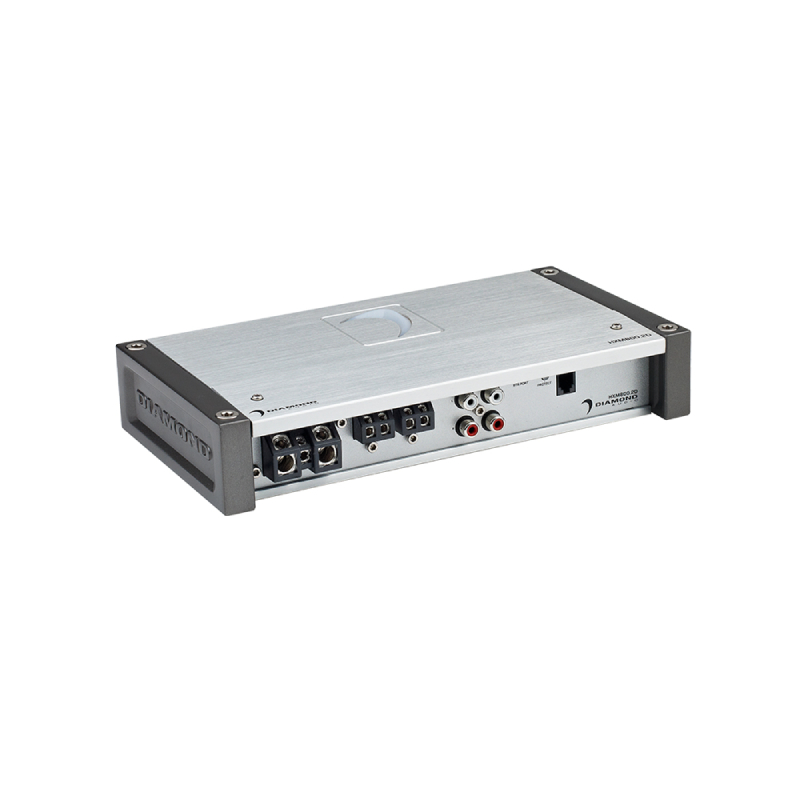

Diamond Audio MOTORSPORT Hex Series 300WX2 @4Ohms Full Range Class D 2-Channel Marine Amplifier


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Low Frequency Response : 40-400 Hz
  • High Frequency Response : 40-400 Hz
  • Number of Channels : 2
  • Built In Crossovers : Yes
  • RMS Power Output : 400x2 Watts
  • Channel Separation : Yes
  • Amplifier Class : D

FEATURES


Features:

  • 300 W x 2 @ 4Ω
  • 400 W x 2 @ 2Ω
  • 800 W x 1 @ 4Ω bridged
  • S/N: ≤ 98.9 dBA / THD: .05%
  • Dimensions:
  • 9.74 x 5.28 x 1.75 inches
  • 247 x 134 x 45 mm
  • Remote Level Control Included



Specifications:

  • RMS Power (2 Ω): 400W X 2
  • RMS Power (4 Ω): 300 W X 2
  • Bridged (mono 4 Ω): 800 W X 1 (4Ω Only)
  • Topology: Full-Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.05%
  • S-N Ratio (A-weighted @ 1W): -77.2dBA
  • S-N Ratio (A-weighted @ 1W): -98.9dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES- UP to 25 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): N/A

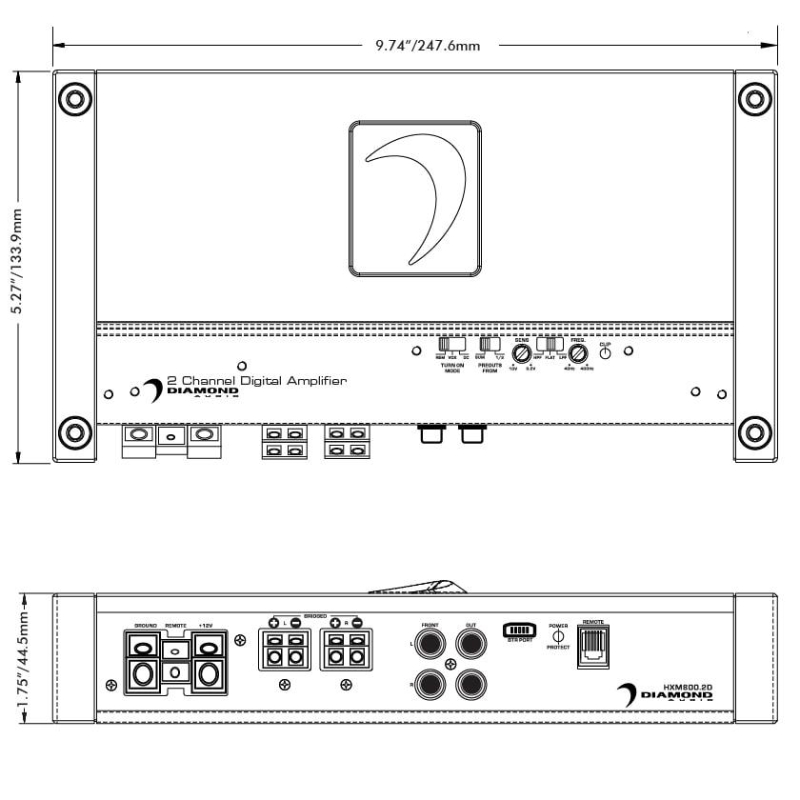

  • Dimentions- Length x Width x Height (inches): 9.74″ x 5.27″ x 1.75″
  • Dimentions- Length x Width x Height (mm): 247.6 x 133.9 x 44.5 mm
  • UPC: 0847169024184
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
