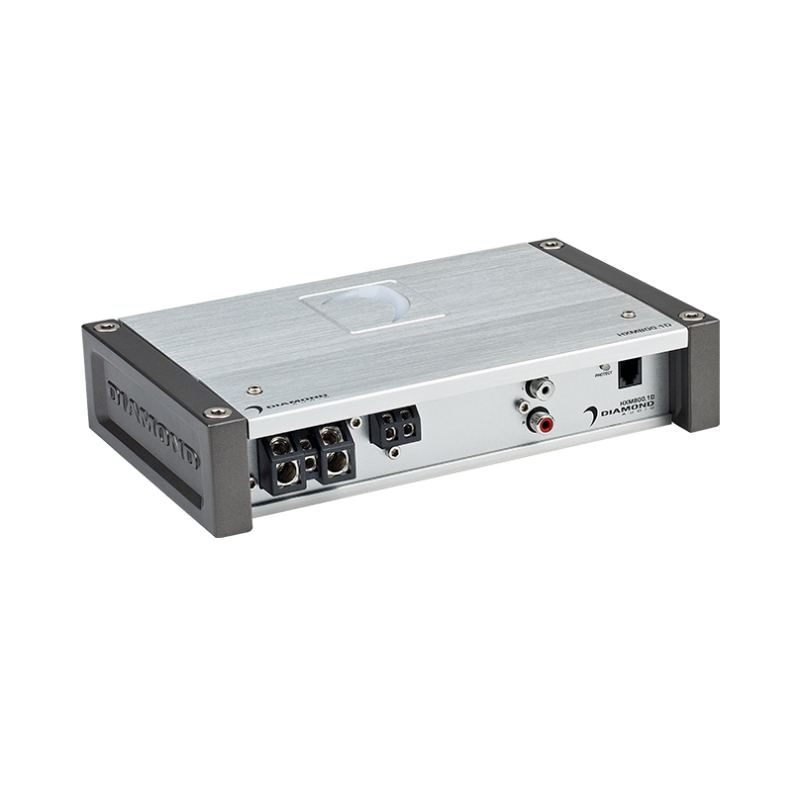

Diamond Audio  HXM800.1D

MOTORSPORT Hex Series 550WX1 @2Ohms, Class D Mono Full Range Sub Marine Amplifier

Item #80620

Condition:   Brand New

Product Highlights

  • MOTORSPORT Hex Series Mono Sub Marine Amplifier
  • 550W x1 @ 2 Ohms
  • Class D Full Range Design
  • High-Performance Marine Audio Output
  • Durable and Waterproof Construction

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$599.99

Reg. Price $699.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Low Frequency Response : 30-300 Hz
  • Number of Channels : 1
  • Frequency Response : 10-350 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 550x1 Watts
  • Amplifier Class : D

FEATURES


Specifications:

  • RMS Power (1 Ω): 800W X 1 RMS
  • RMS Power (2 Ω): 550 W X 1 RMS
  • RMS Power (4 Ω): 350 W X 1 RMS
  • Topology: MonoBlock Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.05%
  • S-N Ratio (A-weighted @ 1W): -77.2dBA
  • S-N Ratio (A-weighted @ 1W): -98.9dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES- UP to 25 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: 22 KΩ
  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: N/A
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 30Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz
  • Fuse Rating (ATC): N/A
  • Dimentions- Length x Width x Height (inches): 8.56″ x 5.27″ x 1.75″
  • Dimentions- Length x Width x Height (mm): 217.6 x 133.9 x 44.5 mm
  • UPC: 847169024207
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
