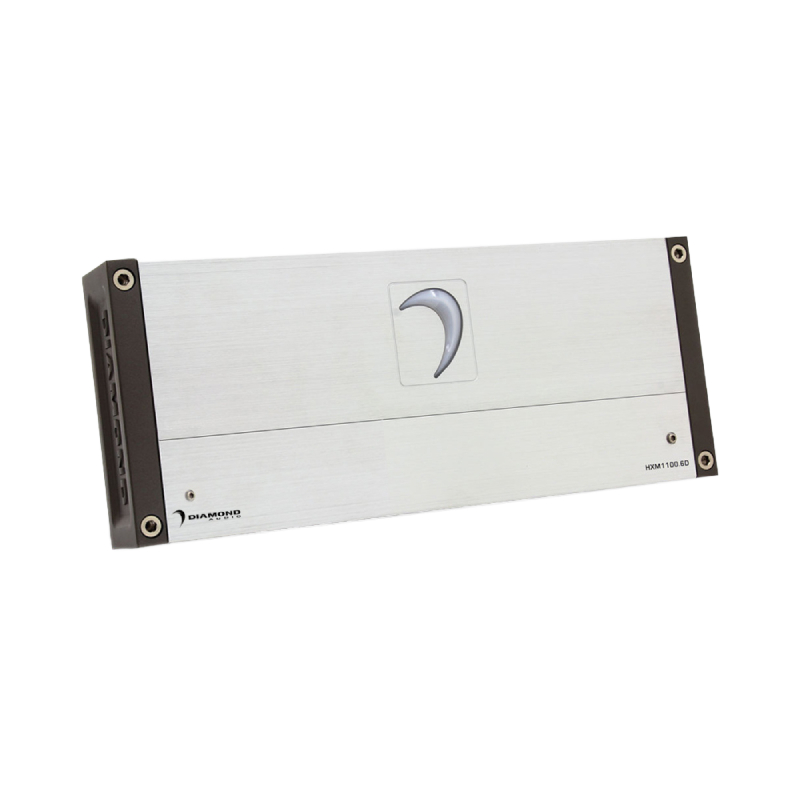

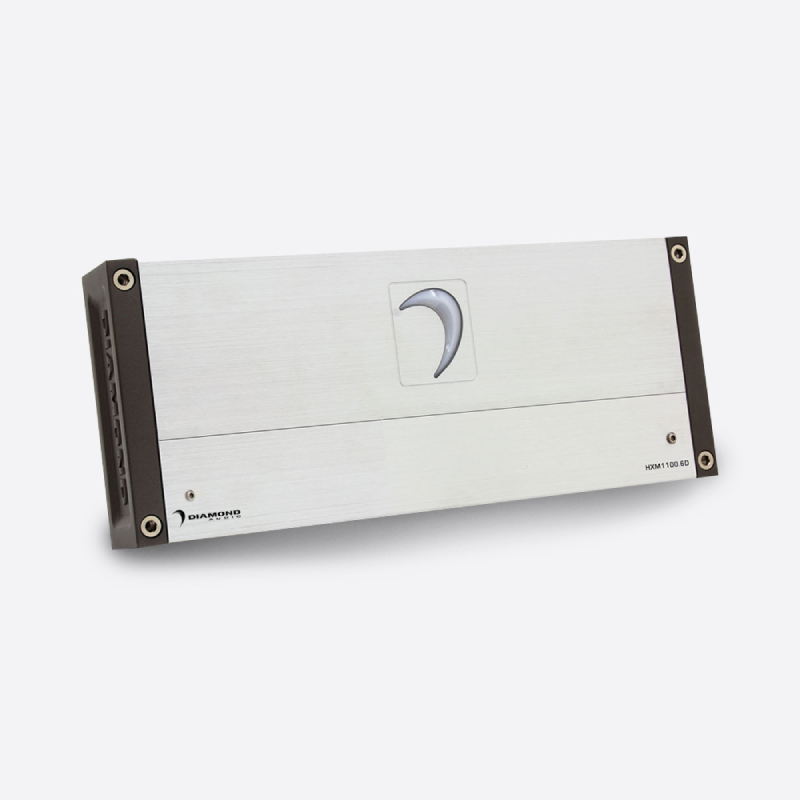

Diamond Audio  HXM1100.6D

Motorsport Series 1100W Max Power, 6-Channel Full Range Marine Amplifier, Class-D

Item #80622

Condition:   Brand New

Product Highlights

  • Motorsport Series
  • 1100W Max Power
  • 6-Channel
  • Full Range Marine Amplifier
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$778.99

Reg. Price $1,049.99  Save $271.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio HXM1100.6D - Motorsport Series 1100W Max Power, 6-Channel Full Range Marine Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 6-Channel Full Range Marine Amplifier, Class-D
  • • Owner's Manual
Advanced Features of DMD Series Amplifiers for Superior Performance and Versatility

The DMD Series amplifiers feature an ultra-compact, high-density aluminum alloy chassis for exceptional thermal stability. Their four-layer glass epoxy circuit board ensures enhanced performance and reliability, while the conformal coating provides water resistance, making them suitable for marine applications. Utilizing full-range Class D amplifier technology, these amplifiers are bridgeable for high power operation across various channels (CH1+CH2/CH3+CH4/CH5+CH6). They include balanced differential inputs for superior noise rejection and accept line (RCA) and speaker level inputs with an input sensitivity range of 200mV to 10V. Additionally, they offer selectable auto-turn-on modes, including Signal Sensing (VOX), 12V Remote (REM), and DC offset (DC).


SPECIFICATIONS


  • Low Frequency Response : 30-300 Hz
  • High Frequency Response : 40-400 Hz
  • Number of Channels : 6
  • Frequency Response : 10-35000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 150x4+250x2 Watts
  • Channel Separation : Yes
  • Amplifier Class : D

FEATURES


Features:
  • Ultra-compact, high-density aluminum alloy chassis for superior thermal stability
  • Four-layer, glass epoxy circuit board for enhanced performance and reliability
  • Conformal coated circuit board (water-resistant) for marine applications
  • Bridgeable for high power operation (CH1+CH2/CH3+CH4/CH5+CH6)
  • Balanced differential inputs for superior noise rejection
  • Fully variable, 12dB per octave, electronic crossover
  • Built-in BTR Port (MICRO-USB) to connect optional Bluetooth receiver-controller
  • Top-mounted controls for convenient adjustment
  • Integrated soft clip light for quick system set-up
  • Illuminated logo
  • Remote level control for Channels 5 and 6 included
  • Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)



Specifications:

  • Power Ratings:
    • RMS Power (2 Ω): 150W X 4 / 250W X 2
    • RMS Power (4 Ω): 90W X 4 / 150W X 2
    • Bridged (mono 4 Ω): 300W X 2 / 500W X 1 (Ch 5/6 Bridged)
    • 90W x 4 + 150W x 2 @ 4Ω
    • 150W x 4 + 250W x 2 @ 2Ω
    • 300W x 2 @ 4Ω bridged + 500W x 1 @ 4Ω bridged
  • Amplifier Topology:
    • Full-Range Class D
  • Power Supply:
    • Full PWM
    • Power Supply Threshold: 10.0DVC – 17.0DVC
    • Idle Current: 0.7A
  • Sound Quality:
    • THD (1KHz @ 4Ω): 0.03%
    • Signal-to-Noise Ratio (A-weighted @ 1W): ≤ 96.7 dBA
  • Input/Output:
    • Input Sensitivity (Low Level): 0.2mV – 10.0V
    • Input Sensitivity (High Level): Up to 25W RMS
    • Input Impedance (Low Level): 22 KΩ
    • Output Impedance: 0.051Ω
    • Damping Factor (50Hz @ 4Ω): >70
  • Frequency Response:
    • Bandwidth (-3dB): 10Hz-35kHz
  • Crossovers:
    • High Pass: 40Hz-400Hz (Variable, -12 dB/Oct)
    • Low Pass: 30Hz-300Hz (Variable, -12 dB/Oct)
  • Dimensions:
    • 12.5″ x 5.27″ x 1.75″ (317.6 x 133.9 x 44.5 mm)
    • 12.8″ x 5.28″ x 1.75″ (327 x 134 x 45 mm)
  • UPC: 847169024238
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
