Diamond Audio  HXP104

HEX Pro Series 10" 1400 Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer

Item #80630

Product Highlights

  • HEX Pro
  • 10 Inch
  • 1400 Peak
  • Dual Voice
  • Coil Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:

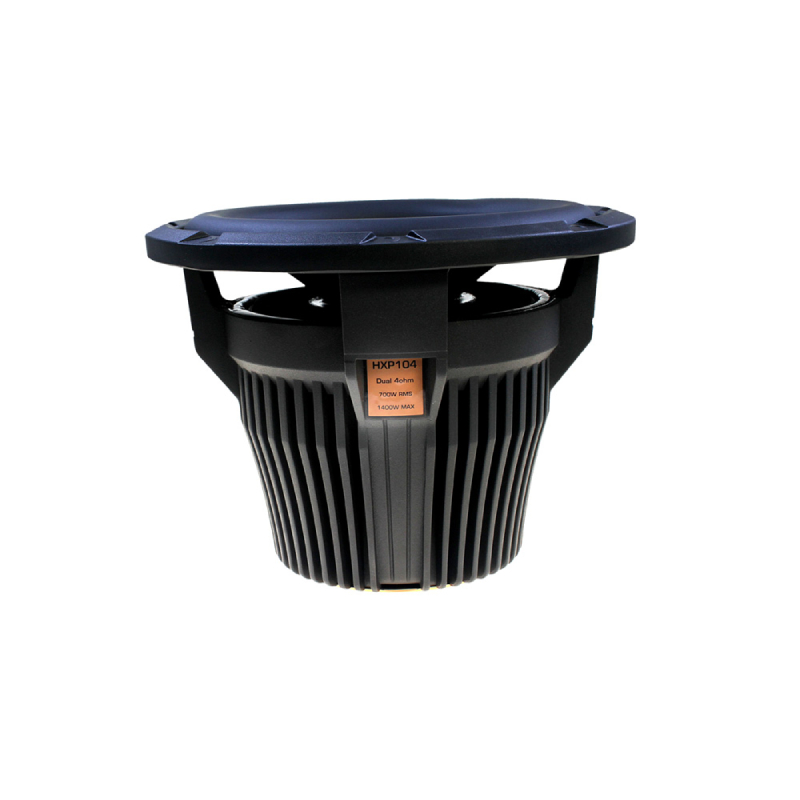

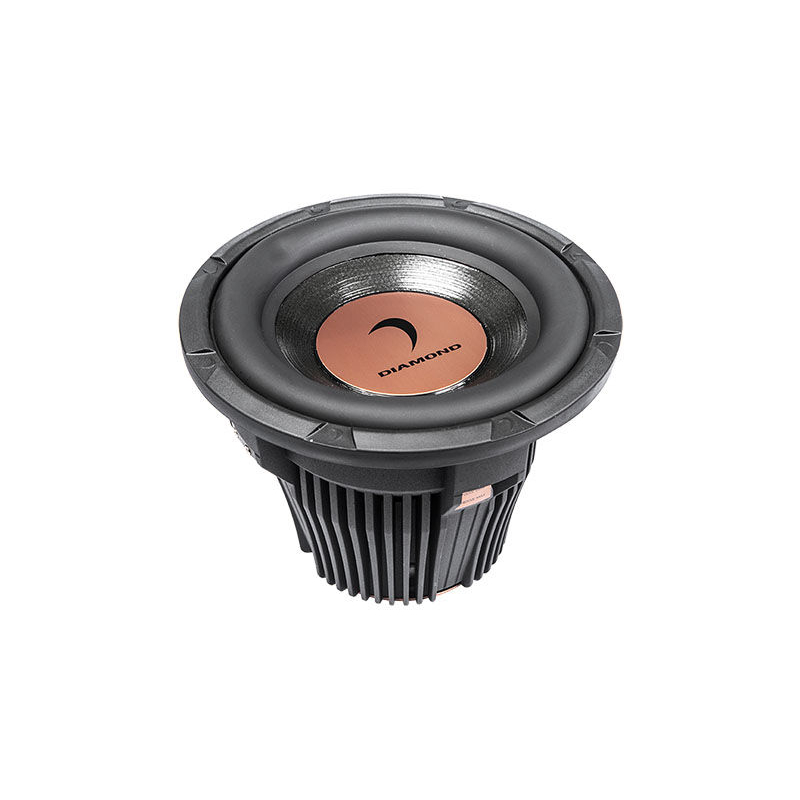

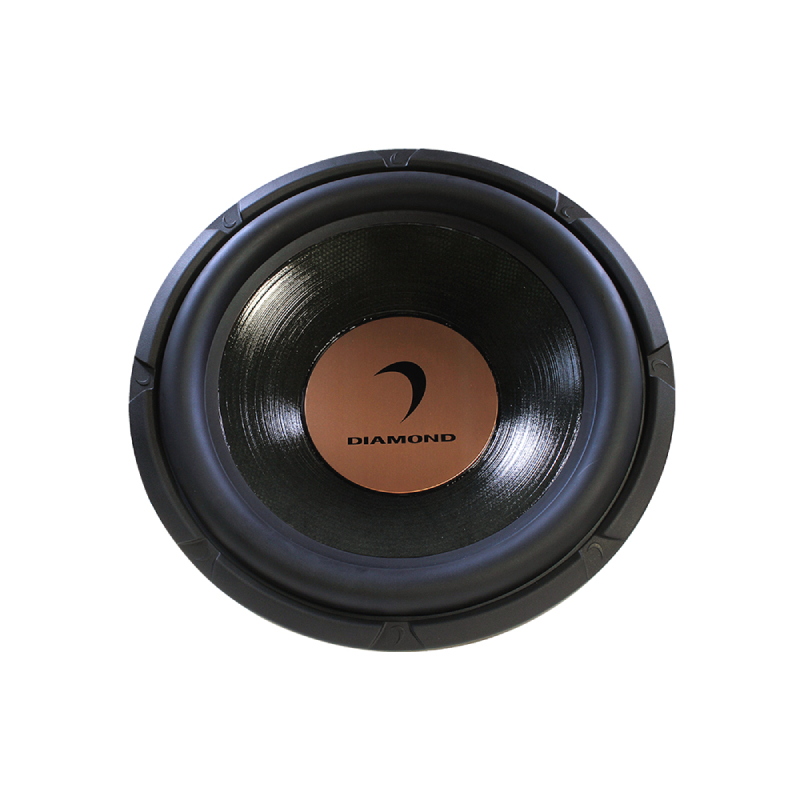

Diamond Audio HXP104 - HEX Pro Series 10" 1400 Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 4-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Superior Sound and Reliability with TDX™ Technology

For exceptional sound quality, the HEX PRO Series subwoofers are the ultimate choice. Featuring our patented TDX™ Technology (Thermal Dyne Extreme), these subwoofers integrate the motor structure into a robust cast aluminum basket for superior heat dissipation, ensuring extended play at high SPL levels, enhanced longevity, and exceptional reliability. Designed to deliver both outstanding sound and nearly 3 inches of linear excursion, the HEX PRO subwoofers produce powerful bass output at high decibel levels while also reproducing a wide range of low bass notes, making them a highly musical option.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Maximum Power : 1400 Watts
  • Sensitivity : 81.2 dB
  • Depth : 7.5 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 1400 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 7.5 Inches
  • RMS Power Handling : 700 Watts

FEATURES


Features:

  • Construction:
    • Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
    • High Strength Honeycomb Cone
    • High Power Neodymium Encapsulated Motor Structure
  • Optimization:
    • Klippel DA Optimized Motor and Suspension Symmetry
  • Configurations and Sizes:
    • Available in Dual 2 Ω and 4 Ω Configurations
    • Offered in 10”, 12”, and 15” Sizes



Specifications:

  • Power Handling:
    • RMS: 700 Watts
    • Peak: 1400 Watts
  • Impedance:
    • 4 Ω

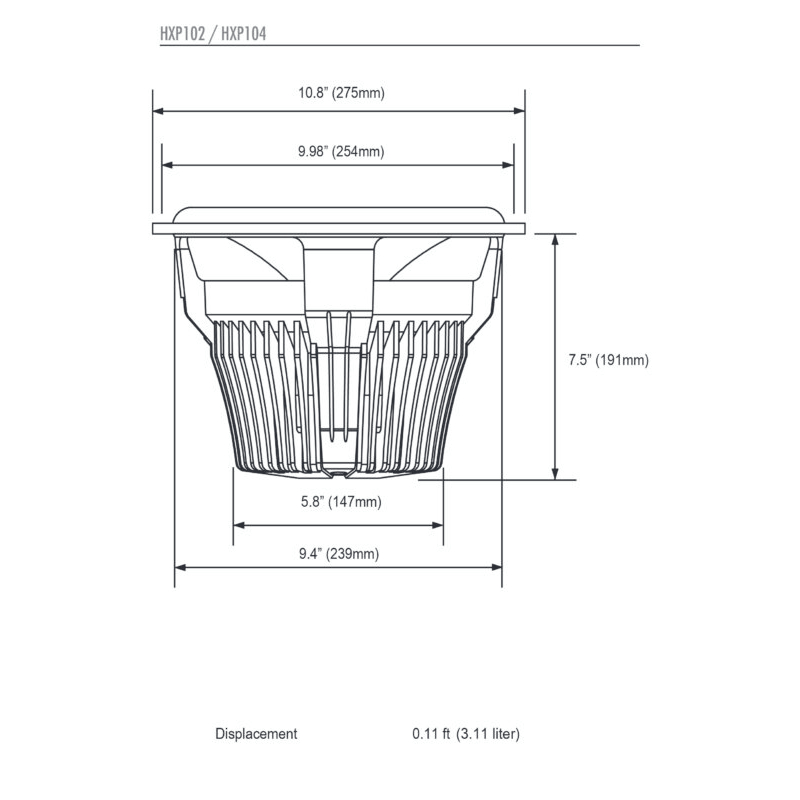

  • Size:
    • Total Diameter: 10.7 inches (271.8 mm)
    • Mounting Diameter: 9.4 inches (239 mm)
    • Screw Hole Diameter: 9.98 inches (253.7 mm)
    • Mounting Depth: 7.5 inches (191 mm)
    • Magnet Diameter: 5.8 inches (147.3 mm)
  • Performance:
    • SPL @ 2.83v: 81.2 dB
    • Re: 6 Ω
    • Qms: 3
    • Qes: 0.68
    • Qts: 0.55
    • Fs: 27 Hz
    • Vas: 20 Hz
    • Xmax: 17 mm
  • UPC: 826843951824
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
