Alpine HDZ-W10 Status Series 10" 800W RMS (2400W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 4-Ohm Dual Voice Coil Component Car Subwoofer
- • One 10" Dual 4-ohm voice coil subwoofer
- • Grille
- • Aluminum trim ring
- • Two voice coil jumpers (installed)
- • 3mm Hex key
- • Application guide (English/ French)
- • On-line product registration information
- • Warranty information (English/ French)
- • Important Notice (English/ French)
- • Owner's Manual
Why Choose Alpine HDZ-W10 Component Car Subwoofer?
Bring the Bass to Life
The Alpine Status HDZ-W10 is built for car audio enthusiasts who want deep, powerful bass without sacrificing sound quality. This 10-inch subwoofer handles 800 watts RMS and 2,400 watts peak power, delivering the kind of low-end impact that can make every track feel more immersive.
Power Meets Precision
Alpine loads the HDZ-W10 with premium technology, including a carbon fiber dust cap, pulp-mica cone, triple-stacked strontium ferrite magnets, and H.A.M.R. surround. With 20mm of linear excursion, it is designed to move serious air while maintaining controlled, responsive bass at higher volume levels.
Build Your Ultimate Bass System
Finished with a cast aluminum frame and premium aluminum trim ring, the HDZ-W10 looks as impressive as it performs. With a 24Hz–200Hz frequency response and a recommended 400W–800W RMS power range, this Alpine Status 10-inch subwoofer is an excellent choice for enthusiasts building a high-performance car audio system.
Alpine 10-Inch Subwoofer Comparison Chart | S2-W10 vs R2-W10 vs RS-W10 vs HDZ-W10 vs W10S4 vs SWT-10
| Ultimate Alpine 10" Subwoofer Performance Comparison |
S2-W10D4 / S2-W10D2
Next-Gen S-Series 10" Subwoofer – Powerful Everyday Bass with Flexible Dual Voice Coil Options
BEST VALUE
- • 10" S-Series Subwoofer
- • 600W RMS / 1,800W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 15mm X-Max for strong bass excursion
- • 25Hz–215Hz frequency response
- • Carbon fiber/polypropylene cone
- • H.A.M.R. surround design
|
R2-W10D4 / R2-W10D2
Next-Gen R-Series 10" Subwoofer – High-Output Bass with a Heavy-Duty Motor Structure
HIGH PERFORMANCE
- • 10" R-Series Subwoofer
- • 750W RMS / 2,250W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 20mm X-Max for massive excursion
- • 26Hz–200Hz frequency response
- • Double-stacked magnet structure
- • Kevlar-reinforced pulp cone
- • 6" mounting depth
|
RS-W10D4 / RS-W10D2
R-Series Shallow 10" Subwoofer – Serious Bass Performance for Space-Constrained Builds
BEST SHALLOW
- • 10" R-Series Shallow Subwoofer
- • 600W RMS / 1,800W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 20mm X-Max
- • 29Hz–200Hz frequency response
- • 4" voice coil
- • Neodymium magnet
- • 3.25" mounting depth
|
HDZ-W10
Alpine Status 10" Subwoofer – Premium High-Output Bass and Audiophile-Level Construction
PREMIUM
- • 10" Alpine Status Subwoofer
- • 800W RMS / 2,400W Peak Power
- • Dual voice coil
- • 20mm linear excursion
- • 24Hz–200Hz frequency response
- • Triple-stacked strontium ferrite magnets
- • Carbon-fiber dust cap
- • Cast-aluminum frame
|
W10S4
Alpine 10" Bass Series Subwoofer – Affordable Bass for Everyday System Upgrades
BUDGET PICK
- • 10" Bass Series Subwoofer
- • 250W RMS / 750W Peak Power
- • Single 4Ω voice coil
- • 24Hz–200Hz frequency response
- • Designed for everyday bass upgrades
- • Easy amplifier matching
- • Budget-friendly performance
|
SWT-10S4 / SWT-10S2
Truck Series 10" Subwoofer – Compact Bass Performance for Trucks and Space-Limited Installations
TRUCK / COMPACT
- • 10" Truck Series Subwoofer
- • 350W RMS / 1,000W Peak Power
- • Single 2Ω or Single 4Ω options
- • 30Hz–200Hz frequency response
- • 4.19" mounting depth
- • Designed for truck installations
- • Space-conscious enclosure design
|
Alpine HDZ-W10 Highlights
POWERFUL BASS
800W RMS Power Handling
Experience deep, hard-hitting bass with 800 watts RMS power handling and up to 2,400 watts of peak power for powerful audio performance.
STATUS SERIES
High-Performance 10" Subwoofer
The 10-inch STATUS Series design delivers powerful, accurate low-frequency performance for a premium car audio upgrade.
FLEXIBLE WIRING
Dual 4-Ohm Voice Coils

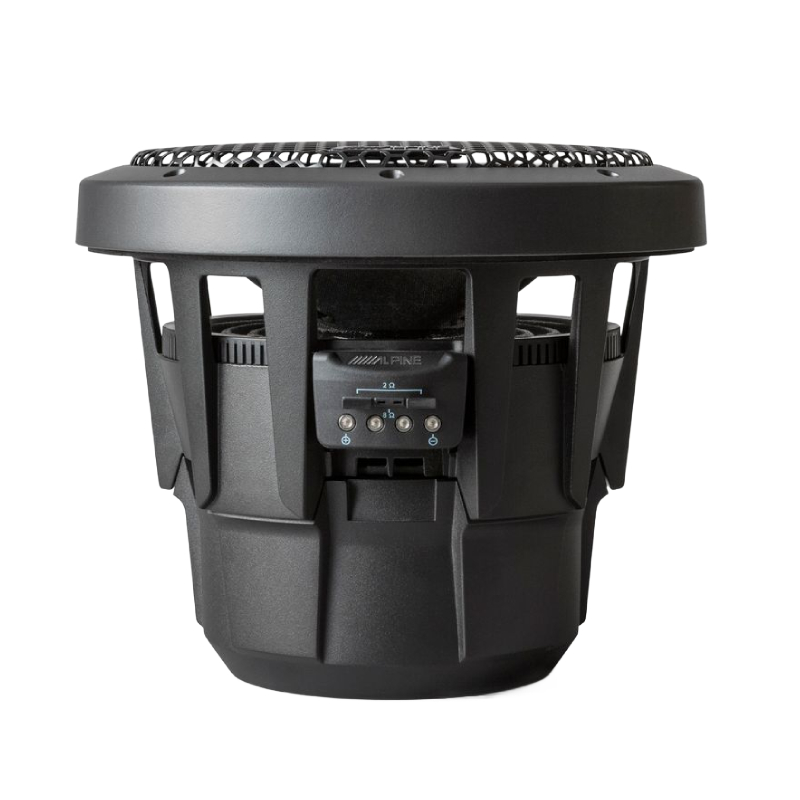

Dual 4-ohm voice coils provide flexible wiring options to help match the subwoofer with your amplifier and audio system.
PREMIUM CONSTRUCTION

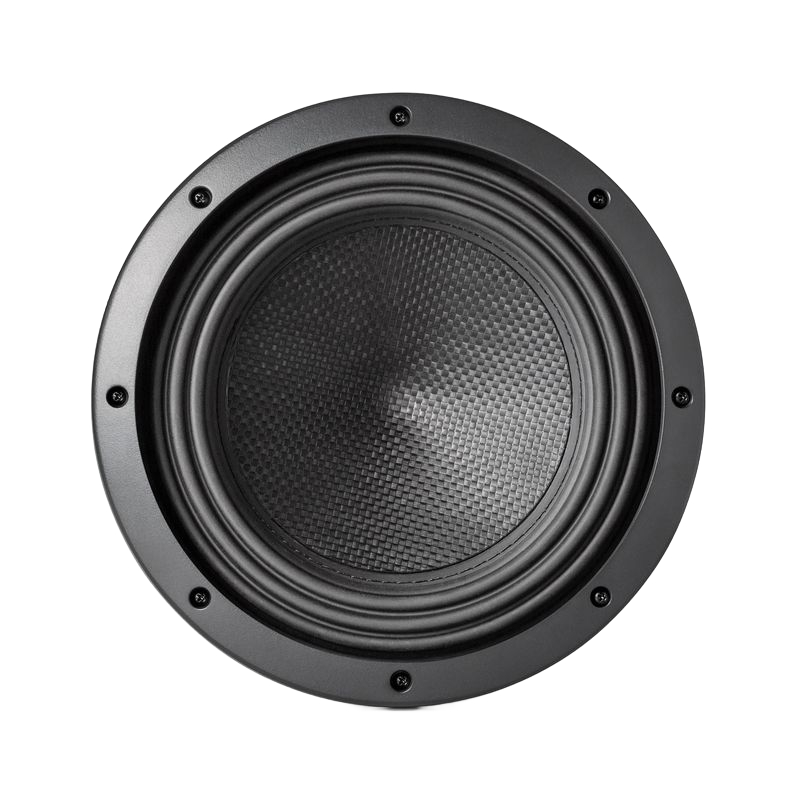

Pulp-Mica Cone & Carbon Fiber Dust Cap
The pulp-mica cone and carbon fiber dust cap provide a strong, lightweight design for powerful, clean, and detailed bass performance.
HIGH EXCURSION
H.A.M.R. Rubber Surround
The H.A.M.R. rubber surround supports smooth cone movement and up to 20mm of linear excursion for deep and controlled bass.
ENCLOSURE FLEXIBILITY
Sealed or Ported Enclosure Ready
Build your system your way with enclosure options for both sealed and ported designs to match your preferred bass response.
PREMIUM DESIGN
Cast Aluminum Frame
The premium cast aluminum frame provides a strong foundation while the included trim ring and grille add a sleek, finished look.
Alpine HDZ-W10 Recommended Amplifiers | Best Alpine Status Subwoofer Amp Pairings for Powerful Bass
Power Up Your Alpine Status Bass
Real-world amplifier recommendations for the Alpine Status HDZ-W10 10-inch subwoofer
Amplifier Matching Overview
HDZ-W10 Power Rating: 800W RMS / 2400W Peak
Recommended Power Range: 400W – 800W RMS
HDZ-W10: Dual 4Ω voice coil configuration
Single-Sub Wiring: Wire both 4Ω voice coils in parallel for a 2Ω final load
Best Setup: Alpine HDA-M80 800W mono amplifier for an exact RMS power match
Best Overall Match – 800W Status Series Mono Amplifier
The HDA-M80 is the ideal amplifier for a single HDZ-W10. Wire the dual 4Ω voice coils in parallel for a 2Ω final load, allowing the amplifier to deliver 800W RMS and directly match the subwoofer's 800W RMS power handling.
Strong Alternative – 750W R-Series Mono Amplifier
The R2-A75M is a strong alternative for the HDZ-W10, delivering 750W RMS at 2Ω. Wire the dual 4Ω voice coils in parallel for a 2Ω final load and configure the gain properly for the subwoofer's 800W RMS rating.
Why the HDA-M80 Is the Recommended Choice
Exact Power Match: The HDA-M80 delivers 800W RMS at 2Ω, matching the HDZ-W10's 800W RMS rating
Status Series Pairing: Keeps the amplifier and Alpine Status subwoofer within the same premium product family
DVC Compatibility: The HDZ-W10's dual 4Ω voice coils can be wired in parallel for a 2Ω final load
Class-D Efficiency: Efficient mono amplifier design delivers substantial bass power in a compact chassis
Flexible Tuning: Variable low-pass, subsonic filter and bass EQ allow the system to be fine-tuned to the vehicle and enclosure
HDZ-W10 Dual Voice Coil Amplifier Matching
Voice Coil Configuration: The HDZ-W10 features dual 4Ω voice coils
Parallel Wiring: Wire both 4Ω voice coils in parallel to create a 2Ω final impedance
Series Wiring: Wire the voice coils in series for an 8Ω final impedance when required by the amplifier
Best Match: A 2Ω-stable mono amplifier producing approximately 600W–800W RMS is a strong choice
Important: Always confirm the amplifier's RMS output at the final impedance before connecting the subwoofer
Recommended HDZ-W10 Amplifier Settings
Gain Setting: Set the gain for clean output and configure it to avoid clipping or excessive power
Low-Pass Filter: Start around 80Hz and fine-tune based on the vehicle, enclosure and front-stage response
Bass EQ: Keep bass boost moderate to maintain clean output and protect the subwoofer
Subsonic Filter: Use a subsonic filter with a ported enclosure and set it below the enclosure's tuning frequency
Phase: Adjust phase for the strongest and smoothest bass integration with the vehicle's front speakers
Recommended HDZ-W10 System Configurations
Single HDZ-W10: Pair one subwoofer with the Alpine HDA-M80 for 800W RMS at a 2Ω final load
Premium Alternative: Use the Alpine R2-A75M for 750W RMS at 2Ω with properly configured gain
Best Overall Build: Pair one HDZ-W10 with the HDA-M80 for a closely matched Alpine Status system
High-Power Upgrade: Consider a higher-output amplifier only when the system is designed around additional subwoofers or future expansion
Pro Tip: For a single Alpine HDZ-W10, the HDA-M80 is the standout amplifier match. Wire the dual 4Ω voice coils in parallel for a 2Ω final load and pair it with 800W RMS of clean amplifier power for maximum Alpine Status bass performance.
Frequently Asked Questions (FAQ)
- • What type of enclosure is recommended for this 10-inch subwoofer?
The subwoofer performs best in a properly designed sealed or ported enclosure that follows Alpine's recommended specifications. Choosing the correct enclosure helps maximize bass accuracy, efficiency, and overall performance.
- • Why does the bass sound weak after I finished the installation?
Weak bass is often caused by incorrect amplifier gain, crossover settings, or enclosure size that doesn't match the recommended design. Proper tuning and verifying all wiring connections usually produce a noticeable improvement in low-frequency output.
- • Can I use this subwoofer with my factory head unit?
Yes, it can be integrated with most factory stereos when paired with a compatible amplifier and the appropriate signal interface. This allows you to enjoy significantly better bass without replacing your original radio.
- • Why does the bass become distorted when I increase the volume?
Distortion is commonly caused by amplifier clipping, excessive gain settings, or incorrect crossover adjustments. Carefully tuning the amplifier and avoiding excessive bass boost usually restores clean, controlled bass reproduction.
- • What amplifier should I pair with this subwoofer?
An amplifier whose RMS output closely matches the subwoofer's recommended continuous power rating will provide the best performance. Proper power matching improves sound quality while reducing the risk of damaging the subwoofer.
- • Why does the subwoofer make a popping or knocking noise during heavy bass?
This usually happens when the amplifier is clipping, the enclosure is not built correctly, or the subwoofer is being driven beyond its intended limits. Lowering the gain and confirming the enclosure meets the recommended specifications typically solves the problem.
- • Does this subwoofer require a break-in period before it sounds its best?
Yes, many owners notice smoother response and deeper bass after several hours of moderate listening. This allows the suspension components to loosen naturally and reach their intended performance.
- • Can I install two of these subwoofers in the same system?
Yes, many enthusiasts install a pair for greater bass output and more balanced low-frequency response throughout the vehicle. Be sure your amplifier, enclosure, and vehicle's electrical system can safely support the additional power requirements.
- • Why does my trunk or hatch area rattle after adding this subwoofer?
The increased bass output can cause loose trim panels, license plates, and interior components to vibrate. Adding sound-deadening material and securing loose parts can greatly reduce unwanted rattles and improve overall sound quality.
- • What are the specific slot dimensions and length required to correctly tune a ported box to 33 Hz?
To achieve an optimal 33 Hz tuning frequency, you should construct a slot port measuring exactly 4 inches wide by 3.75 inches high with a length of 15 inches. This port boundary must be paired alongside a total gross enclosure volume of 1.76 cubic feet to prevent odd port noise.
Learn How To Wire Subwoofers
- Diameter : 10 Inch
- Sensitivity : 82.2 dB
- Impedance : 4 Ohm
- Frequency Response : 24-200 Hz
- Peak Power Handling : 2400 Watts
- RMS Power Handling : 800 Watts
Features:
- Pulp-Mica Cone: Provides lightweight and rigid cone material for accurate bass response.
- Carbon Fiber Dust Cap: Enhances rigidity and disperses heat efficiently.
- Cast Aluminum Frame: Offers durability and helps dissipate heat generated by the subwoofer.
- Triple Stacked High-Power Strontium Ferrite Magnets (174oz x 3): Provides powerful magnetic flux for increased motor strength and efficient operation.
- Dual Progressive Spiders with Integrated Tinsel Leads: Ensures precise cone movement and reduces distortion, enhancing overall sound quality.
- High-Amplitude Multi-Roll (H.A.M.R.) Surround: Allows for maximum excursion and cone movement while maintaining control over the subwoofer's motion.

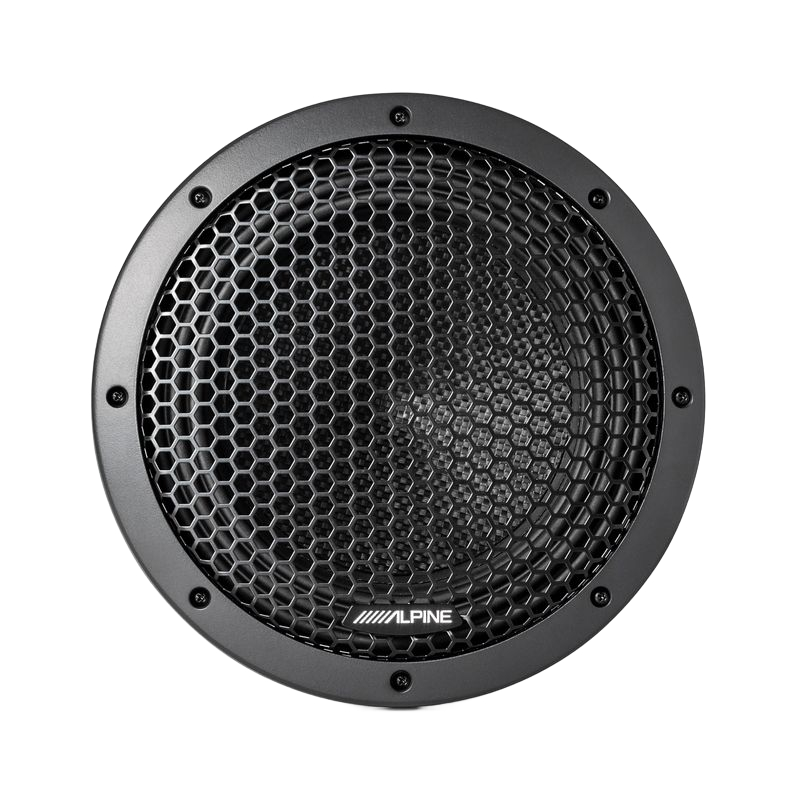

- Included Mesh Grille with Aluminum Trim Ring: Offers protection to the subwoofer cone while adding aesthetic appeal.
Specifications:
- Pulp-Mica Cone
- Carbon Fiber Dust Cap
- Cast Aluminum Frame
- Triple Stacked High-Power Strontium Ferrite Magnets (174oz x 3)
- Dual Progressive Spiders with Integrated Tinsel Leads
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Included Mesh Grille with Aluminum Trim Ring
- Mounting Depth: 7-7/16”
- X-Max: 20mm
- Voice Coil: 65mm
- Frequency Response: 26Hz-200Hz
- Sensitivity: 82.2dB
- Nominal Impedance (DCR): 4Ω+4Ω
- Power Handling: 800W RMS / 2400W Peak
- UPC: 793276085856
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
