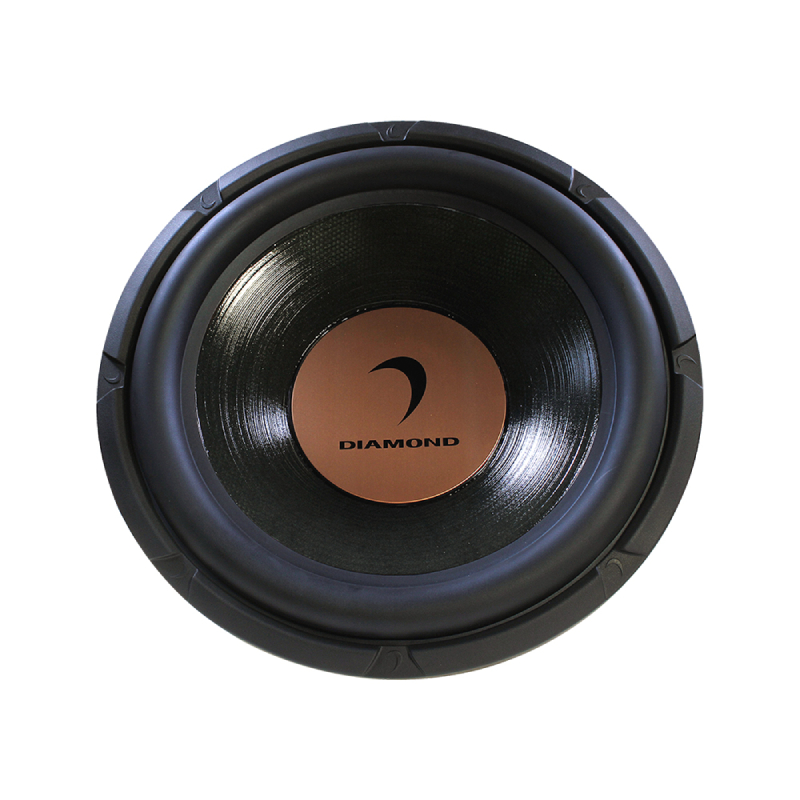

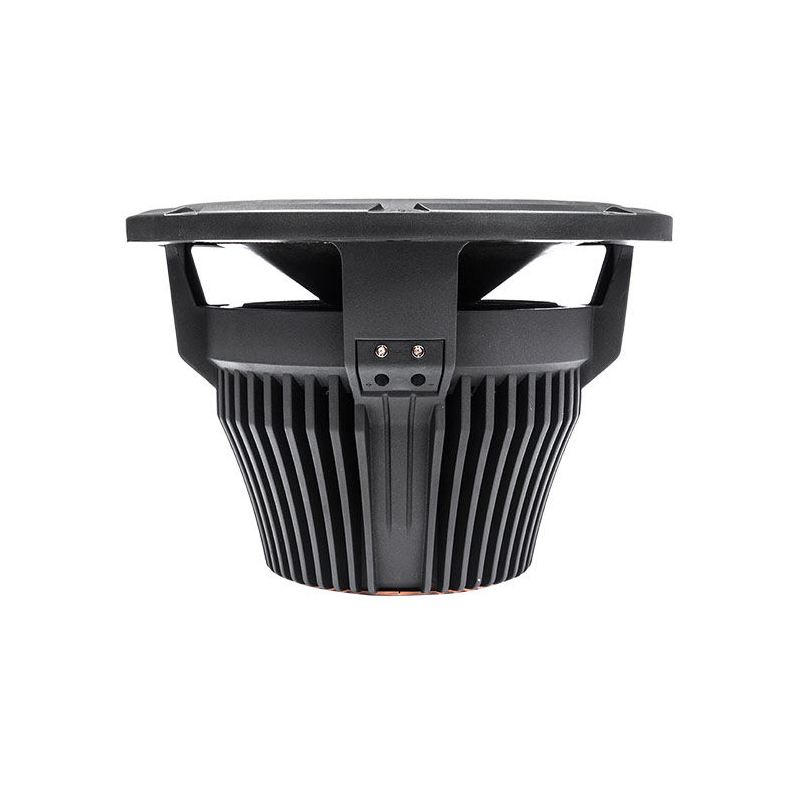

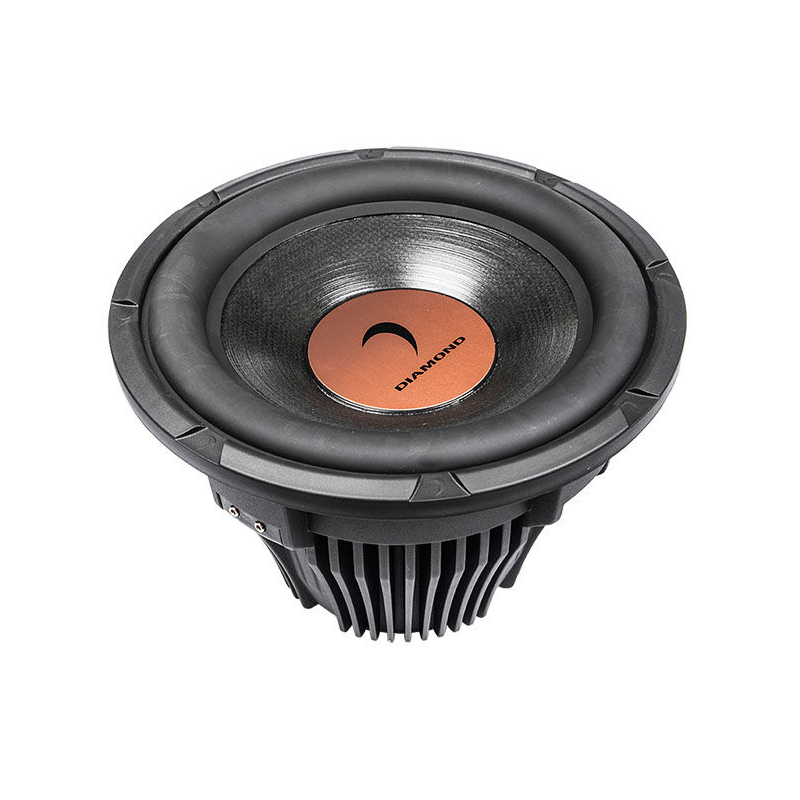

Diamond Audio  HXP122

HEX Pro Series 12" 1800 Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer

Item #80631

Condition:   Brand New

Product Highlights

  • 12" subwoofer
  • 1800W peak power
  • 4-ohms
  • Durable

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$849.99

Reg. Price $949.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio HXP122 - HEX Pro Series 12" 1800 Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 4-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Unmatched Sound Quality and Reliability

For unparalleled sound quality, the HEX PRO series subwoofers are unmatched. Featuring our patented TDX™ Technology (Thermal Dyne Extreme), the motor structure is seamlessly integrated into a sturdy cast aluminum basket for superior heat dissipation, enabling extended play at high SPL levels, increased longevity, and exceptional reliability. Designed to deliver both exceptional audio performance and nearly 3 inches of linear excursion, the HEX PRO subwoofers produce powerful bass at extremely high decibel levels while reproducing a wide range of low bass notes, making them not only powerful but also highly musical.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 85.2 dB
  • Depth : 8 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 1800 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 8 Inches
  • RMS Power Handling : 900 Watts

FEATURES


Features:

  • Construction:
    • Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
    • High Strength Honeycomb Cone
    • High Power Neodymium Encapsulated Motor Structure
  • Optimization:
    • Klippel DA Optimized Motor and Suspension Symmetry
  • Voice Coils:
    • Dual Voice Coil



Specifications:

  • Power Handling:
    • RMS: 900 Watts
    • Peak: 1800 Watts
  • Impedance:
    • 4 Ω
  • Performance:
    • SPL: 85.2 dB at 2.83v
    • Re: 3.85 Ω
    • Qms: 3.5
    • Qes: 0.53
    • Qts: 0.46
    • Fs: 23.0 Hz
    • Vas: 43.5 Liters
    • Sd: 487 cm²
    • BL: 20.1 T*M
    • Xmax: 19 mm

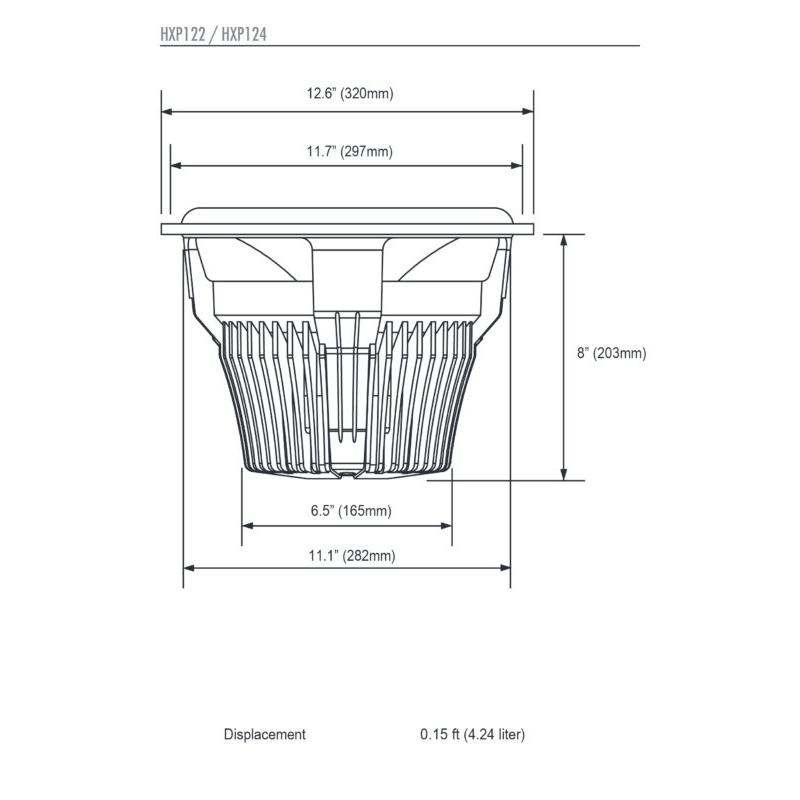

  • Dimensions:
    • Total Diameter: 12.4 inches (315 mm)
    • Mounting Diameter: 11.1 inches (282 mm)
    • Screw Hole Diameter: 11.7 inches (297 mm)
    • Mounting Depth: 8 inches (203 mm)
    • Magnet Diameter: 6.5 inches (165 mm)
    • Displacement: 0.15 ft³
  • UPC: 847169020223
  • Weight: 23
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
