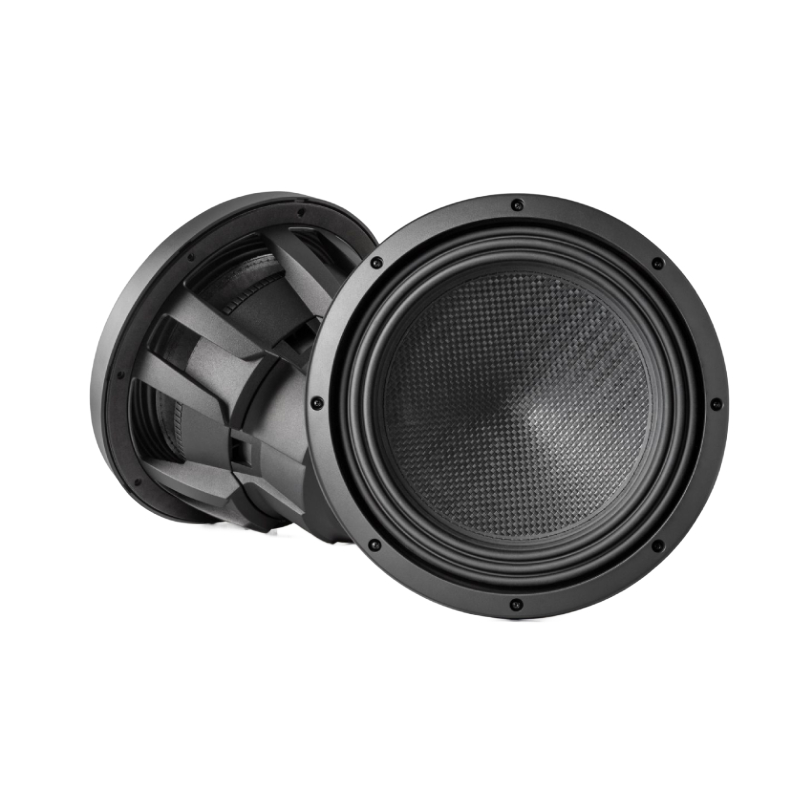

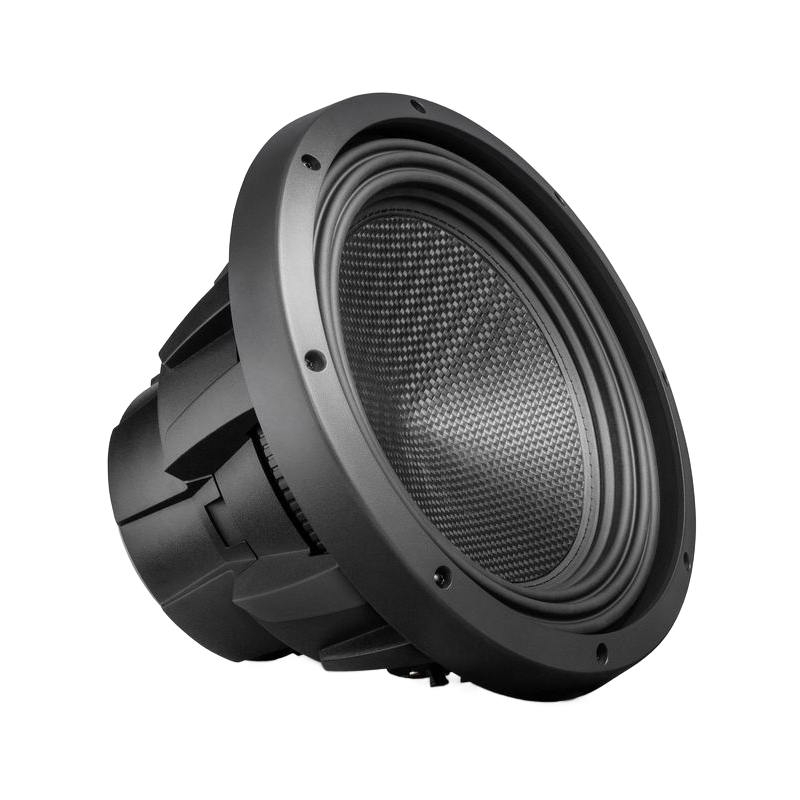

Alpine HDZ-W12 Status Series 12" 800W RMS (2400W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" 4-ohm Dual Voice Coil Component Car Subwoofer
- • (2) voice coil jumpers (installed)
- • Grille
- • Aluminum trim ring
- • 3mm Hex key
- • Application guide (English/ French)
- • On-line product registration information
- • Warranty information (English/ French)
- • Important Notice (English/ French)
- • Owner's Manual
Why Choose Alpine HDZ-W12 Component Car Subwoofer?
Precision Built and Power Driven
Experience tighter, more accurate bass with a lightweight yet rigid pulp-mica cone designed for clean, responsive low frequencies. A carbon fiber dust cap adds extra strength while efficiently dispersing heat, keeping performance consistent even at high volumes. Built on a rugged cast aluminum frame, this subwoofer delivers long-lasting durability and superior heat management for powerful, reliable sound every time.
Unstoppable Motor and Relentless Control
Triple stacked high-power strontium ferrite magnets unleash massive motor strength, delivering explosive output with uncompromising efficiency. Dual progressive spiders with integrated tinsel leads keep the cone perfectly controlled, even during extreme excursion. The result is harder-hitting bass, lower distortion, and the kind of clean, commanding performance you can feel as much as you hear.
Move More Air and Turn More Heads
The High-Amplitude Multi-Roll (H.A.M.R.) surround lets the cone travel farther with total control, delivering deeper, harder-hitting bass without sacrificing precision. Push it loud and feel the impact as it moves more air with confidence and stability. Finished with a sleek mesh grille and aluminum trim ring, it not only protects your investment but adds a bold, premium look to your setup.
Alpine 12-Inch Subwoofer Comparison Chart | S2-W12 vs R2-W12 vs RS-W12 vs HDZ-W12 vs W12S4
| Ultimate Alpine 12" Subwoofer Performance Comparison |
Alpine S2-W12D4 / S2-W12D2
Next-Gen S-Series 12" Subwoofer – Powerful Bass
BEST VALUE
- • 12" S-Series Subwoofer
- • 600W RMS / 1,800W Peak
- • DVC 4Ω or DVC 2Ω options
- • 15mm X-Max
- • Excellent daily-driver bass
- • Great performance for the price
|
Alpine R2-W12D4 / R2-W12D2
Next-Gen R-Series 12" Subwoofer – High-Output Bass
HIGH PERFORMANCE
- • 12" R-Series Subwoofer
- • 750W RMS / 2,250W Peak
- • DVC 4Ω or DVC 2Ω options
- • 20mm X-Max
- • High-output bass performance
- • Ideal for serious car audio builds
|
Alpine RS-W12D4 / RS-W12D2
R-Series Shallow 12" Subwoofer – Powerful Bass in a Slim Design
SHALLOW PERFORMANCE
- • 12" R-Series Shallow Subwoofer
- • 600W RMS / 1,800W Peak
- • DVC 4Ω or DVC 2Ω options
- • 20mm X-Max
- • 3.25" shallow mounting depth
- • Ideal for space-limited installations
|
Alpine HDZ-W12
Alpine Status 12" Subwoofer – Premium Bass & High-Power Performance
PREMIUM PICK
- • 12" Alpine Status Subwoofer
- • 800W RMS / 2,400W Peak
- • 20mm X-Max
- • Premium carbon-fiber dust cap
- • Cast-aluminum frame construction
- • Designed for premium systems
|
Alpine W12S4
12" Single Voice Coil Subwoofer – Affordable Bass Upgrade for Entry-Level
BUDGET PICK
- • 12" Single Voice Coil Subwoofer
- • 250W RMS / 750W Peak
- • Single 4Ω voice coil
- • 5.31" mounting depth
- • Simple amplifier pairing
- • Great for entry-level systems
|
Alpine HDZ-W12 Highlights
POWERFUL BASS
800W RMS Power Handling
Experience deep, hard-hitting bass with 800 watts RMS power handling and up to 2,400 watts of peak power for powerful audio performance.
STATUS SERIES
High-Performance 12" Subwoofer
The 12-inch STATUS Series design delivers powerful, accurate low-frequency performance for a premium car audio upgrade.
FLEXIBLE WIRING

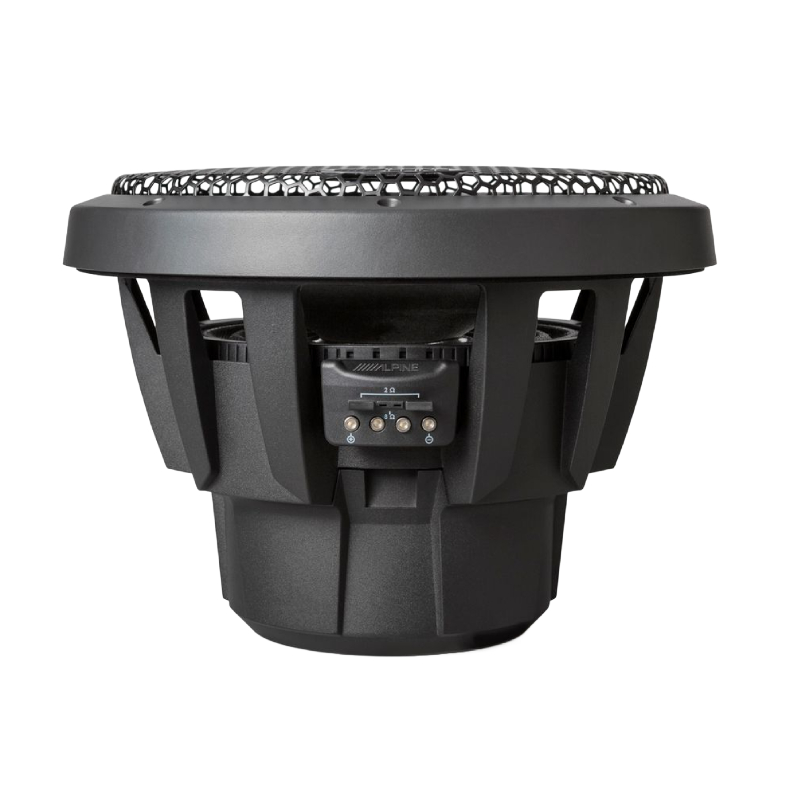

Dual 4-Ohm Voice Coils
Dual 4-ohm voice coils provide flexible wiring options to help match the subwoofer with your amplifier and audio system.
PREMIUM CONSTRUCTION

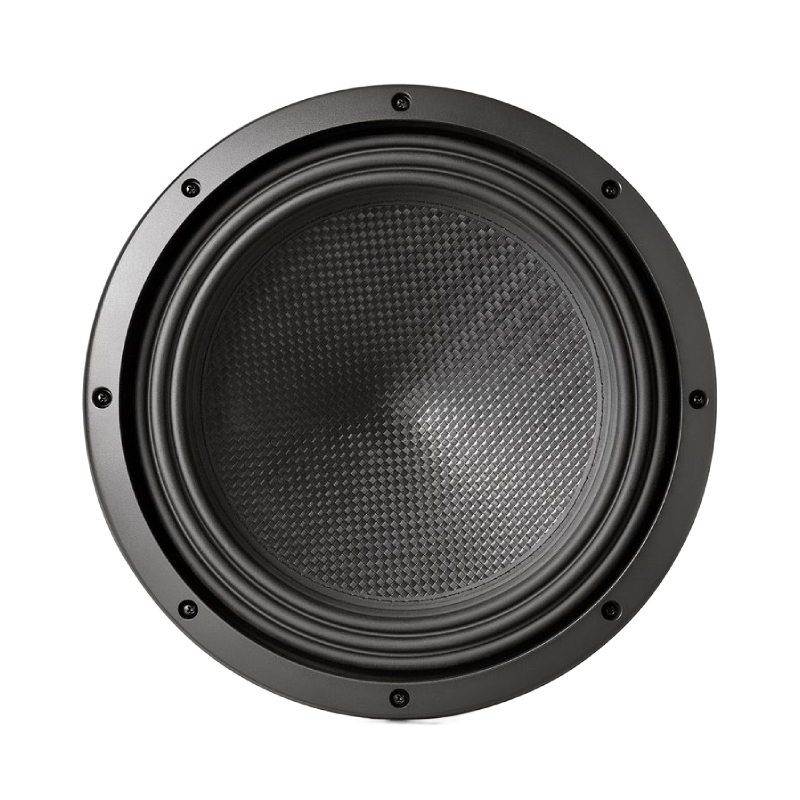

Pulp-Mica Cone & Carbon Fiber Dust Cap
The pulp-mica cone and carbon fiber dust cap provide a strong, lightweight design for powerful, clean, and detailed bass performance.
HIGH EXCURSION
H.A.M.R. Rubber Surround
The H.A.M.R. rubber surround supports smooth cone movement and up to 20mm of linear excursion for deep and controlled bass.
SMOOTH BASS RESPONSE
Wide Frequency Response
A 26Hz–200Hz frequency response helps deliver deep low notes and smooth bass across a wide range of music.
PREMIUM DESIGN
Cast Aluminum Frame
The premium cast aluminum frame provides a strong foundation while the included trim ring and grille add a sleek, finished look.
Alpine HDZ-W12 Recommended Amplifiers | Best 12" Status Series Subwoofer Amp Pairings for Powerful Bass
Build Your Alpine Status Subwoofer System
Real-world amplifier recommendations for the Alpine HDZ-W12, from exact-power matches to high-output bass systems
Amplifier Matching Overview
HDZ-W12 Power Rating: 800W RMS / 2,400W Peak
Ideal Amp Range: Approximately 800W RMS for a single subwoofer
HDZ-W12: Dual 4Ω voice coil configuration
Single-Sub Wiring: Wire both 4Ω voice coils in parallel for a 2Ω final load
Best Setup: Alpine HDA-M80 800W mono amplifier for a single HDZ-W12
Best Overall Match – 800W Status Series Mono Amplifier
The HDA-M80 is the strongest overall match for a single Alpine HDZ-W12. Wire the dual 4Ω voice coils in parallel for a 2Ω final load, then the HDA-M80 delivers 800W RMS at 2Ω, matching the HDZ-W12's 800W RMS power rating. This gives you a clean and balanced Alpine Status system without needing to overpower the subwoofer.
High-Power Option – 1200W Mono Amplifier
The S2-A120M is a strong choice when you want additional amplifier headroom. With the HDZ-W12's dual 4Ω voice coils wired in parallel, the final load is 2Ω. The S2-A120M can deliver up to 1,200W RMS at 2Ω, so the gain should be properly adjusted to keep the 800W RMS HDZ-W12 within its recommended power range.
Why the HDA-M80 Is the Recommended Choice
Exact Power Match: The HDA-M80 provides 800W RMS at 2Ω, matching the HDZ-W12's 800W RMS rating
800W RMS Subwoofer: The HDZ-W12 is designed to handle 800W RMS of continuous power
DVC Compatibility: The HDZ-W12's dual 4Ω voice coils can be wired in parallel for a 2Ω final load
Status Series Pairing: The HDA-M80 keeps the amplifier and subwoofer within Alpine's premium Status lineup
Class-D Design: The mono Class-D amplifier provides efficient power for a dedicated high-performance subwoofer system
Recommended HDZ-W12 Amplifier Settings
Gain Setting: Set the gain for clean output and adjust the amplifier so the subwoofer is not pushed beyond its 800W RMS rating
Low-Pass Filter: Start around 80Hz and adjust according to the enclosure and front-stage response
Bass EQ: Keep bass boost moderate to maintain clean output and avoid unnecessary stress on the subwoofer
Subsonic Filter: Use a subsonic filter with a ported enclosure, typically set below the enclosure's tuning frequency
Phase: Adjust phase for the strongest and smoothest bass integration with the vehicle's front speakers
Recommended HDZ-W12 System Configurations
Single HDZ-W12: Pair one subwoofer with the Alpine HDA-M80 for an ideal 800W RMS Status Series system
Exact Power Build: Use the Alpine HDA-M80 at a 2Ω final load for an 800W RMS power match
High-Output Build: Use the Alpine S2-A120M for additional amplifier headroom with properly adjusted gain
Best Overall Build: Pair one HDZ-W12 with the HDA-M80 for strong power, clean output and Status Series compatibility
Premium Bass Build: The HDZ-W12 and HDA-M80 make a powerful Alpine Status combination for high-performance car audio systems
Pro Tip: For a single Alpine HDZ-W12, the HDA-M80 is the strongest overall amplifier pairing because its 800W RMS output at 2Ω closely matches the subwoofer's 800W RMS rating. Wire the dual 4Ω voice coils in parallel for a 2Ω final load, then properly set the amplifier gain for clean, controlled bass. If you want more amplifier headroom, the S2-A120M can also be used at 2Ω, but its higher output makes proper gain setting especially important.
Frequently Asked Questions (FAQ)
- • What size enclosure works best for this 12-inch subwoofer?
It performs best in an enclosure built to Alpine's recommended sealed or ported specifications. Using the correct box size helps maximize bass output and sound quality.
- • Why does the bass sound distorted when I turn the volume up?
Distortion is usually caused by amplifier clipping or incorrect gain settings. Proper amplifier tuning will help keep the bass clean at higher listening levels.
- • Can this subwoofer handle high-power amplifiers?
Yes, it is designed to work with high-performance amplifiers within its recommended RMS power range. Matching the amplifier correctly helps protect the subwoofer while maximizing output.
- • Why does my enclosure make a whistling sound?
A whistling noise often indicates an air leak or an improperly designed port. Check all enclosure joints and confirm the enclosure is built to the recommended specifications.
- • Is this a good choice for SQL (Sound Quality and Loudness) systems?
Yes, many enthusiasts choose it because it offers a strong balance of sound quality and powerful bass output. Proper enclosure design and tuning are key to getting the best results.
- • Why does the subwoofer get warm after playing for a long time?
Some heat is normal during extended listening sessions at higher power levels. Excessive heat may indicate amplifier clipping or overpowering and should be addressed immediately.
- • Can I use this in a custom fiberglass enclosure?
Yes, as long as the enclosure provides the proper internal air volume and mounting depth. A well-built fiberglass enclosure can perform just as well as an MDF enclosure.
- • Why doesn't the bass blend well with my door speakers?
The crossover frequency or phase settings may need adjustment. Fine-tuning these settings will create a smoother transition between the subwoofer and the main speakers.
- • Should I break in the subwoofer before using full power?
Yes, playing music at moderate volume for several hours helps loosen the suspension naturally. Many users notice smoother and deeper bass after the break-in period.
- • How can I get the strongest bass without damaging the subwoofer?
Use the recommended enclosure, match it with an appropriate amplifier, and avoid excessive bass boost. Proper tuning will deliver louder, cleaner bass while extending the life of the subwoofer.
Learn How To Wire Subwoofers
- Diameter : 12 Inch
- Sensitivity : 83.7 dB
- Impedance : 4 Ohm
- Frequency Response : 24-200 Hz
- Peak Power Handling : 2400 Watts
- RMS Power Handling : 800 Watts
Features:
- Pulp-Mica Cone: Provides lightweight and rigid cone material for accurate bass response.
- Carbon Fiber Dust Cap: Enhances rigidity and disperses heat efficiently.
- Cast Aluminum Frame: Offers durability and helps dissipate heat generated by the subwoofer.
- Triple Stacked High-Power Strontium Ferrite Magnets (174oz x 3): Provides powerful magnetic flux for increased motor strength and efficient operation.
- Dual Progressive Spiders with Integrated Tinsel Leads: Ensures precise cone movement and reduces distortion, enhancing overall sound quality.
- High-Amplitude Multi-Roll (H.A.M.R.) Surround: Allows for maximum excursion and cone movement while maintaining control over the subwoofer's motion.

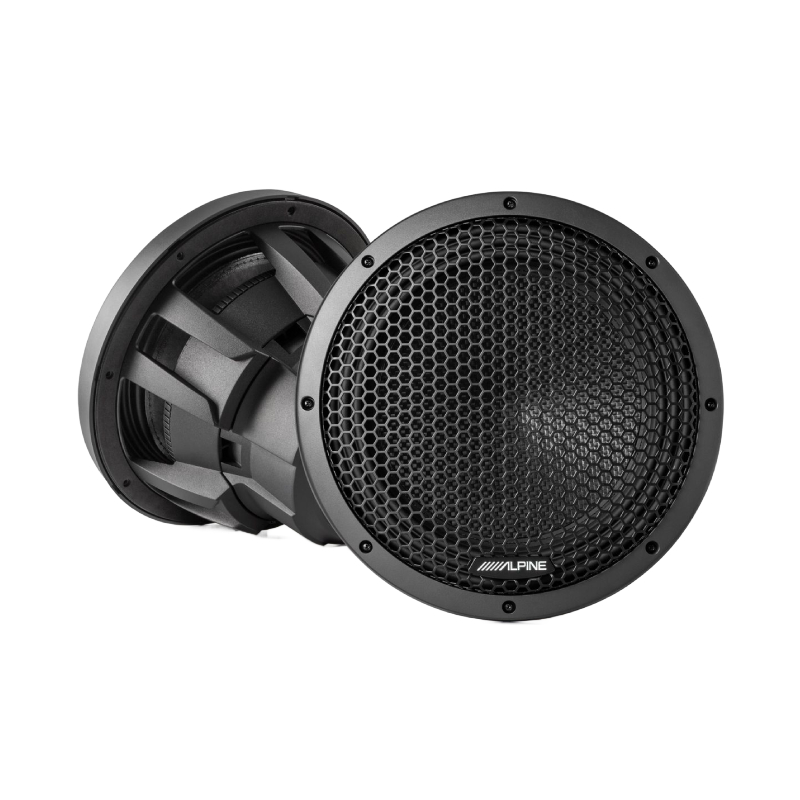

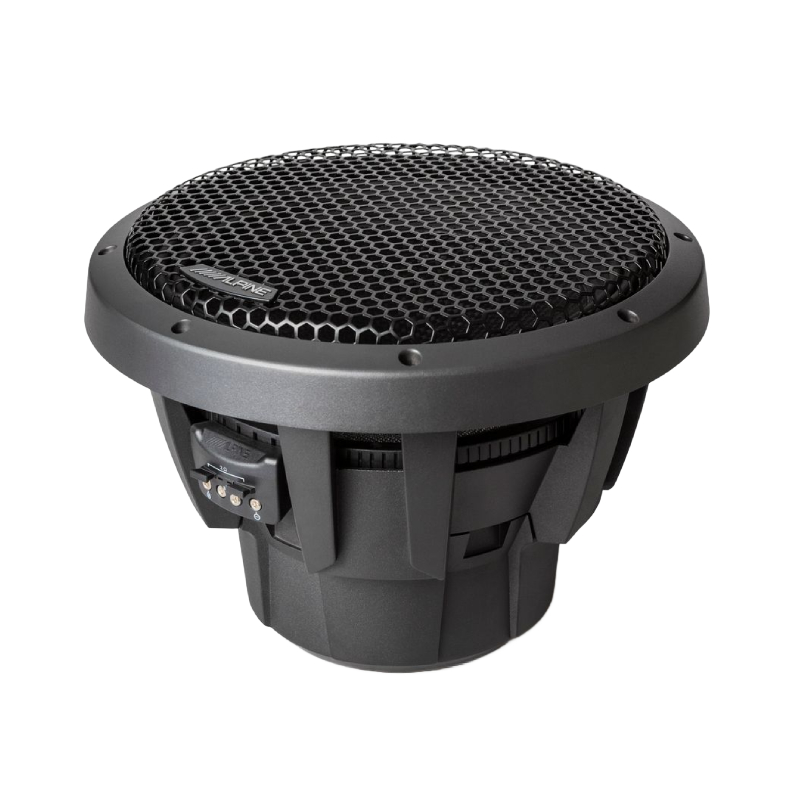

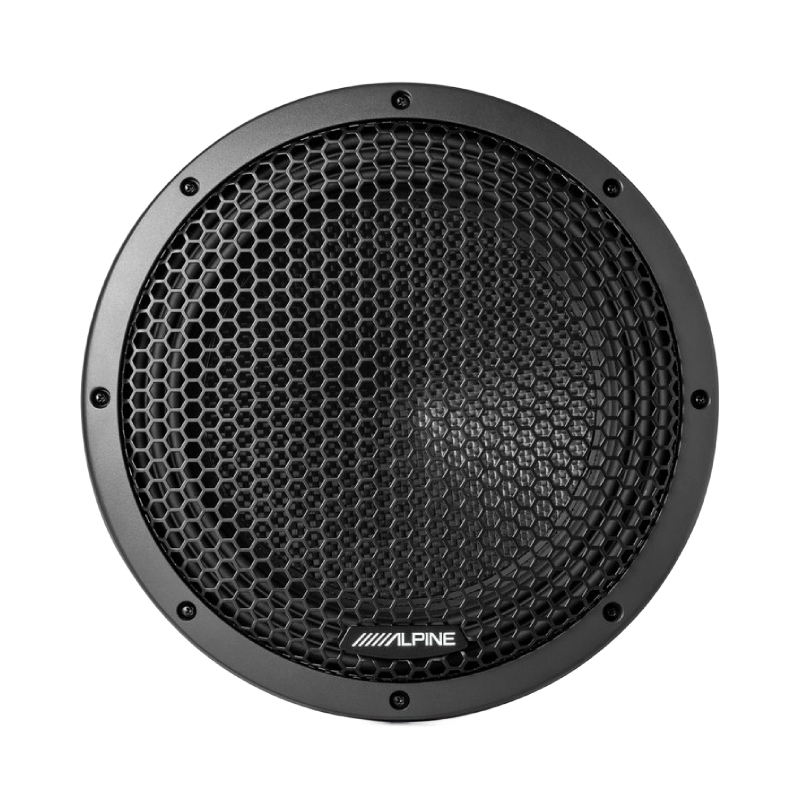

- Included Mesh Grille with Aluminum Trim Ring: Offers protection to the subwoofer cone while adding aesthetic appeal.
Specifications:
- Pulp-Mica Cone
- Carbon Fiber Dust Cap
- Cast Aluminum Frame
- Triple Stacked High-Power Strontium Ferrite Magnets (174oz x 3)
- Dual Progressive Spiders with Integrated Tinsel Leads
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Included Mesh Grille with Aluminum Trim Ring
- Mounting Depth: 7-3/8”
- X-Max: 20mm
- Voice Coil: 65mm
- Frequency Response: 24Hz-200Hz
- Sensitivity: 83.7dB
- Nominal Impedance (DCR): 4Ω+4Ω
- Power Handling: 800W RMS / 2400W Peak
- UPC: 793276085863
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
