Diamond Audio  H152

Hex Series 15" 1500W Peak Power Handling, 2-Ohms, Dual Voice Coil Subwoofer

Item #80638

Product Highlights

  • 15" HEX Series subwoofer
  • 1500W peak power
  • 2-ohm dual voice coil
  • Deep bass performance
  • Durable and strong build

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:

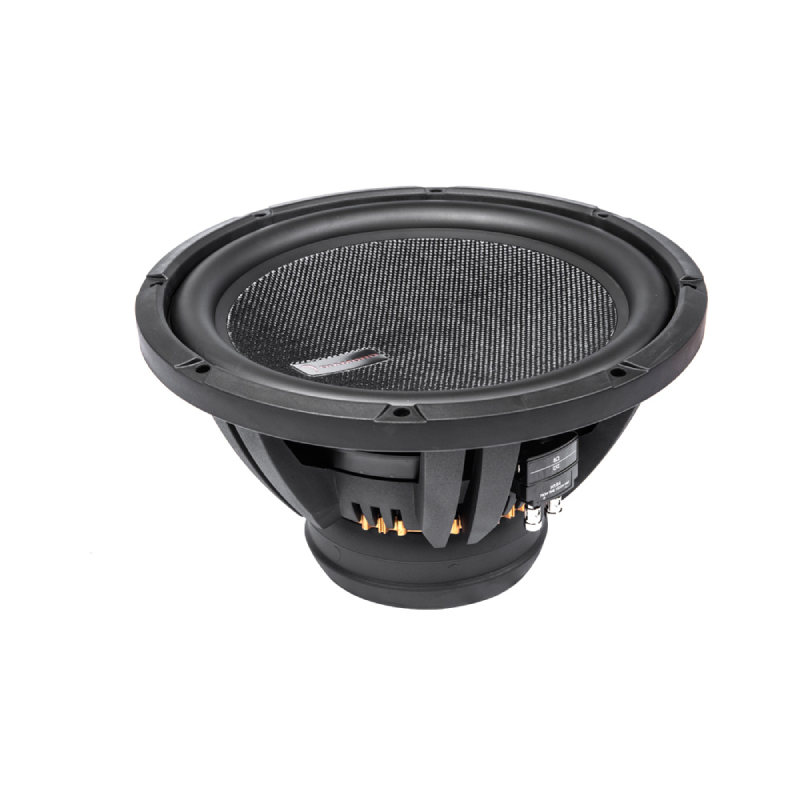

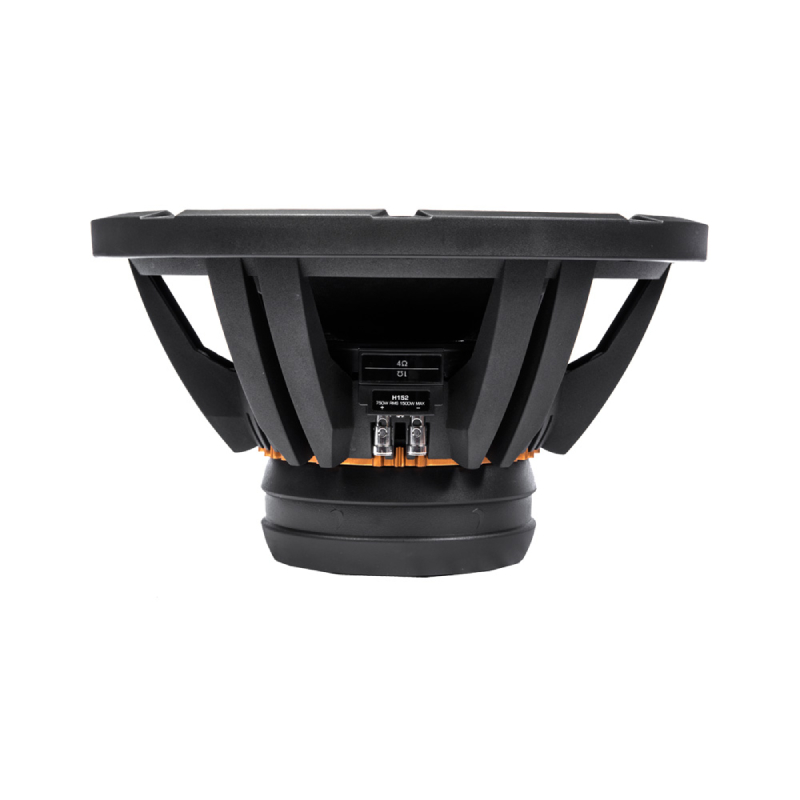

Diamond Audio H152 - Hex Series 15" 1500W Peak Power Handling, 2-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 15" 2-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Superior Sound and Performance in HEX Series Subwoofers

HEX Series subwoofers incorporate advanced features and technologies from the HEX PRO series, including a cast aluminum frame basket, a unique solid core aluminum radial heat sink, and 3" high-temperature voice coils wound on a treated high-strength aluminum former, providing superior thermal dissipation. The subwoofers feature an exotic fiber weave cone with a specially treated paper backing for fast musical bass reproduction. Designed for high output and world-class sound, these subwoofers deliver exceptional performance and years of listening pleasure. Key features include a high-density cast aluminum alloy deep drawn basket, ridged two-part treated paper/fiberglass laminated cone, FEA optimized high-power motor with vented pole piece, copper anodized aluminum elevated radiating heat sink, impedance selection via high-power terminal, and Klippel® DA optimized motor and suspension symmetry.


SPECIFICATIONS


  • Diameter : 15 Inch
  • Sensitivity : 86 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 1500 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 7.8 Inches
  • RMS Power Handling : 750 Watts

FEATURES


Features

  • Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
  • Ridged 2-Part Treated Paper/Fiberglass Laminated Cone
  • FEA Optimized High Power Motor with Vented Pole Piece
  • Unique High-Strength 3 Point Triple Bond Neck Joint Technique
  • Copper Anodized Aluminum Elevated Radiating Heat Sink
  • Impedance Selectable High Power Terminal
  • Klippel DA Optimized Motor and Suspension Symmetry



Specifications

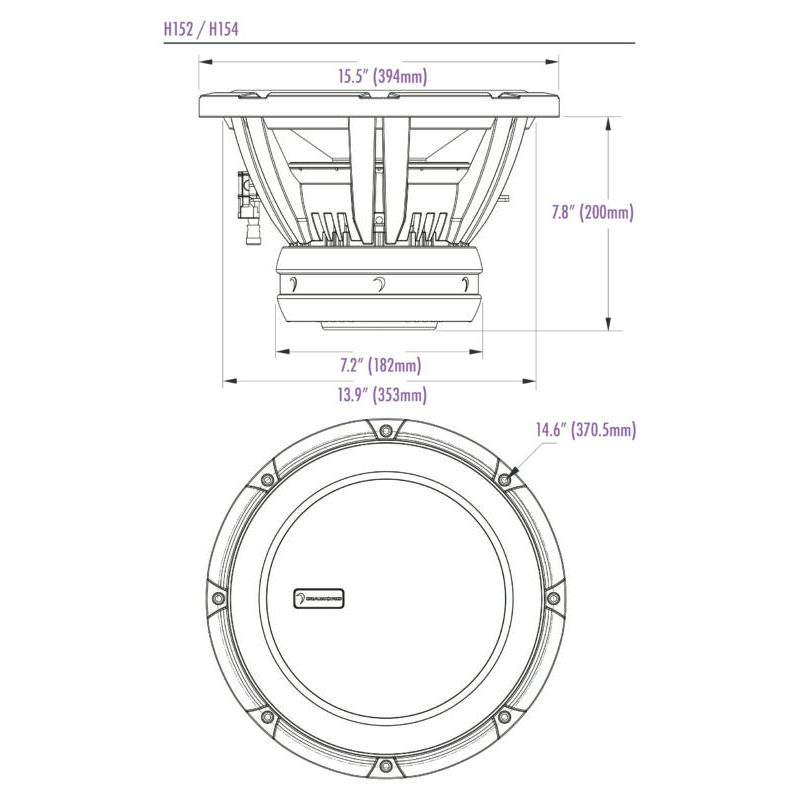

  • Power Handling: RMS: 750 Watts, Peak: 1500 Watts
  • Total Diameter: 15.5"
  • Mounting Diameter: 13.9" / 353mm
  • Hole Diameter: 14.6"
  • Mounting Depth: 7.8" / 200mm
  • Magnet Diameter: 7.1"
  • SPL @ 2.83v: 87dB
  • Re: 3.7 Ohms
  • Qms: 6
  • Qes: 0.57
  • Qts: 0.52
  • Fs: 35.2Hz
  • Vas: 88.5L
  • Xmax: 16mm
  • Impedance: 2 Ohms
  • Voice Coil: 3” High Temp Copper VC on Treated Black High-Strength Aluminum Former
  • UPC: 826843896835
  • Weight: 25
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
