Diamond Audio  DMD122SH

Diamond DMD Series 12" 600W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer

Item #80655

Condition:   Brand New

Product Highlights

  • Diamond DMD
  • 12 Inch
  • 600W Peak
  • Dual Voice
  • Coil Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$239.99

Reg. Price $339.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD122SH - Diamond DMD Series 12" 600W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Space-Saving Power: Diamond DMD Shallow Series Subwoofers

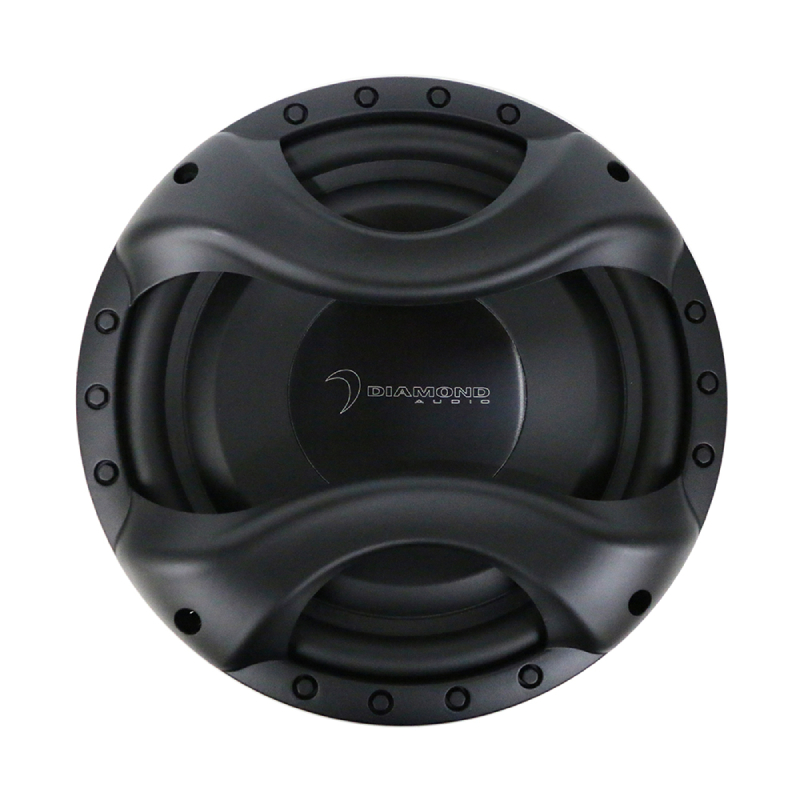

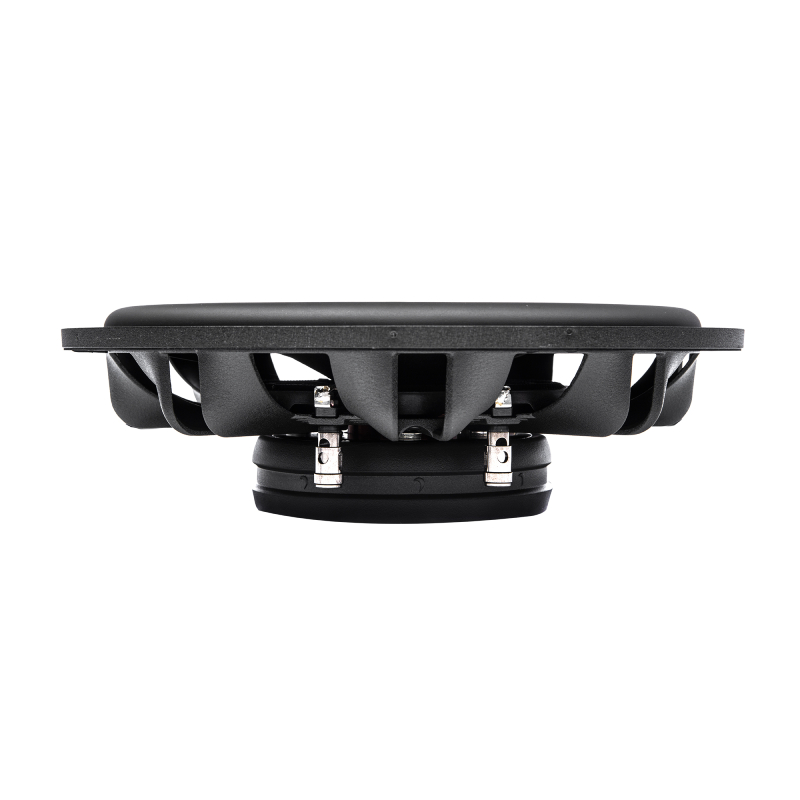

If you're dealing with space constraints and need to add bass to your car audio system, the Diamond DMD shallow series subwoofers are the perfect solution. With a depth of just 3 inches, these subwoofers perform like full-size models but take up significantly less space. For the best bass response, it's recommended to use two DMD shallow subwoofers in a narrow 1 cubic foot enclosure, which will substantially increase bass output due to the added surface area. Features include a true-fiber weave paper-backed parabolic cone, an NBR half-roll surround for optimized linear travel, a protective ABS front trim piece, a die-cast frame with integrated spider venting, and Klippel® DA optimized motor and suspension symmetry.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 87 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 600 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 3 Inches
  • RMS Power Handling : 300 Watts

FEATURES


Features:

  • 2Ω Impedance
  • 300W RMS, 600W MAX
  • Dual Voice Coil
  • Mounting Diameter: 11.06 “ / 281mm
  • Mounting Depth: 3 “ / 76mm
  • Grills Included
  • True-fiber weave paper backed parabolic cone, 3" mounting depth
  • High-density NBR half-roll surround optimized for linear travel
  • Protective ABS contemporary designed front trim piece
  • Die cast frame with integral under and over spider venting
  • Klippel® DA optimized motor and suspension symmetry



Specifications:

  • SPL (dB): 87.0
  • Re (Ω) [series]: 3.4
  • Qms: 5.5
  • Qes: 0.65
  • Qts: 0.58
  • Fs (Hz): 38.0
  • Vas(L): 45.5
  • Cms (mm/N): 0.11
  • Mms (g): 159
  • Sd (m2): 0.054
  • BL (T*M): 14.1
  • Xmax: 7.9
  • Pwr (W) nom/max: 300/600

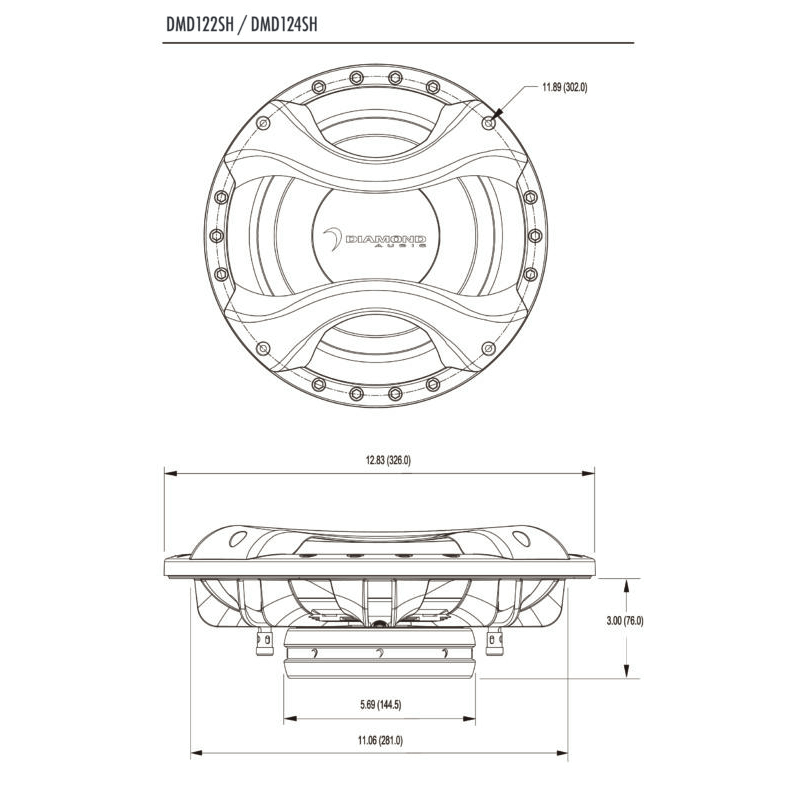

  • Total Diameter: 12.83” (326.0) in. (mm)
  • Mounting Diameter: 11.06” (281.0) in. (mm)
  • Screw Hole Dia.: 11.89” (302.0) in. (mm)
  • Mounting Depth: 3.00” (76.0) in. (mm)
  • Magnet Dia.: 5.69” (144.5) in. (mm)
  • UPC: 847169020391
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
