Diamond Audio  DMD683

Diamond DMD Series 6"x8" 160W Peak Power Handling 4-Ohms, 3-Way Coaxial Speakers (pair)

Item #80714

Product Highlights

  • Diamond DMD Series
  • 6"x8" size
  • 160W peak power handling
  • 4-Ohms impedance
  • 3-way coaxial speakers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD683 - Diamond DMD Series 6"x8" 160W Peak Power Handling 4-Ohms, 3-Way Coaxial Speakers (pair)


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) Speakers
  • • (8) Mounting screws
  • • (8) Mounting clips
  • • (2) Speaker connection cables
  • • Owner's Manual
Affordable Excellence in Entry-Level Car Audio

Discover the DMD Series Speakers by Diamond Audio – the ideal entry-level option that combines affordability with dependable performance. Thanks to ongoing research and development, these speakers feature advanced technologies like chemically treated voice coils and cross-flow design basket frames that enhance thermal heat dissipation. Designed for exceptional value, the DMD Series incorporates a higher-density NBR half-roll surround for superior linear performance and benefits from the Klippel® DA optimized motor and suspension symmetry for precise and balanced sound. Upgrade your audio system with the DMD Series and experience outstanding quality and performance.


SPECIFICATIONS


  • Diameter : 5x7/6x8 Inch
  • Sensitivity : 86 dB
  • Impedance : 4 Ohm
  • Frequency Response : 78-20000 Hz
  • Peak Power Handling : 160 Watts
  • Design : 3 Way
  • RMS Power Handling : 80 Watts

FEATURES


Features:

  • FEA Optimized High-Power Ferrite Motor
  • Klippel® DA Optimized Motor and Suspension Symmetry



Specifications:

  • Series: DMD Series
  • Priced Per: Pair
  • Number of Speakers: 2
  • Speaker Size: 6" x 8"
  • Design: 3-way Coaxial
  • Color: Black
  • Hi-Res Certified: No
  • Illumination: None
  • Speaker Grilles: No
  • Includes Damping Kit: No
  • Tweeter:
    • Tweeter Design: Dome
    • Tweeter Size: 0.79"
    • Tweeter Composition: Silk
    • 13mm PEI Dome Tweeter
    • 20mm Silk Dome Tweeter
  • Woofer:
    • Woofer Composition: Polypropylene with reinforced stamped pattern
    • Woofer Surround: Rubber
  • Power Handling:
    • Peak Power Handling: 80 watts each, 160 watts per pair
    • RMS Power Handling: 40 watts each, 80 watts per pair
  • Performance:
  • Sensitivity: 86 dB
  • Frequency Response: 67 - 20,000 Hz
  • Impedance: 4 ohms

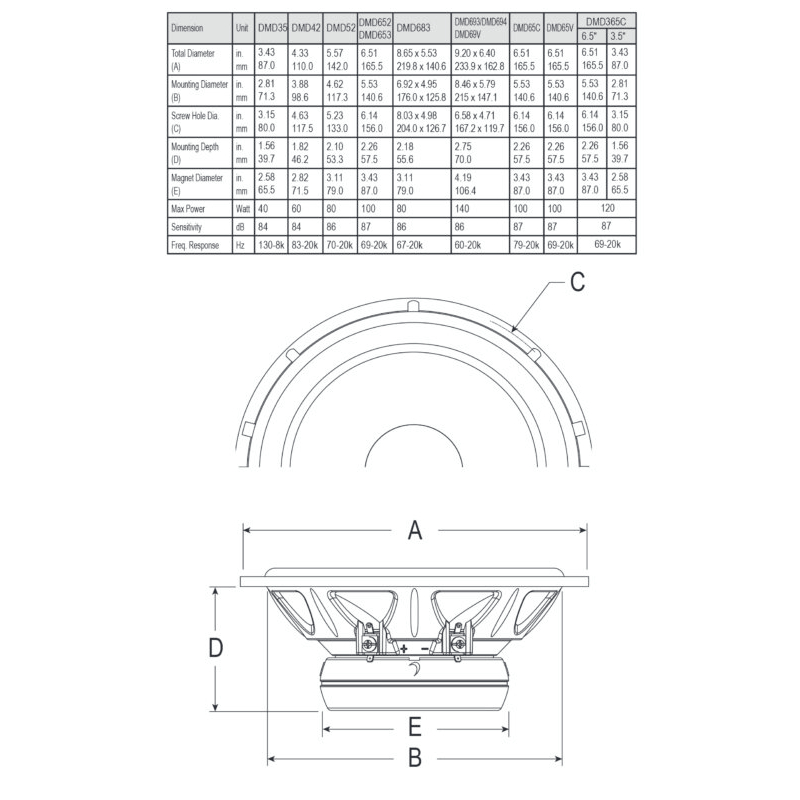

  • Mounting:
    • Shallow Mount Installation: No
    • Top-Mount Depth: 2.18"
    • Mounting Depth: 2.18"
    • Cutout Dimensions: 6.92 x 4.95 inches / 176 x 126 mm
    • Mounting Diameter: 6.92 x 4.95 inches / 176 x 126 mm
  • UPC: 847169034947
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
