Diamond Audio  MP525 Hot Deal

MP Series 5.25" 300W Peak Power Handling, PRO Full-Range Coaxial Horn Speakers (pair)

Item #80732

Product Highlights

  • MP Series 5.25"
  • 300W Peak Power Handling
  • PRO Full-Range Coaxial Horn Speakers
  • Pair
  • Durable Construction

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 5.25 Inch
  • Sensitivity : 101 dB
  • Impedance : 4 Ohm
  • Frequency Response : 110-18000 Hz
  • Peak Power Handling : 300 Watts
  • RMS Power Handling : 150 Watts

FEATURES


Features:

  • 300W MAX/150W RMS Power Handling
  • Ferrite Strontium High Temp Magnet structure
  • Heavy Duty Die-cast Aluminum Basket
  • Advanced Voice Coil Heat Sink Design for Better Heat   Dissipation
  • 1.5” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
  • 1.0” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Tweeter
  • Frequency Response: 110Hz -18Khz
  • High Sensitivity 101dB 1W/1M
  • 12dB 2nd Order Filter Crossover for Better Protection of the Tweeter
  • Mounting Depth: 2.99” / 76mm
  • Mounting Diameter: 4.68” / 119mm



Specifications:

  • SPL (dB-MidBass): 92.3
  • SPL (dB-Tweeter): 107
  • Re(Ω)[series]: 3.2
  • Qms: 7.55
  • Qes: 0.64
  • Qts: 0.59
  • Fs(Hz): 168.2
  • Vas(L): 1.5
  • Cms(mm/N): 0.13
  • Mms(g): 6.8
  • Sd(m2): 89.9
  • BL(T*M): 6.0
  • Xmax(mm): 1.0
  • Pwr(W) NOM/MAX: 150/**300

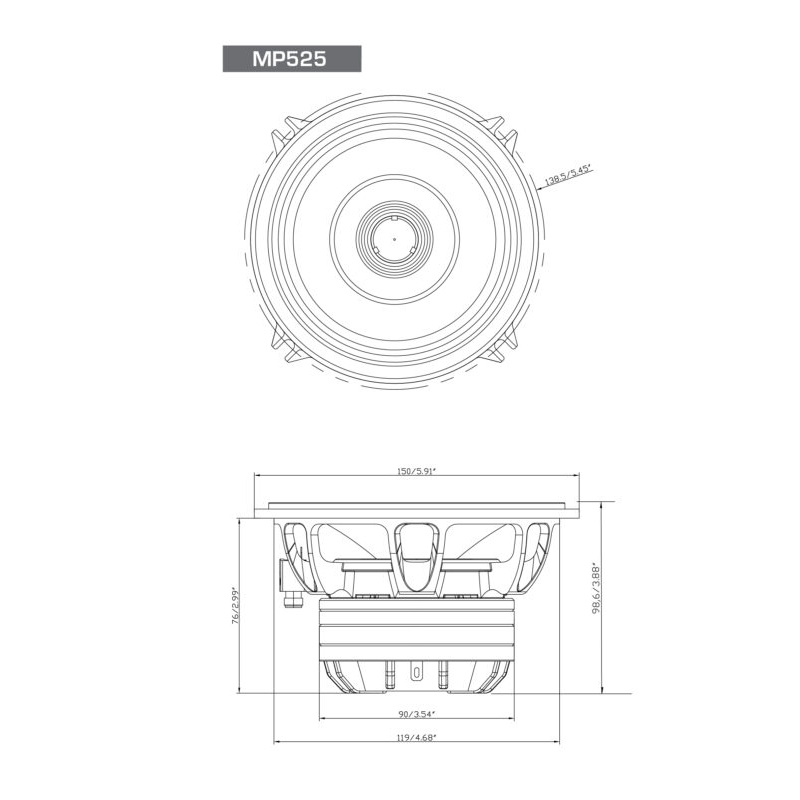

  • Total Diameter: 5.91 (150) in. (mm)
  • Mounting Diameter: 4.68 (119) in. (mm)
  • Mounting Depth: 2.99 (76) in. (mm)
  • Total Depth: 3.26 (83) in. (mm)
  • Magnet Diameter: 3.54 (90) in. (mm)
  • UPC: 847169054402
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
