Diamond Audio  MP654 Hot Deal

MP Series 6.5" 300W Peak Power Handling, PRO Full-Range Coaxial Horn Speaker

Item #80733

Condition:   Brand New

Product Highlights

  • MP Series 6.5" full-range coaxial horn speaker
  • 300W peak power handling
  • Clear and powerful sound output
  • Durable, high-performance design
  • Ideal for professional audio setups

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$278.95

Reg. Price $539.99  Save $261.04

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 6.5 Inch
  • Sensitivity : 101 dB
  • Impedance : 4 Ohm
  • Frequency Response : 110-18000 Hz
  • Peak Power Handling : 300 Watts
  • RMS Power Handling : 150 Watts

FEATURES


Features:

  • 150W RMS/300 MAX Power Handling
  • Ferrite Strontium High Temp Magnet structure
  • Heavy Duty Die-cast Aluminum Basket
  • 1.5” 4 Ohm – Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
  • 1.0” 8 Ohm – Single Layer High Temp Voice Coil for Tweeter
  • Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
  • Frequency Response: 110Hz -18Khz
  • High Sensitivity 101dB 1W/1M
  • 12dB Crossover

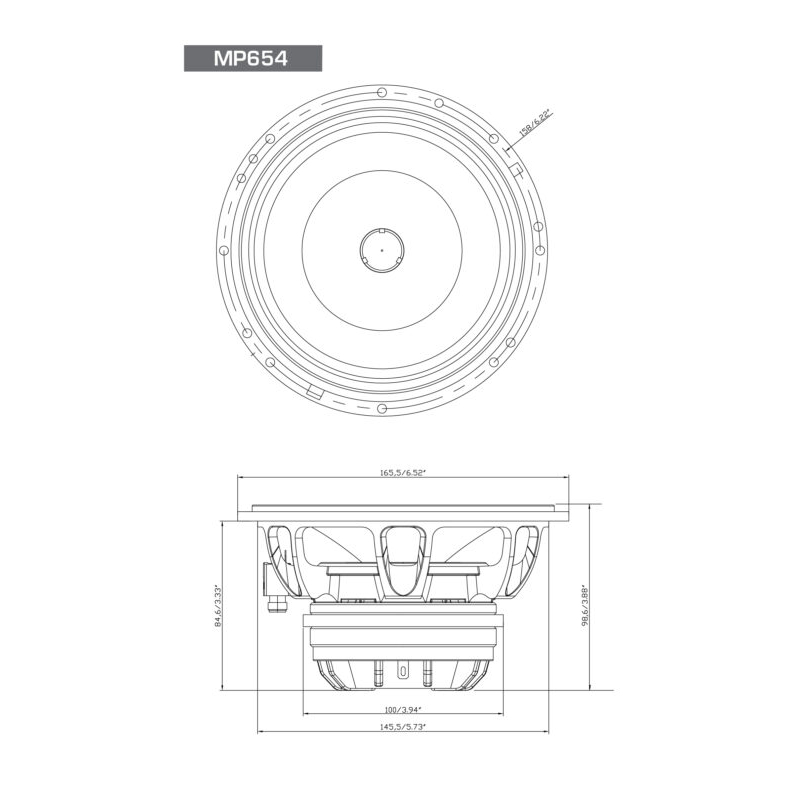

  • Mounting Depth: 3.33” / 84.6mm
  • Mounting Diameter: 5.73” / 145.5mm



Specifications:

  • SPL (dB-MidBass): 92.7
  • SPL (dB-Tweeter): 107
  • Re(Ω)[series]: 3.2
  • Qms: 10.73
  • Qes: 0.47
  • Qts: 0.45
  • Fs(Hz): 103.3
  • Vas(L): 6.6
  • Cms(mm/N): 0.24
  • Mms(g): 9.7
  • Sd(m2): 138.9
  • BL(T*M): 6.5
  • Xmax(mm): 1.0
  • Pwr(W) NOM/MAX:  150/**300
  • Total Diameter: .52 (165.5) in. (mm)
  • Mounting Diameter: 5.73 (145.5) in. (mm)
  • Mounting Depth: 3.33 (91.6) in. (mm)
  • Total Depth: 3.88 (98.6)in. (mm)
  • Magnet Diameter: 3.94 (100) in. (mm)
  • UPC: 0669356844036
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
