Diamond Audio MP694 - MP Series 6x9" 300W Peak Power Handling, Pro Full-Range Coaxial Horn Speakers
We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) Speakers
- • Owner's Manual
Unmatched Efficiency and Clarity with Diamond Audio’s MP Series Speakers
Experience top-tier audio performance with Diamond Audio’s MP Series speakers, designed for unparalleled efficiency and volume. Featuring a horn-style tweeter with a replaceable diaphragm, these speakers deliver exceptional sound clarity and power, making them ideal for boats, Harley Davidson motorcycles, and recreational vehicles. Whether you’re on the water, cruising down the road, or exploring off the beaten path, the MP Series ensures high-decibel, clear audio with minimal power consumption.
Durable Design and Superior Sound Quality for Every Adventure
Built with a high-end cast basket and advanced design, the MP Series speakers are engineered for durability and long-term performance. The horn-style tweeter improves sound projection and clarity, while the replaceable diaphragm simplifies maintenance. Known for superior sound quality, Diamond Audio’s MP Series offers rich mid-range and powerful bass, enhancing every journey. Perfect for any environment, these speakers provide reliable, high-performance sound, making them a top choice for your audio system upgrade.
- Diameter : 8 Inch
- Sensitivity : 103 dB
- Impedance : 4 Ohm
- Frequency Response : 80-18000 Hz
- Peak Power Handling : 400 Watts
- Design : 2 Way
- RMS Power Handling : 200 Watts
Features
Design:
- Full-range
- Tweeter Design: Horn
- Tweeter Size: 1"
- Shallow Mount Installation: No
Materials & Construction:
- Heavy Duty Die-cast Aluminum Basket
- Ferrite Strontium High Temp Magnet Structure
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- 1" Aluminum Horn Tweeters
- Neodymium magnet motor structure
- 12dB Crossover
Environmental & Compliance:
- Marine Certified: No
- Hi-Res Certified: No
- CTA-2031 Compliant: No
Illumination: None
Speaker Grilles: Not included
Includes Damping Kit: Without damping kit
Specifications
Power Handling:
- Peak Power Handling: 400 watts per pair / 200 watts each
- RMS Power Handling: 200 watts per pair / 100 watts each
- Frequency Response: 80 - 18,000 Hz
- Sensitivity: 103 dB 1W/1M
- Impedance: N/A
Voice Coil Diameter:
- Woofer: 1.5" (4 Ohm) with Black Coated Voice Coil former
- Tweeter: 1.0" (8 Ohm)
- Total Voice Coil Diameter: 1.75"

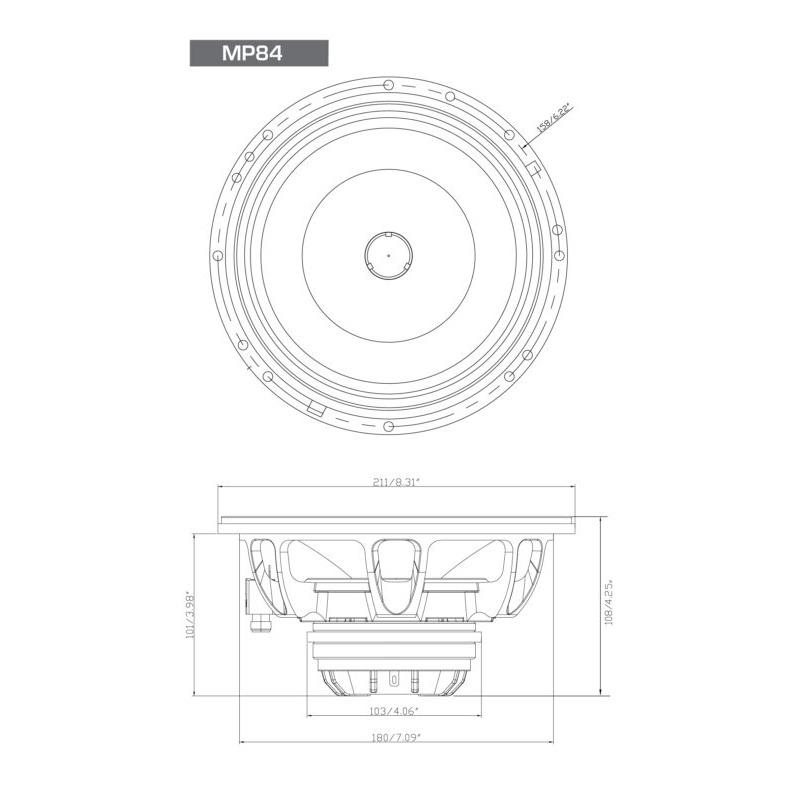

Mounting Depth: 3.98" / 101mm
Cut-out Diameter: 7.09" / 180mm
Top-Mount Depth: 7.09"
Speaker Size: 8"
Number of Speakers: Pair
Color: Black
- UPC: 847169054389
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
