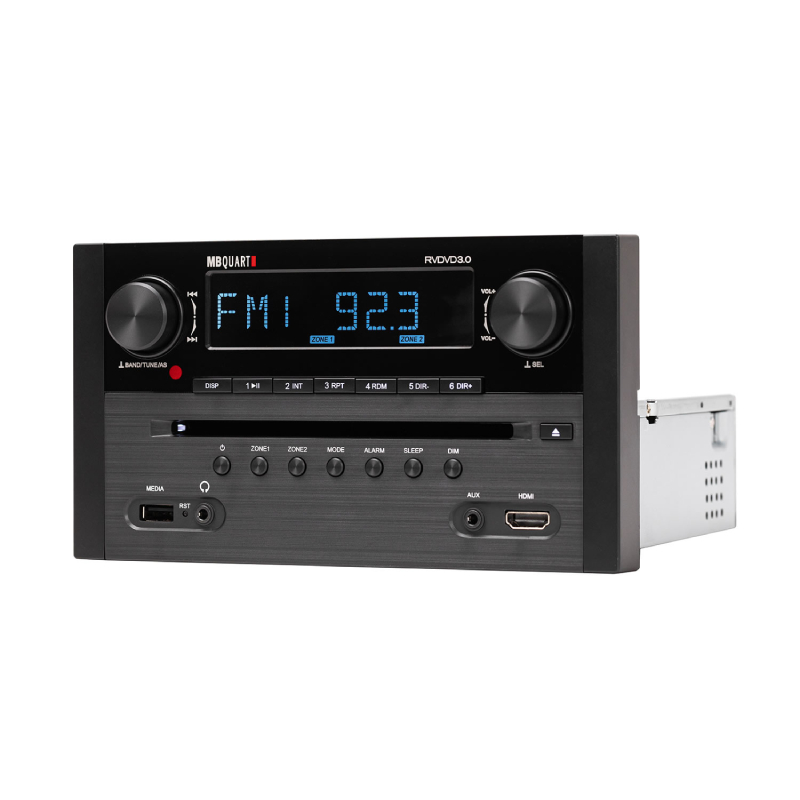

Digital Multi-Media, Multi-Zone, 160 Watt RV Source Unit with DVD, AM/FM & Bluetooth 4.0. Full function remote included.
Type Source: Unit
Brand: MB Quart
Model Replaced: RVDVD2.0
Warranty: 1 Year
Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
Source Unit Bluetooth Range (ft): 32
Source Unit RMS Power Output (watts): 4 x 20
Source Unit Peak Power Output (watts): 4 x 40

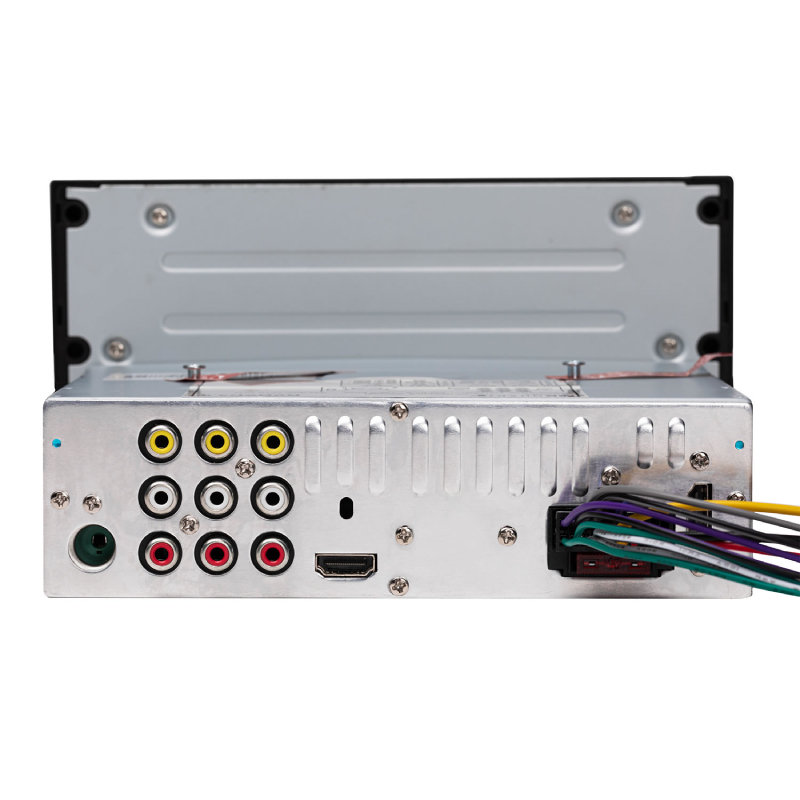

Source Unit Pre-amp Outputs (Y/N #): AUDIO: 2 RCA Pair – Front/Rear, AUDIO: Headphones – Front Panel, VIDEO: 1 Video RCA – Video Output, VIDEO: Video 2 – In/Out, Yes
Source Unit Pre-amp Voltage: 2.0V
Source Unit Minimum Impedance (ohms): 4
Source Unit Display Type: LCD
Source Unit Display Backlit: Yes
Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0

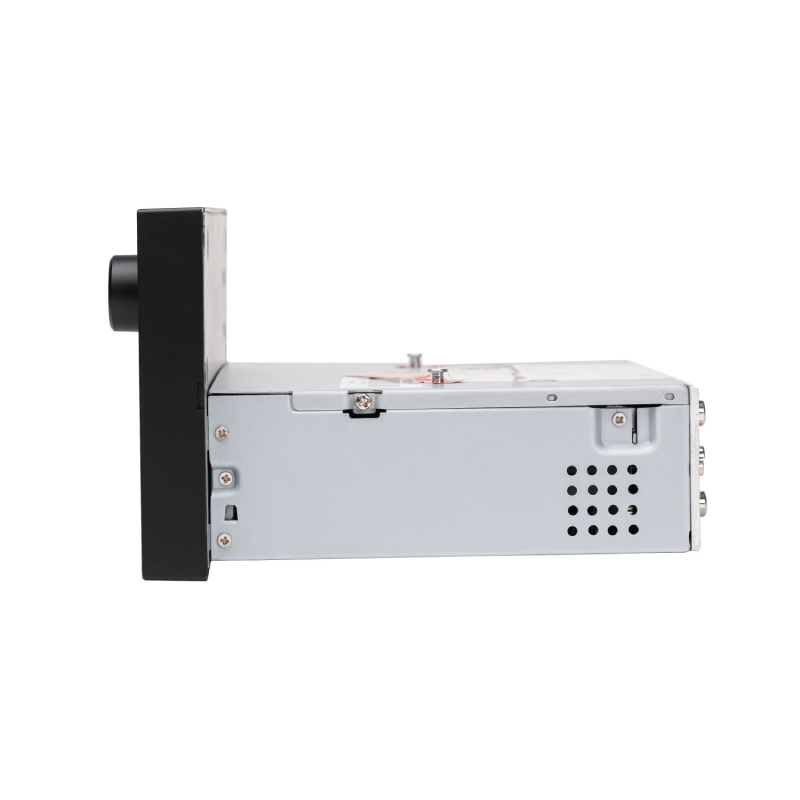

Source Unit Dimensions Total Mounting Depth (in): 5.9
Source Unit Dimensions Mounting Bezel (Round) (in): 7.87 x 4.33 x 0.74
Additional Details: MAXIMUM THD+N AT 4 OHMS: 83.3dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -89.3dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Aux 10Hz-20KHz / Bluetooth: 20Hz-16.8KHz, STEREO SEPARATION (AUX INPUT): -64dB @ 5kHz, FM MONO USABLE SENSITIVITY: 5.2μV, AM MONO USABLE SENSITIVITY: 21.5μV, DISC LOAD TIME: 14.9s, TRACK CHANGE TIME: 2.2s
Apple® Control:Quick control and access of iTunes collection with iPhone, iPod and iPad.
Bluetooth® Connect: Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
Secure Simple Pairing™: Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
Quick-Pair™: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

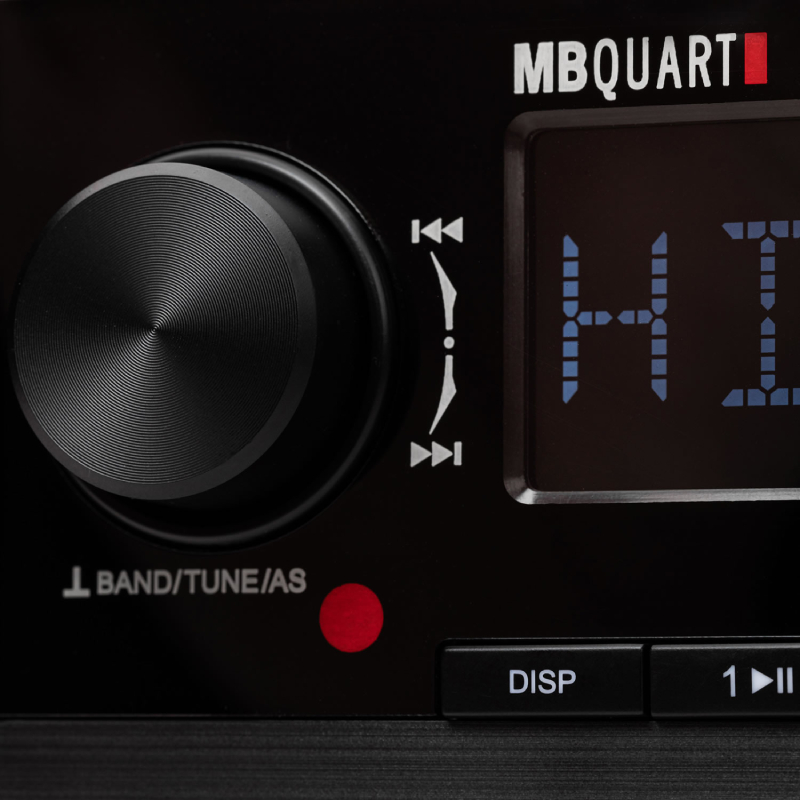

Control Method: Unit is adjusted by master knob and menu selection.
AM/FM Tuner Presets: AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. 5 Weather Band Stations: Are preset from factory.
Frequency Range: FM: 87.5-108MHz, AM: 520-1710kHz, Weather Band: 162.400-2162.550MHz

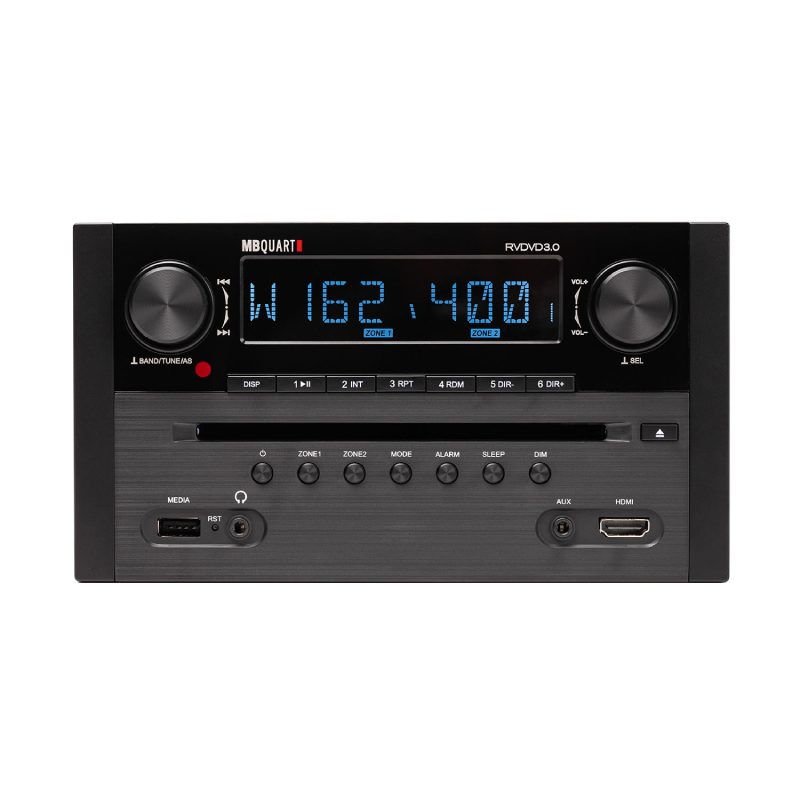

Weather Band: Stay alert to changing weather conditions when on the road.

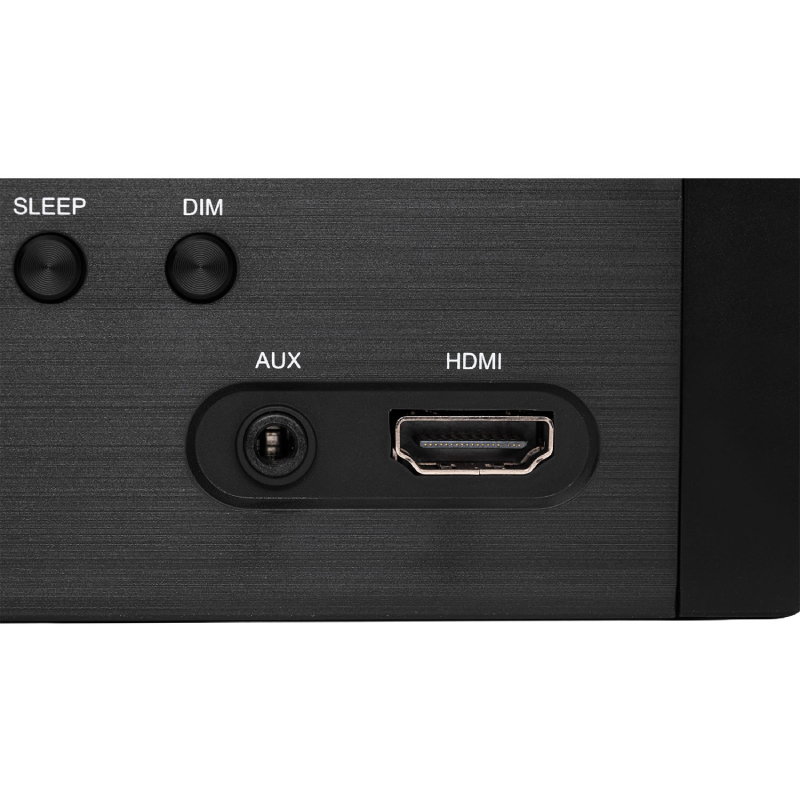

Video Input: HDMI & RCA (In/Out)
Additional Inputs: HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system.

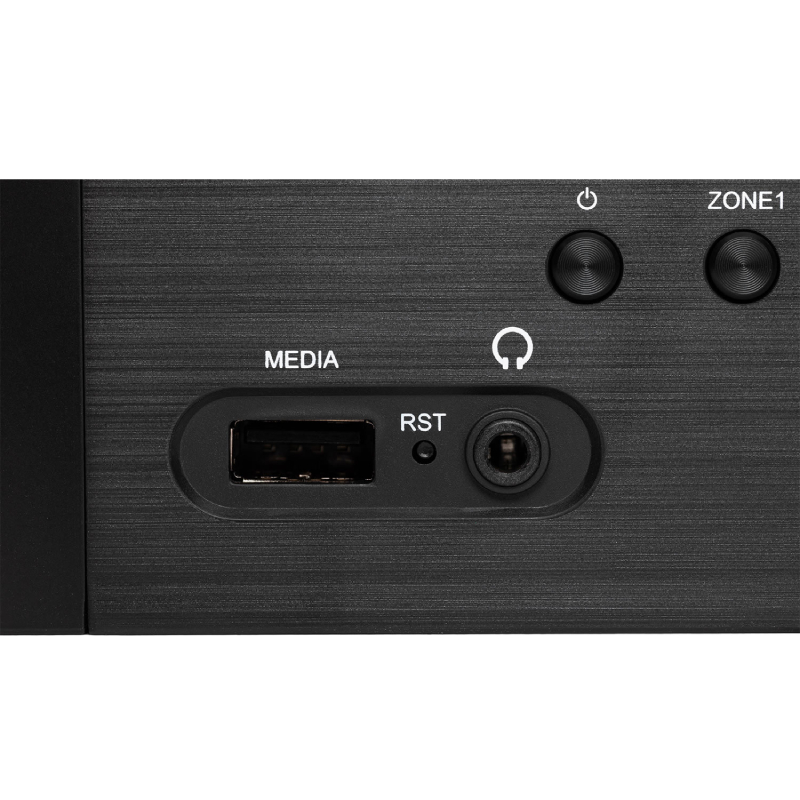

USB / Apple® / Charging Port: Yes
Bluetooth® Version: Version 4.0
User Presets: FM1, FM2, FM3, AM, WB

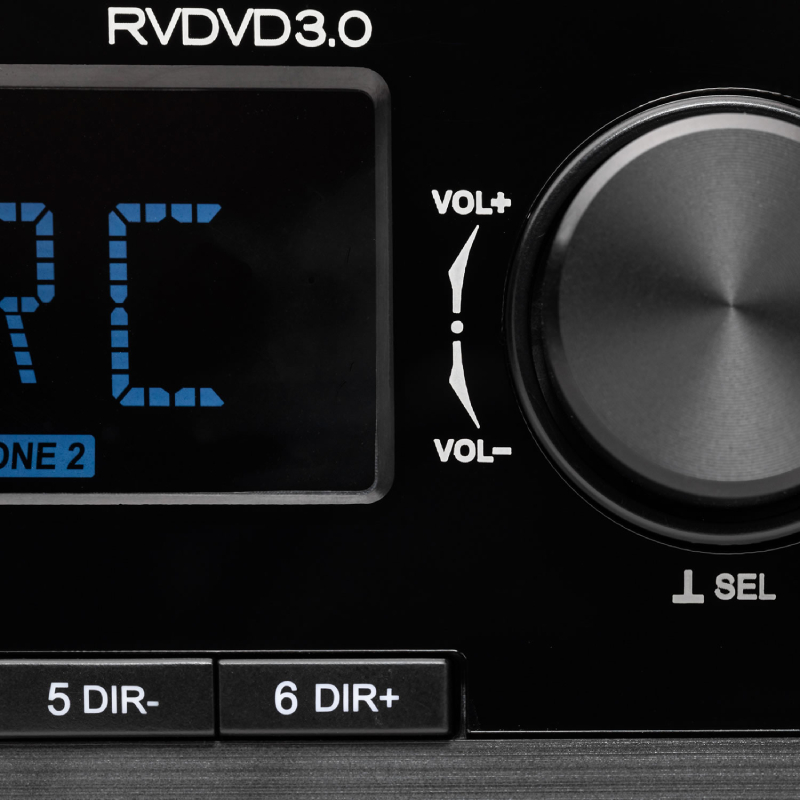

Dual Audio Zone Capability: Control volume in two different areas independently, such as passenger area and outdoor speakers.
