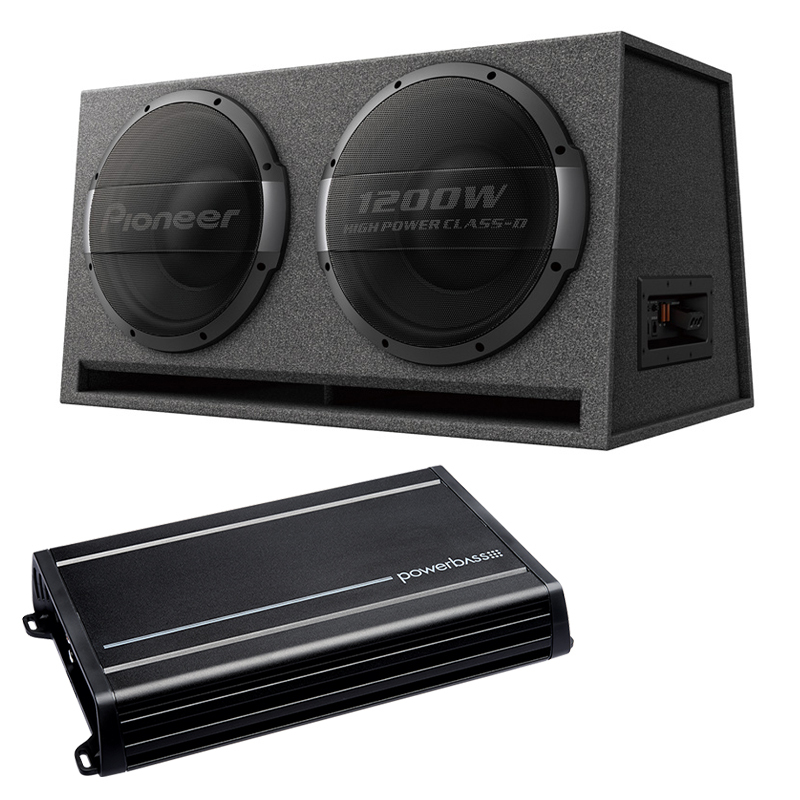

What's Inside?
- 1 Pioneer TS-WX1220AH
- 1 Powerbass ACS-1000D

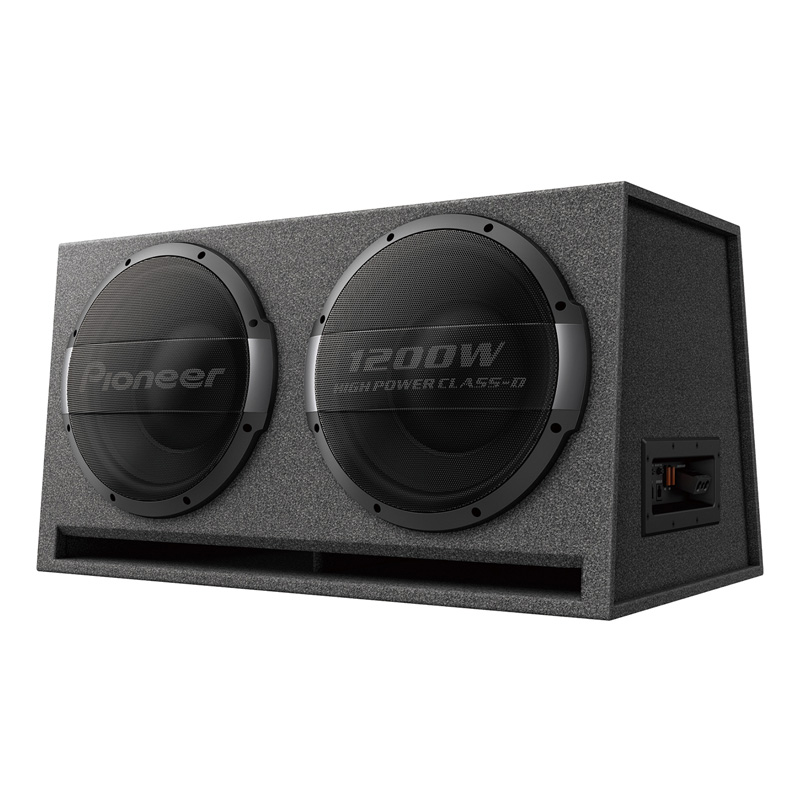

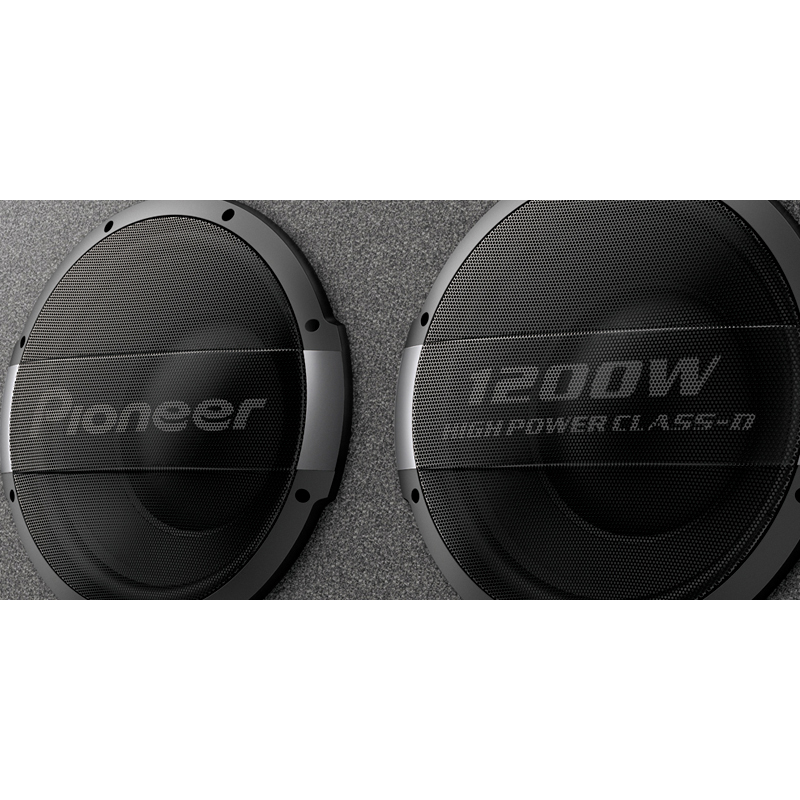

TS-WX1220AH 12" 1000W RMS (3000W Peak Power Handling) 1200W Peak Power Built-In Amplifier Double Powered Bass Reflex Subwoofer System
Specifications:
- CarSoundFit App: Yes
- Size: 30 cm (12") x 2
- Type: Double powered bass reflex subwoofer system
- Maximum power: 3000 W
- Nom Power: 1000 Watt
- Frequency response: 20 Hz - 2.9 kHz
- Sensitivity: 118 dB (in car, 2V) dB
- Impedance: 0.3 ohms
- Woofer material: Pulp
- Surround: Urethane
- Voice Coil type: Copper round wire 4-layers single voice coil
- Voice Coil bobbin type: Kapton
- Terminals: Faston
- Magnets: FERRITE
- 30cm / 12" Enclosed Active : Yes
- LPF: 50 Hz - 200 Hz (-12dB / oct)
- Weight: 22.8 kg
- Dimensions: 745x459(375)x400 mm

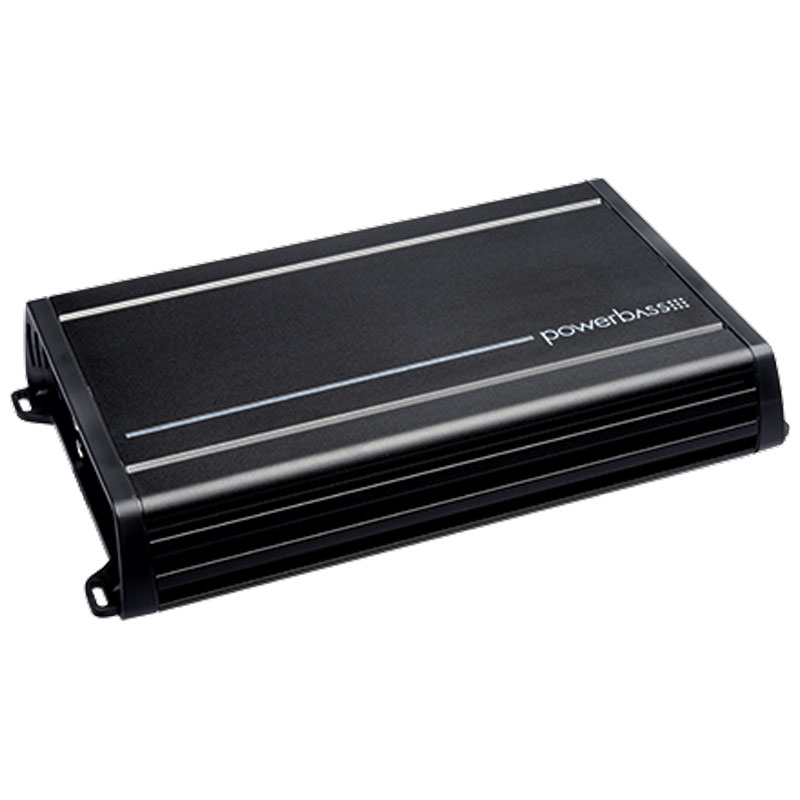

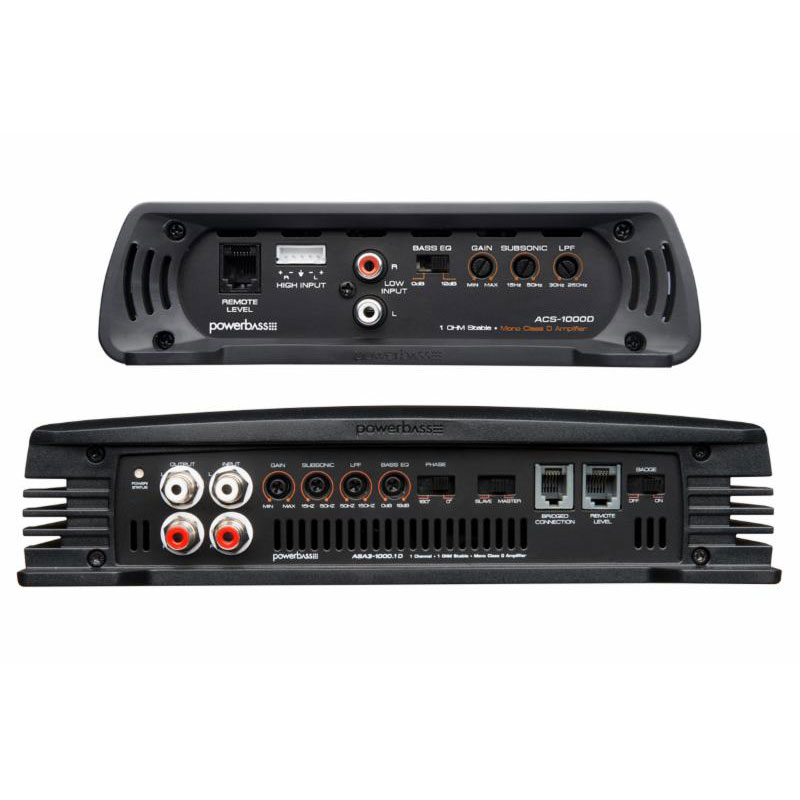

ACS-1000D 1-Channel Class D Compact Amplifier 1000 Watts
- 1-ohm Stable Class D Circuitry
- Low Current / High Efficiency
- High / Low Level Inputs
- Variable Electronic Low Pass Crossover
- Variable Electronic Sub-Sonic Filter
- Selectable Electronic Bass EQ
- Variable Remote Gain Control (Optional)
- 4-ohm Power: 400 watts x 1
- 2-ohm Power: 700 watts x 1
- 1-ohm Mono Power: 1000 watts x 1
- Peak Power: 2000 watts
- Total Harmonic Distortion: <0.5%
- Frequency Response: 10Hz~250Hz
- S/N Ratio: >90dB
- Input Sensitivity: 0.25 - 6.0 volts
- Crossover Slope: 12dB
- Low-Pass Crossover Freq (Hz): 30Hz~250Hz
- Variable Subsonic Frequency: 15Hz~50Hz
- Selectable Subwoofer EQ: 0 /+12dB
- Subwoofer EQ Frequency: 45Hz
- Dimensions (in Inches): 12.0" x 7.1" x 2.0"
- UPC:
- Weight: 60
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
