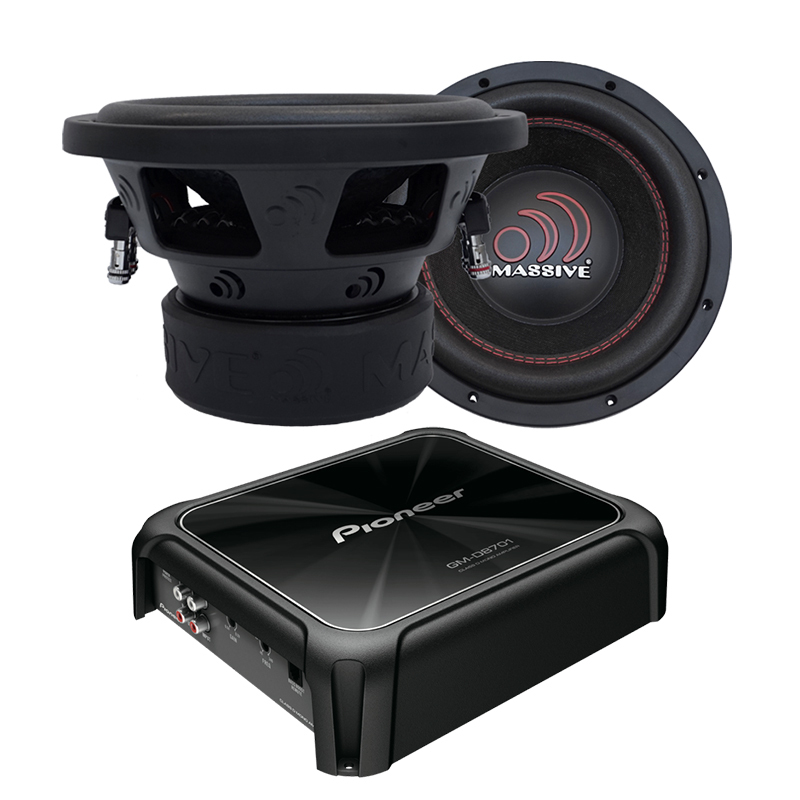

What's Inside?
- 1 Pioneer GM-DX871
- 2 Massive Audio GTX 124

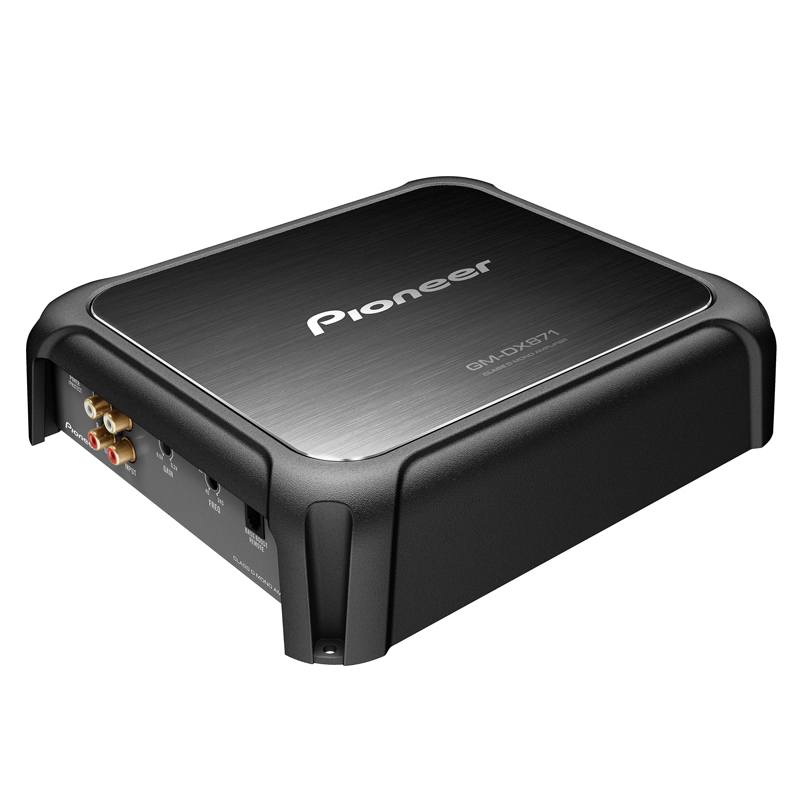

GM-DX871 GM Digital Series 1600 Watts Max Power Class-D Mono Amplifier with Gold RCA Terminals, HQ Sound Parts and Wired Bass Boost Remote
General
- RCA Inputs: MONO (Gold Plated)
- Amplifer Class: CLASS-D
- High Quality Sound Parts: Speaker Level Inputs
- Crossover Type: Variable LPF
- Warranty: 1 Year
Specifications:
- Continuous Power (RMS) Output at 1 Ohm: 800W RMS x 1
- Continuous Power (RMS) Output at 2 Ohms: 500W RMS x 1
- Continuous Power (RMS) Output at 4 Ohms: 300W RMS x 1
- Frequency Response: 10 Hz to 240 Hz
- Total Harmonic Distortion (THD): < 0.5% (100 Hz)
- Signal-to-Noise (SN) Ratio: > 100 dB
- Low-Pass Crossover Frequency: 40 Hz
- Low Pass Slope (dB/octave): -12dB
- High-Pass Crossover Frequency: 240 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB
- Bass Boost Remote: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 10-3/8" x 2-3/8" x 7-7/8"

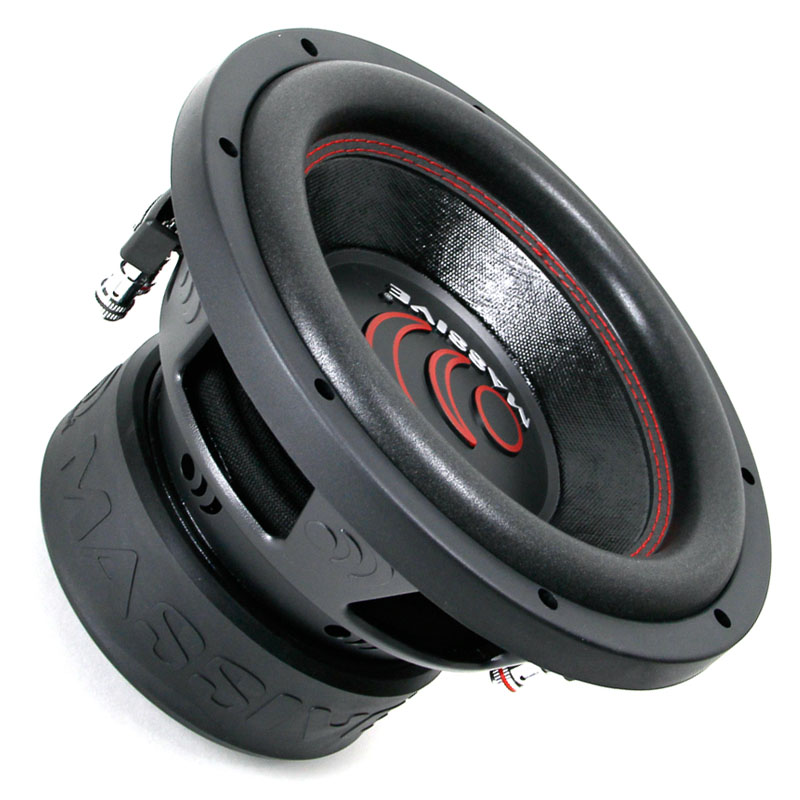

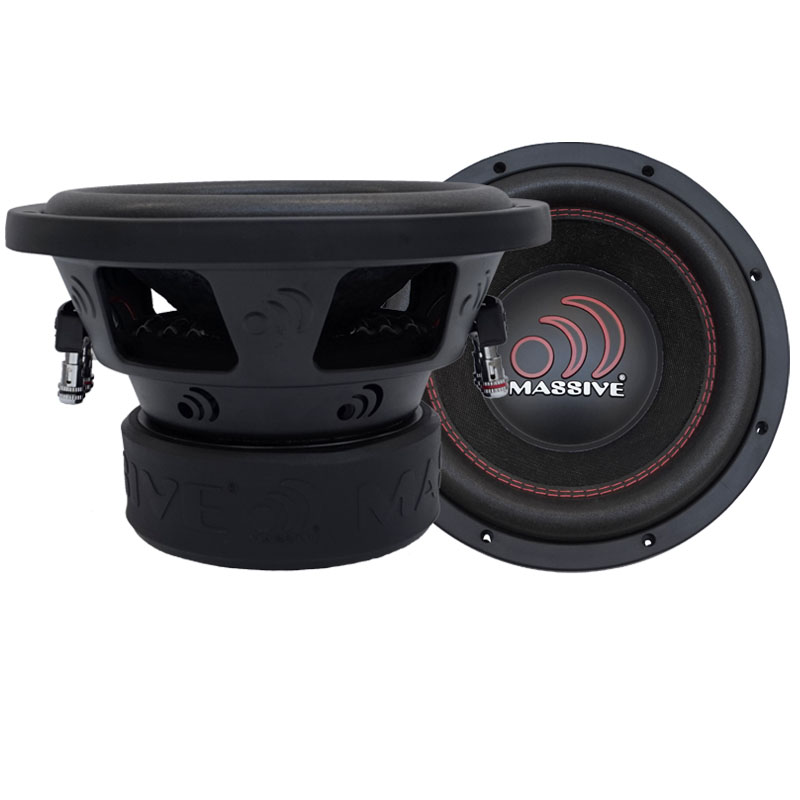

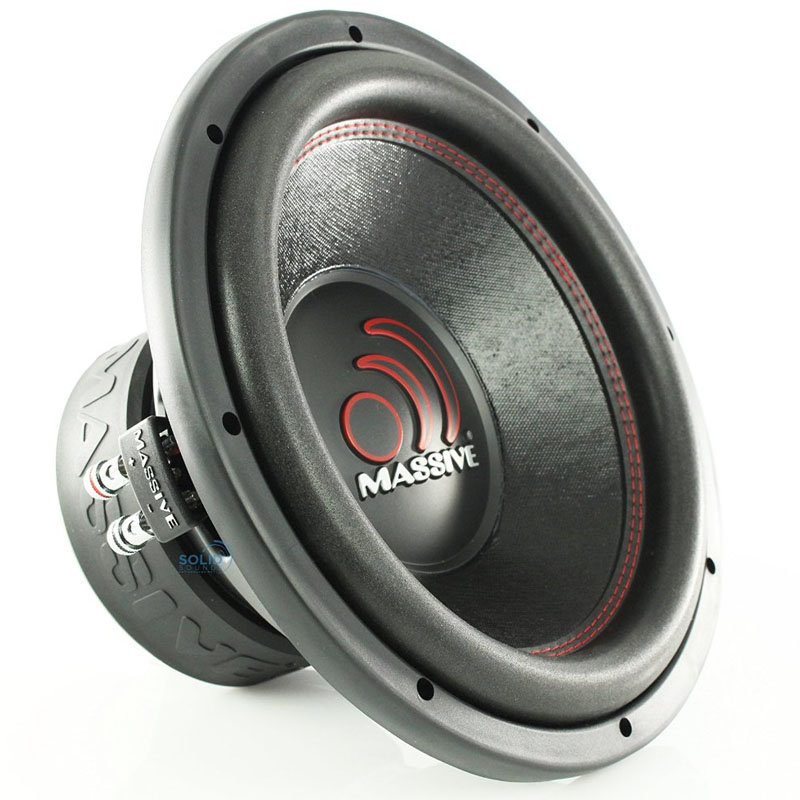

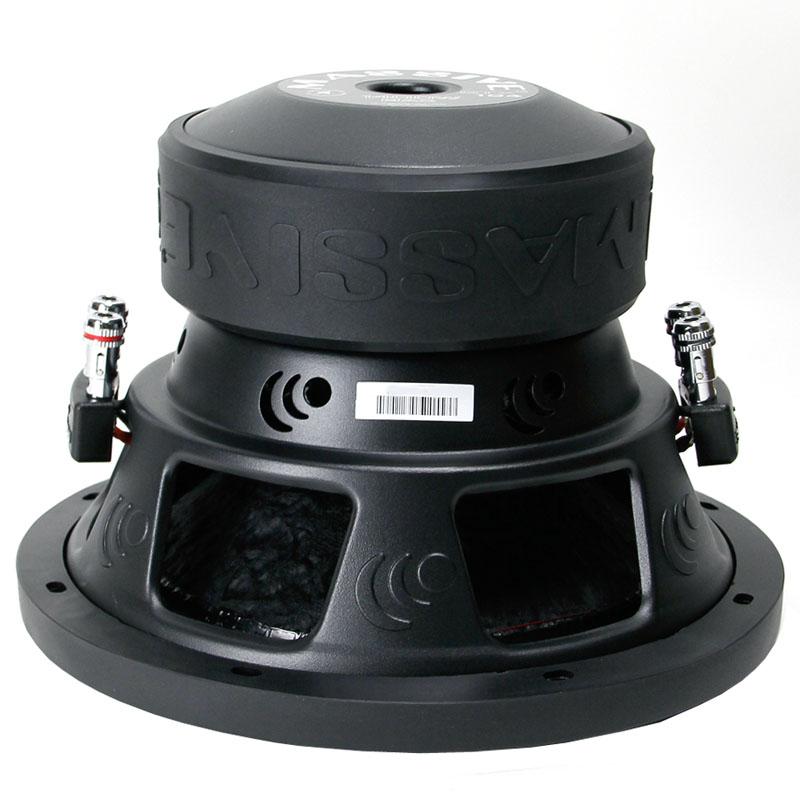

GTX 124 GTX Series 12" 700W RMS (1400W Peak Power Handling) Dual 4-Ohm Voice Coil Car Subwoofer
Features:
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
Specifications:
- Size: 12"
- Watts RMS: 700
- Peak Power: 1400
- Cone: UV Treated / Non-Pressed Paper
- Voice Coil: 2.5" Dual 4 Ohm
- Surround: EROM Foam
- Magnet: 120oz
- Terminals: 5 Way Binding Push Terminals
- Basket: Heavy Gauge Steel
- Tinsel Leads: Woven Round
- X-Max: 15mm + 10mm top plate
- SPL: 87.9 dB
- FS: 40.2Hz
- Ported Box: 14"H x 16"D x 16"W / 14.05 sq. in. Port Area
- Sealed Box: 1.62 ft3
- UPC:
- Weight: 46
