Pioneer DMH-WC5700NEX 6.8" Android Auto™, Apple CarPlay®, Bluetooth® - Multimedia Digital Media Receiver
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

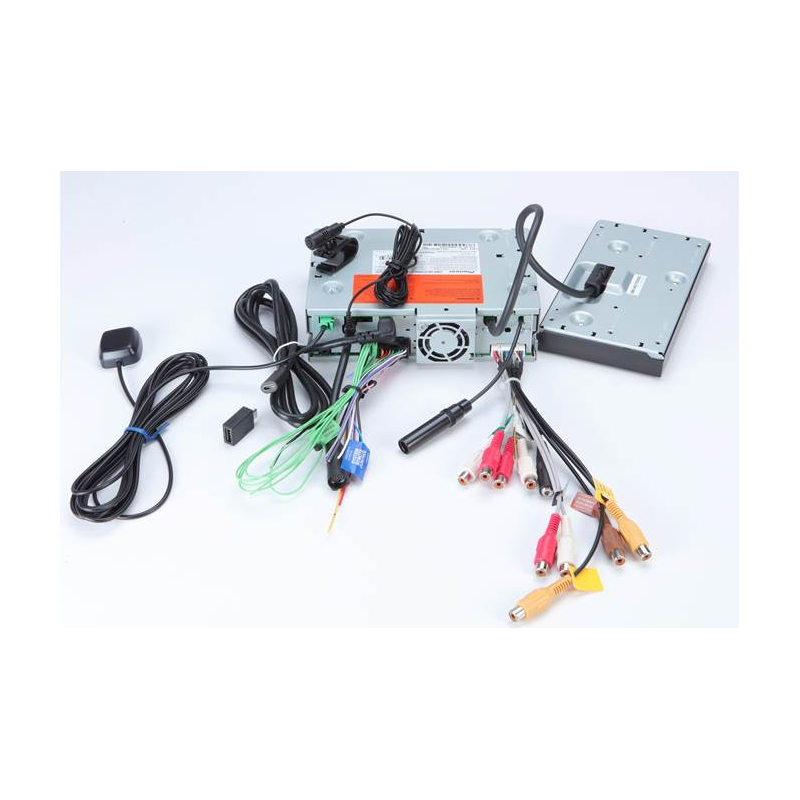

What's Inside?
- • Touchscreen monitor
- • Chassis body (10A fuse)
- • Wiring harness
- • Preout/AV harness
- • 58" USB-C extension cable
- • USB-C to USB-A adapter
- • Remote control (CXE5116)
- • CR2025 3V battery (pre-installed in remote)
- • Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- • GPS antenna (attached 11.5' cable)
- • Self-adhesive square
- • 3 Self-adhesive clips
- • Two-sided tape
- • 2 Mounting brackets
- • 6 Pan-head ISO screws (M5 x 9mm)
- • 6 Counter-sunk ISO screws (M5 x 9mm)
- • 8 Pan-head screws (M4 x 5mm)
- • Quick Start Guide
- • Installation Manual
- • Warranty Information
- • "Caution" note
Apple CarPlay and Android Auto-ready
If you want to have a multimedia receiver that not only comes with the latest features that the industry can offer but is also easy to install on your car, the Pioneer DMH-WC5700NEX might be an excellent option for you.

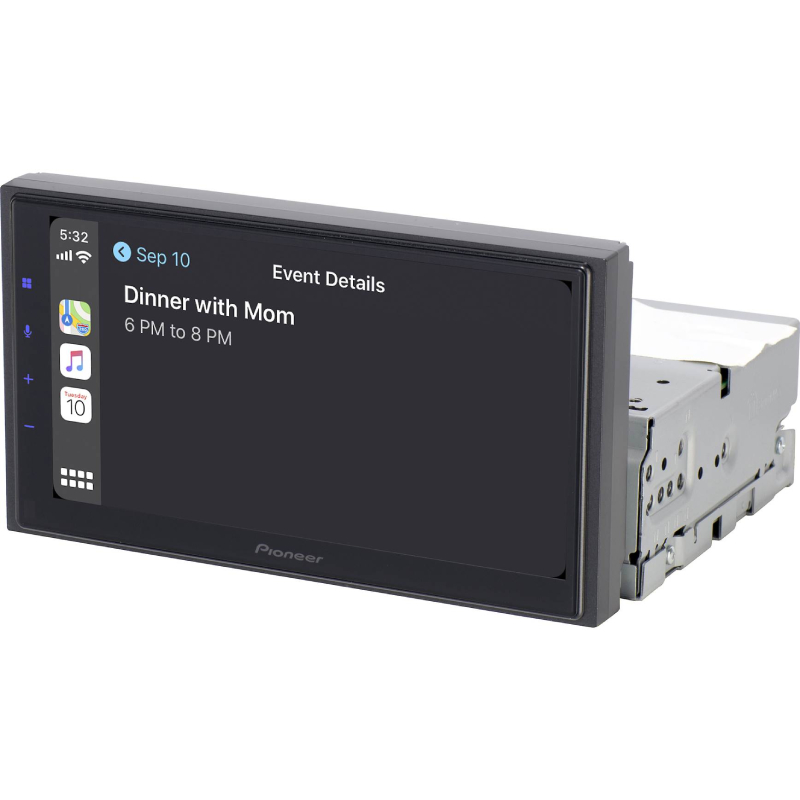

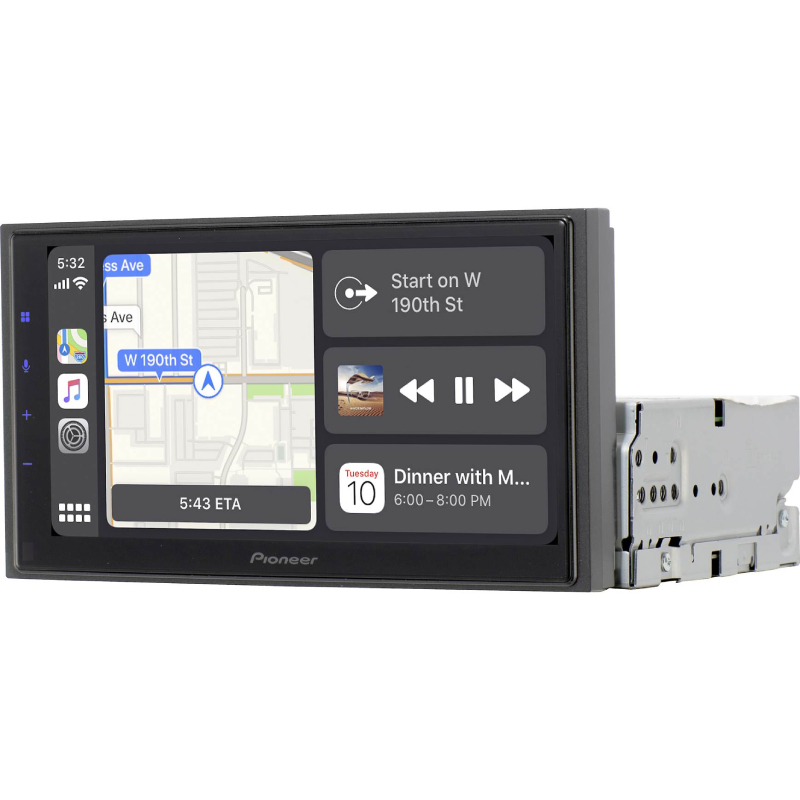

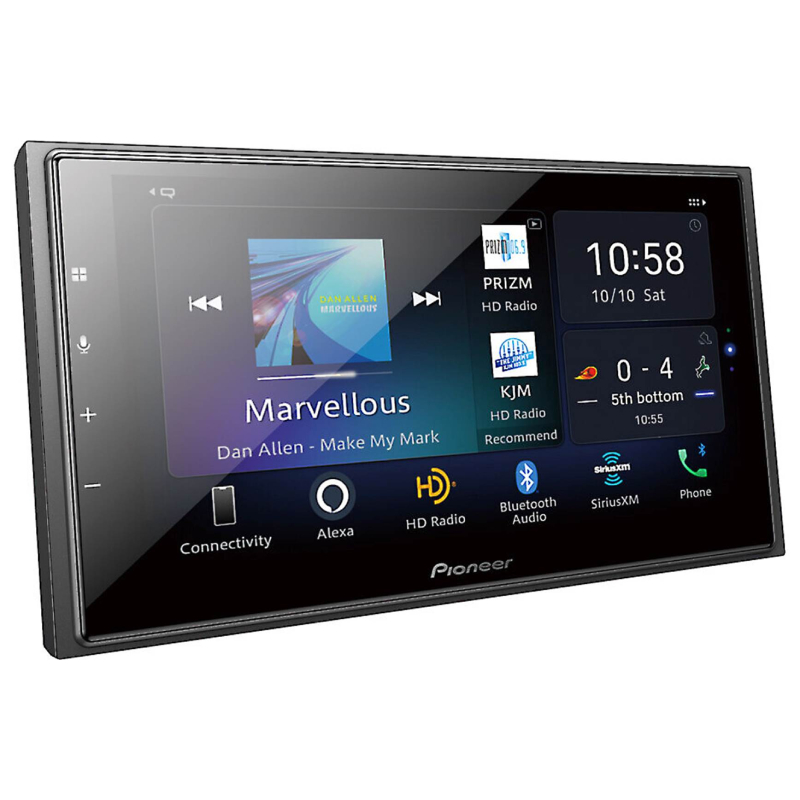

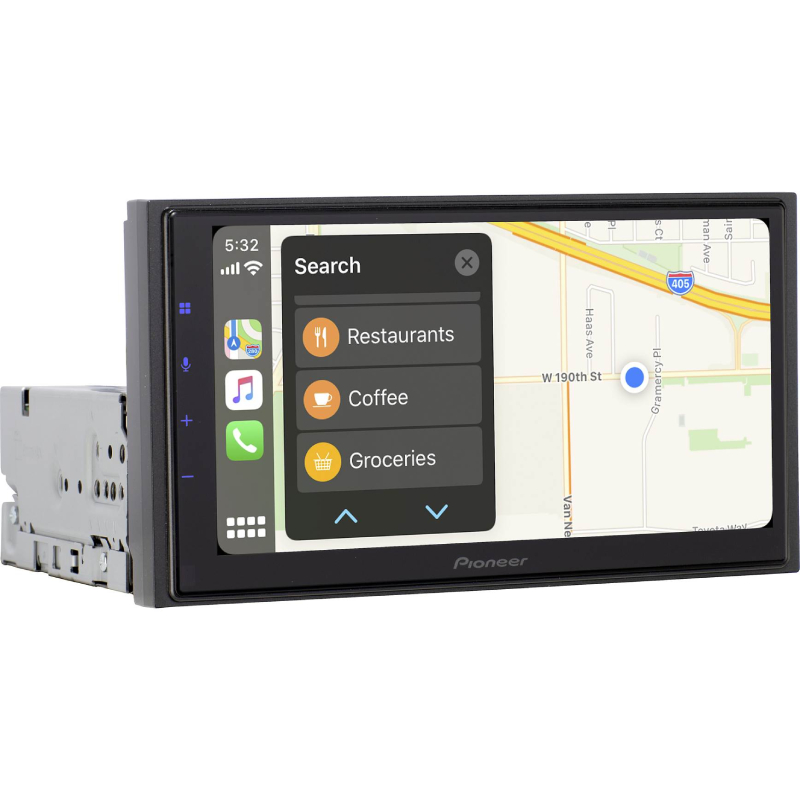

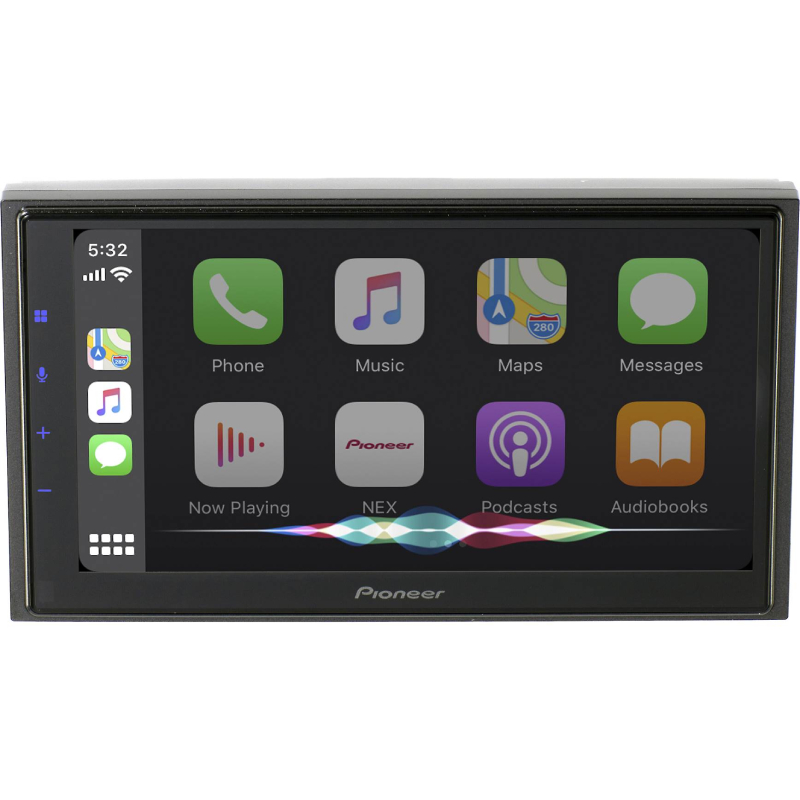

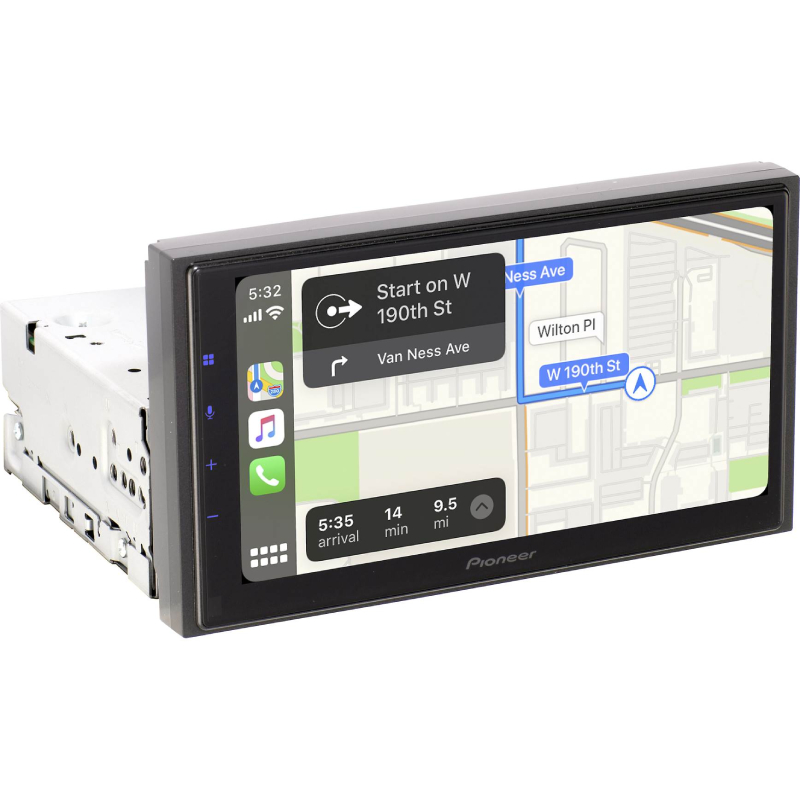

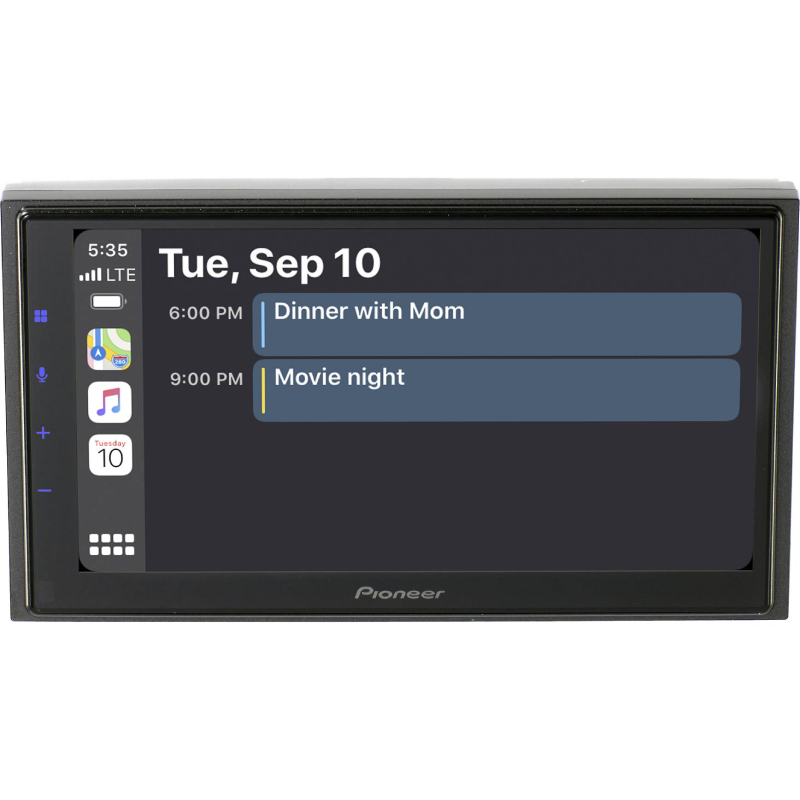

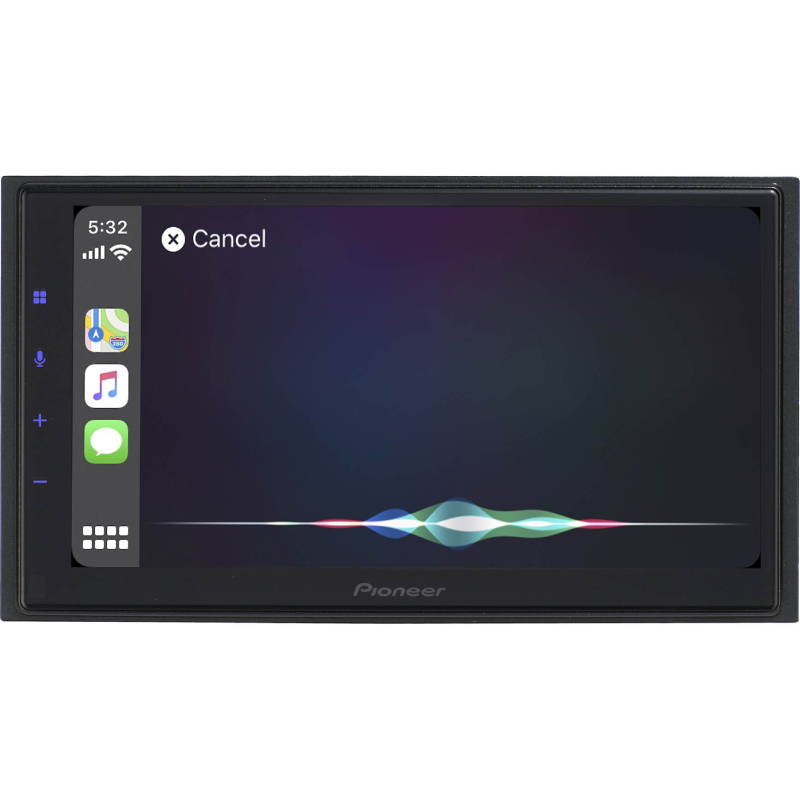

The Pioneer DMH-WC5700NEX multimedia receiver has a 6.78-inch touch display and is Apple CarPlay and Android Auto-ready, allowing you to ask for directions, read and send messages, listen to voicemails, take and make calls, and play music by using voice commands. You can also mirror your phone's display to the receiver using a wired connection.
SiriusXM-ready
Aside from its HD Radio tuner, it is also SiriusXM-ready, so you do not have to miss out on your favorite stations and shows while on the road. You can also connect your phone with the Pioneer DMH-WC5700NEX’s Bluetooth feature, so you answer calls hands-free and stream music wirelessly. Its backup camera input allows you to use a rearview camera for safe reverse driving.
Comes With a Built-in Amplifier
The Pioneer DMH-WC5700NEX comes with a built-in amplifier with six-channel preamp outputs and can handle a power output of 14 Watts RMS and reach up to 50 Watts of peak power. You can shape its frequency response using its 13-band graphic EQ, and it also comes with time alignment technology, so you hear all the speakers at the same time.
iDatalink Maestro Module
When upgrading to this receiver, you should not worry about losing your car's factory features as it is compatible with the iDatalink Maestro module, allowing you to check your engine's performance data on the screen.
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 6.8 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : 6
- Apple CarPlay : yes
- Android Auto : yes
Features:
- 6.8" Modular Display

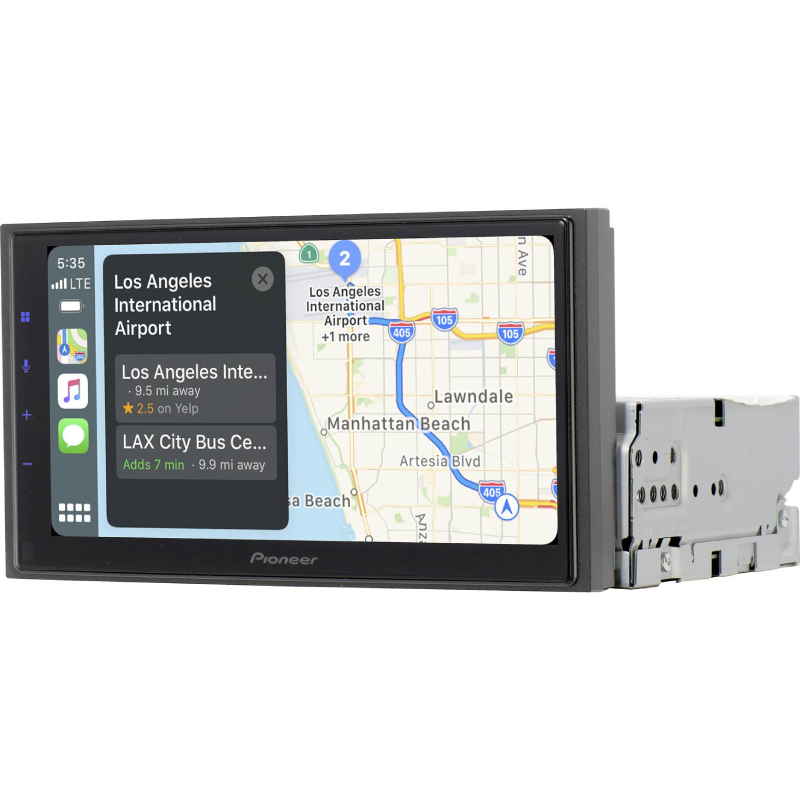

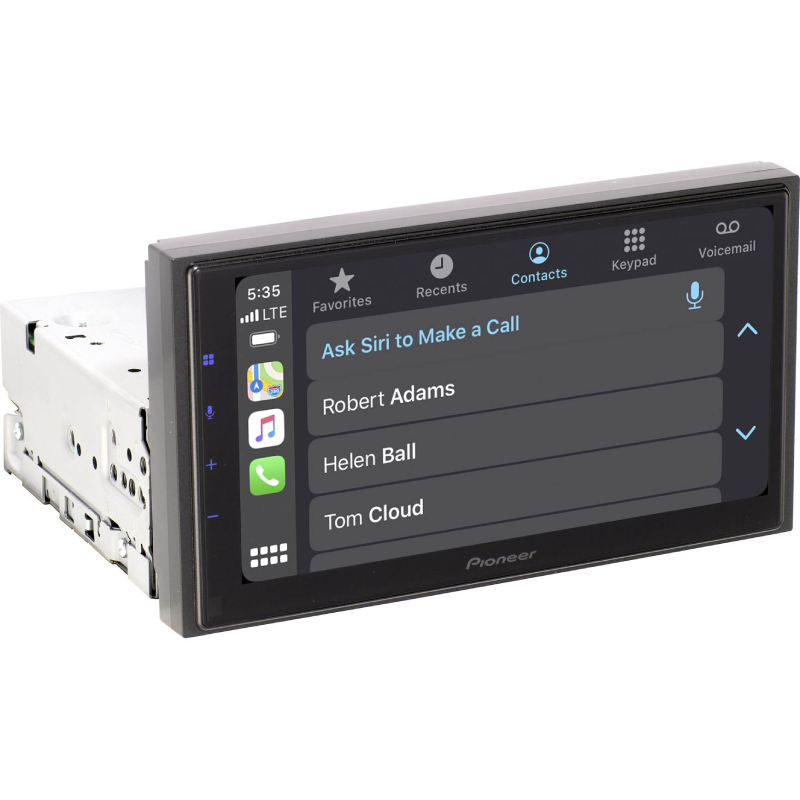

- 1-DIN Separate Installation Chassis (Hide-away)
- Amazon Alexa Built-in
- Android Auto™ (Wired, Wireless)
- Apple CarPlay® (Wired, Wireless)
Specifications:
Performance
- Continuous Power Output: 22 W x 4-Channel
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 6-Channel
- RCA Preout Voltage: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display:
- Back LightL: LED
- Brightness Control: Yes
- Color Customization: 5 display colors, 112 key colors
- Device (Non-DIN/Modular Unit): Modular, Non-DIN
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Fixed
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 6.8"/16:9
- Touch Screen: Capacitive
Bluetooth:
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- BT Microphone: Included
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes
- 5-phone Registration: Yes
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
Tuner:
- Best Station Memory: Yes
- HD Radio™: Built In, Aritist experience, Multicasting
- Hybrid Radio: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
Integration:
- Amazon Alexa: Built In
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Gracenote Sports: Yes
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: CarAVAssist Android, CarAVAssist iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- WiFi: Tethering, WiFi Hotspot
Digital Media Playback:
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / FLAC Audio / Playback (Hi-Res) / DSD Audio Playback (Hi-Res)
- Audio Video Playback via USB: .avi / .mpg/mpeg / .divx / .mp4 / .3gp / .mkv / .flv / .wmv/.asf / .m4v / H.263 / H.264 / .ts/.m2ts/.mts
- Image Display Via USB: BMP / JPEG / PNG
Audio:
- Bass Boost: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Listening Position Selector: Yes
- Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
Inputs:
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
- Input 3: A/V or 2nd Camera
- Input 4: HDMI Micro (Type D)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- GPS Antenna: Yes
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 0884938471879
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
