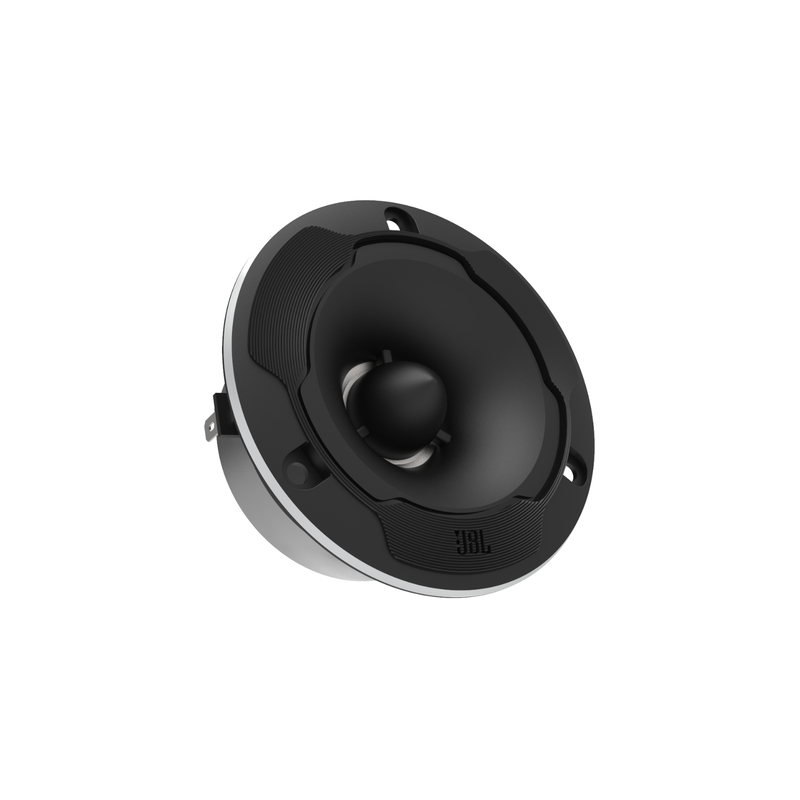

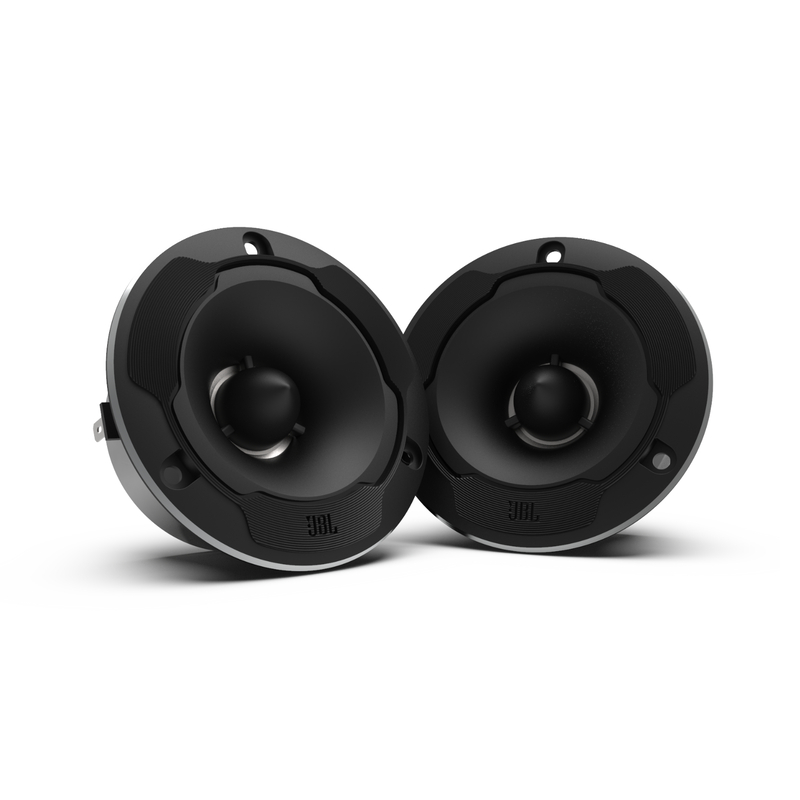

JBL Shock Wave 4" Compression Horn Tweeter
Bullet Type Phase Plug Horn Design
The bullet type phase plug horn is capable of delivering remarkably efficient, high output for a given input power. The tweeter helps optimize sound dispersion by controlling directivity, allowing greater SPL whether on or off axis.
Compression Driver Technology
The tweeter utilizes compression driver technology for increased maximum SPL, sensitivity and bandwidth, as well as reduced harmonic distortion.
High Quality Die Cast Aluminum Housing
The elegant aluminum die cast housing allows for a classy aesthetic integration in any car.
Titanium Diaphragm
The extremely rigid titanium diaphragm is light weight and low density, allowing for a flatter response, broad frequency range and pinpoint accuracy.
Versatile Installation Options

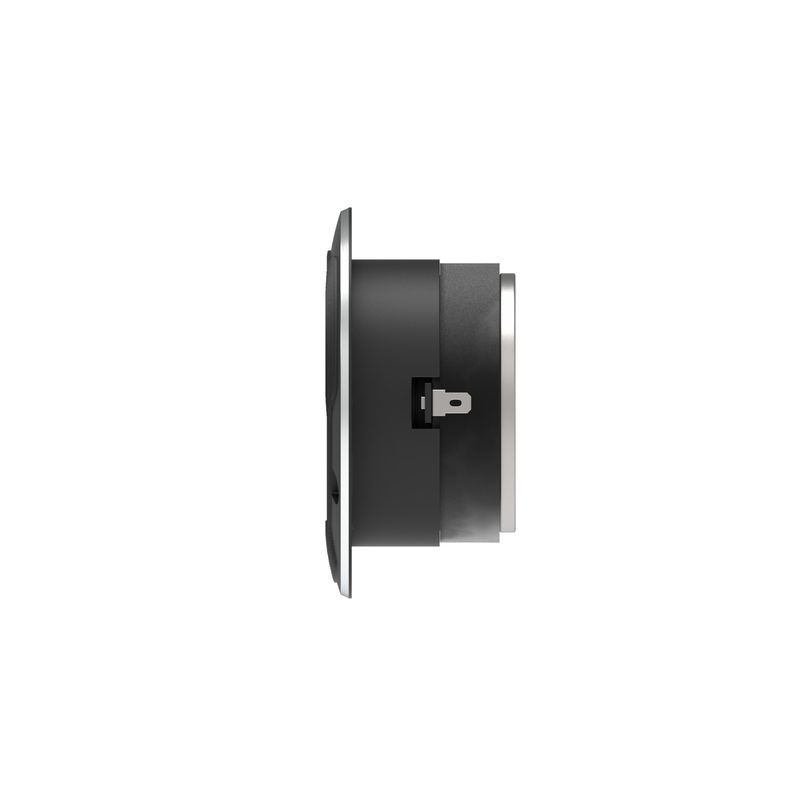

The Shock Wave 4T is conveniently designed with a 37mm (1.5-inch) mounting depth and 72mm (2.8-inch) cutout diameter, allowing it to be installed in either car door or A pillar.

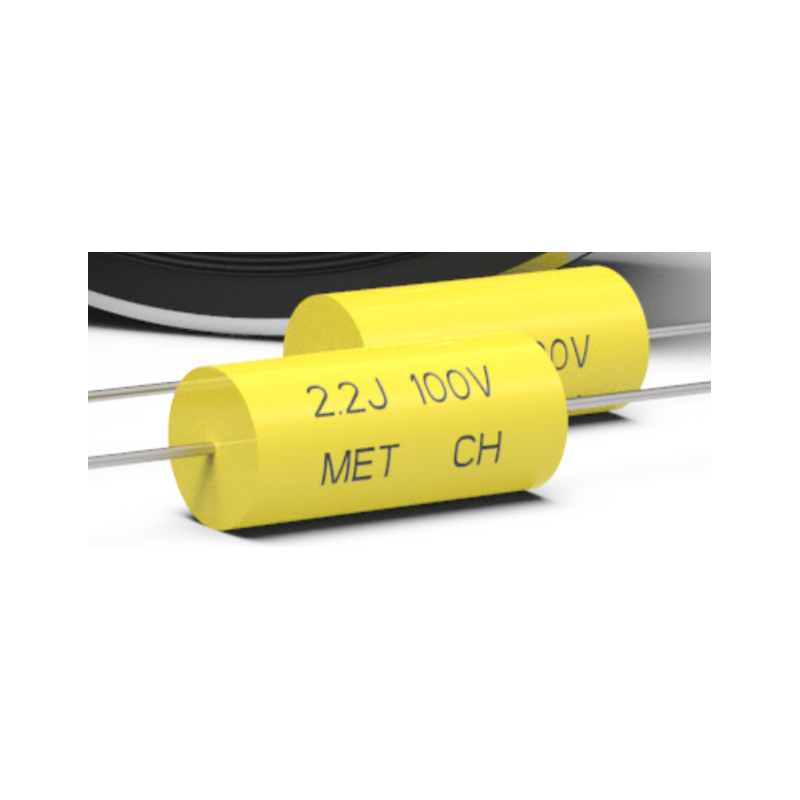

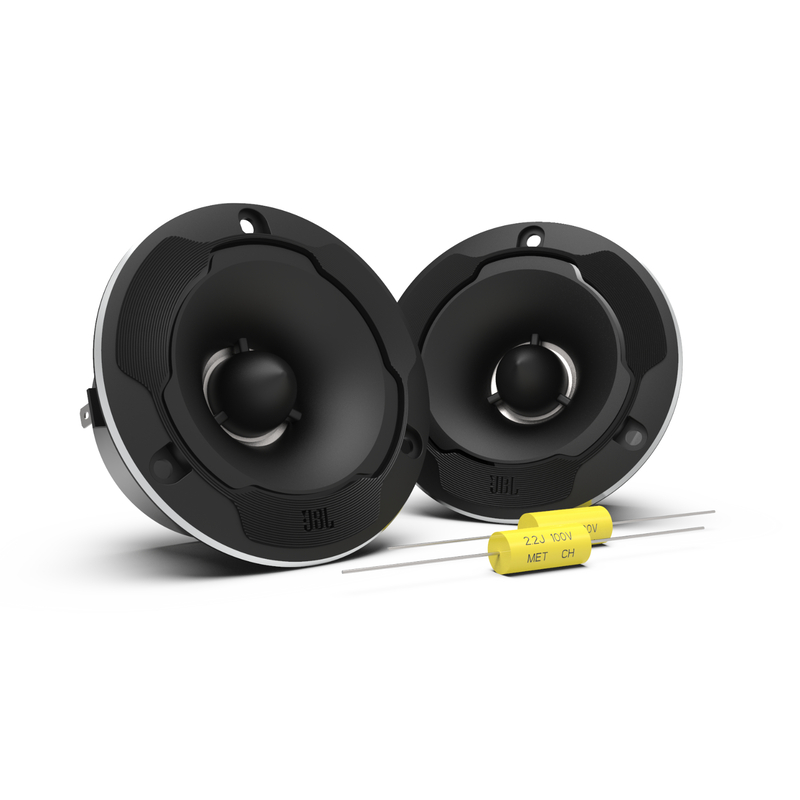

Supplied Capacitor
Two 2.2uF/100 volt capacitors are included to help eliminate potentially harmful low end frequencies.
- Diameter : 4 Inch
- Sensitivity : 103 dB
- Frequency Response : 2500-20000 Hz
- Peak Power Handling : 70 Watts
- RMS Power Handling : 35 Watts
Specifications:
- Power: 35W RMS, 70W peak
- Sensitivity (1W / 1m): 103 dB
- Frequency response: 2.5 kHz - 20 kHz
- Rated impedance: 4 ohm
- High pass filter: capacitor 2.2uF
- UPC: 05003680997
- Weight: 5
