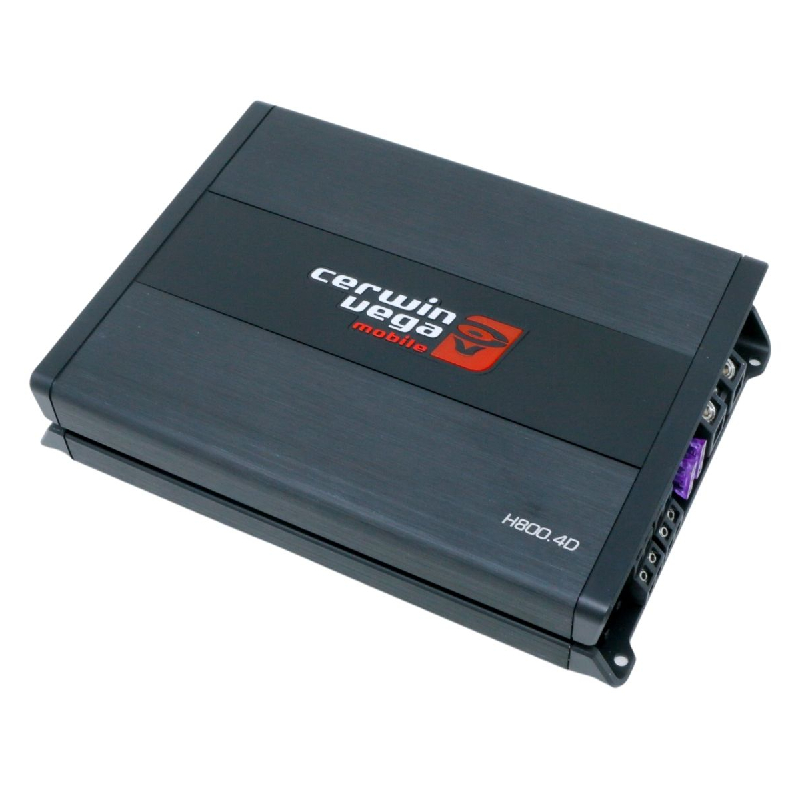

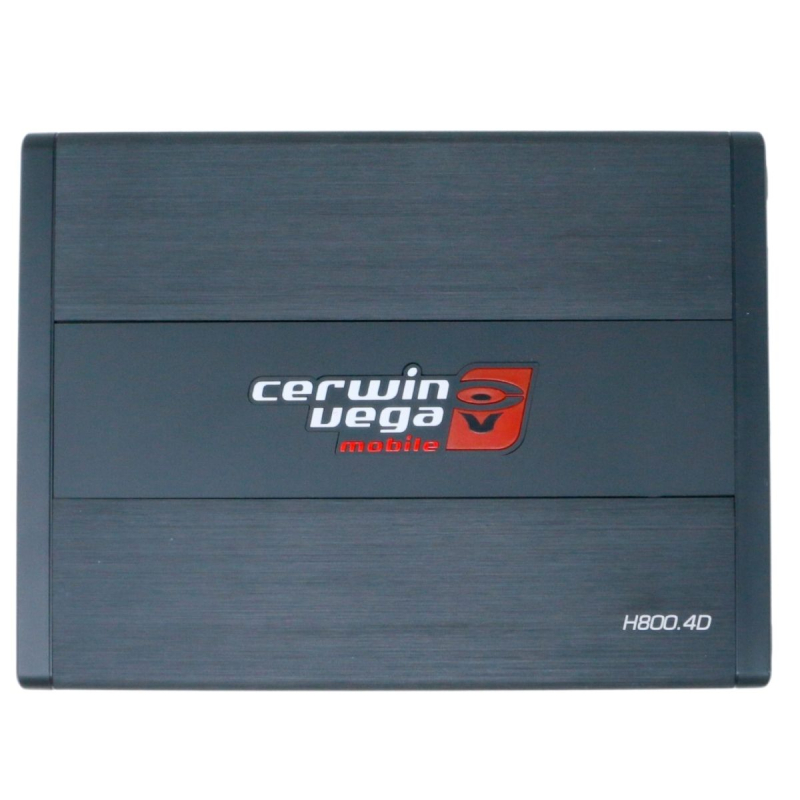

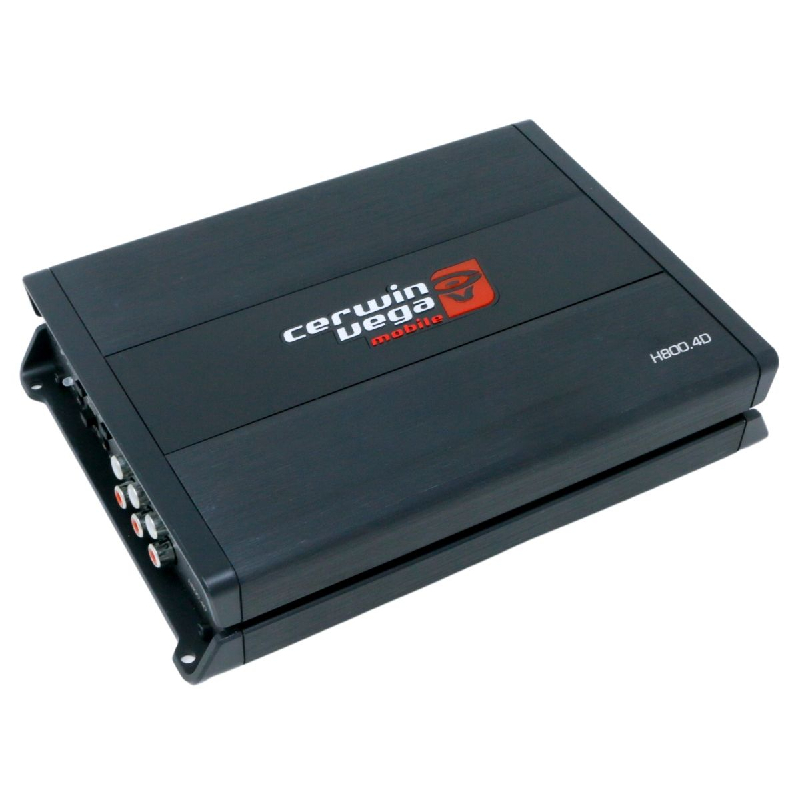

Cerwin Vega  H800.4D

HED Series 200W x 4 @2Ohms, 800W Max Power Class D 4-Channel Car Amplifier

Item #84115

Product Highlights

  • HED Series
  • 200W x 4 @ 2 Ohms
  • 800W Max Power
  • Class D 4-Channel Car Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 800 Watts
  • Number of Channels : 4
  • Amplifier Class : D
  • Fuse Rating : 35x2 A

FEATURES


Features:

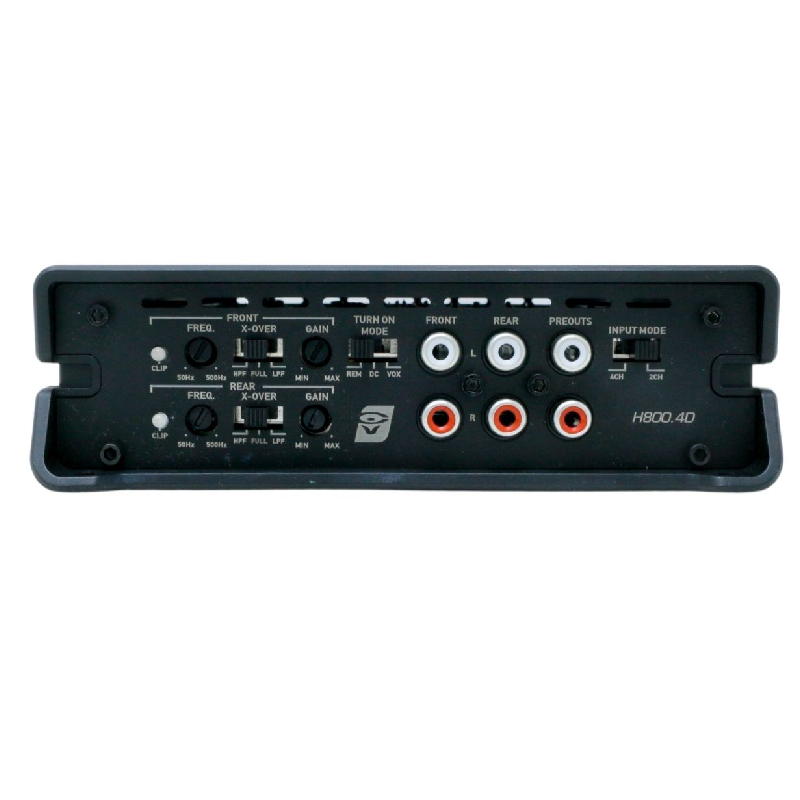

  • Multi-Turn On Modes: REM/DC/VOX
  • Switchable 2CH & 4CH Input Configuration
  • Working Status Indicators: Power/Protection
  • Gain Input Sensitivity Clipping Indicators
  • Full Range IR Chipset Digital Circuit Design
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 Layers FR4 PC Board



Specifications:

  • RMS Power (1Ω): N/A
  • RMS Power(2Ω): 200W x 4CH
  • RMS Power (4Ω): 125W x 4CH
  • RMS Bridge (stereo 4Ω): 400W x 2CH
  • Power Supply: 12-14.4V
  • Power Supply (Threshold): 8.4V-16.5V
  • Idle Current: 0.9A
  • Distortion - THD (1KHz@4Ω): <0.3%
  • Distortion - S/N Ratio (A weight @ 1W): >90db
  • Distortion - S/N Ratio (A weight @ FP): -88dBA
  • Input Sensitivity - Hi/Low Input Level: 0.3-8.5V
  • Input Impedance - Low Input Level: 22Kohm
  • Output Impedance: 2ohm
  • Damping Factor (50Hz@4Ω): >100
  • Bandwidth (-3dB): 20-30kHz
  • Crossover (-12 dB/ Oct) Variable High-Pass: 50Hz-500Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 50Hz-500Hz

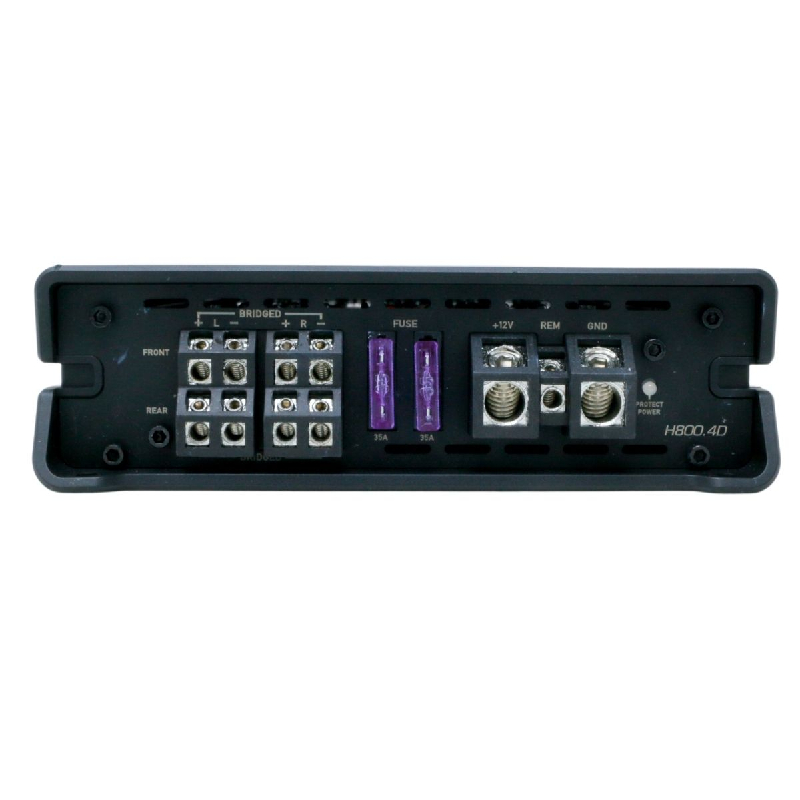

  • FUSE Ratings - ATC: 35Ax2
  • Dimension - Length x Width x Height - Inches(mm): 9 Inches x 6.3 Inches 1.9 Inches (229.5mm x 160mm x 48.3 mm)
  • UPC: 847169023576
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
