- Maximum Power : 1600 Watts
- Number of Channels : 4
- RMS Power Output : 90x4 Watts
- Amplifier Class : AB
- Fuse Rating : 30x2 A
Features:
- Latest High-Efficiency Class A/B Topology
- Compact Size with Ambient backlit logo
- RCA “Pass Thru” output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 CH mode
- Proprietary Vega Bass Boost EQ Up To 12dB
Specifications:
- MAX Power Rating: 1600W
- RMS Power(2Ω): 90Wx4
- RMS Power (4Ω): 70Wx4
- RMS Bridge (mono 4Ω): 190Wx2
- Technology: AB class
- Power Supply: PWM
- Power Supply (Threshold): 10-16VDC
- Idle Current: 0.8A
- Distortion - THD (1KHz@4Ω): ?1%
- Distortion - S/N Ratio (A weight @ 1W): >90dB
- Distortion - S/N Ratio (A weight @ FP): >105dB
- Input Sensitivity - Hi/Low Input Level: 200mV – 6V
- Input Impedance - Low Input Level: 20KΩ
- Output Impedance: 2/4Ω
- Damping Factor (50Hz@4Ω): 100
- Bandwidth (-3dB): 10Hz-32KHz
- Crossover (-12 dB/ Oct) Variable High-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A

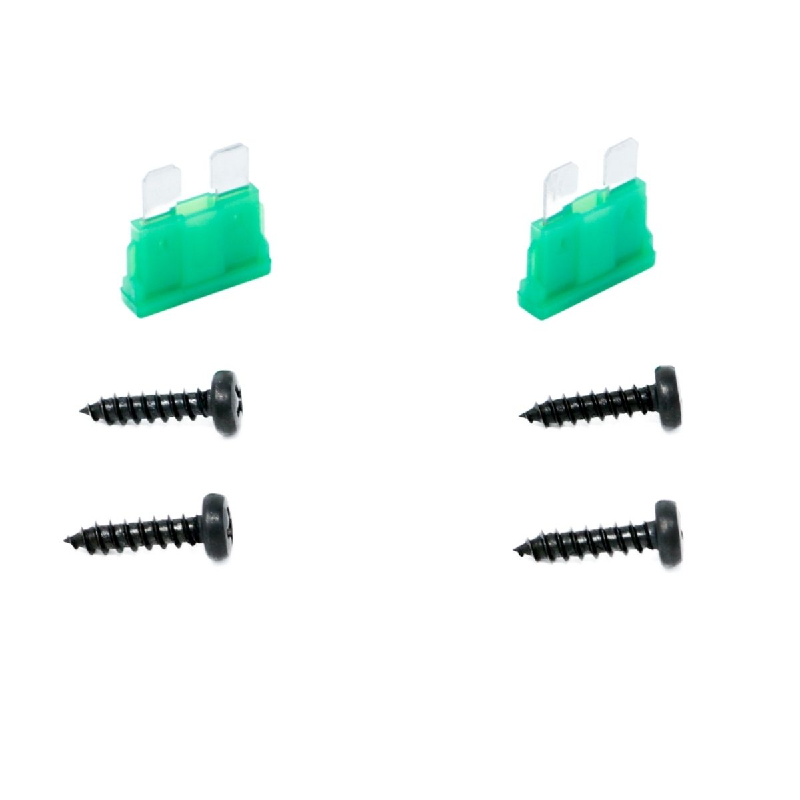

- FUSE Ratings - ATC: 30Ax2
- Dimension - Length x Width x Height - Inches(mm): 11.82 Inches x 9.38 Inches x 2.25 Inches (300mm x 238mm x 57mm)
- UPC: 847169016714
- Weight: 10
