Alpine HDZ-653S Status Series 6.5" 100W RMS (300W Peak Power Handling) 4 Ohms, 3-Way Slim-Fit Component Car Speaker System
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

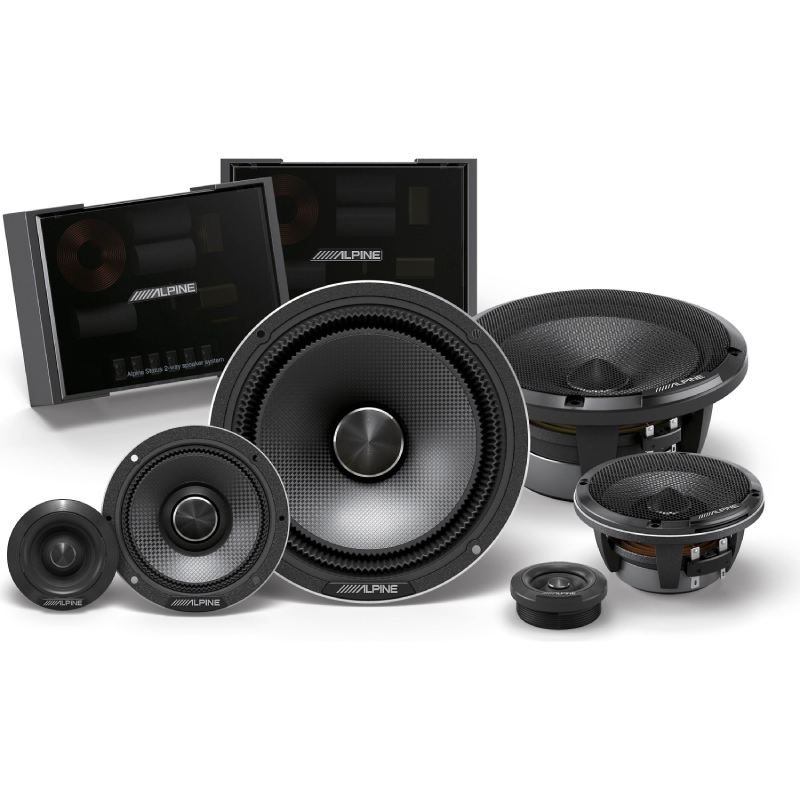

What's Inside?

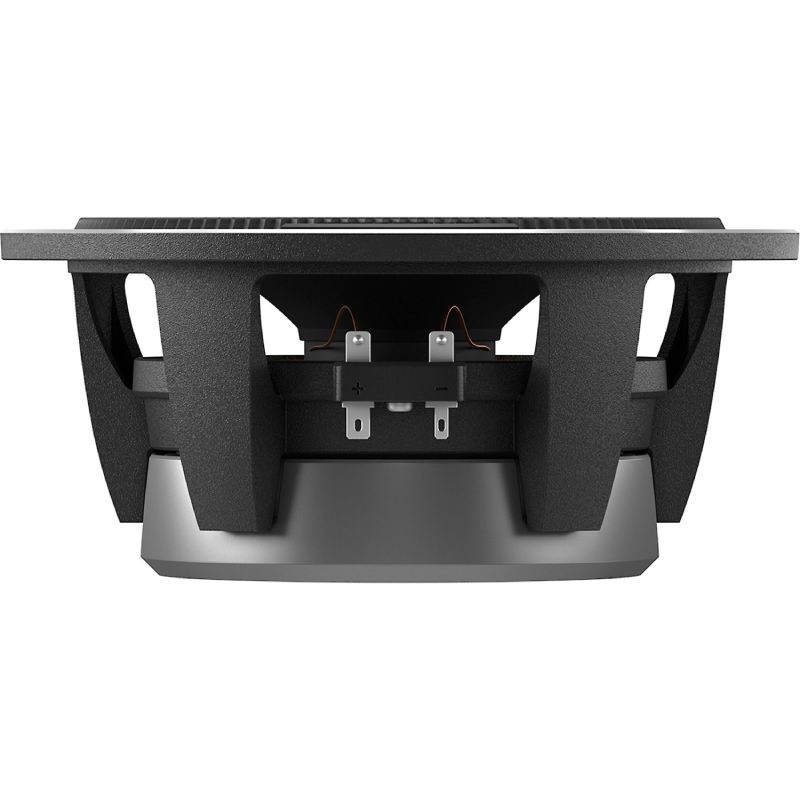

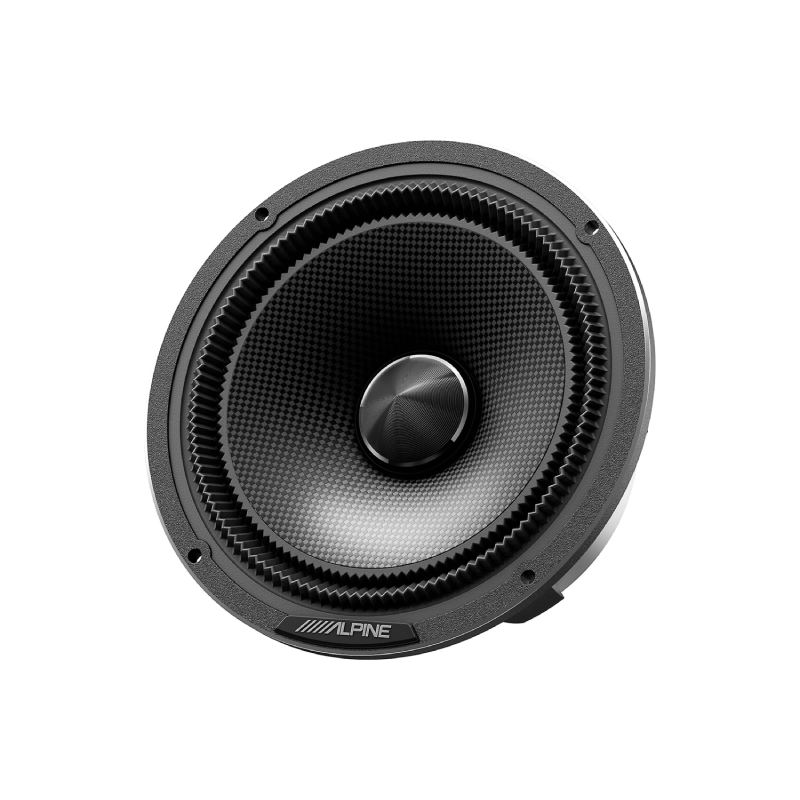

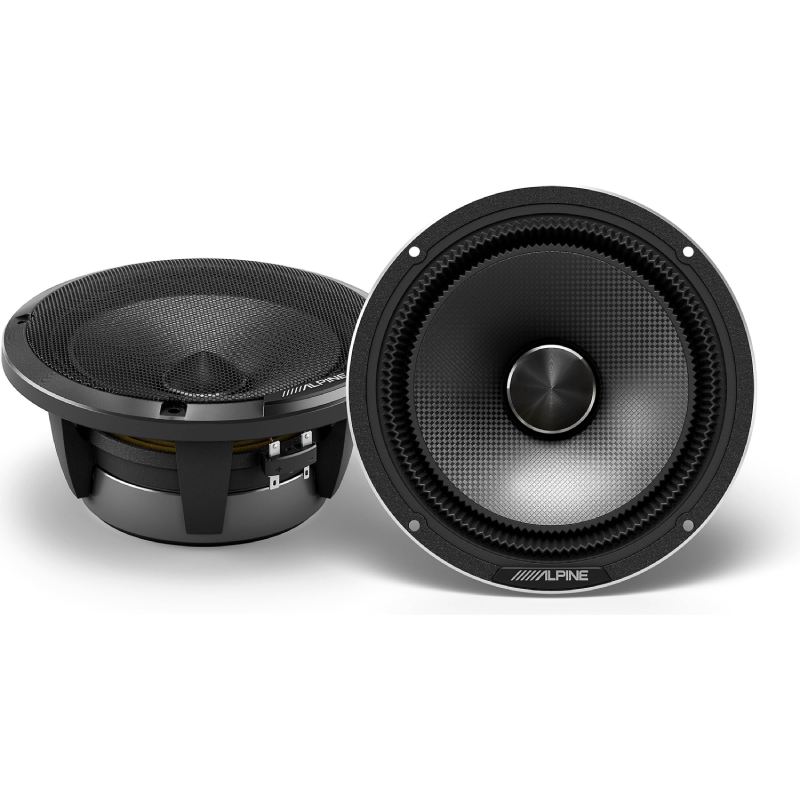

- • (2) Woofers

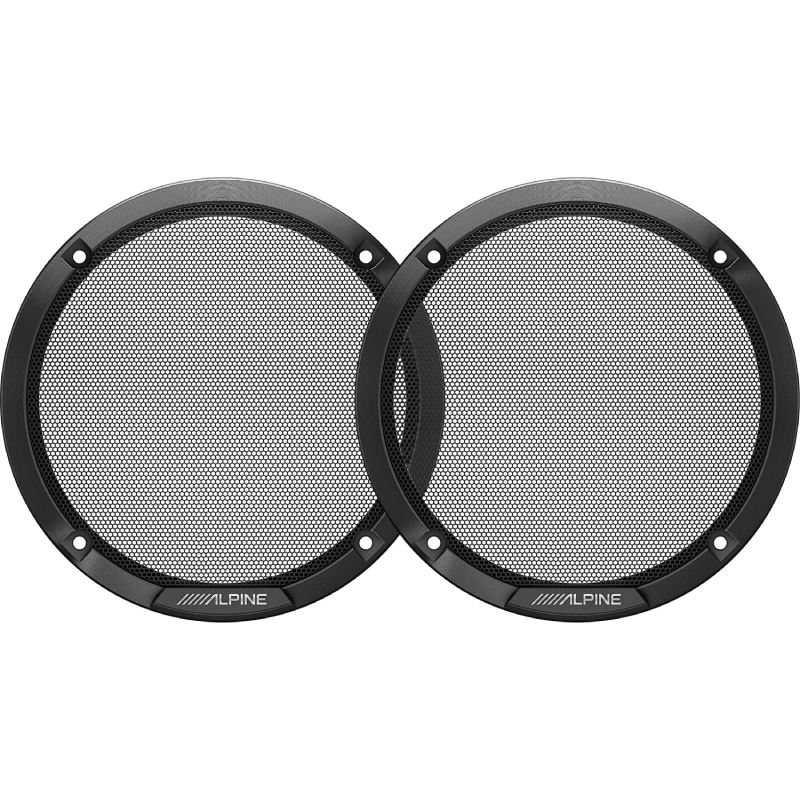

- • (2) Woofer Grilles

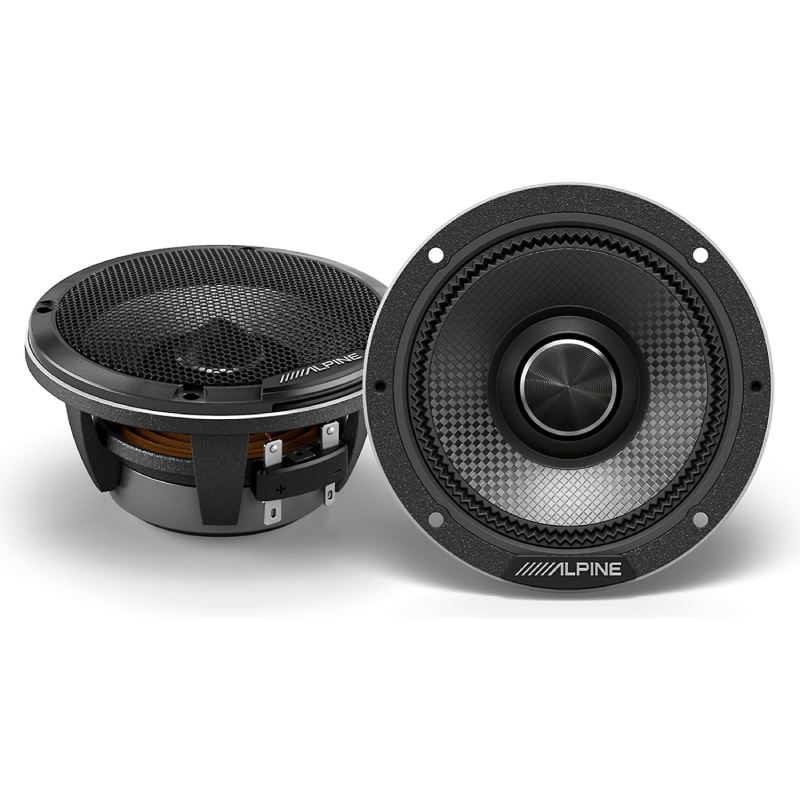

- • (2) Midrange
- • (2) Midrange Grilles

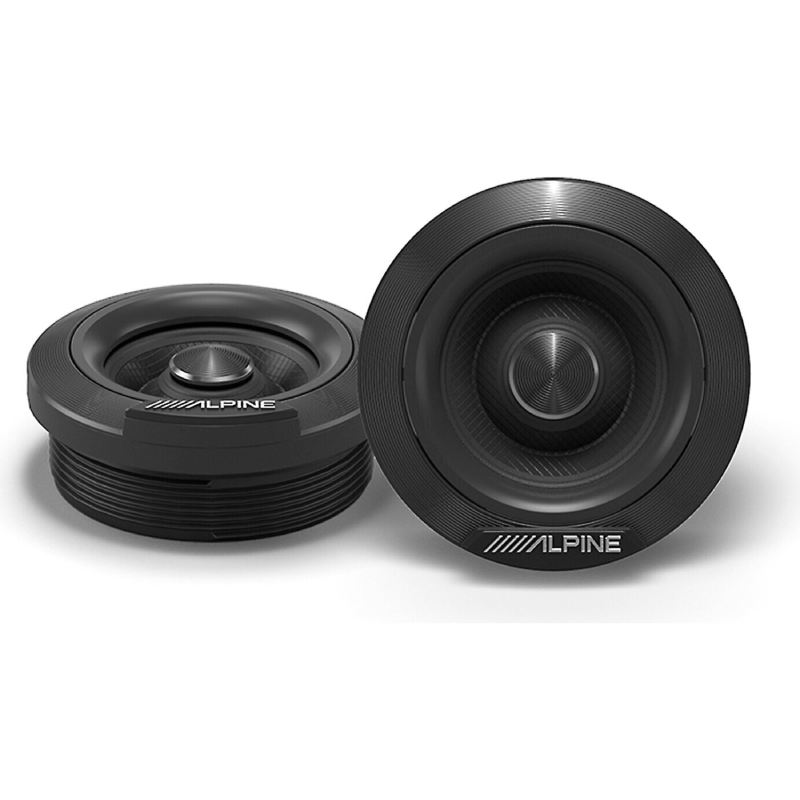

- • (2) Tweeters
- • (2) Threaded Tweeter Mounting Rings

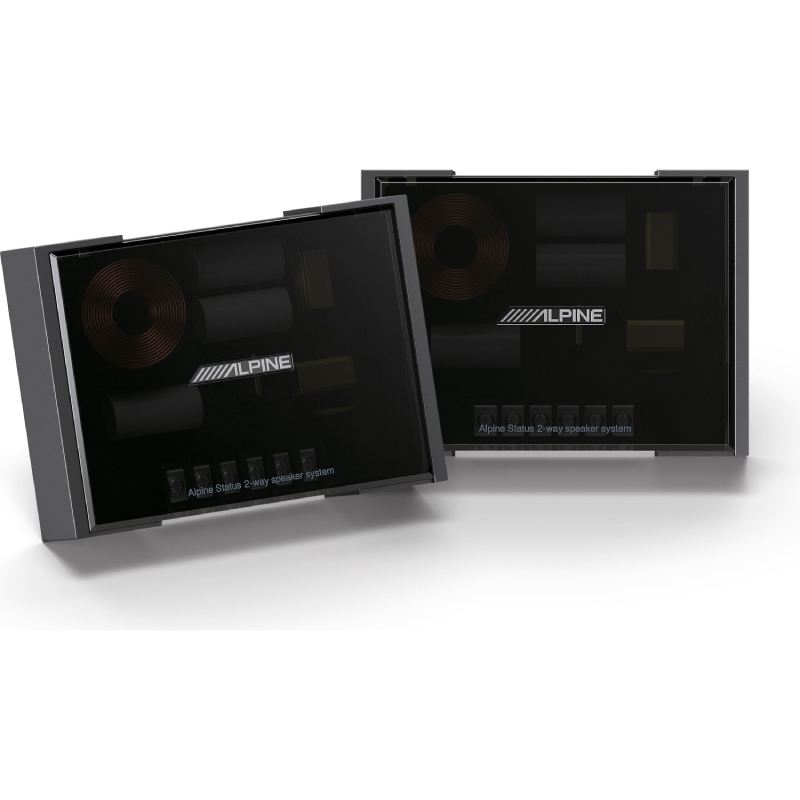

- • (2) Crossovers
- • (8) M4 Screws (1-1/8")
- • (16) M3 Screws (1-1/8")
- • (8) Speed-clips
- • (8) flat washers
- • Warranty information
- • Important Notice
- • On-line product registration information
- • Owner's Manual
Why Choose Alpine HDZ-653S Component System?
Elevated High-Quality Resolution Audio
Expertly crafted to provide high-resolution audio playback, elevating the overall listening experience. Designed to function cohesively, the Status Series digital receiver, amplifier, speakers, and subwoofers deliver 192kHz/24-bit digital music streams with remarkable studio-grade clarity and precision, ensuring unparalleled sonic fidelity.
Excellent Audio Quality
Alpine crafted their HDZ-653S 6-1/2" 3-way component speaker system for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker optimizes the woofer and tweeter for near-perfect sound from premium sources, like high-resolution audio files.
Carbon Composite Woofer Cone
These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components.
Alpine designed these components with high-resolution audio in mind. The carbon composite woofer cone and midrange driver ensure consistency across the speaker's ultra-wide frequency range, while a special double gathered-edge surround minimizes distortion and enhances accuracy.
Frequently Asked Questions (FAQ)
- • Will this 3-way component speaker system fit my factory speaker locations?
The system fits many vehicles, but installation space for the woofers, midrange drivers, and tweeters should be verified before purchasing. Measuring your factory speaker locations helps ensure a smooth installation process.
- • Why do the vocals sound weak even though the speakers are working?
This is often caused by incorrect crossover wiring, poor speaker positioning, or improper DSP and equalizer settings. Fine-tuning the crossover and audio settings usually restores natural vocal clarity.
- • Do I need an external amplifier for this component system?
While the speakers can operate with some aftermarket head units, an external amplifier allows the system to deliver its full dynamic range and detail. Providing clean RMS power significantly improves clarity and overall performance.
- • Why is one of the speakers not producing any sound?
A loose speaker wire, incorrect crossover connection, or installation error is usually responsible for this issue. Carefully checking all wiring and crossover connections typically restores normal operation.
- • Can I install the tweeters and midrange speakers in factory locations?
Yes, many vehicles can accommodate them using factory mounting points or minor installation modifications. Proper placement helps create a wider soundstage and more accurate stereo imaging.
- • How does the slim-fit tweeter design differ from the standard audiophile version during a custom installation?
The slim-fit version uses a downsized 40mm design that features a much shallower mounting depth of only 0.57 inches. This compact profile is engineered specifically to snap straight into original OEM vehicle mirror sails or dashboard locations without requiring deep custom fiberglass work.
- • Can I run this speaker system in an active setup instead of using the included crossovers?
Yes, many experienced installers choose an active configuration when using a compatible DSP and multiple amplifier channels. Active tuning provides greater control over crossover points, time alignment, and equalization.
- • Why do my door panels vibrate more after upgrading the speakers?
The increased speaker output can cause factory door panels and trim pieces to resonate more than before. Installing sound-deadening material and securing loose panels greatly reduces unwanted vibrations.
- • Do these speakers require a break-in period before they reach their full performance?
Yes, many owners notice smoother midrange response and more natural high frequencies after several hours of regular listening. This allows the speaker suspension to loosen naturally and perform more consistently.
- • Why is the midrange audio bleeding into other frequencies and muddying the soundstage?
A muddy soundstage often happens if the midrange volume is too high relative to the door woofer. You can lower the midrange presence inside the vehicle cabin by opening the passive crossover shell and shifting the midrange level jumper down to the -3 dB terminal pin.
- Diameter : 6.5 Inch
- Sensitivity : 88 dB
- Frequency Response : 55-40000 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 100 Watts
Features:
- Hi-Res Audio Certification: Delivers audiophile sound quality up to 40 kHz.
- AlpineF#1Status Heritage: Similar look and feel to AlpineF#1Status speakers, using comparable construction and materials for top sound quality.
- Clear Sound & Low Distortion: Incorporates key technologies like double-gathered surround for clear output and minimal distortion.
- Unified Timbre Identity: Carbon composite cones in woofer, mid-range, and tweeter ensure excellent harmonics.
- Slim-Fit Tweeters: Smaller tweeter design for easier integration with original installation locations.
Specifications:
- Speaker Size: 6.5 inches
- Design: 3-way
- Tweeter Design: Cone
- Impedance: 4 Ohms
- Tweeter Composition: Carbon Composite
- Woofer Composition: Carbon Composite
- Woofer Surround: Rubber
- Sensitivity at 2.83 Volts: 88 dB
- Frequency Response: 55 - 40 kHz
- Maximum RMS Wattage: 100 Watts
- Peak Power Handling: 300 Watts
- Top-Mount Depth: 2.75 inches
- Cutout Diameter: 5.5 inches
- Mounting Height: 0.35 inches
- UPC: 793276084828
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Expensive stuff from Alpine! Quality is first class. High end crossovers. The frequencies are really distributed in a nice 3-way audio and the sound from the speakers and tweeters are really exceptional.
