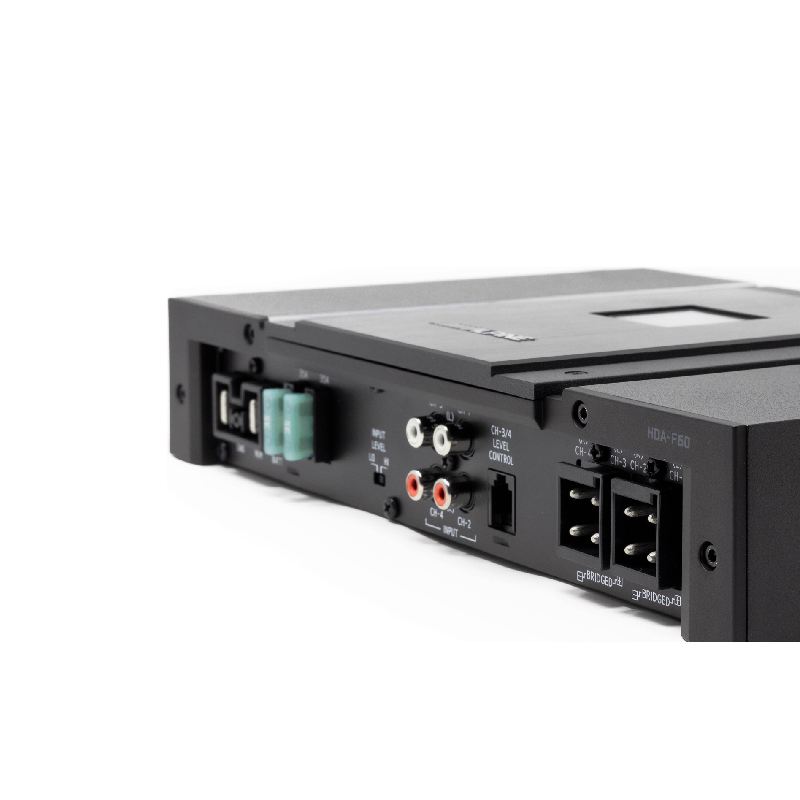

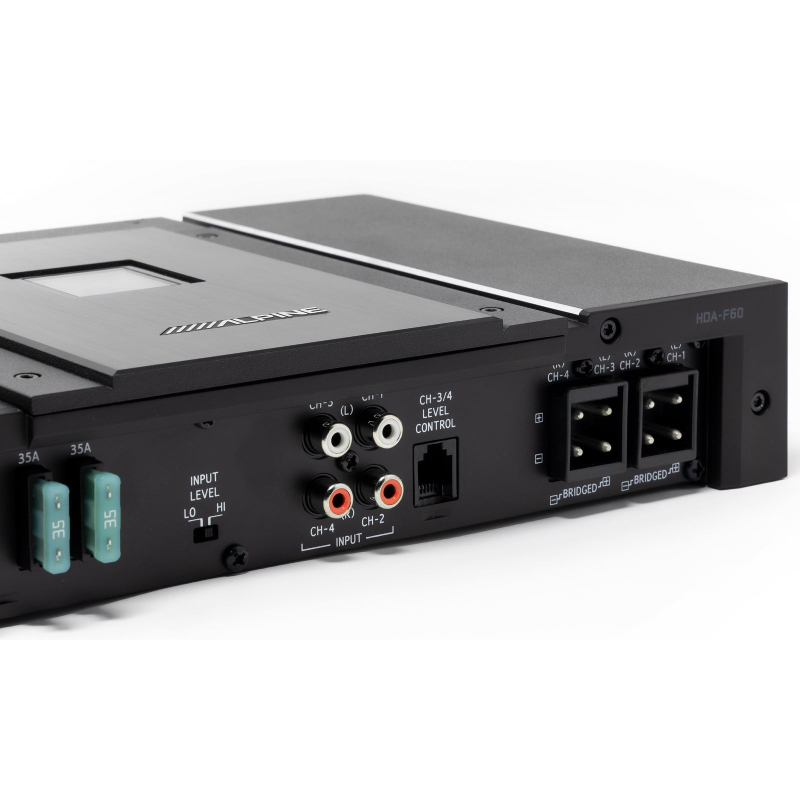

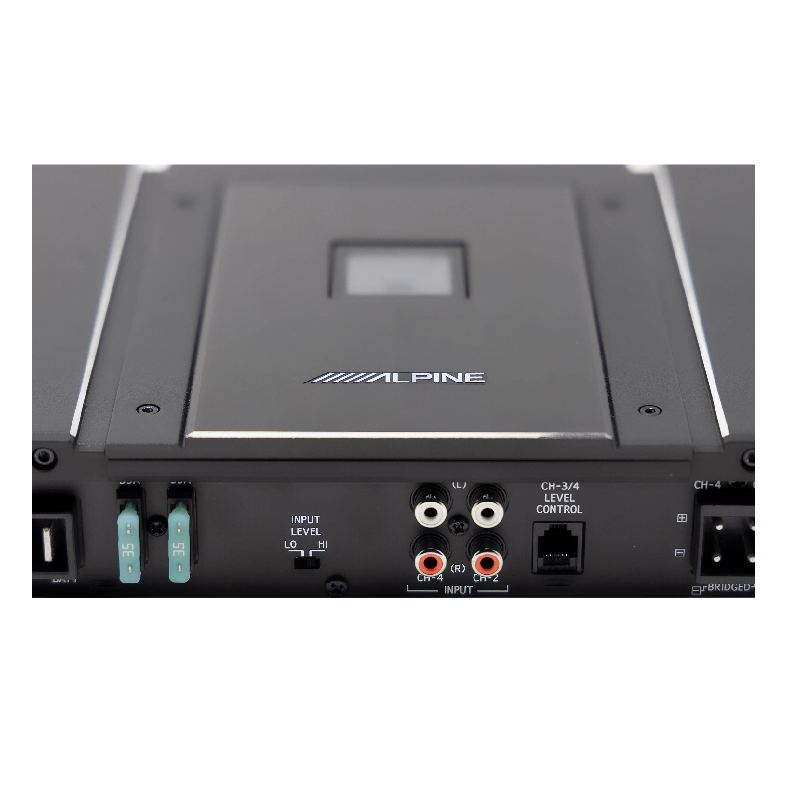

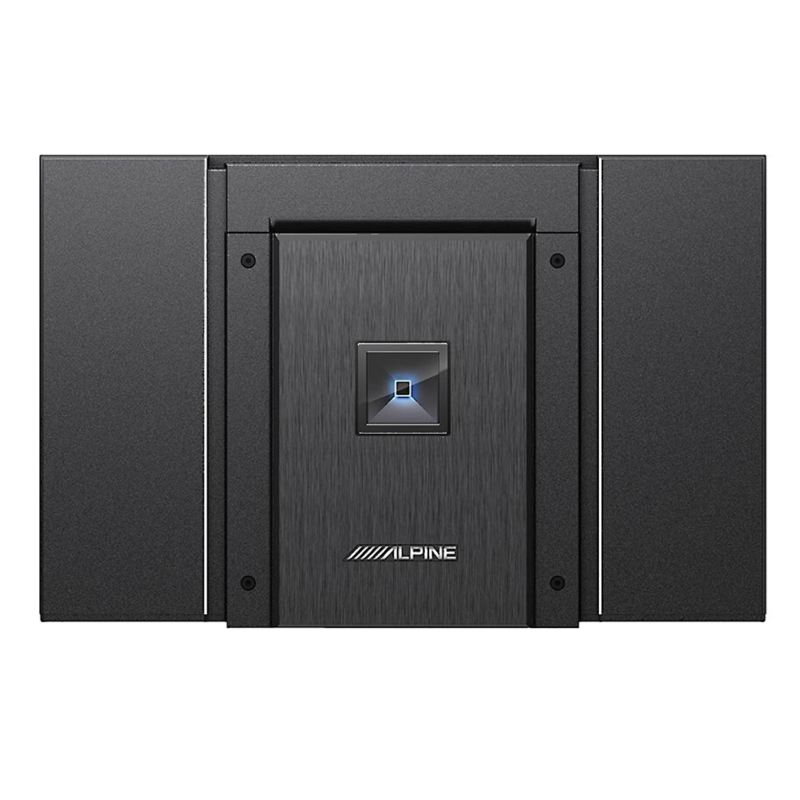

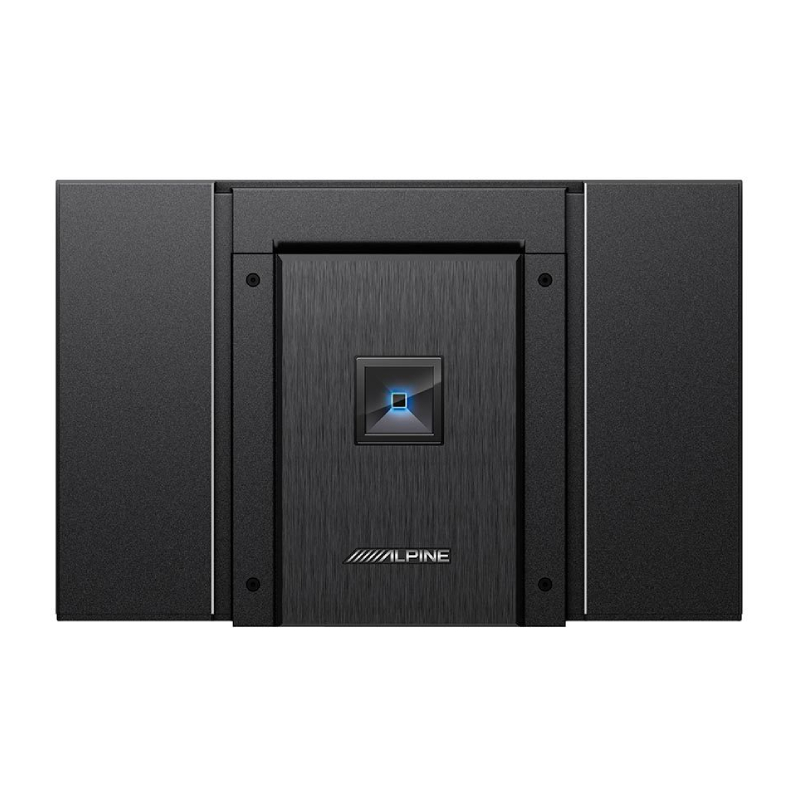

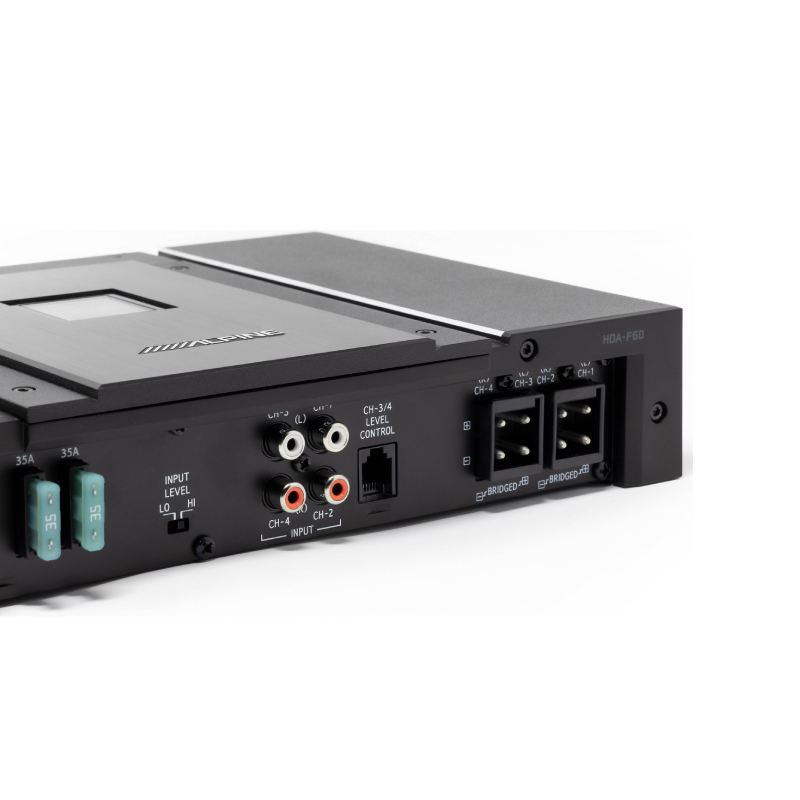

Alpine HDA-F60 Status Series 4-Channel 150W RMS x 4 at 2 Ohm, Class-D Hi-Res Car Amplifier
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Channel Class-D Hi-Res Car Amplifier
- • (2) 35-amp ATO fuses (installed)
- • Top cover (installed)
- • Power connector plug
- • (2) Speaker connector plugs
- • (2) Mounting legs
- • 2mm Allen wrench
- • 2.5mm Allen wrench
- • 4mm Allen wrench
- • (4) 3/4" Screws
- • (8) 3/8" Screws
- • Alpine verification certificate
- • Warranty information
- • Product registration information
- • Power wiring note
- • Owner's Manual
Why Choose Alpine HDA-F60 4-Channel Amplifier?
Unmatched Sound Precision
Backed by over 50 years of audio engineering excellence and inspired by the cutting-edge AlpineF#1Status technologies, the Alpine Status System delivers superior sound reproduction with exceptional craftsmanship. Built with premium materials and precision engineering, this system achieves Hi-Res playback at 192kHz/24Bit, offering the ultimate in-class audio performance when used as a complete system.
High-Impact and Clean Power
The HDA-F60 amplifier delivers impressive power to your Hi-Res audio system without adding noise, combining efficiency and precision for pure, dynamic sound. Its wide dynamic range ensures strong, clean output, all in a compact chassis that fits seamlessly into most vehicle installations.
Rock-Solid Reliability
Alpine’s dual negative feedback control circuit ensures precise, linear amplification while stabilizing output under load, delivering consistently accurate sound and unmatched reliability for your audio system.
Frequently Asked Questions (FAQ)
- • Can I power both my door speakers and a subwoofer with this amplifier?
Yes, you can bridge two channels for a subwoofer while using the other two channels for front speakers if the impedance is within the recommended range. Always follow the wiring diagram in the owner's manual.
- • Why does the amplifier go into protect mode?
Protect mode is usually caused by overheating, a wiring fault, or a speaker load below the recommended impedance. Check all wiring connections and allow the amplifier to cool before restarting it.
- • Will this work with my factory stereo?
Yes, it can be connected to many factory radios using speaker-level inputs or a compatible line output converter. This allows you to improve sound quality without replacing your factory head unit.
- • Why do I hear engine noise through my speakers?
Engine whine is commonly caused by poor grounding or RCA cables running next to power wires. Improving the ground connection and rerouting the cables usually eliminates the noise.
- • Can I bridge the channels to drive a single subwoofer?
Yes, you can bridge the front and rear pairs into two 300W channels at 4 ohms to power high-output speakers or subwoofers. Always refer to the manual's wiring diagram to ensure you are connecting the positive and negative terminals correctly for bridged operation.
- • Why does the amplifier get hot after playing music for a while?
Some heat is normal during operation, especially at higher power levels. Ensure there is adequate airflow around the amplifier to maintain safe operating temperatures.
- • Can I upgrade my speakers later without replacing this amplifier?
Yes, it can support many aftermarket coaxial and component speaker upgrades. Just make sure the new speakers match the amplifier's power and impedance ratings.
- • Why do my speakers distort before reaching maximum volume?
This is often caused by amplifier clipping or incorrect gain settings. Proper tuning and matching the amplifier to your speakers will produce cleaner sound.
- • What size power wire should I use for installation?
The correct wire gauge depends on the amplifier's current draw and cable length. Using the recommended power cable helps maintain performance and system reliability.
- Low Frequency Response : 50-400 Hz
- High Frequency Response : 50-400 Hz
- Number of Channels : 4
- Frequency Response : 10-60000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 4x150 Watts
- Amplifier Class : D
- Fuse Rating : 70 A
Features:
- Hi-Res Audio Playback: Supports 192kHz/24Bit for stunning clarity and detail.
- 4-Channel Amplifier: Powers multiple speakers for a dynamic audio setup.
- High-Efficiency Digital Circuit Design: Delivers maximum output with minimal power loss.
- Dual Negative Feedback Control: Ensures ultra-clean, precise sound reproduction.
- High Bandwidth Amplifier: Handles a wide frequency range for superior audio performance.
- Premium Class D Circuit: Alpine’s advanced design for powerful, efficient amplification.
- Copper-Plated Chassis: Enhances conductivity and reduces noise interference.
- Black Circuit Board: Provides durability and a premium aesthetic.

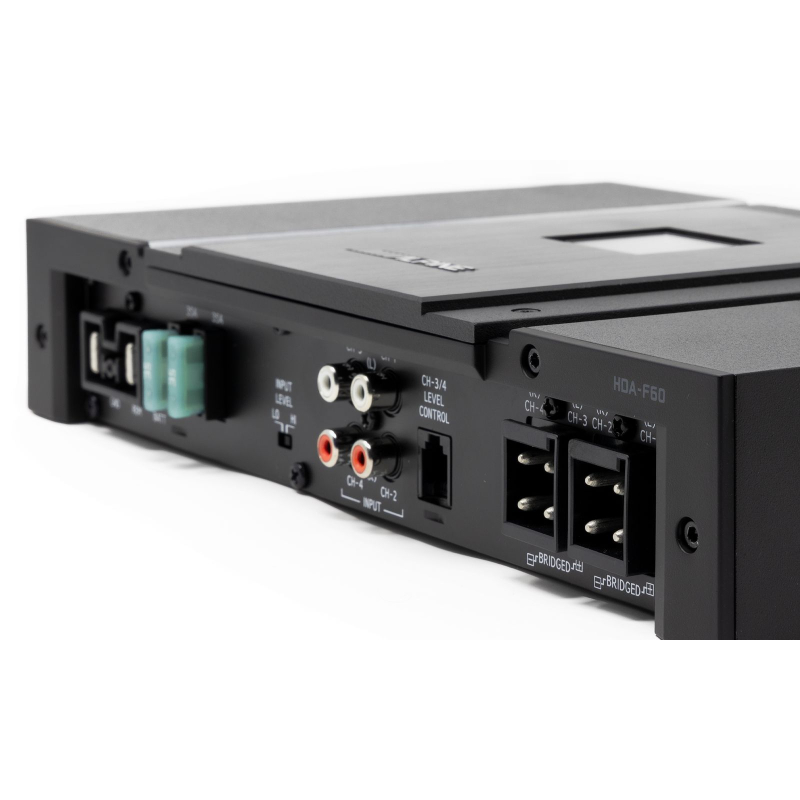

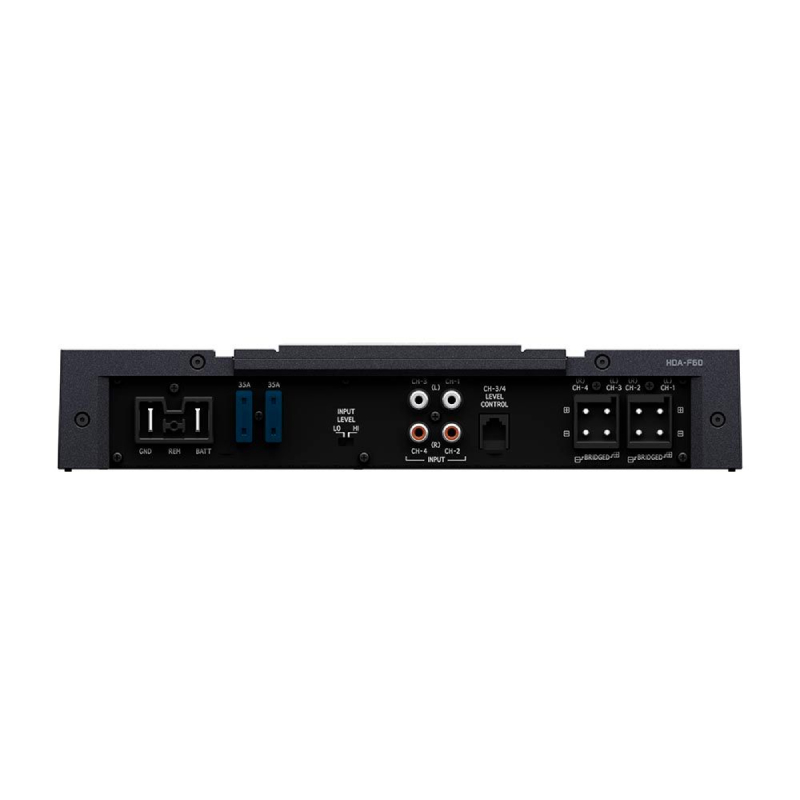

- One-Sided Terminal Layout: Simplifies installation and wiring.

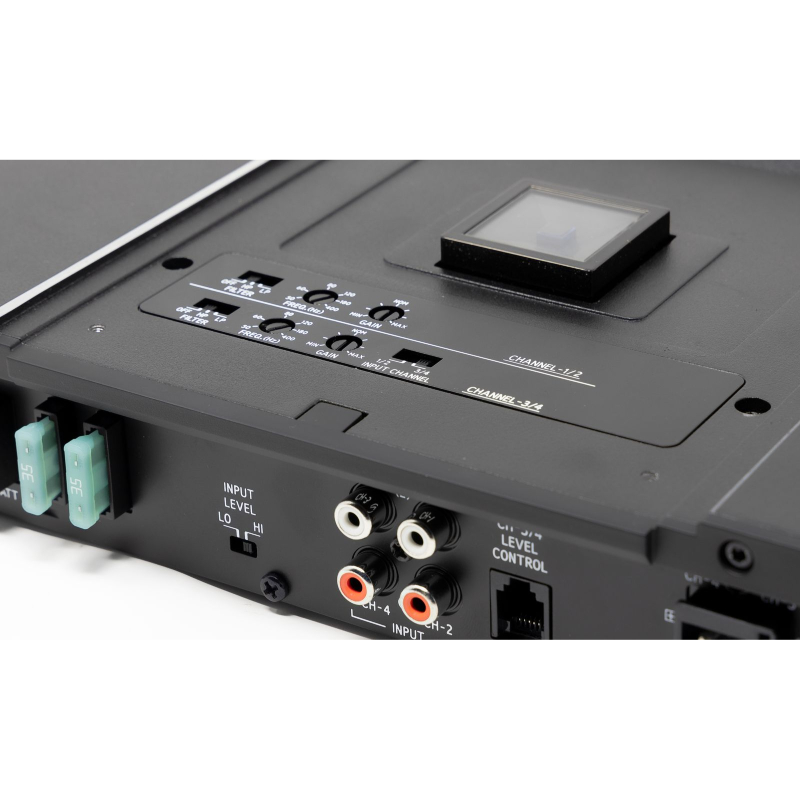

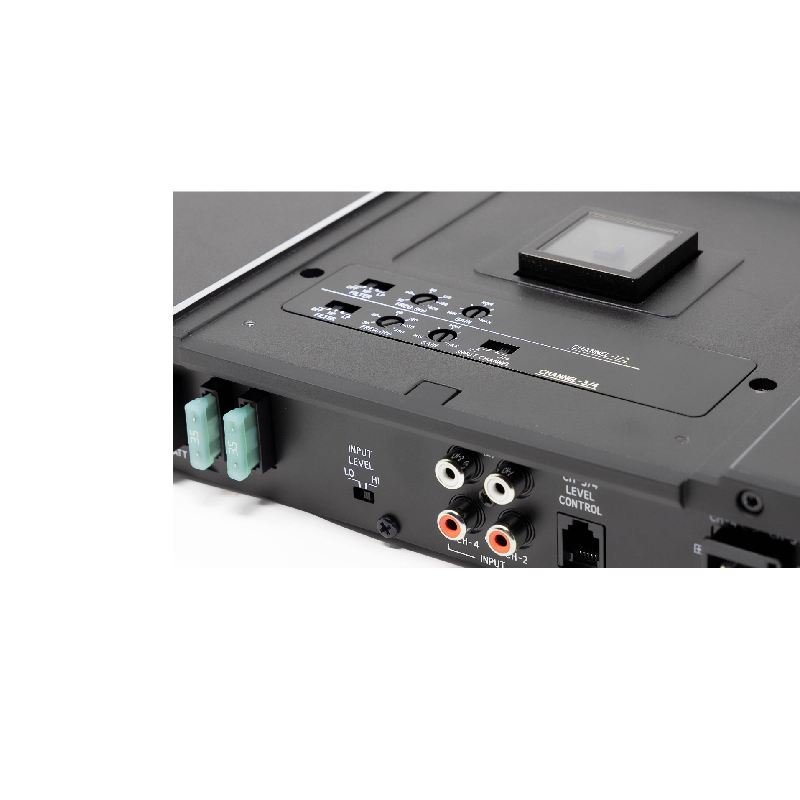

- Top Panel Sound Controls: Easy access for on-the-fly adjustments.
- Quick-Connect Terminals: Hassle-free power and speaker connections.
- Optional Remote Bass Knob: Compatible with RUX-KNOB.2 or RUX-H01 (sold separately) for convenient bass control.
Specifications:
- RMS Power Output: 100W x 4
- Peak Power Output: N/A
- Power at 2 Ohms: 150W x 4
- Power at 1 Ohm: ---
- Bridged Power: 300W x 2
- Minimum Impedance (Bridged): 4 Ω
- Minimum Impedance (Unbridged): 2 Ω
- Frequency Response: 10 Hz – 60,000 Hz
- THD at Rated RMS Power: 0.07%
- Signal-to-Noise Ratio: 106 dB
- Input Voltage: 14.4 V
- Amplifier Class: D
- Built-in DSP: No
- Remote Control: Optional
- Low-Pass Crossover Frequency: 50 – 400 Hz
- Low-Pass Slope: 12 dB/octave
- High-Pass Crossover Frequency: 50 – 400 Hz
- High-Pass Slope: 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 70 A
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Dimensions (W x H x D): 11.4375" x 2.125" x 7.5"
- UPC: 0793276084941
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
