- Diameter : 10 Inch
- Maximum Power : 1200 Watts
- Sensitivity : 85.0 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1200 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 5.1 Inches
- RMS Power Handling : 250 Watts
What's Inside?

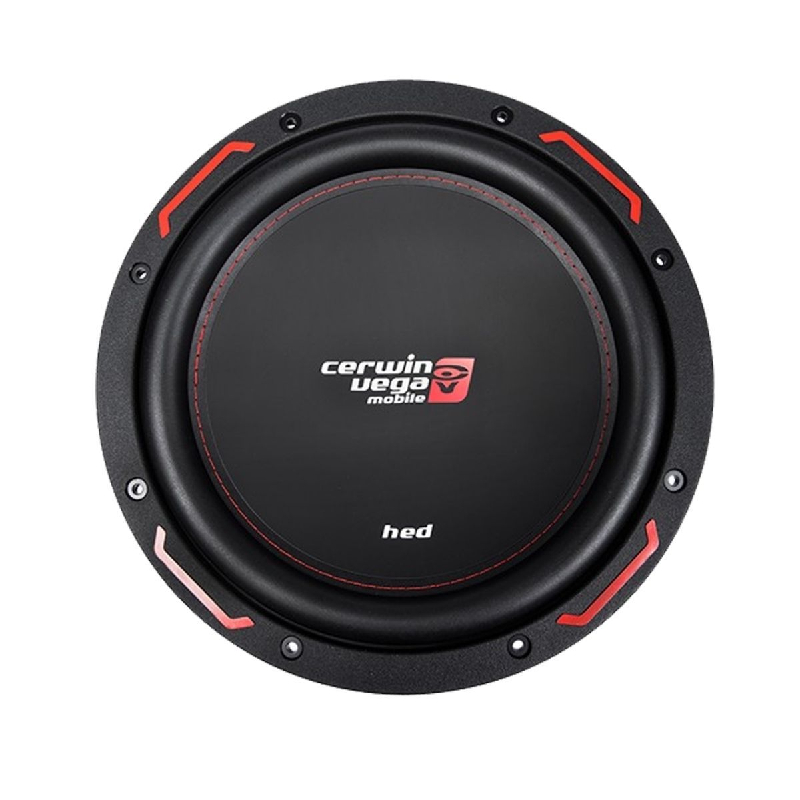

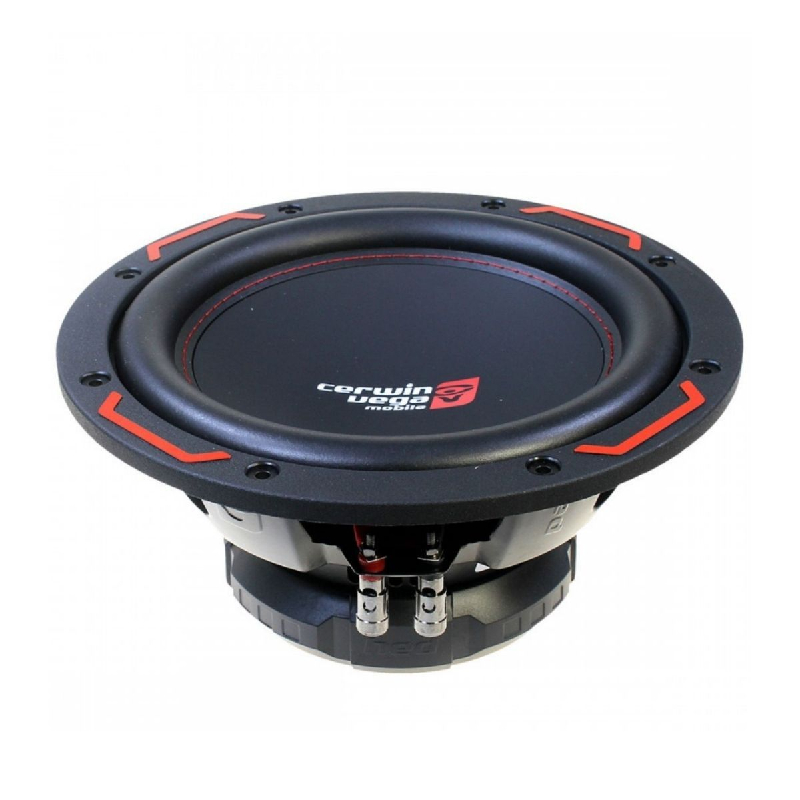

- 1 10" HED Series Single 4 Ohm High-Performance Car Subwoofer
Features:
- Proprietary HED Basket Frame
- Optimized High Power Single-Stacked Motor Structure
- Parabolic One-Piece Stamped Carbon Fiber Poly Cone
- Vented Motor Structure For Optimal Thermal Heat Dissipation
- Poly-Cotton Spider With Spaced Woven In Tinsel Wires
- Unimount Gasket Surround
- Proprietary Stamped Cast Vega Basket Design
Specifications:
- 10” Dual 4-ohm High-Performance Subwoofer
- Power Handling: 250W RMS / 1200W MAX
- Xmax - Inch(mm): 8
- Fs-Free Air Resonance (Hz): 32
- Vas (Liter): 34
- Qts: 0.61
- Qes: 0.65
- Qms: 9.7
- Re (Ω)[series]: 2 or 8
- Sd (cm²): 0.033
- Cms (mm/N): 0.24
- Mms (g): 101
- BL (T*M): 7.7
- SPL (db): 85.0
- Mounting Depth: 5.1 (129.6) in. (mm)
- Total Diameter: 10.7 (271.8) in. (mm)
- Mounting Diameter (inch/mm): 9.7 (246.4) in. (mm)
- UPC: 847169030512
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
