AUXILIARY CONTROL OPTIONS
Your MediaMaster® includes two connection types for adding control capabilities
from auxiliary locations. Refer to the supplied Owner’s Manual of each controller/
type (sold separately) for specific user and installation instructions.
NMEA 2000® Connection
NMEA 2000®, Micro-C connector
interfaces directly with NMEA 2000®
networks using applicable NMEA 2000®
cables and connectors (sold separately).
REMOTE Connection
Permits direct connection of
MediaMaster® wired controllers (sold
separately) using accessory controller
cables and splitters (sold separately).
Add up to three remotes to a single
MediaMaster®, at up to 75 ft (23 m) away.
NMEA 2000® Network Controller
with Full-Color LCD Display
Full-function, water-resistant
(IP66 rated) controller
Wired Remote Controller
Auxiliary, water-resistant
(IP67 rated) controller
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- Preamp Outputs : 3
- Color : Black
What's Inside?

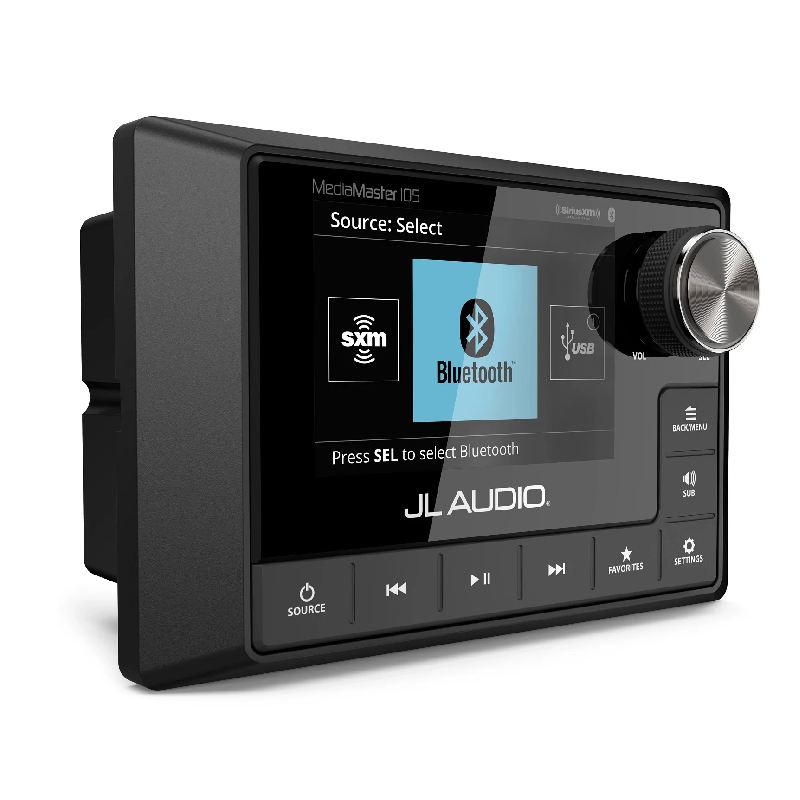

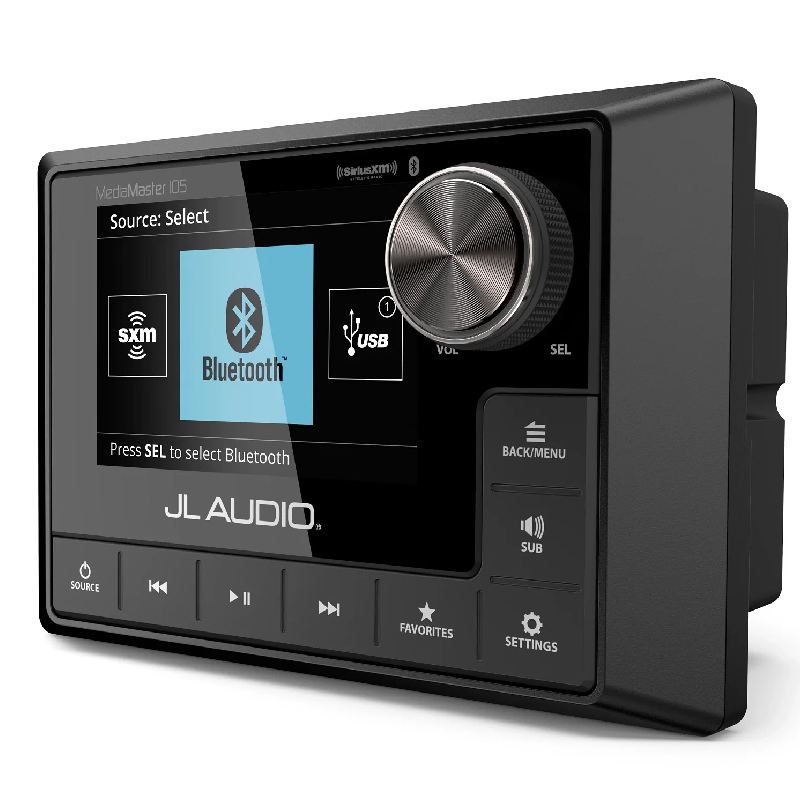

- 1 Media Master 105 Receiver
Features:
- 4 Zones that each feature a sub out.
- 2 Aux inputs, 2 USB, one for iPhone USB and another USB for a thumb drive
- Higher resolution screen
- Better feel/feedback on main volume control
- Faster access to menu functions
- About 1/2" deeper thank the MM100BE
- Owner manual attached
Specifications:
Electrical
- Operating Voltage 14.4V DC (10V – 15.9V)
- Operating Temp Range -4 F to +158 F (-20 C to +70 C)
- Current Draw / Fuse Value 1.5 A (max) / 120 mA (standby) / 5 A
- NMEA 2000® LEN 1 (Micro-C connector)
- Display / Resolution 3.5 in. TFT LCD backlit / 320 x 480
Audio Outputs/Inputs
- Output Channels One stereo pair and mono subwoofer RCA plugs per zone

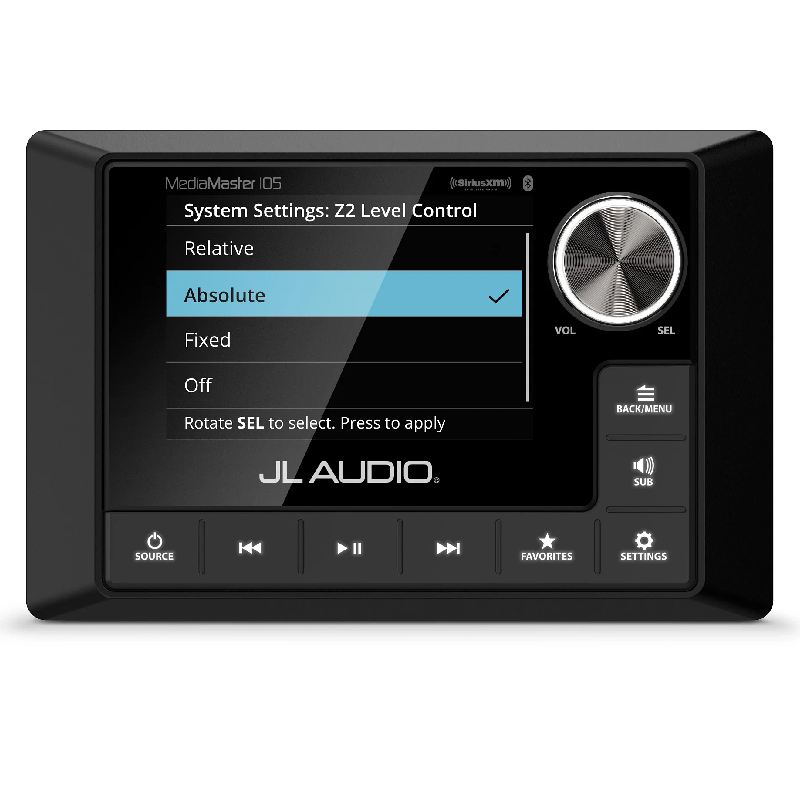

- Output Configuration Relative, Absolute, Fixed or Off
- Maximum Output Voltage Relative or Absolute: 4V RMS
- Fixed: Selectable 4V/2V/1V RMS
- Output Impedance 250 Ω
- Auxiliary Input Channels Two stereo pairs of RCA plugs (2V/1V RMS Input Sensitivity)
Tuner
- FM Tuner with RDS 87.5 MHz to 107.9 MHz (0.2 MHz step)
- AM Tuner 530 kHz to 1710 kHz (10 kHz step)

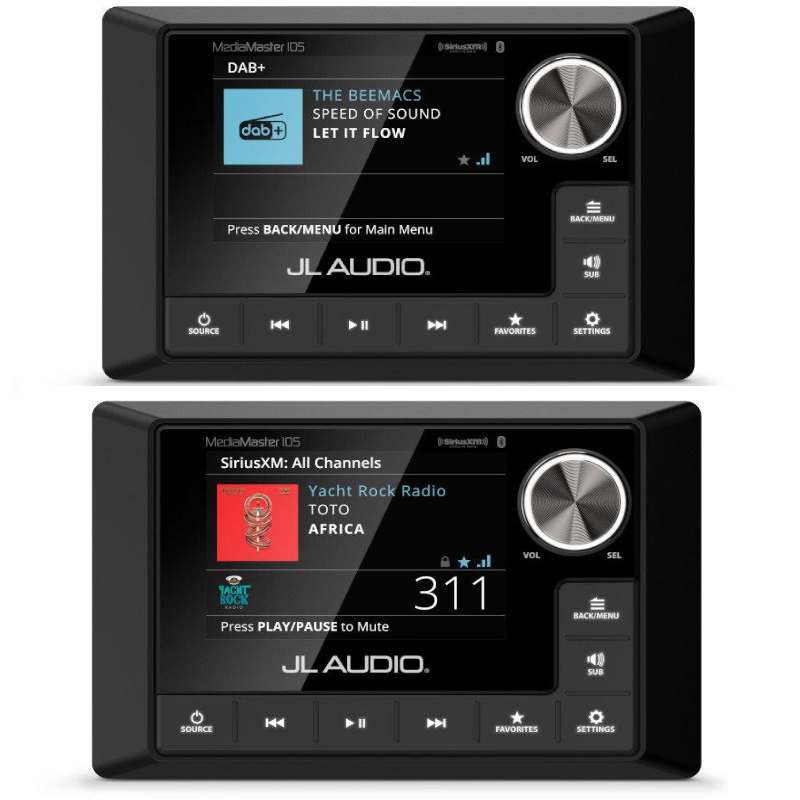

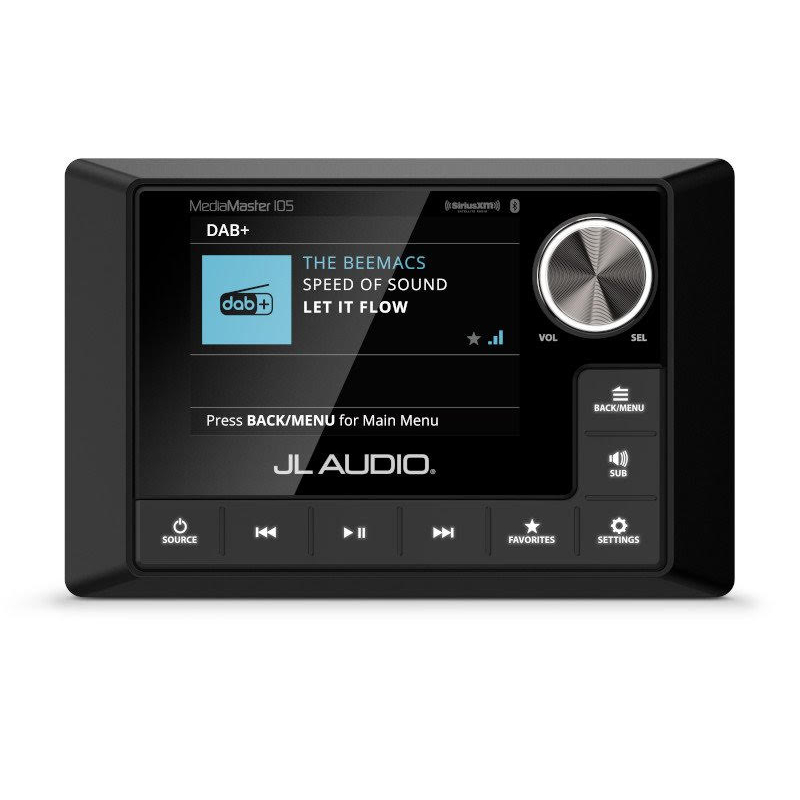

- DAB+ Tuner 170 MHz to 230 MHz
- Favorites 24 presets across all tuners/bands
Bluetooth®
- Profile A2DP v1.2, AVRCP v1.4
- Core Specification Version 2.1 + EDR
- Codec SBC, Qualcomm® aptXTM audio
- Connection Range Up to 35 ft / 11 m
USB
- Interface USB 2.0
- Charging Output USB1: 1 A / USB2: 500 mA
- Supported Audio Formats MP3, MP4, WAV, AAC, M4A, M4B
- Apple Compatibility
- iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11,
- iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8
- (functionality contingent upon compatible iOS release)
Dimensions
- Unit W x H x D 5.94 in. x 3.90 in. x 3.94 in. (151 mm x 99 mm x 100 mm)
- Mounting Hole W x H 4.72 in. x 3.25 in. (120 mm x 83 mm)
- UPC: 994440999304
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
