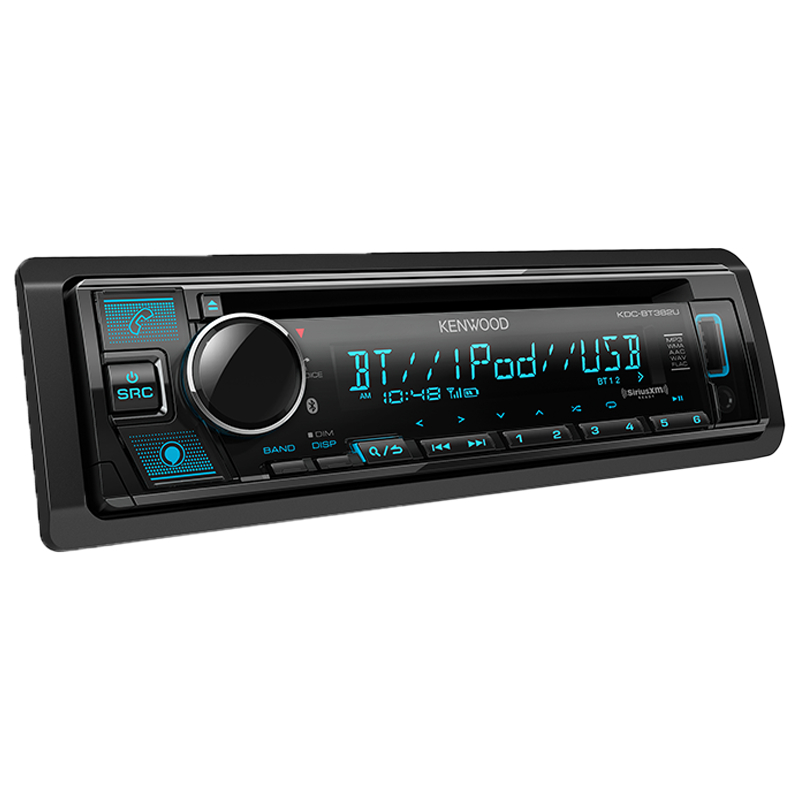

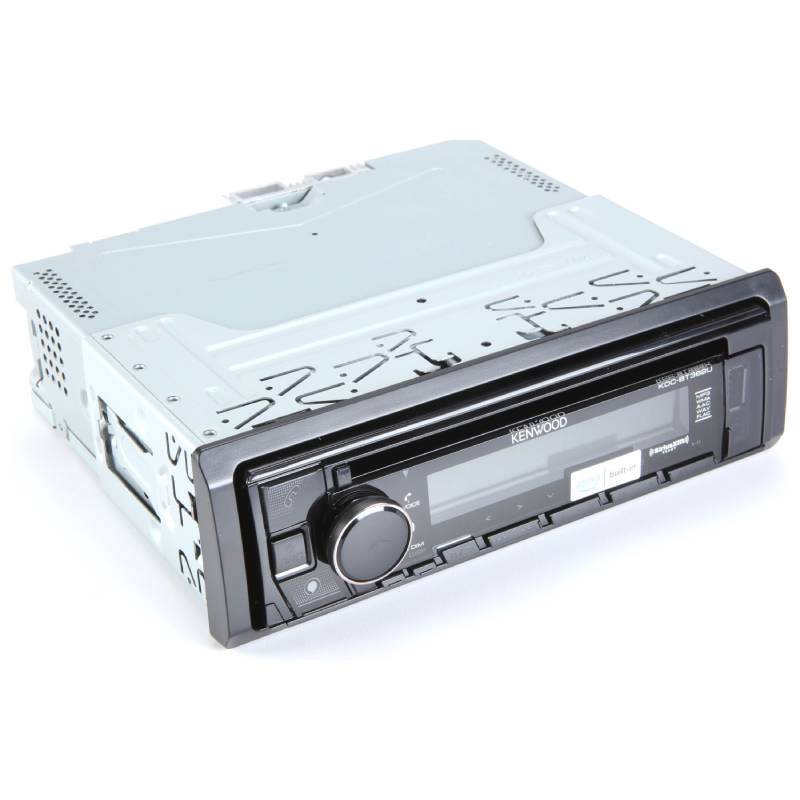

Kenwood KDC-BT782HD 1-DIN CD Receiver, Bluetooth, Alexa Built-in, SiriusXM Ready, Front USB & AUX, Variable Illumination, Remote APP ready
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

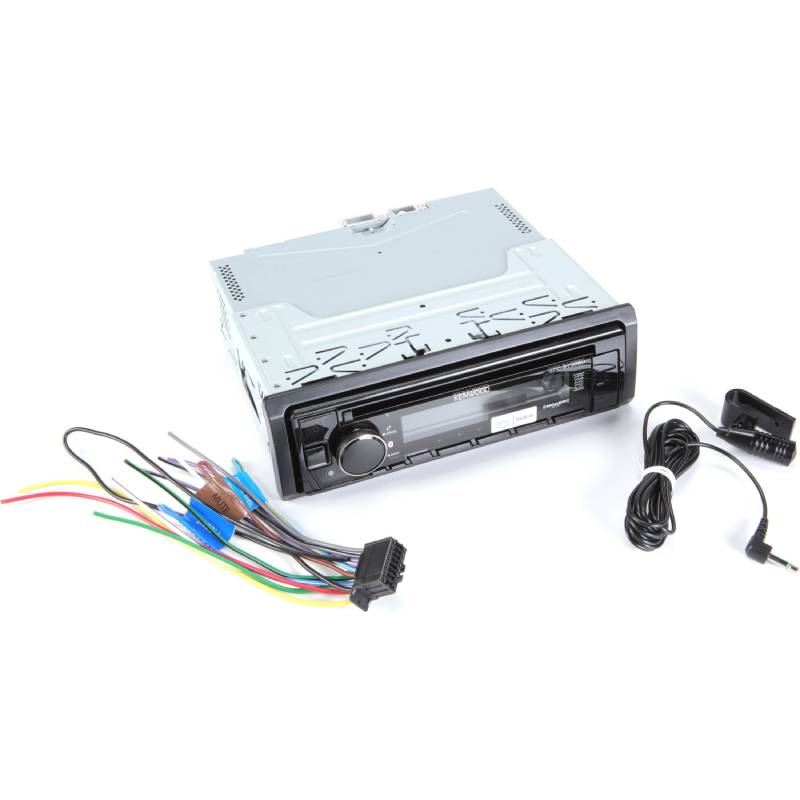

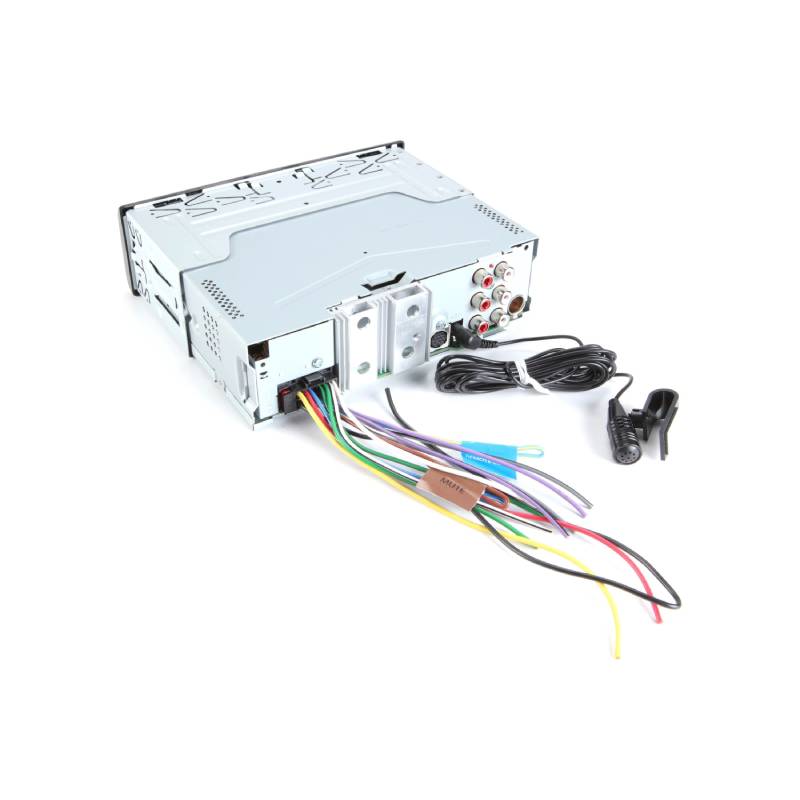

What's Inside?
- •CD receiver (10A fuse)
- •Face (attached)
- •Trim ring
- •Sleeve (installed)
- •Wiring harness
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- •(4) Counter-sunk screws (M5x8mm) 4 Pan-head screws (M5x8mm)
- •Mounting screw (Lock and flat washers attached)
- •(2) Removal tools
- •Face-fixing screw
- •Quick Start Gude
- •Warranty Card
- •Owner's Manual
Amazon Alexa Compatible
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family. While you are connected through Bluetooth, with a touch of a button you can switch between two phones. Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.
Control the Receiver from Your Smartphone
With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more. Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.
Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
- Maximum Power : 200 Watts
- CD Text : Yes
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 2.5 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Front USB Input : 1
- Preamp Outputs : 3
Features:
- Music Mix: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
- Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Remote App: A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
- Drive EQ: Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
- FLAC Supported: Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
- Variable Color Illumination: Bright variable color LEDs can be adjusted to match any color dash lighting.
Specifications:
FM
- Frequency Range(MHz) (Frequency step): 87.9MHz to 107.9MHz (200kHz)
- Usable Sensitivity S/N:30dB: 8.2dBf (0.71μV/75Ω)
- Quieting Sensitivity DIN S/N:46dB: 17.2dBf (2.0μV/75Ω)
- Frequency Response (±3.0dB): 30Hz to 15kHz
- S/N(dB): 64.0dB(MONO)
- Stereo Separation: 40dB(1kHz)
MW(AM)
- Frequency Range(kHz)(Frequency step): 530kHz to 1700kHz (10kHz)
- Usable Sensitivity (S/N 20dB): 29dBμ (28.2μV)
CD
- Laser Diode: GaAlAs
- Digital Filter(D/A): 8 Times Oversampling
- Spindle Speed: 500 to 200rpm (CLV)
- Wow & Flutter: Below Measurable Limit
- Frequency Response: 20Hz to 20kHz(±1dB)
- Total Harmonic Distortion: 0.01%(1kHz)
- S/N Ratio (dB): 94dB(1kHz)
- Dynamic Range: 92dB
- Channel Separation: 90dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with WINDOWS MEDIA AUDIO
- AAC Decode: AAC-LC ".aac" files
- WAV Decode: -
- Preout Level(mV)/Load-Unbalanced: 2,500mV/10kΩ
- Preout Impedance(Ω): =<600Ω
- Speaker Impedance(Ω): 4 to 8Ω
USB I/F
- USB: USB 1.1 / 2.0 High Speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- Frequency Response: 20Hz to 20kHz(±1dB)
- S/N Ratio (dB): 98dB(1kHz)
- Dynamic Range: 93dB
- Channel Separation: 90dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with Windows Media Audio
- AAC Decode: AAC-LC ".aac",".m4a" files
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 24bit/96kHz)
AUX
- Input: Frequency Response 20Hz to 20kHz ±3dB
- Input Maximum Voltage: 1,000mV
- Input Impedance: 30kΩ
AMP
- Maximum Power: 50Wx4
- Full Bandwidth Power (at less than 1%THD): 22Wx4
TONE
- Band1: 62.5Hz ±9dB
- Band2: 100Hz ±9dB
- Band3: 160Hz ±9dB
- Band4: 250Hz ±9dB
- Band5: 400Hz ±9dB
- Band6: 630Hz ±9dB
- Band7: 1kHz ±9dB
- Band8: 1.6kHz ±9dB
- Band9: 2.5kHz ±9dB
- Band10: 4kHz ±9dB
- Band11: 6.3kHz ±9dB
- Band12: 10kHz ±9dB
- Band13: 16kHz ±9dB
Bluetooth
- Version: Bluetooth 4.2
- Frequency Range: 2.402 to 2.480GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Profile
- HFP 1.7.1 (Hands Free Profile)
- SPP(Serial Port Profile)
- PBAP(Phonebook Access Profile)
- A2DP(Advanced Audio Distribution Profile)
- AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE
- Operating voltage: 12V DC car battery
- Installation Size(W)(H)(D): 182(mm) 7-3/16(in) X 53(mm) 2-1/16(in) X 155.5(mm) 6-1/8(in)
- (Trim plate and Mounting sleeve: Included)
- UPC: 0019048233639
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
