Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
PCH Custom Audio SB-GM-ESCESV/10W1V3/DG-Bundle Exclusive Bass Package for Yukon XL/Chevy Suburban 2007-2013 includes the following: JL AUDIO SB-GM-ESCESV/10W1V3/DG + JL AUDIO RD500/1 + XS POWER AKXS4-1 + BOOM MAT 050202 (SOUND DAMPING)
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •JL Audio SB-GM-ESCESV/10W1v3/DG
- •JL Audio RD500/1
- •XS Power AKXS4-1
- •Boom Mat 050202
- • Owner's Manual
JL Audio SB-GM-ESCESV/10W1v3/DG Stealthbox® 10" Two 10W1v3-4 300W RMS (600W Peak Power Handling) 4 Ohms Mono Voice Coil Sealed Enclosure Subwoofer
Powerful JL Audio Bass Performance
The centerpiece of any serious audio upgrade is an outstanding subwoofer system. For GM's big SUV's, JL Audio now offer this powerful solution that fits all versions, including the luxurious Denali and Escalade models. Featuring a potent pair of 10-inch subwoofer drivers in a sealed enclosure, these rear-mounted Stealthbox® systems have the muscle to fill that big space with clean, powerful JL Audio bass performance. The clever design places the enclosure off the floor so that it doesn't take up any useful cargo or people space and the enclosure is positioned so that it will not affect the driver's visibility one bit. The only thing you will be giving up is that weak factory bass performance. Please note that specific versions are available for the regular and extended wheelbase versions of these vehicles!
JL Audio RD500/1 RD Series 250W x 1 RMS @2Ohms, 500W Max Power Class D Monoblock Subwoofer Amplifier with Blue LED Accent Lighting
Mono Subwoofer Amplifier
A mono subwoofer amplifier to power up your lone subwoofer, the JL Audio RD500/1 can surely give you the heart-pounding bass output that you desire. Thanks to its compact size, you won't have any headaches installing it inside your vehicle.
XS Power AKXS4-1 XS Flex 4 AWG Amp Kit
XS Power AKXS4-1
This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly.

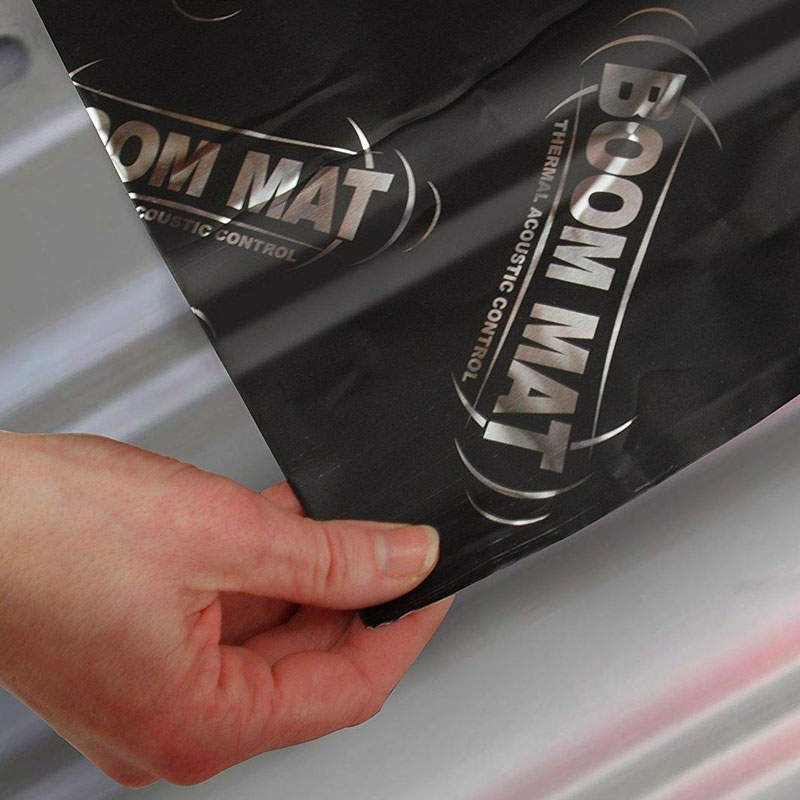

XBoom Mat 050202 Damping Material 12" x 12-1/2" (2mm) - 4.2 sq ft - 4 Sheets
Vibration Damping Material 12.5" x 12" (4 Sheets) - 050202

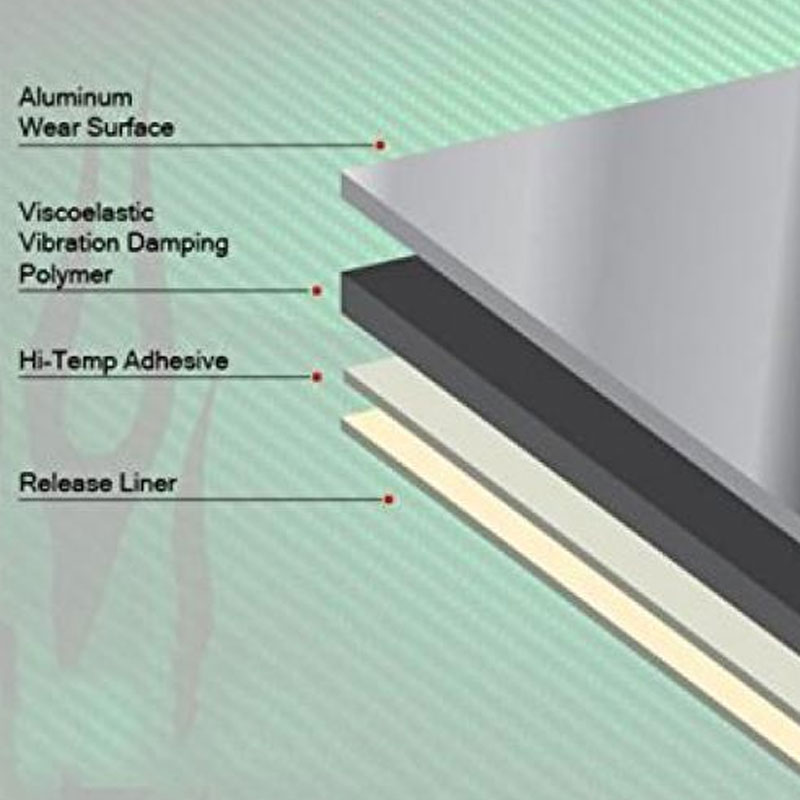

Boom Mat Damping Material solves the problem of noise, vibrations, squeaks and rattles that come from roads, stereos, engines & more. Boom Mat Vibration Damping Material is a premium quality damping material providing extreme noise damping for the most demanding commercial and sound competition applications. Interior panels vibrate and generate noise. Boom Mat stops that noise by trapping it between our thick, 4 mil aluminum stiffening top skin and the asphalt free, pure butyl, noise constraining layer. Plus worry-free no snag adhesion to any interior surface, vertical or overhead, even in the most demanding of temperature extremes. Those quality components are what makes Boom Mat Vibration Damping Material require only 25-50% coverage to get the job done. This saves weight, material cost and installation time.

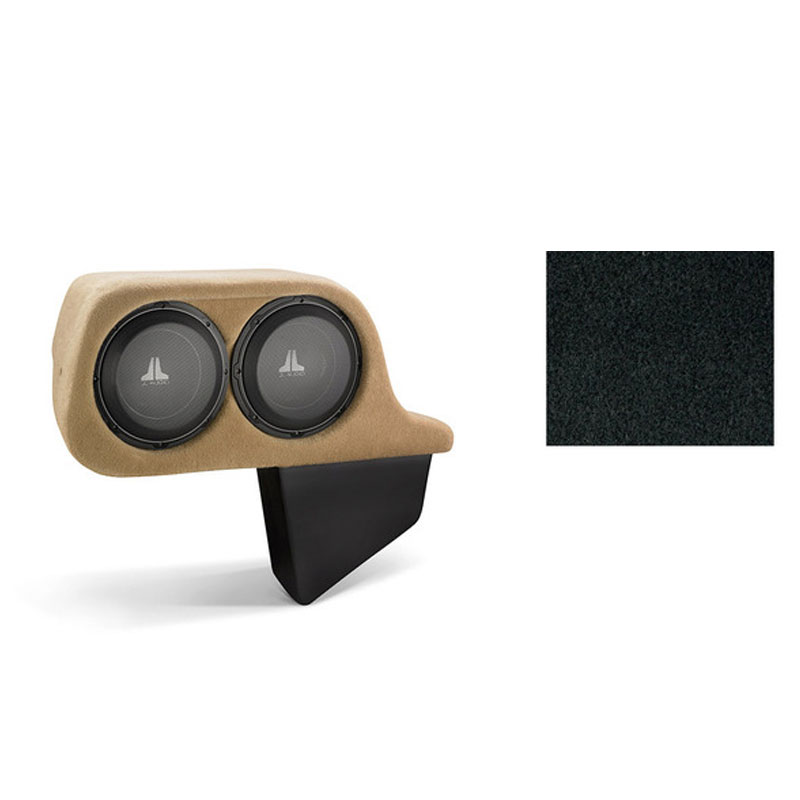

SB-GM-ESCESV/10W1V3/DG Stealthbox® 10" Two 10W1v3-4 300W RMS (600W Peak Power Handling) Single 4 Ohm Voice Coil for 2007-2013 Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Ebony interior
Features:
- Matching Amplifier: JL Audio XD600/1v2
- Recommended power range: 150 - 600 watts RMS
- Color Match Grade: Good
- Will not fit models without Power Liftgate option
- Also available in the following OEM Colors:
- Side-firing design
- Elevated frame cooling enhances power and sound quality
- Insert Molded Suspension / Coil / Terminal Sub-Assembly
- Sealed enclosure
- Binding post terminals for secure and sturdy connection and installation
- OEM Color: Ebony
- Injection molded, mica-filled polypropylene cone
- Power Handling:RMS: 600 watts total / 300 watts each
- Wired to a 2 ohm load
- Two JL Audio 10W1v3-4 Subwoofer
- Rubber surround
- DMA-optimized motor design
- Patented "floating cone attach method" technology
- Vented Reinforcement Collar
- Engineered Lead-Wire System
- Xmax: 11.0 mm
- Sensitivity: 84.2 dB

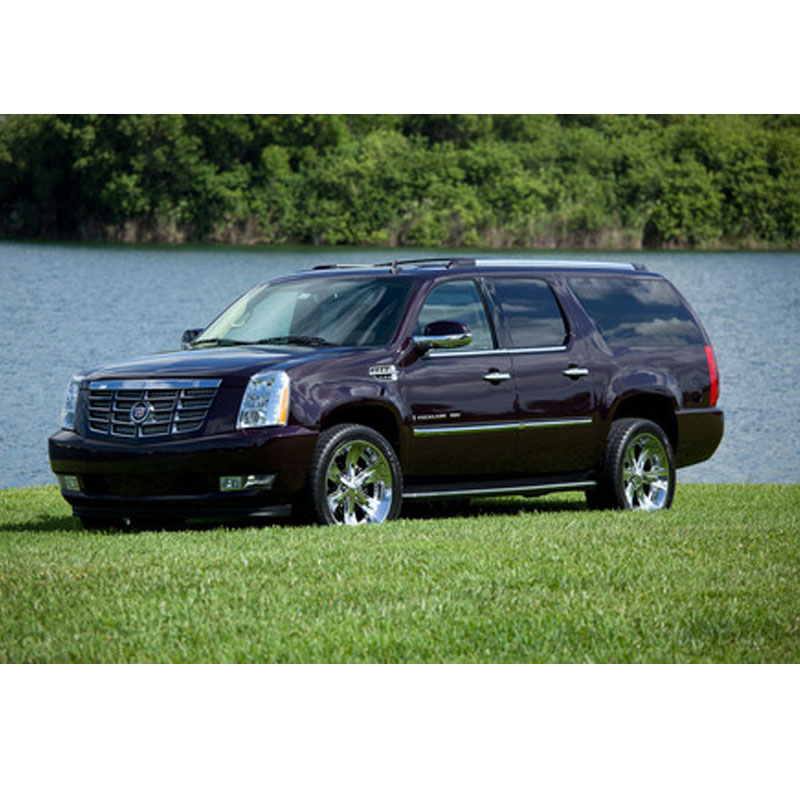

- For 2007-Up Chevrolet / GMC Extended Wheelbase SUV's & Cadillac Escalade ESV with Power Liftgate and Ebony interior
- Steel mesh grilles included

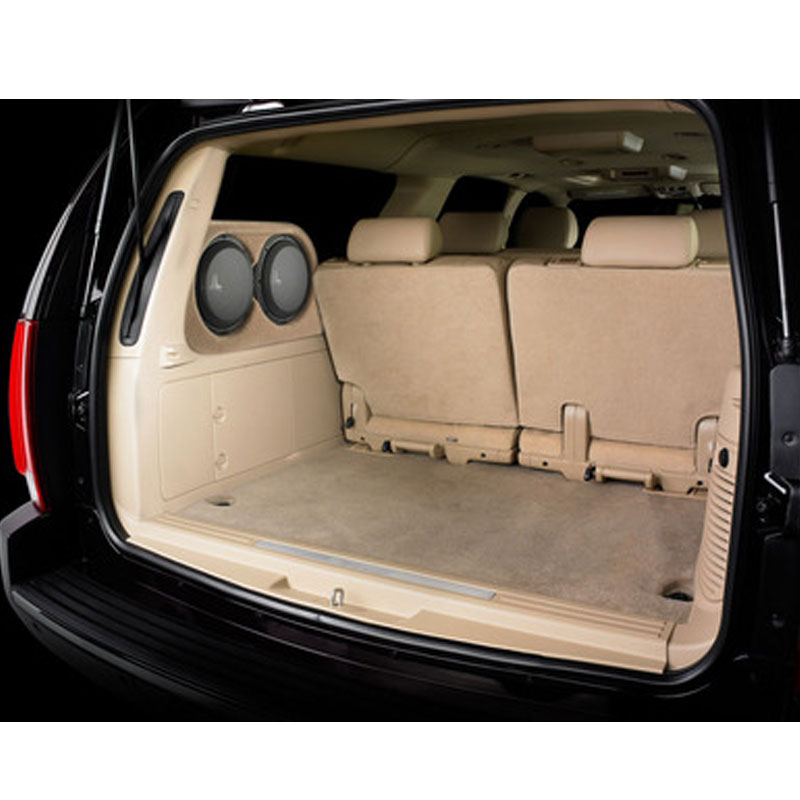

- Stealthbox® Installs on the driver side rear window ledge
- Will not fit regular wheelbase Chevrolet & GMC SUV's
- Light Cashmere: JL Audio SB-GM-ESCESV/10W1v3/TN
- Light Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA
- Dark Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA2

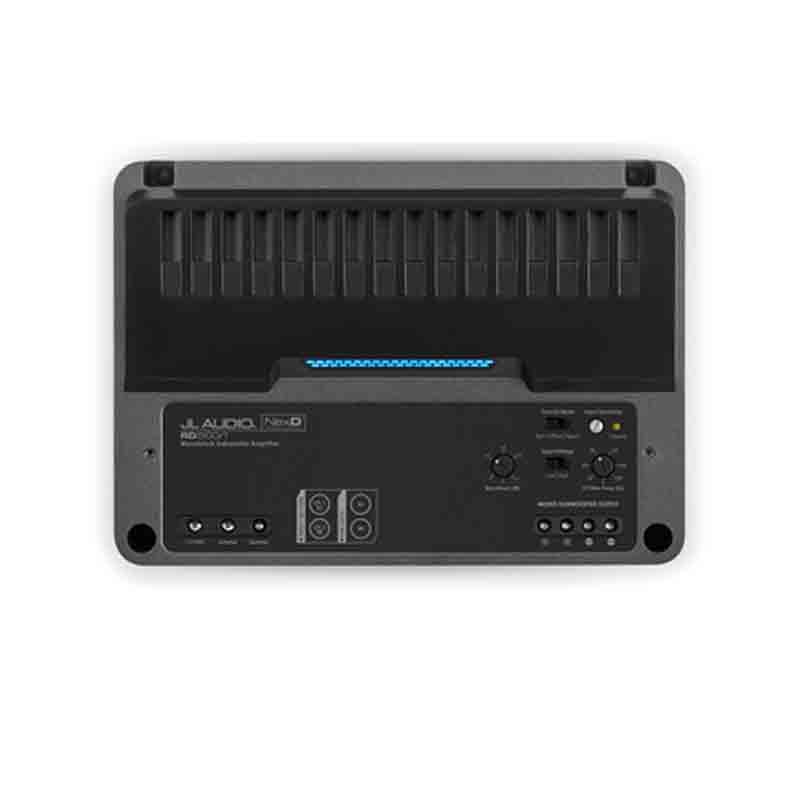

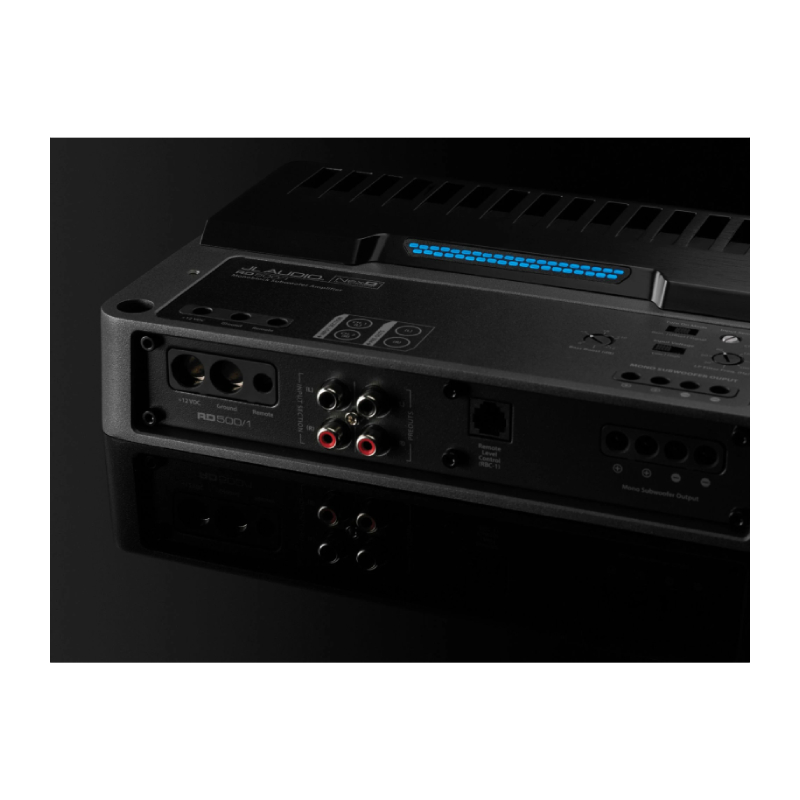

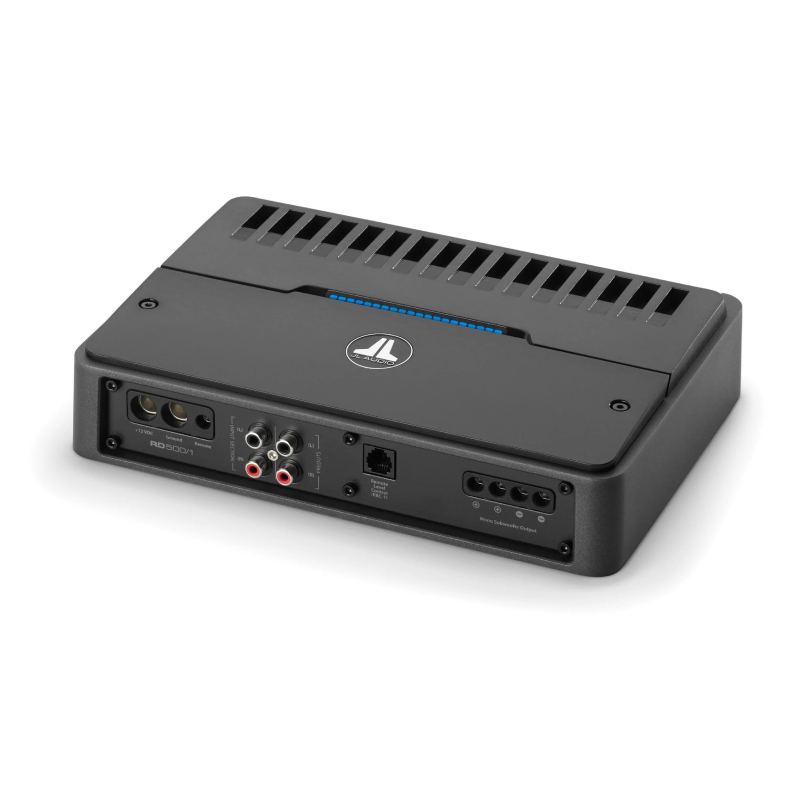

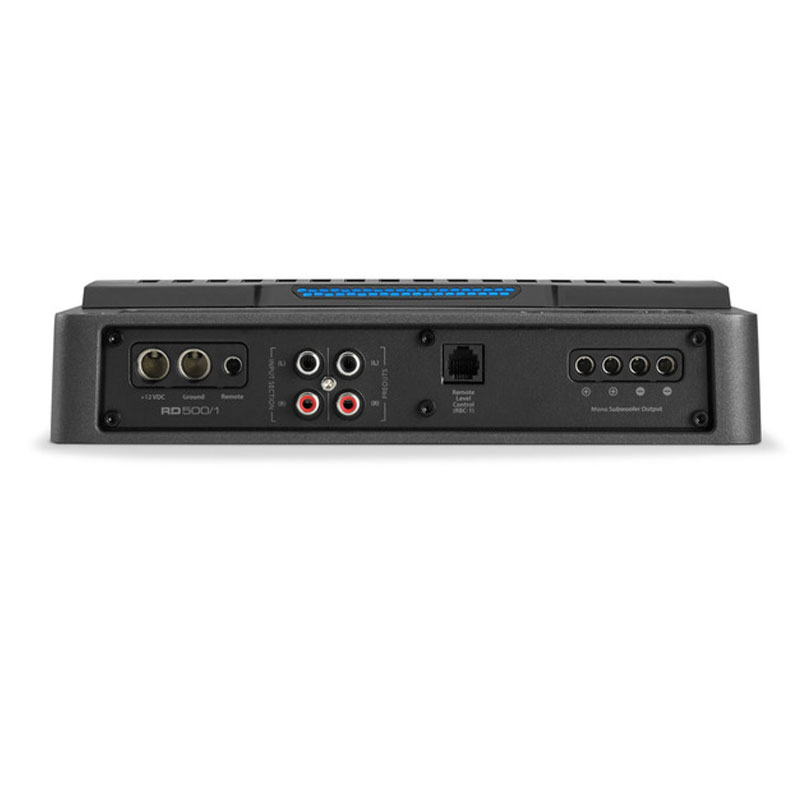

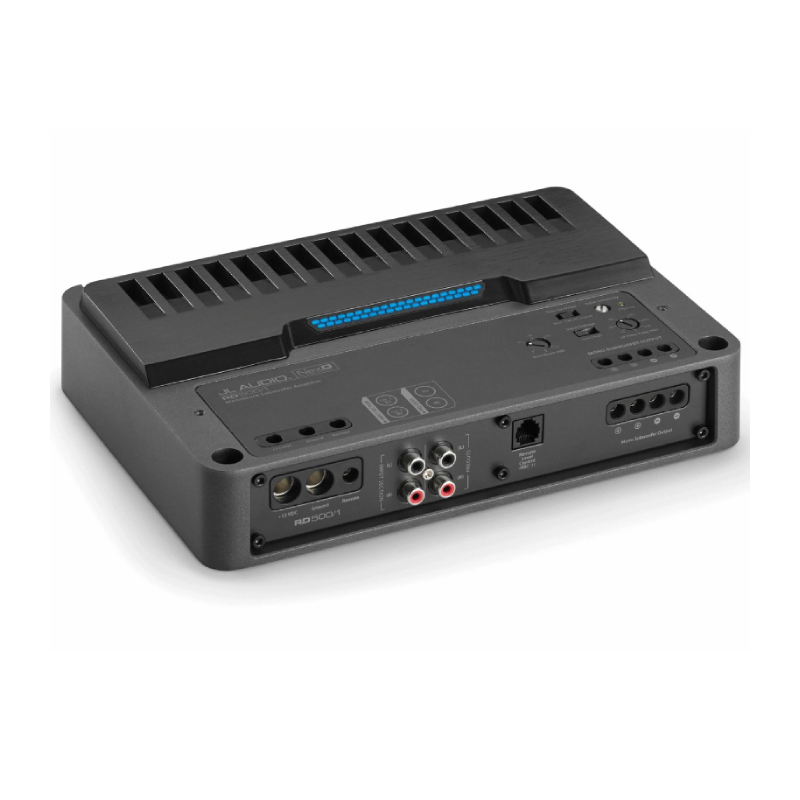

RD500/1 RD Series 250Wx1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier with Blue LED Accent Lighting
Features:
- Class-D 2-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 250 watts x 1 chan.
- 3 ohms: 350 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
- 1 ohm: N/A
- Total power output: 1000 watts
- Frequency Response: 7 - 500 Hz
- Total Harmonic Distortion (THD): <1%
- Signal to Noise Ration: >80 dB
- Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +12 dB
- Fuse Rating: 50 A x 1
- 4 gauge power and ground wiring is recommended for installation.
- Dimensions: 9.78"W x 6.96"D x 2.13"H
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Wired remote bass level control available, sold separately: JL Audio RBC-1
- Soft start turn-on
- Ultra sleek and compact chassis
- Mono channel operation
- NexD™ Technology delivers huge power with low distortion
- Equipped with an onboard LED-clipping indicator

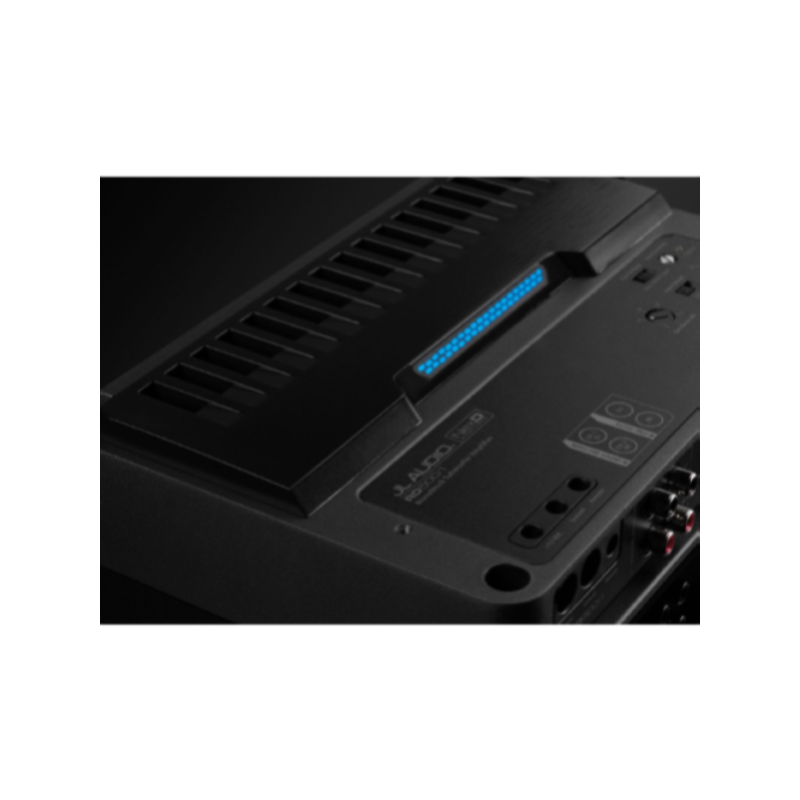

- Top mounted dual color LED strip
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- blue LED accent lighting
- optional wired remote level control
- preamp inputs and outputs
- speaker-level inputs (speaker wire to RCA adapter required)
- 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
AKXS4-1 Amp Kit, XS Flex 4 AWG 100% Copper Wiring, Power Cable, Speaker Cable, Signal and Remote
Specification:
- 100% Copper Wiring
- Weight Lbs. – 5.5
- Weight Kgs. – 2.49
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in

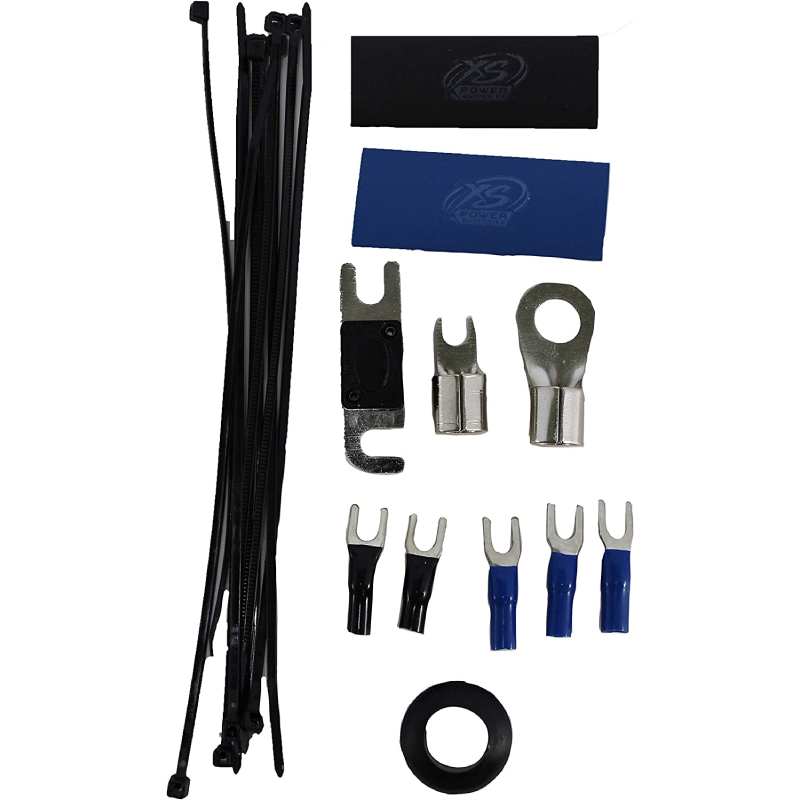

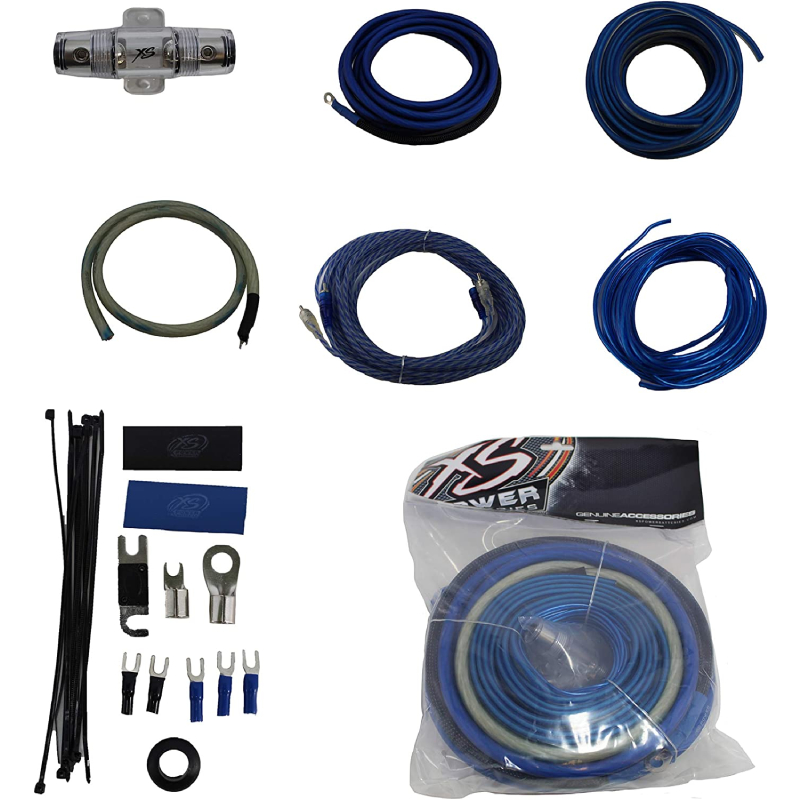

Kit Contents:
- 1qty - 17ft 4AWG XSFLEX BL Cable
- 1qty - 3ft 4AWG XSFLEX CLR Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 25ft 14G Frosted Clear/Blue Speaker Wire
- 1qty - 17ft Triple Shielded Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 120A Mini ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 14G Spade Terminals/BK
- 3qty - 14G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties

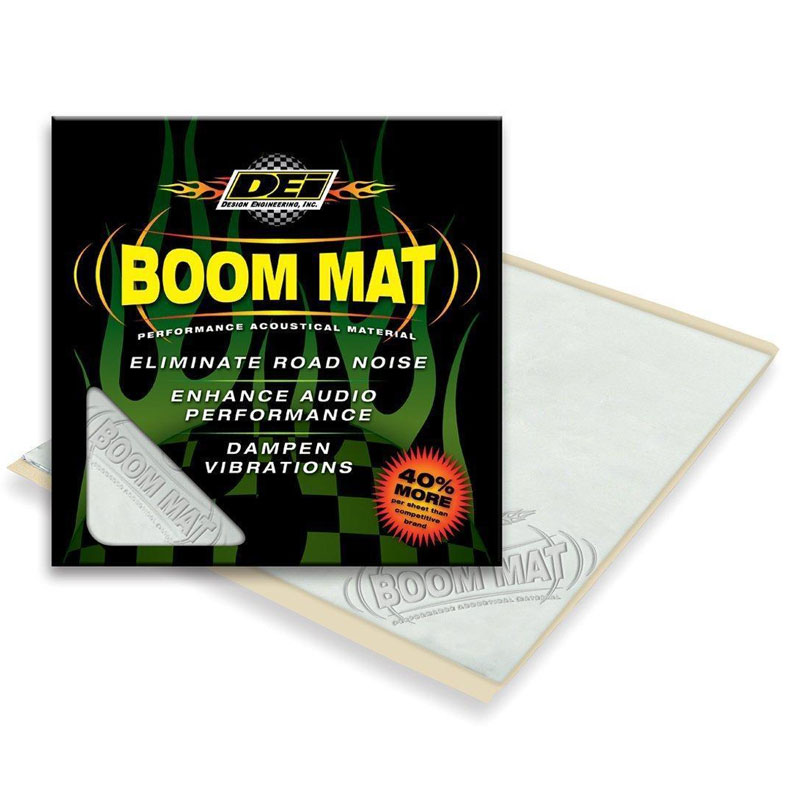

050202 Damping Material 12" x 12-1/2" (2mm) - 4.2 sq ft - 4
Sheets
Features:
- Shipping Weight: 2.7 pounds
- Domestic Shipping: Item can be shipped within U.S.
- International Shipping: This item is not eligible for international shipping. Learn More
- Brand: Design Engineering
- Item Weight: 2.7 pounds
- Package Dimensions: 12.9 x 12.8 x 1.5 inches
- Item model number: 050202
- Exterior: Smooth
- Manufacturer Part Number: 050202
- OEM Part Number: 050202
- Eliminates low frequency noise problems and only requires 25-50% coverage for optimal performance
- High performance adhesive maintains adhesion throughout temperature extremes
- Flexible material is easy to install - trim to size with Boom Mat Blade Lock Knife (sold separately)
- The industry standard in vibrational damping technology with multiple uses including automotive, commercial and industrial applications
- Durable weatherproof construction is also corrosion resistant
- UPC:
- Weight: 68
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
