Stinger  SR-JK11H

HEIGH10® Radio Replacement Kit for 2011-2018 Jeep Wrangler JK

Item #85632

Condition:   Brand New

Product Highlights

  • HEIGH10® Radio Replacement Kit
  • For 2011-2018 Jeep Wrangler JK

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$395.00

Reg. Price $429.00  Save $34.00

Out of Stock Check out other products listed below
Stinger Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Stinger Banner

Wrangler JK Installation Kit for Heigh10® Multimedia Head Unit


We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

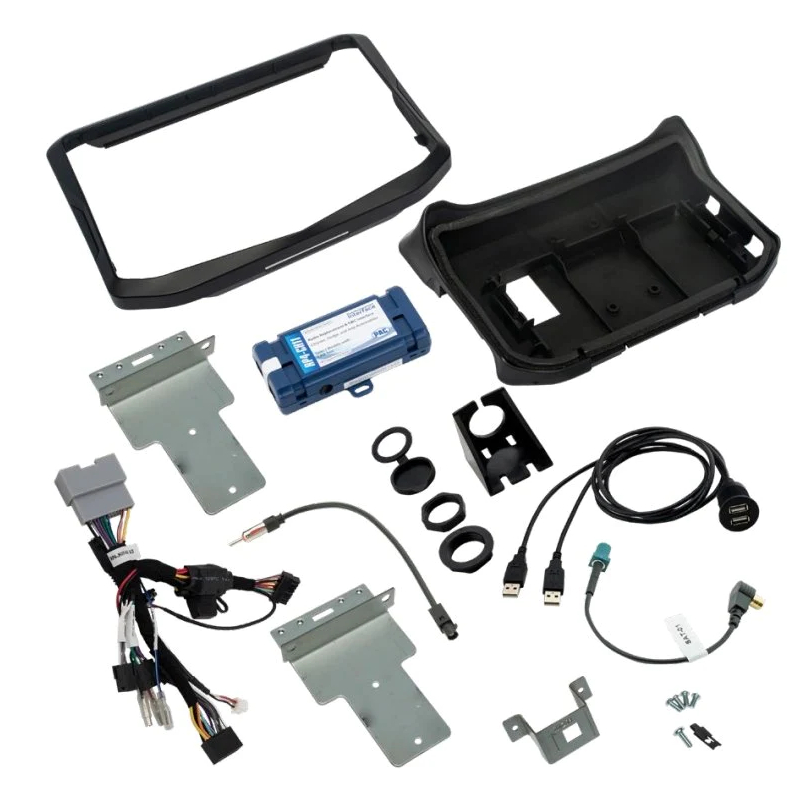

What's Inside?
  • • Mounting Panel Front Frame
  • • HEIGH10 Display Mounting Panel
  • • Side Mounting Brackets
  • • Top Support Bracket
  • • Main Wiring Harness (RP4-JK07-HAR)
  • • Radio Replacement Interface Module (RP4-CH11)
  • • Satellite Antenna Adapter (SAT-01)
  • • AM / FM Antenna Adapter (BAA22)
  • • Dual USB Extension (SSUSB2)
Stinger_SR-JK11H

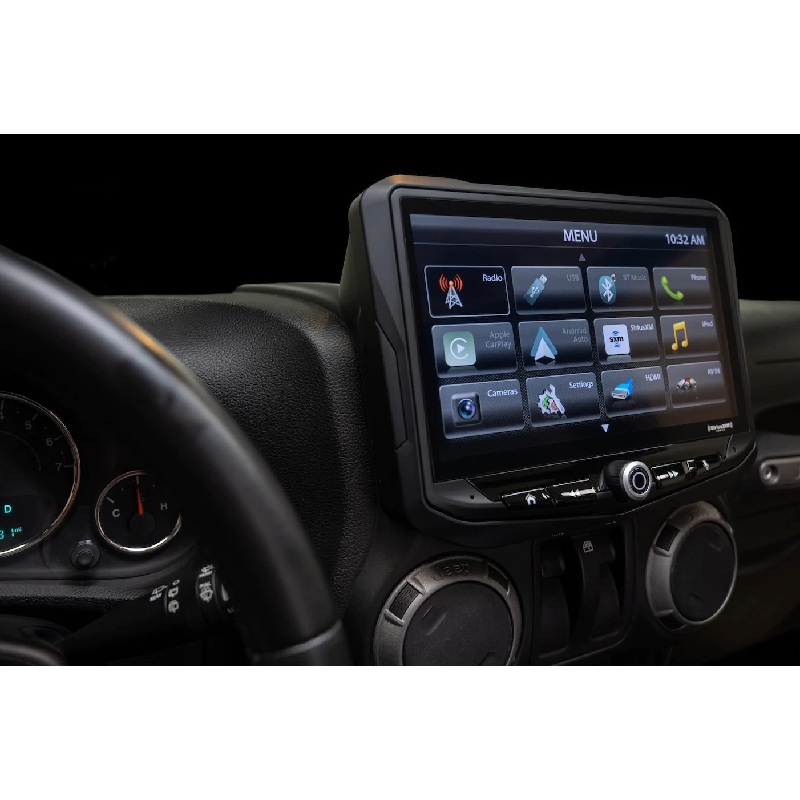

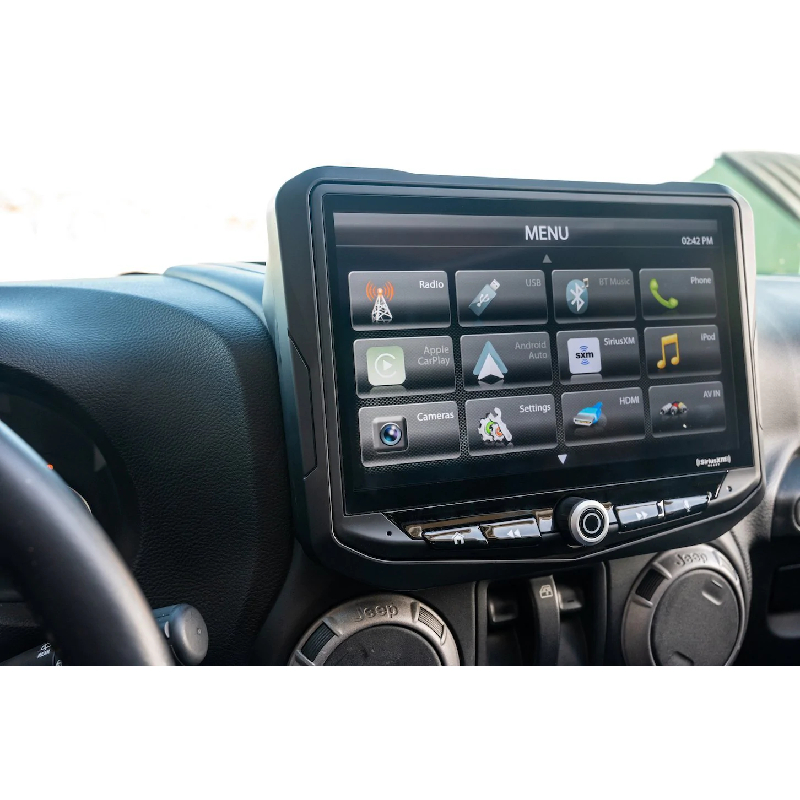

Show-stopping HEIGH10 Multimedia Display

RadioPRO integrated Jeep kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a Jeep Wrangler JK factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your Jeep's stereo system!

10-Inch Touchscreen

Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

Stinger_SR-JK11H
Stinger_SR-JK11H

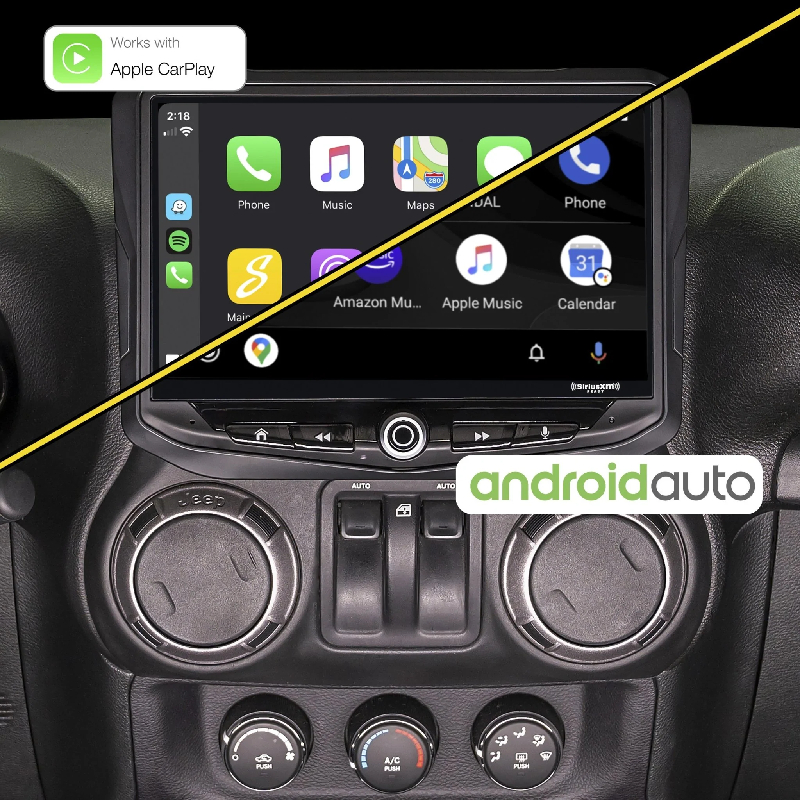

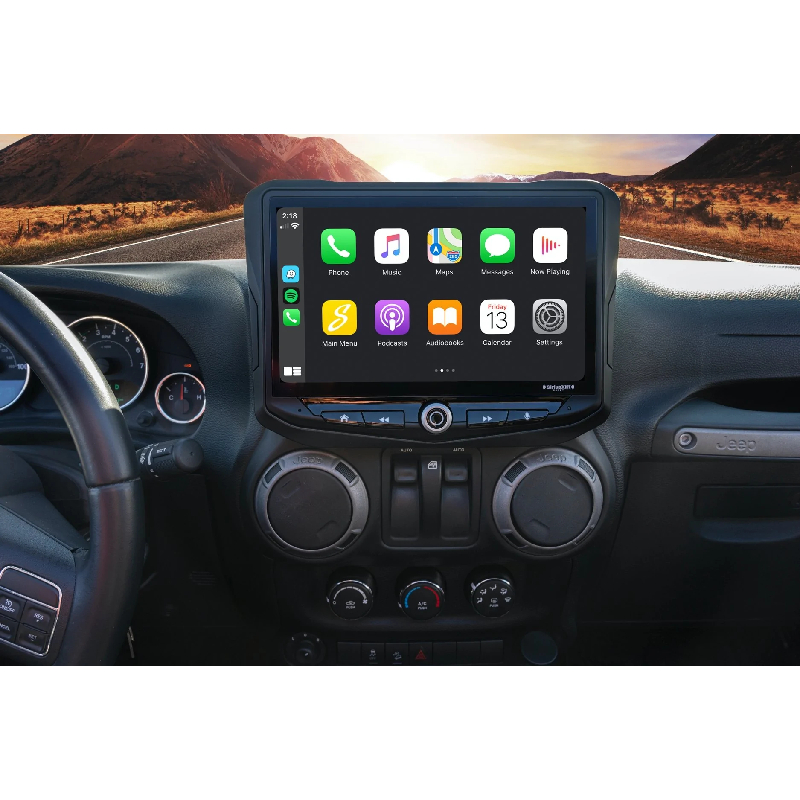

Adds Apple CarPlay & Android Auto

Access your smartphone's music, maps, and hands-free calling easily on your dash.

Plug & Play Installation

Complete plug-n-play system: no vehicle modifications needed!

Stinger_SR-JK11H
Stinger_SR-JK11H

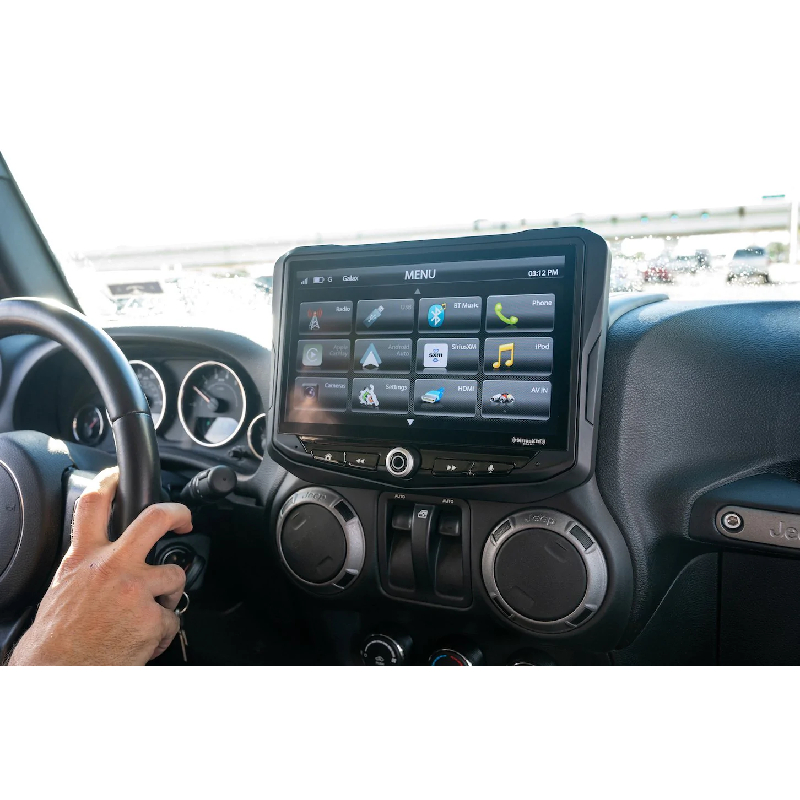

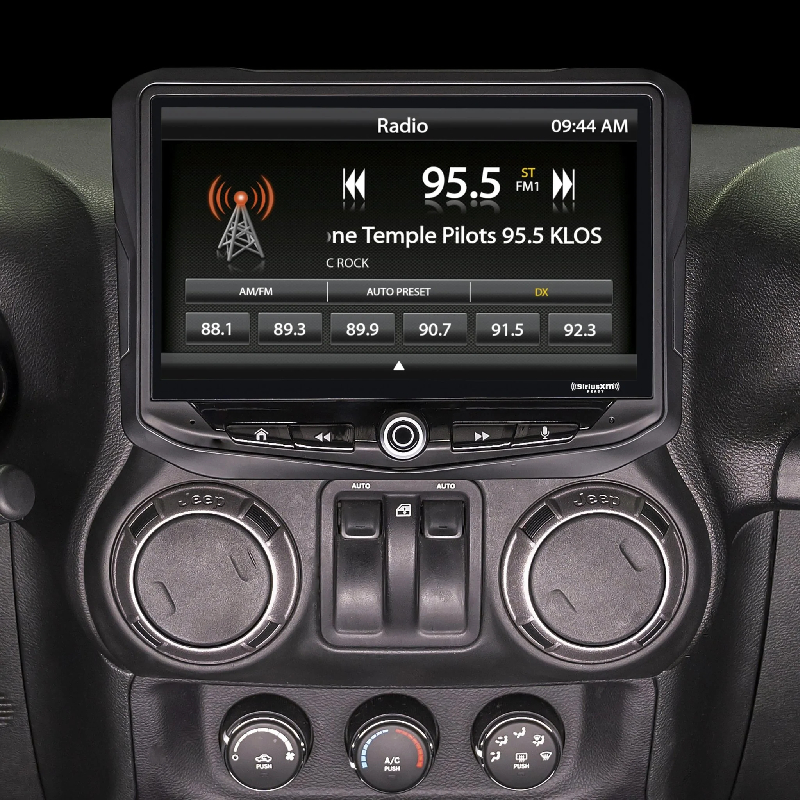

Flush-fitted for Rugged Trails

The rugged mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips and potholes that are on your trail.


SPECIFICATIONS



FEATURES


Features:

  • 10-Inch 1024 x 600 HD Digital Touchscreen with 16.7M colors

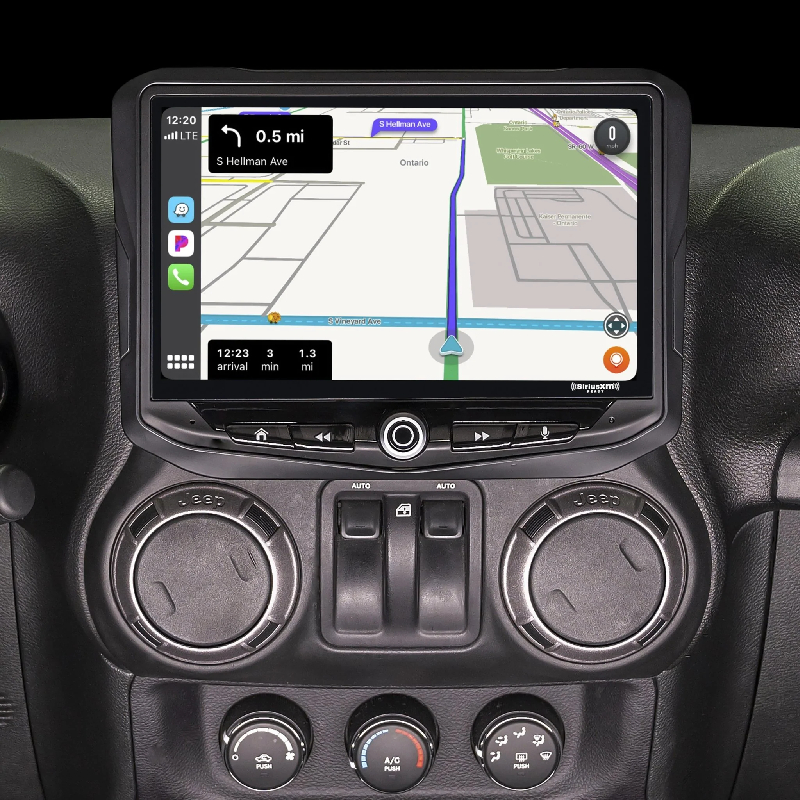

  • Apple CarPlay

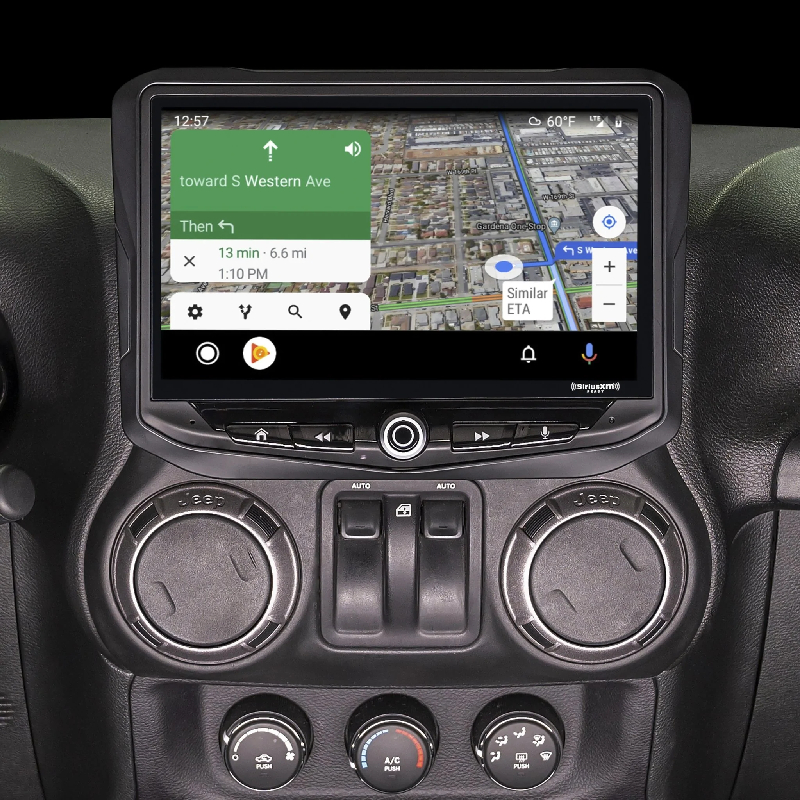

  • Google Android Auto

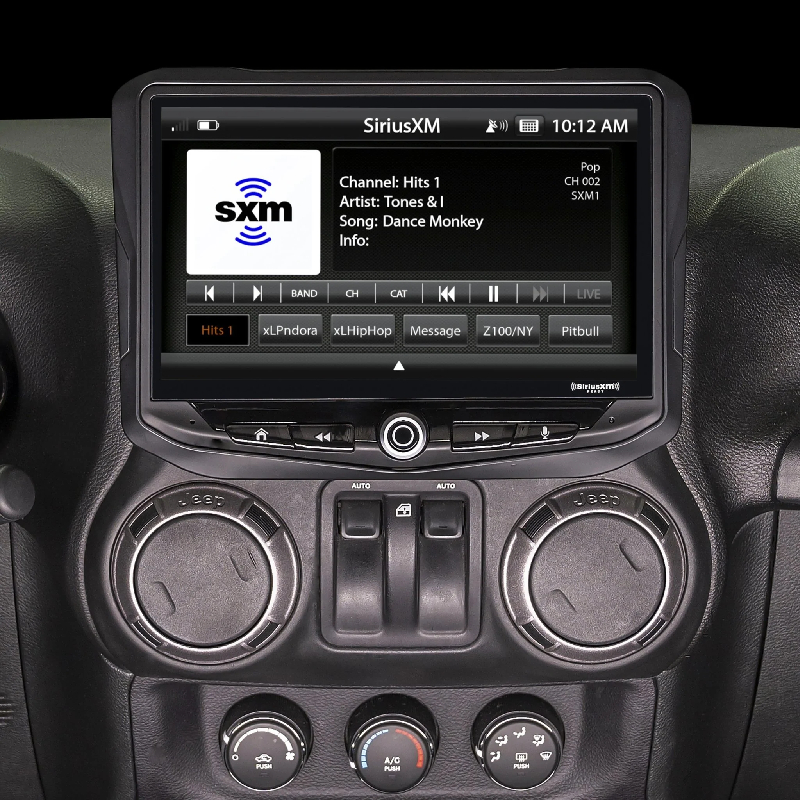

  • SiriusXM-Ready with Replay (SiriusXM Connect Vehicle Tuner and Subscription required)
  • AM/FM Radio - PTY / RT information
  • High power 4 x 50W (peak) built-in amplifier
  • 4V 6ch RCA audio outputs with subwoofer control
  • Toslink (Optical) Variable Audio Output
  • 15 Band Adjustable EQ with 6 user presets
  • 1 HDMI rear input
  • 2 USB rear inputs 1.5amp output

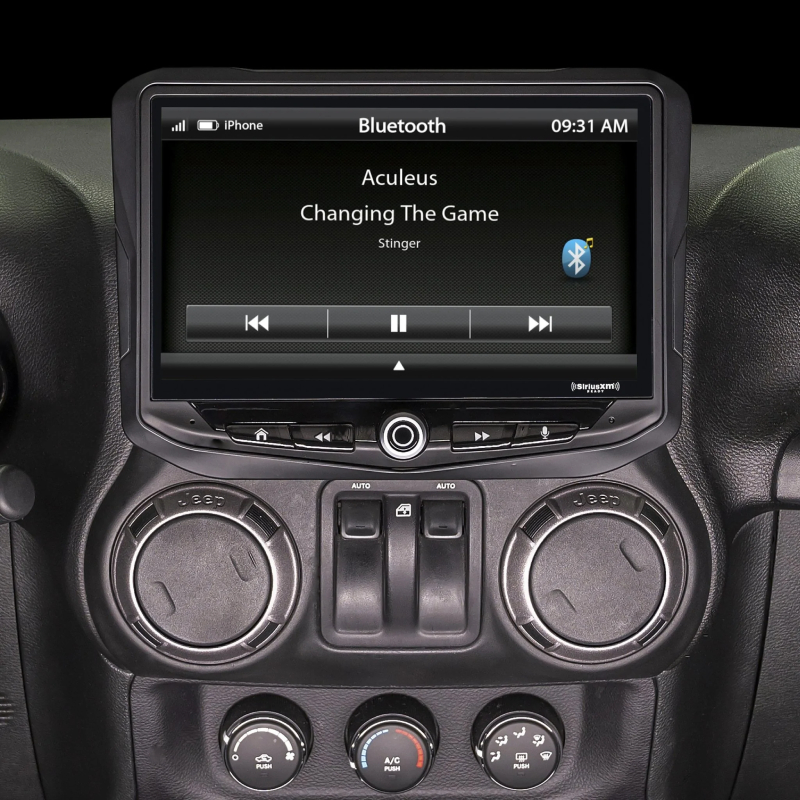

  • Handsfree Bluetooth 4.2 A2DP with aptX
  • Built-in MicroSD card slot for optional iGO Navigation

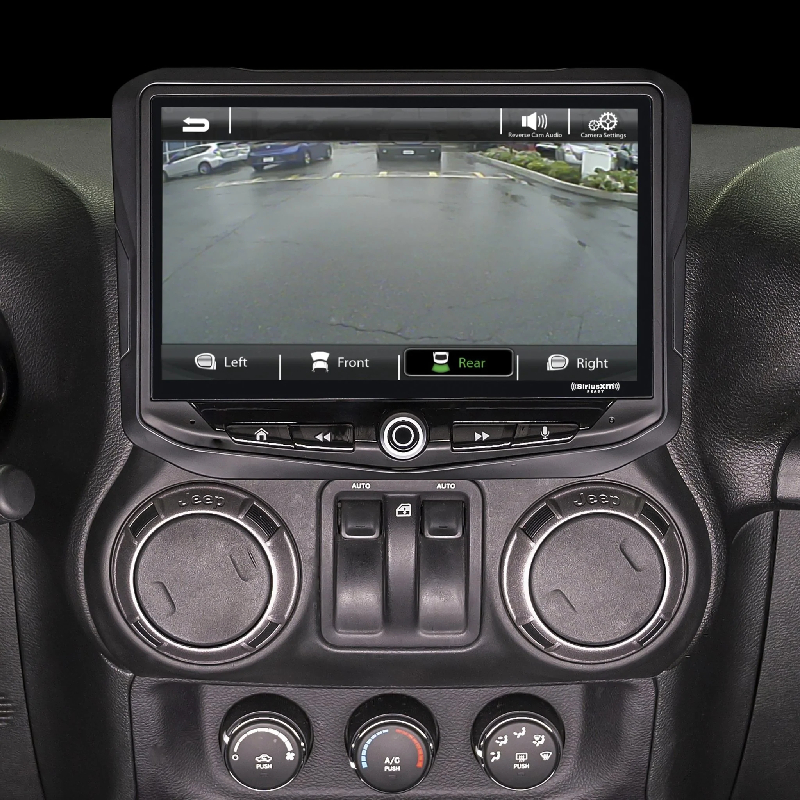

  • 4 Camera Video inputs with wired triggers
  • Rear camera input with Mic Audio input
  • Hardwired remote control ready
  • Customizable display backgrounds
  • Shallow 1-DIN chassis mounting design



Specifications:

General:

  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system: Negative Ground
  • Max current consumption: 10A fused



Dimensions:

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)



Display:

  • 10-inch Diagonal
  • 16:9 aspect ratio
  • 1024 x 600
  • Pixels: 1,843,200
  • Active area 222.72 (W) x 125.28 (H) mm
  • Operating Temperature (C) -20° to 70°



Audio:

  • Peak power output: 50W x 4ch/4Ω
  • Load impedance: 4Ω nominal / 2Ω allowable
  • Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
  • Audio output level (max): 4.0V preout
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
  • Gain: ±12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB



Audio (Cont.)

  • Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180 Speaker level: ±9dB (1dB/step)
  • Time Alignment: 0 to 133 step (inch/ms)



USB:

  • USB 2.0
  • Max current supply 1.5A
  • USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
  • File system: FAT32, NTFS



Bluetooth:

  • V4.2 dual
  • 4dBm Class2
  • 2.4GHz to 2.48GHz



FM Tuner:

  • 87.9MHz to 107.9MHz
  • Usable sensitive 0dB (mono S/N: 30dB)
  • SNR: 65dB



AM Tuner:

  • 530KHz to 1710KHz
  • Usable sensitive 0dB (mono S/N:20dB)
  • SNR: 58dB



Camera(s) Video Inputs:

  • NTSC OR PAL video formats



HDMI Input:

  • Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p



Toslink (Optical)

  • Output: 48khz Variable



Background Image (User):

  • File Format: JPG / PNG
  • Resolution: 1024 x 600
  • File size is not limited
  • UPC: 609098835145
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
