Stinger  SRK-CHR15H

HEIGH10® Radio Replacement Kit for 2015-2021 Dodge Challenger, Dodge Charger & Chrysler 300

Item #85633

Condition:   Brand New

Product Highlights

  • HEIGH10® radio replacement kit
  • Fits Dodge Challenger, Dodge Charger & Chrysler 300
  • 2015-2021 models

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$645.00

Reg. Price $749.00  Save $104.00
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Stinger Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Stinger Banner

Charger, Challenger and 300 Integration & Installation Kit for Heigh10® Multimedia Head Unit


We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Mounting Bucket 1 (CDJ13H-1)
  • • Mounting Bucket 2 (CDJ13H-2)
  • • Display Mounting Frame (CDJ13H)
  • • CAN-Bus Connection Harness (MQS4PT36V2)
  • • (4) #8 X 1/2” PHP Point Tip Screws
  • • (4) #8 X 3/4” PHP Point Tip Screws
  • • M4 X 8, FHP, Black Display Set Screw
  • • 6” Data Harness (10P-2-10P-6-HAR)
  • • Main Wiring Harness (SRK-CHR16-HAR)
  • • Side Brackets (CDJ13H-LH/RH)
  • • (2) Spacers (CDJ13H_Bracket Spacer)
  • • Satellite Antenna Adapter (SAT-01)
  • • AM/FM Antenna Adapter (BAA22)
  • • PAC-LINK Interface Module (PL1)
  • • RadioPRO Interface Module (CH4A-SRK)
  • • Chime Speaker & Hardware (RPA-SPK)
  • • Media Hub (USBHUB-CH1B-RCA-48)
  • • Zip Ties (Not shown)
Stinger_SRK-CHR15H

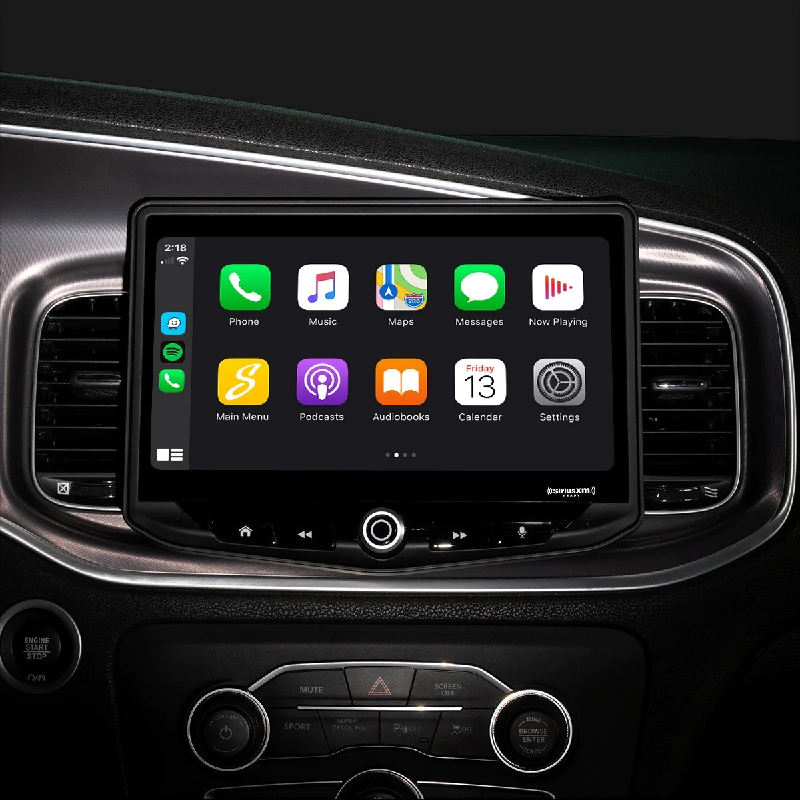

Show-stopping HEIGH10 Multimedia Display

RadioPRO Advanced fully integrated kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a Charger, Challenger or 300 factory radio with a show-stopping HEIGH10 multimedia display, while retaining all factory features and adding even more upgraded features including Apple CarPlay, Android Auto and more to your car's stereo system!

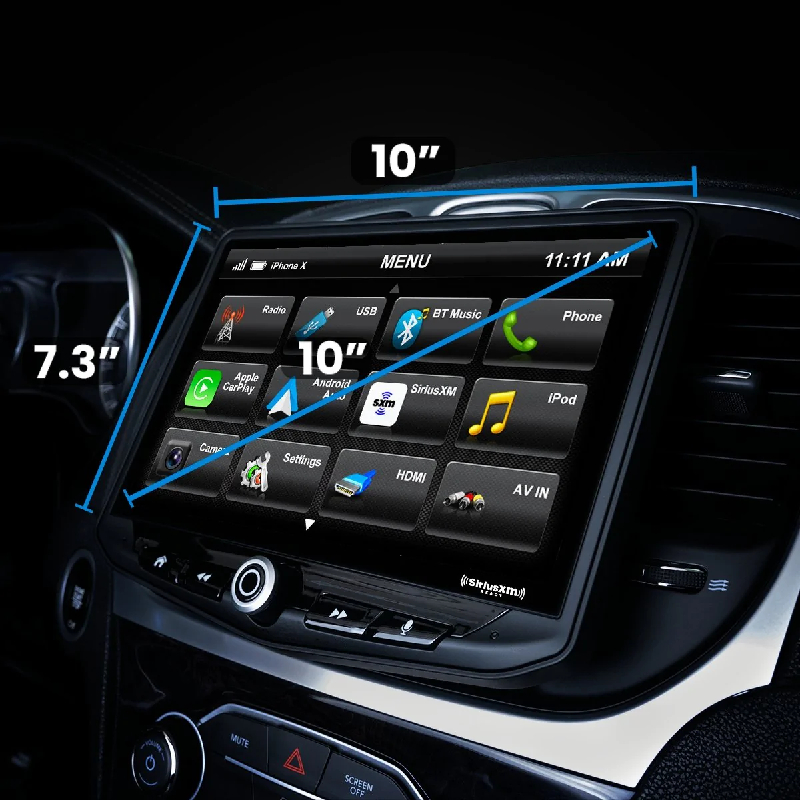

10-Inch Touchscreen

Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

Stinger_SRK-CHR15H
Stinger_SRK-CHR15H

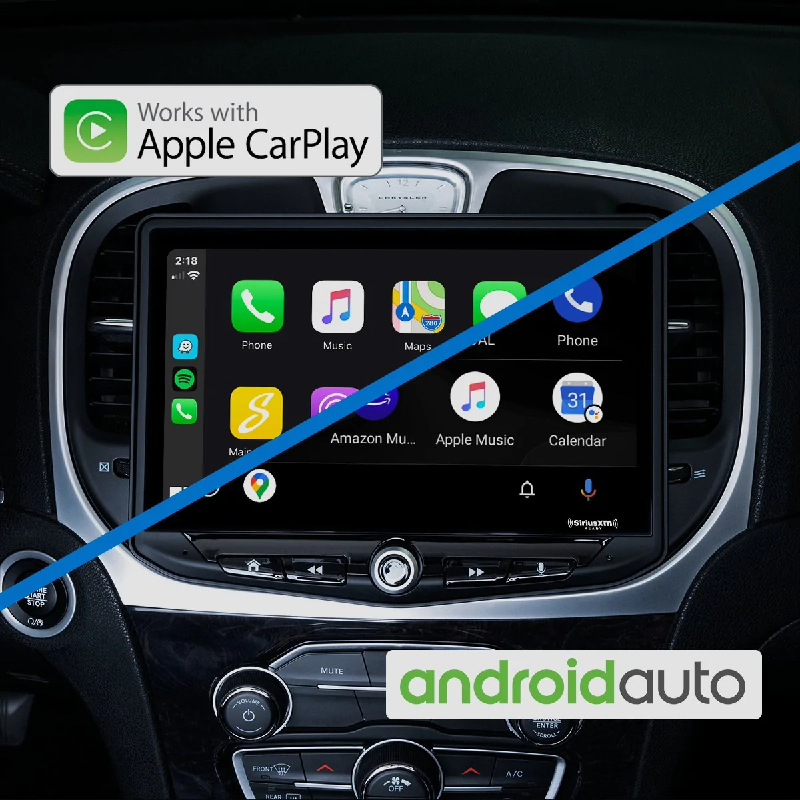

Adds Apple CarPlay & Android Auto

Access your smartphone's music, maps, and hands-free calling easily on your dash.

Plug & Play Installation

Complete plug-n-play system: no vehicle modifications needed!

Stinger_SRK-CHR15H

SPECIFICATIONS



FEATURES


Feautres:

  • Integrated Kit For 2015-2021 Dodge Challenger, Charger, and Chrysler 300 for use with Stinger Heigh10 (UN1810)
  • Retained OEM features: steering wheel controls, factory amplifier, factory backup camera (if equipped)

  • Vehicle to radio connectivity: vehicle speed, illumination, reverse, parking brake signals, and turn signals
  • Flush-mounted plastics for a seamless OEM experience



User Customization Screens:

View and adjust vehicle information through customized screens:

  • Complete climate controls
  • Real-time performance gauges
  • Tire pressures, door status, engine status, and other vehicle information
  • Access to over 70+ customizable vehicle settings (when equipped)



Specifications:

General:

  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system: Negative Ground
  • Max current consumption: 10A fused



Dimensions:

  • Radio Module: 178 mm x 100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)



Display:

  • 10-inch Diagonal
  • 16:9 aspect ratio
  • 1024 x 600
  • Pixels: 1,843,200
  • Active area: 222.72 (W) x 125.28 (H) mm
  • Operating Temperature (C): -20° to 70°



Audio:

  • Peak power output: 50W x 4ch/4Ω
  • Load impedance: 4Ω nominal / 2Ω allowable
  • Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1% THD at 14.4V
  • Audio output level (max): 4.0V preout
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
  • Gain: ±12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB



Audio (Cont.):

  • Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180
  • Speaker level: ±9dB (1dB/step)
  • Time correction: 0 to 133 step (inch/ms)



USB:

  • USB 2.0
  • Max current supply: 1.5A
  • USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
  • File system: FAT32, NTFS
  • 64GB Max



Bluetooth:

  • V4.2 dual
  • 4dBm Class2
  • 2.4GHz to 2.48GHz



FM Tuner:

  • 87.9MHz to 107.9MHz
  • Usable sensitive 0dB (mono S/N: 30dB)
  • SNR: 65dB



AM Tuner:

  • 530KHz to 1710KHz
  • Usable sensitive 0dB (mono S/N:20dB)
  • SNR: 58dB



Camera(s) Video Inputs:

  • NTSC OR PAL video formats



HDMI Input:

  • Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p



Toslink (Optical)

  • Output: 48khz Variable



Background Image (User)

  • File Format: JPG / PNG
  • Resolution: 1024 x 600
  • File size is not limited
  • UPC: 609098832649
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
