Integration & Installation Kit for Heigh10® Multimedia Head Unit
We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

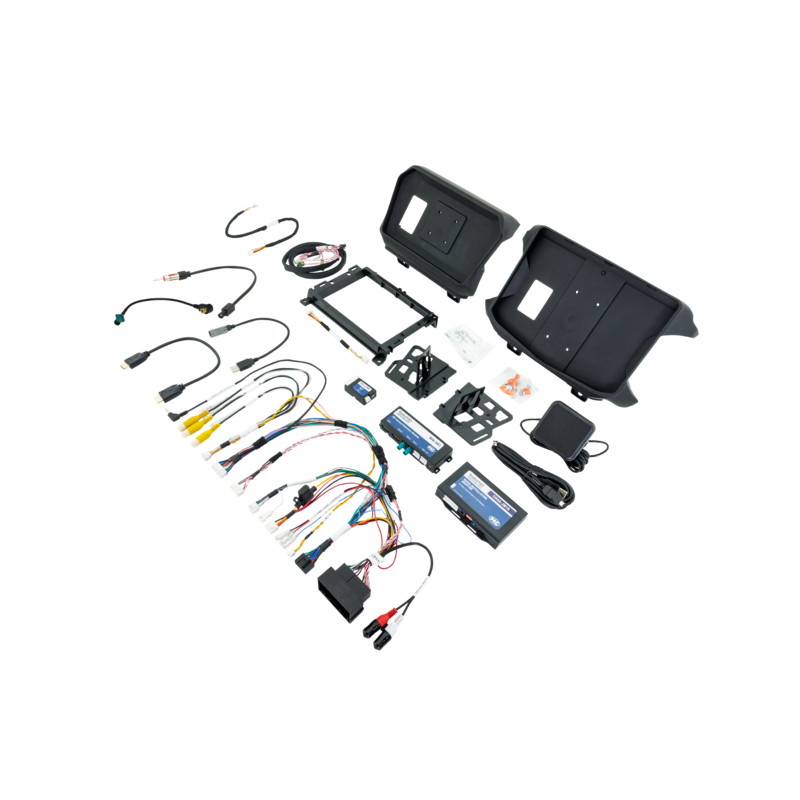

What's Inside?
- • ELEV8 / HEIGH10 Display Mounting Panel
- • 18” Data Harness (10P-2-10P-18)
- • CAN-Bus Connection Harness (MQS4PT-36)
- • Radio Module Mounting Brackets
- • Chime Speaker Mounting Accessories
- • Screen Panel Clips and Mounting Bracket Screws
- • External Chime Speaker
- • 7’ USB Port Retention Adapter (USB-UN2
- • AM / FM Antenna Adapter (BAA22)
- • 8” USB Hub Retention Adapter (USB-UN1)
- • 6” Data Harness (10P-2-10P-6)
- • PAC-LINK Interface Module (PL1)
- • HD Camera Retention Module (RPA-HD1)
- • Radio Replacement Interface Module(CH4A-JW18)
- • Satellite Antenna Adapter (SAT-01)
- • 12” HDMI Cable
- • Main Wiring Harness (RPK-JW18-HAR)
Optimize Your Jeep Wrangler or Gladiator Infotainment

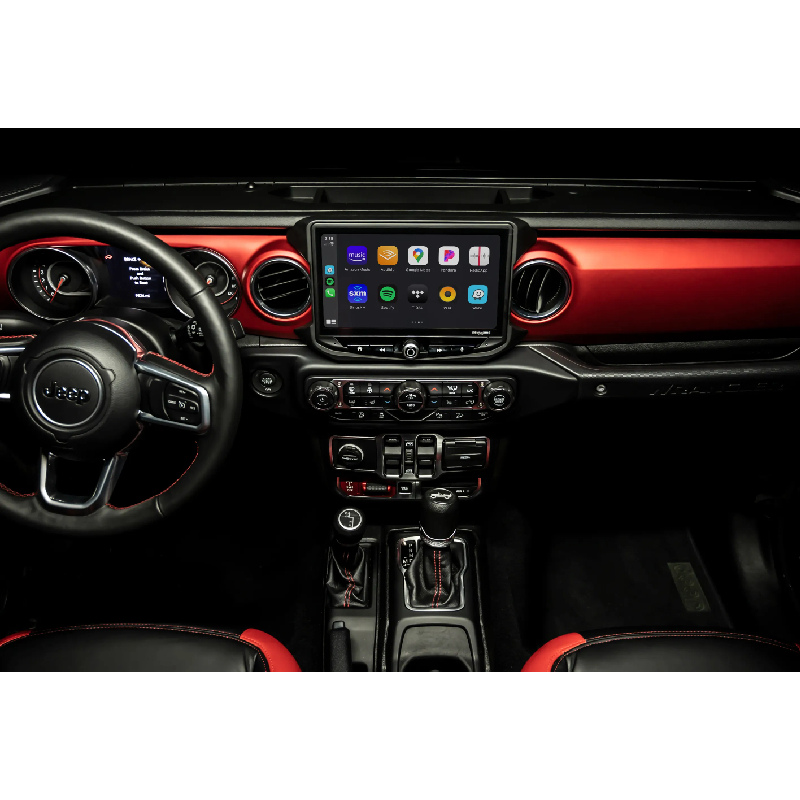

RadioPRO Advanced fully integrated Jeep kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a Jeep Wrangler or Gladiator factory radio with a show-stopping HEIGH10 multimedia display, while retaining all factory features and adding even more upgraded features including Apple CarPlay, Android Auto and more to your Jeep stereo system!

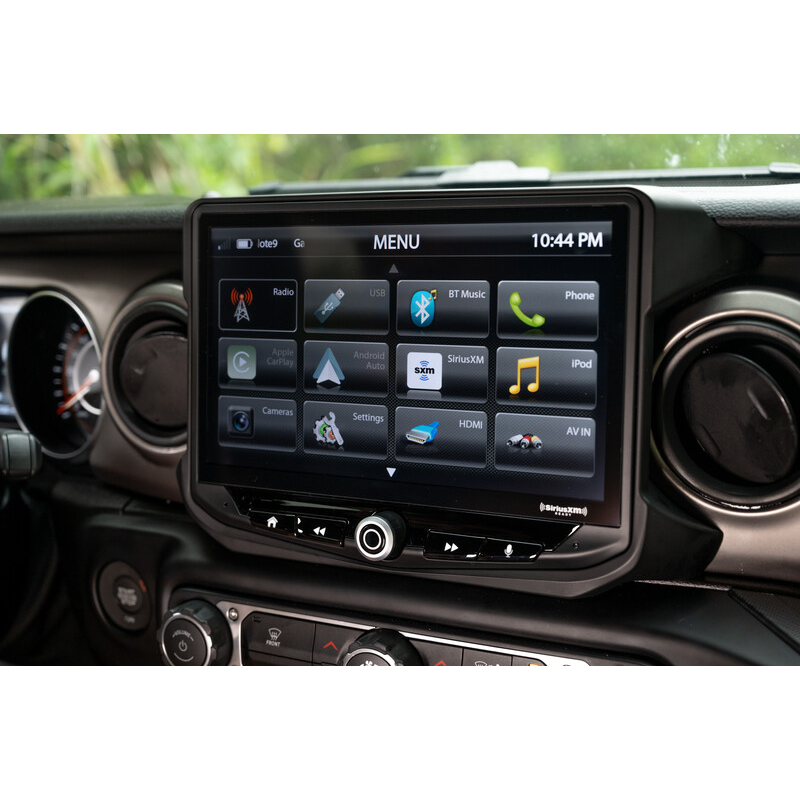

10-inch Touchscreen
Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.
Adds Apple CarPlay & Android Auto

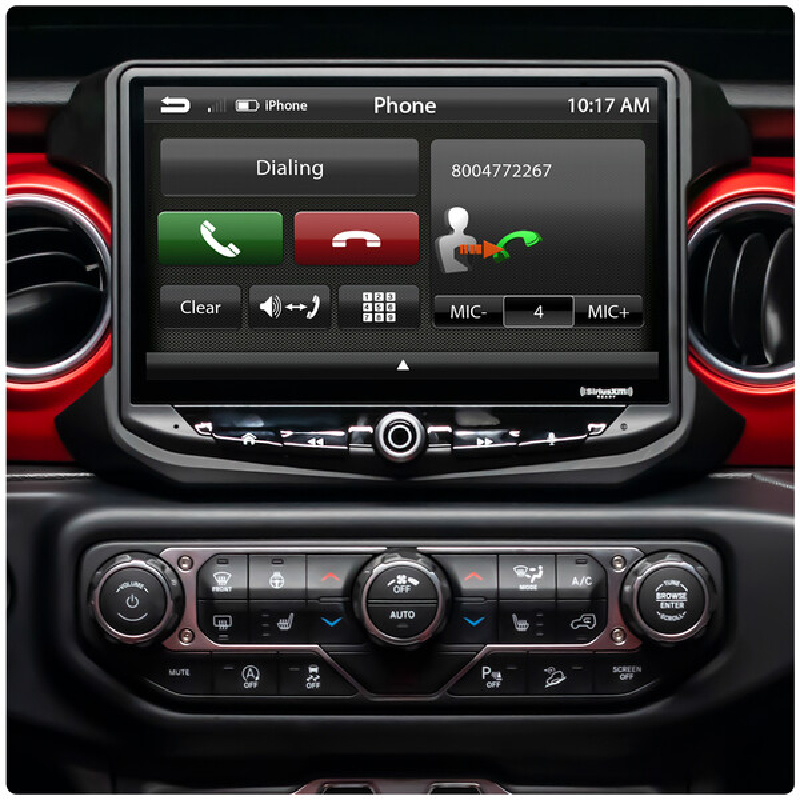

Access your smartphone's music, maps, and hands-free calling easily on your dash.
Plug & Play Installation
Complete Plug-N-Play System: No Vehicle Modifications Needed!
Features:
- Dash kit and mounting included for beautiful factory look with the HEIGH10 Stinger display
- Enables interactive on-screen climate controls, vehicle settings, & customizable vehicle performance apps
- Provides more control over your Jeep radio installation with RadioPRO
- Advanced controlled camera triggers, steering wheel controls, and factory amplifier control
Retains (If Equipped):
- All factory cameras in full high-definition
- Dual and single zone factory climate control module
- Factory amplifier
- Factory USB ports
- Safety group chimes, including ParkSense®
- Steering wheel controls
- Auxiliary switch panel
- Heated seats / heated steering wheel
- On-screen vehicle settings menu
User Customization Screens:

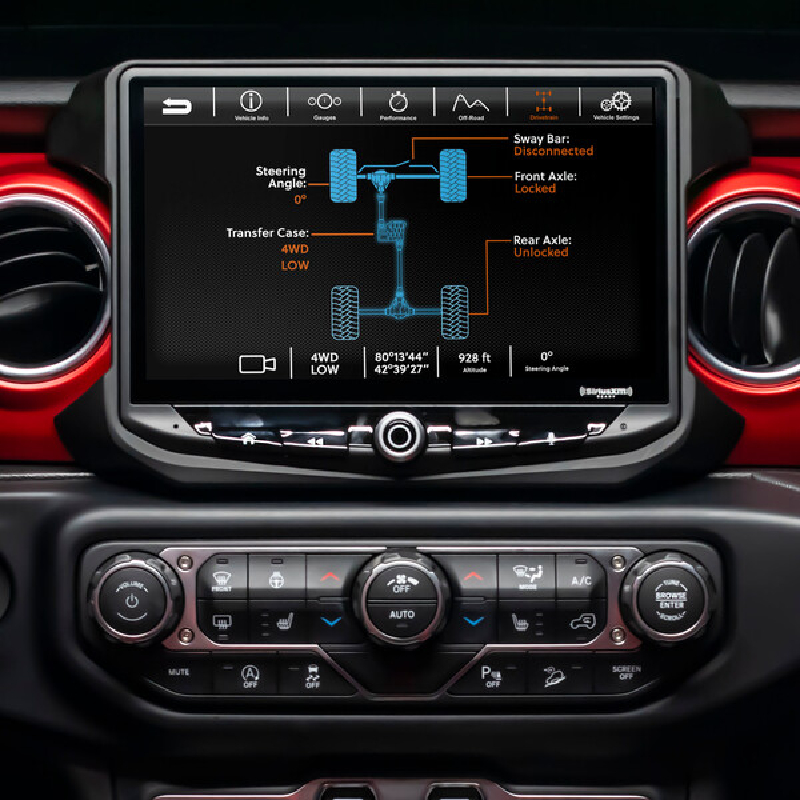

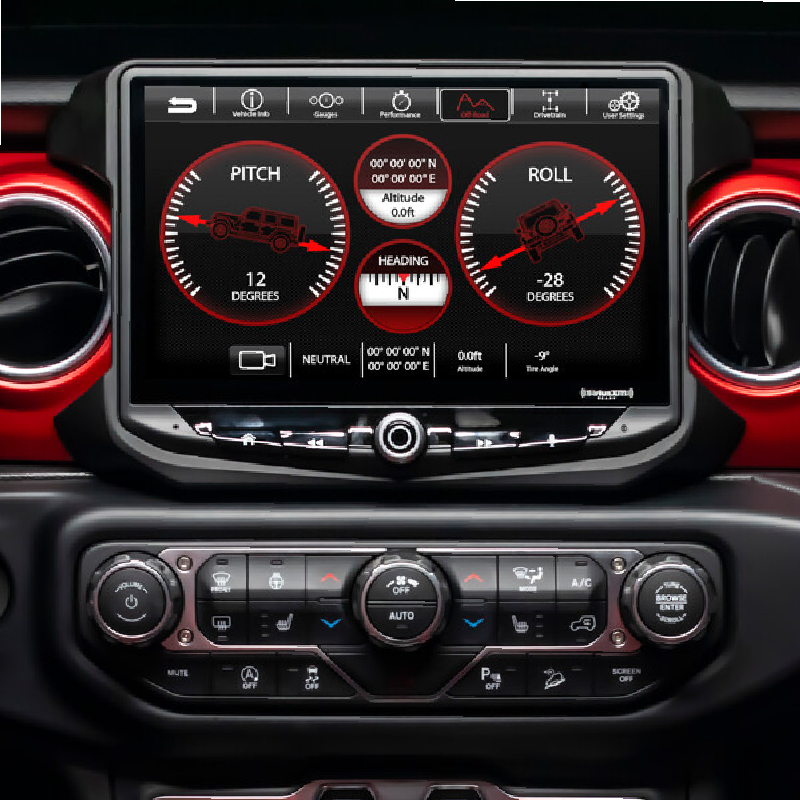

Enhanced with Jeep off-road data including:
- Transfer case
- Current position (latitude/longitude)
- Altitude
- Steering angle
- Tire pressure with custom pressure threshold
- Current vehicle status – including door open/closed/removed
- View and clear check engine status
- And so much more!
Specifications:
General:
- Operating Voltage: 9.0VDC to 18VDC
- Grounding system: Negative Ground
- Max current consumption: 10A fused
Dimensions:
- Radio Module: 178 mm x 100 mm x 116 mm (W x H x D)
- Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
Display:
- 10-inch Diagonal
- 16:9 aspect ratio
- 1024 x 600
- Pixels: 1,843,200
- Active area: 222.72 (W) x 125.28 (H) mm
- Operating Temperature (C): -20° to 70°
Audio:
- Peak power output: 50W x 4ch/4Ω
- Load impedance: 4Ω nominal / 2Ω allowable
- Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1% THD at 14.4V
- Audio output level (max): 4.0V preout

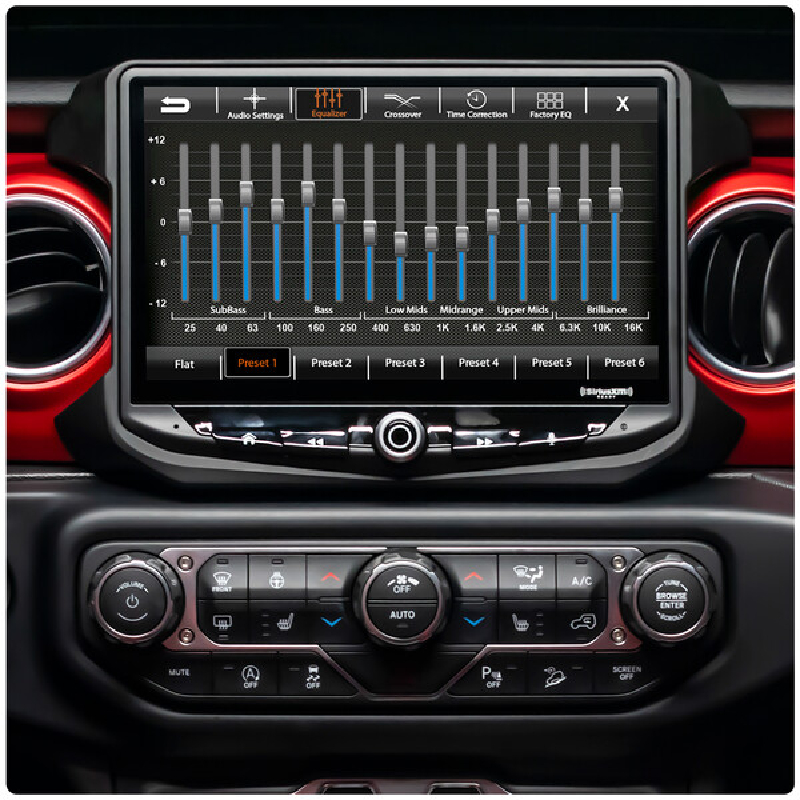

- EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
- Gain: ±12dB (2dB/step)
- HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Subwoofer Preout
- LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Gain: -14dB to 7dB (1dB/step)
- Phase: 0 or 180
- Speaker level: ±9dB (1dB/step)
- Time correction: 0 to 133 step (inch/ms)
USB
- USB 2.0
- Max current supply: 1.5A
- USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
- File system: FAT32, NTFS
Bluetooth
- V4.2 dual
- 4dBm Class2
- 2.4GHz to 2.48GHz
FM Tuner
- 87.9MHz to 107.9MHz
- Usable sensitive 0dB (mono S/N: 30dB)
- SNR: 65dB
AM Tuner
- 530KHz to 1710KHz
- Usable sensitive 0dB (mono S/N:20dB)
- SNR: 58dB
Camera(s) Video Inputs
- NTSC OR PAL video formats
HDMI Input
- Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
Toslink (Optical)
Background Image (User)
- File Format: JPG / PNG
- Resolution: 1024 x 600
- File size is not limited
- UPC: 609098832649
- Weight: 7
