Stinger  SR-TAC16H

Stinger HEIGH10 Radio Replacement Kit for 2016-2021 Toyota Tacoma

Item #85637

Condition:   Brand New

Product Highlights

  • Fits 2016-2021 Toyota Tacoma models
  • Replaces factory radio with HEIGH10
  • Provides a larger screen and better controls
  • Easy to install and compatible with existing systems
  • Improves audio and video performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$395.00

Reg. Price $429.00  Save $34.00
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Stinger Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Stinger Banner

Toyota Tacoma Installation Kit For Heigh10 Multimedia Head Unit


We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

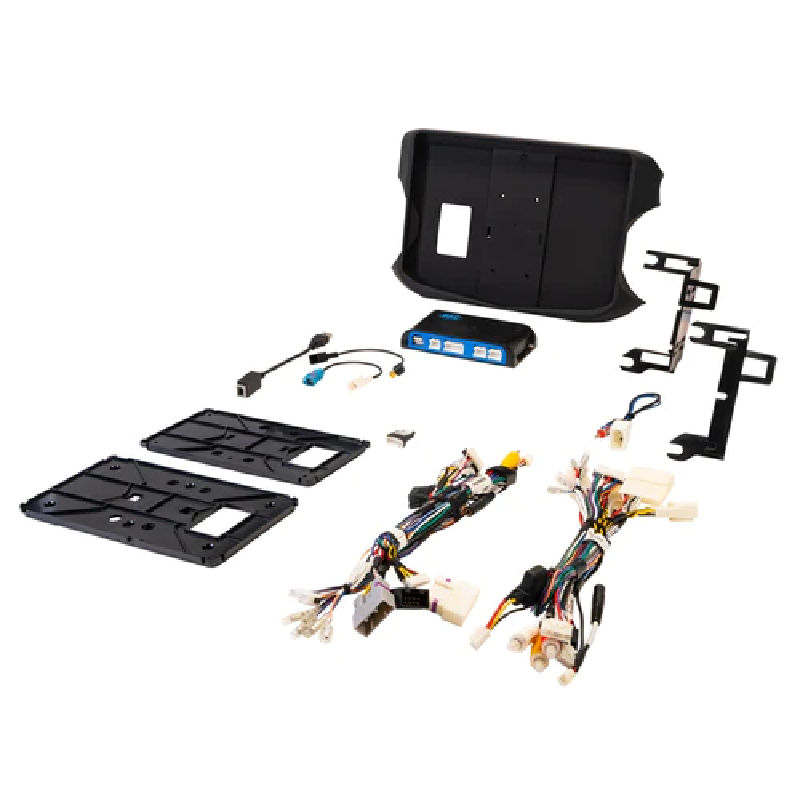

What's Inside?
  • • HEIGH10 Display Mounting Panel
  • • Side Brackets (TOYK971/974)
  • • Main Harness 2019-2021 (SR-TAC19H-HAR)
  • • 6” Mounting Plate (TAC16H-6)
  • • Radio Interface (RP4.2-TY11)
  • • Satellite Radio Antenna Adapter (SAT-01)
  • • Main Harness 2016-2018 (SR-TAC16H-HAR)
  • • 7” Mounting Plate (TAC16H-7)
  • • GPS Antenna Adapter (GPS-03)
  • • Differential Video Adapter (RPA-VA1)
  • • USB Adapter (USB-TY3)
  • • AM/FM Antenna Adapter (RPA-VA1)
  • • USB Adapter (USB-TY1)
SR-TAC16H-1
Optimize Your Toyota Tacoma Infotainment System

RadioPRO Tacoma kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a Toyota Tacoma factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!

10-Inch Touchscreen

Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

SR-TAC16H-2
SR-TAC16H-3
Adds Apple CarPlay & Android Auto

Access your smartphone's music, maps, and hands-free calling easily on your HEIGH10 touchscreen.

Plug & Play Installation

Complete plug-n-play system: no vehicle modifications needed!

SR-TAC16H-4
SR-TAC16H-5
Flush-fitted To Minimize Vibration & Shaking

The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.


SPECIFICATIONS



FEATURES


Features:

  • Flush Mount with Full Integration Kit For 2016-2019 Toyota Tacoma for use with Stinger Heigh10 (UN1810)
  • Complete Feature Retention: Warning Chimes, Steering Wheel Mounted Radio Controls, JBL Amplified Audio System (if equipped)
  • Vehicle to Radio Connectivity: Vehicle Speed, Illumination, Reverse, and Parking Brake Signals
  • Flush-mounted plastics for a seamless OEM experience
  • Dual USB connection ports
  • Complete plug-n-play system: no vehicle modifications needed!



Specifications:

General:

  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system; Negative Ground
  • Max current consumption: 10A fused



Dimensions:

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)



Display:

  • 10-inch Diagonal
  • 16:9 aspect ratio 1024 x 600
  • Pixels: 1,843,200
  • Active area 222.72 (W) x 125.28 (H) mm
  • Operating Temperature (C) -20° to 70°



Audio:

  • Peak power output: 50W x 4ch/4Ω
  • Load impedance: 4Ω nominal / 2Ω allowable
  • Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
  • Audio output level (max): 4.0V preout
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
  • Gain: ±12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB



Audio (Cont):

  • Subwoofer Preout
  • LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180
  • Speaker level: ±9dB (1dB/step)

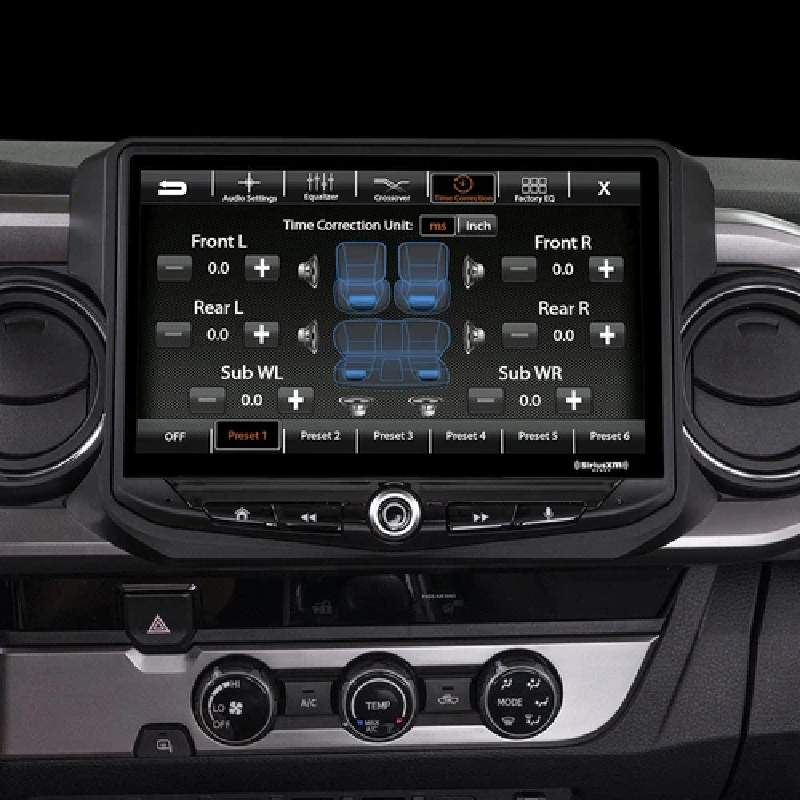

  • Time Alignment: 0 to 133 step (inch/ms)



USB:

  • USB 2.0
  • Max current supply 1.5A
  • USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
  • File system: FAT32, NTFS



Bluetooth:

  • V4.2 dual
  • 4dBm Class2
  • 2.4GHz to 2.48GHz



FM Tuner:

  • 87.9MHz to 107.9MHz
  • Usable sensitive 0dB (mono S/N: 30dB)
  • SNR: 65dB



AM Tuner:

  • 530KHz to 1710KHz
  • Usable sensitive 0dB (mono S/N:20dB)
  •  SNR 58dB



Camera(s) Video Inputs:

  • NTSC OR PAL video formats



HDMI Input:

  • Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p



Toslink (Optical):

  • Output: 48khz Variable



Background Image (User):

  • File Format: JPG / PNG
  • Resolution: 1024 x 600
  • File size is not limited
  • UPC: 609098836500
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
