Stinger  SR-TUN14H

Stinger HEIGH10 Radio Replacement Kit SR-TUN14H for 2014-2021 Toyota Tundra

Item #85649

Condition:   Brand New

Product Highlights

  • Stinger HEIGH10 Radio Replacement Kit
  • Model SR-TUN14H
  • For 2014-2021 Toyota Tundra

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$999.99

60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Stinger Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Stinger Banner

Toyota Tundra Installation Kit For Heigh10 Multimedia Head Unit


We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

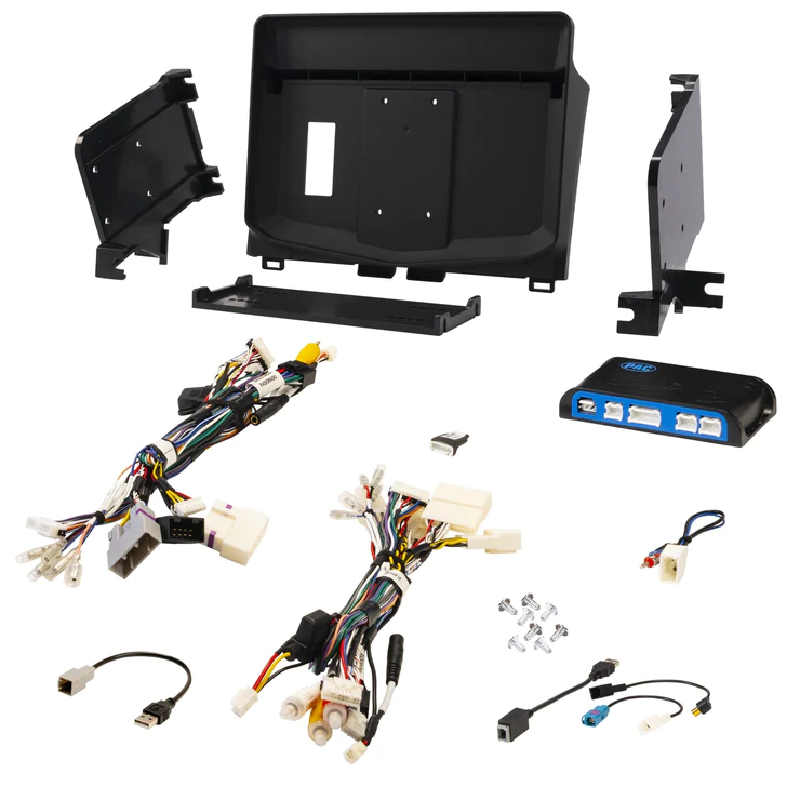

What's Inside?
  • • LH Side Bracket (TUN14H_LH
  • • HEIGH10 Display Main Frame
  • • RH Side Bracket (TUN14H_RH)
  • • Module Bracket (H_MODULE_BRKT)
  • • Differential Video Adapter (RPA-VA1)
  • • Radio Interface (RP4.2-TY11)
  • • Main Harness 3 Plug (SR-TAC19H-HAR)
  • • Main Harness 4 Plug (SR-TAC16H-HAR)
  • • Satellite Radio Antenna Adapter (SAT-01)
  • • AM/FM Antenna Adapter (RPA-VA1)
  • • USB Adapter (USB-TY1)
  • • Mounting Hardware: 8pcs - #10 x 3/8” Truss Head Phillips Screws
  • • GPS Antenna Adapter (GPS-03)
  • • USB Adapter (USB-TY3)
  • • Zip Ties (Not Shown)
SR-TUN14H-1
Optimize Your Toyota Tundra Infotainment System

RadioPRO integrated Tundra kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a Toyota Tundra factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!

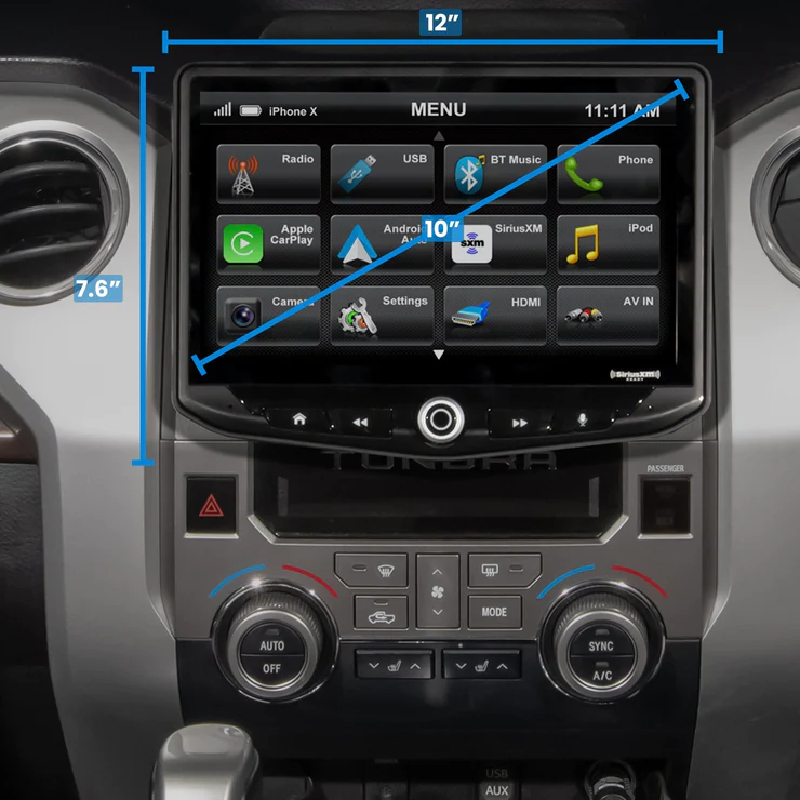

10-Inch Touchscreen

Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

SR-TUN14H-2
SR-TUN14H-3
Adds Apple CarPlay & Android Auto

Access your smartphone's music, maps, and hands-free calling easily on your HEIGH10 touchscreen.

Plug & Play Installation

Complete plug-n-play system: no vehicle modifications needed!

SR-TUN14H-4
SR-TUN14H-5
Flush-fitted To Minimize Vibration & Shaking

The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.


SPECIFICATIONS



FEATURES


Features:

  • Complete Feature Retention: Warning Chimes, Steering Wheel Mounted Radio Controls, JBL Amplified Audio System (if equipped)
  • Vehicle to Radio Connectivity: Vehicle Speed, Illumination, Reverse, and Parking Brake Signals
  • Flush-mounted plastics for a seamless OEM experience
  • Dual USB connection ports
  • Complete plug-n-play system: no vehicle modifications needed!



Specifications:

General:

  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system; Negative Ground
  • Max current consumption: 10A fused



Dimensions:

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)



Display:

  • 10-inch Diagonal
  • 16:9 aspect ratio 1024 x 600
  • Pixels: 1,843,200
  • Active area 222.72 (W) x 125.28 (H) mm
  • Operating Temperature (C) -20° to 70°



Audio:

  • Peak power output: 50W x 4ch/4Ω
  • Load Impedance: 4Ω  nominal / 2Ω allowable
  • Continuous power output: 25W x 4ch/4Ω  20Hz to 20KHz, 1%THD at 14.4V
  • Audio output level (max): 4.0V preout
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
  • Gain: ±12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB



Audio (Cont):

  • Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180
  • Speaker level: ±9dB (1dB/step)
  • Time Alignment: 0 to 133 step (inch/ms)



USB:

  • USB 2.0
  • Max current supply 1.5A USB
  • Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
  • File system: FAT32, NTFS



Bluetooth:

  • V4.2 dual
  • 4dBm Class2
  • 2.4GHz to 2.48GHz



FM Tuner

  • 87.9MHz to 107.9MHz
  • Usable sensitive 0dB (mono S/N: 30dB)
  • SNR: 65dB



AM Tuner:

  • 530KHz to 1710KHz
  • Usable sensitive 0dB (mono S/N:20dB)
  •  SNR 58dB



Camera(s) Video Inputs:

  • NTSC OR PAL video formats



HDMI Input:

  • Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p



Toslink (Optical):

  • Output: 48khz Variable



Background Image (User):

  • File Format: JPG / PNG
  • Resolution: 1024 x 600
  • File size is not limited
  • UPC: 609098837040
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
