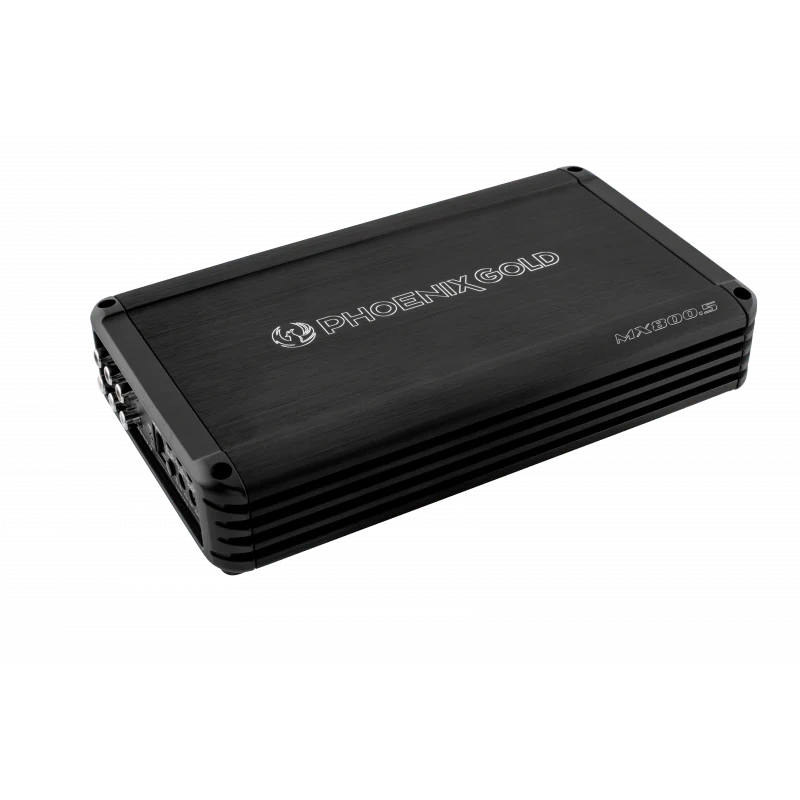

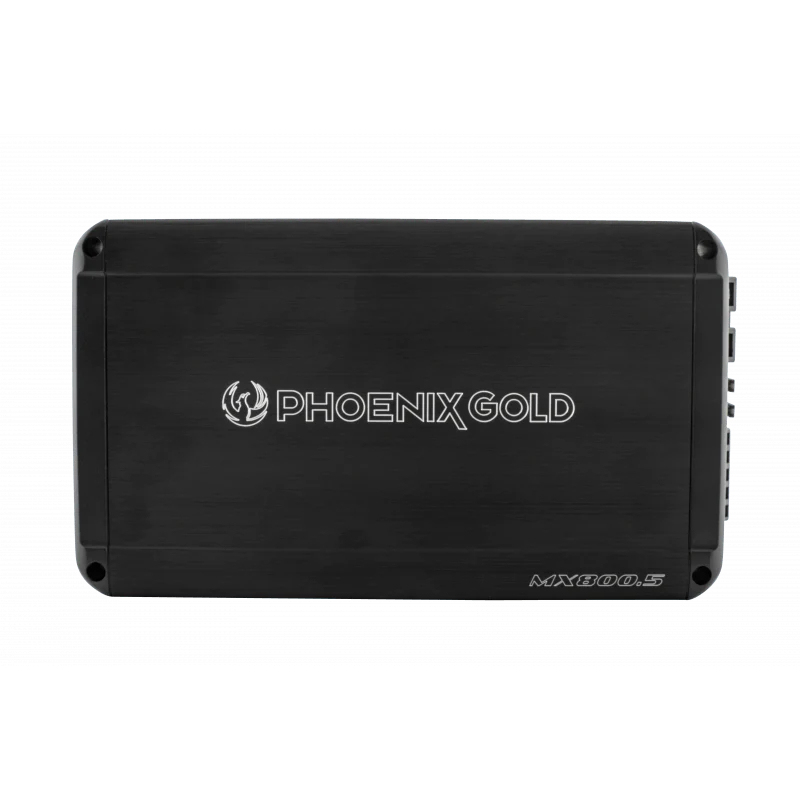

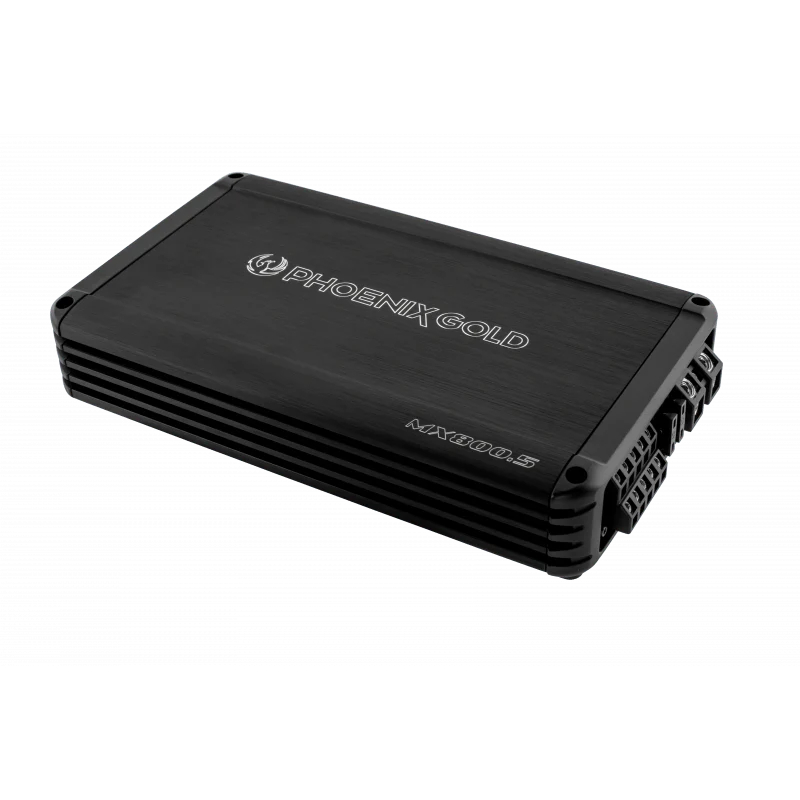

Phoenix Gold MX800.5 MX 800Watts 5 Channel Full Range Class D Sub Compact Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies
- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
- • Balanced Flow Dissipation (BFD)
- • Balanced/Unbalanced Inputs
- • Direct Insert Power and Speaker Terminals
- • High level inputs via RCA (balances / unbalanced) using the Stinger X12LINE
Direct Insert Power and Speaker Terminals and Balanced Flow Dissipation
Decreased resistance for higher power transfer and efficiency. It also has a component layout and chassis design are optimized to evenly distribute heat across the entire chassis, avoiding hotspots and increasing thermal efficiency.
- Maximum Power : 800 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 40 Hz
- Number of Channels : 5
- Frequency Response : 10-40 Hz
- Amplifier Class : D
- Fuse Rating : 80 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies

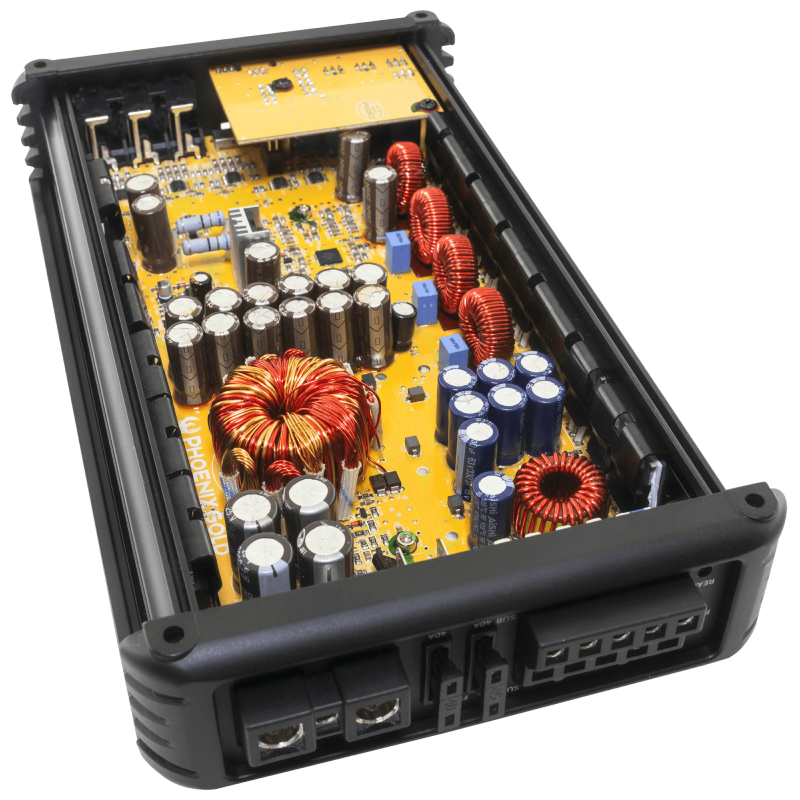

- Automotive grade, High Current MOSFETs with high amperage capability and heat tolerance.

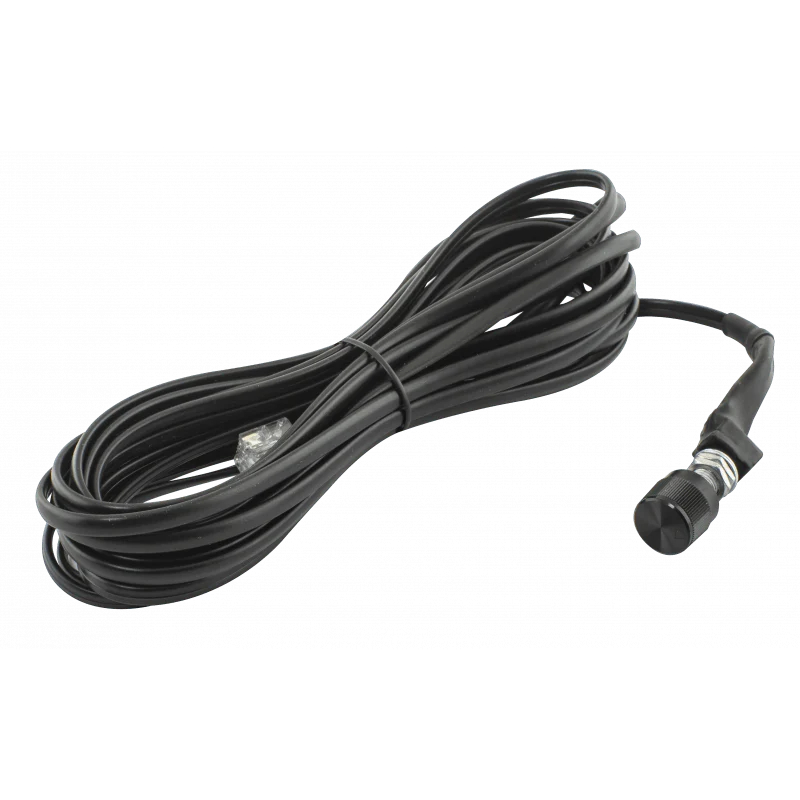

- Remote Bass Controller Included
- Provides remote level control of bass from listening position. With a sleek flush-mount knob for ease of installation.
- Audio Precision® Quality Control Verification
- Balanced Flow Dissipation (BFD)
- Component layout and chassis design are optimized to evenly distribute heat across the entire chassis, avoiding hotspots and increasing thermal efficiency.

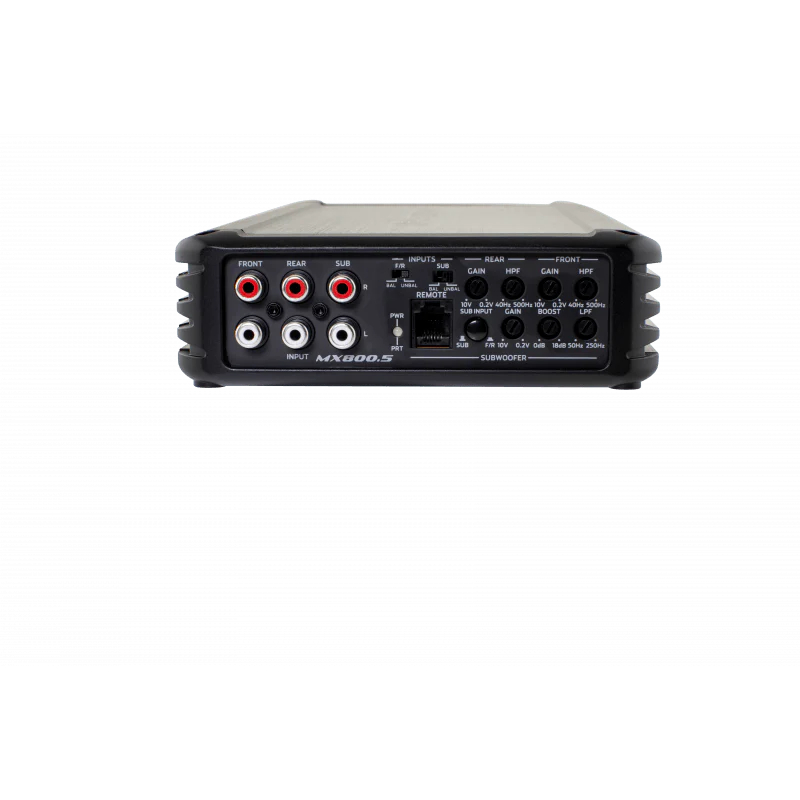

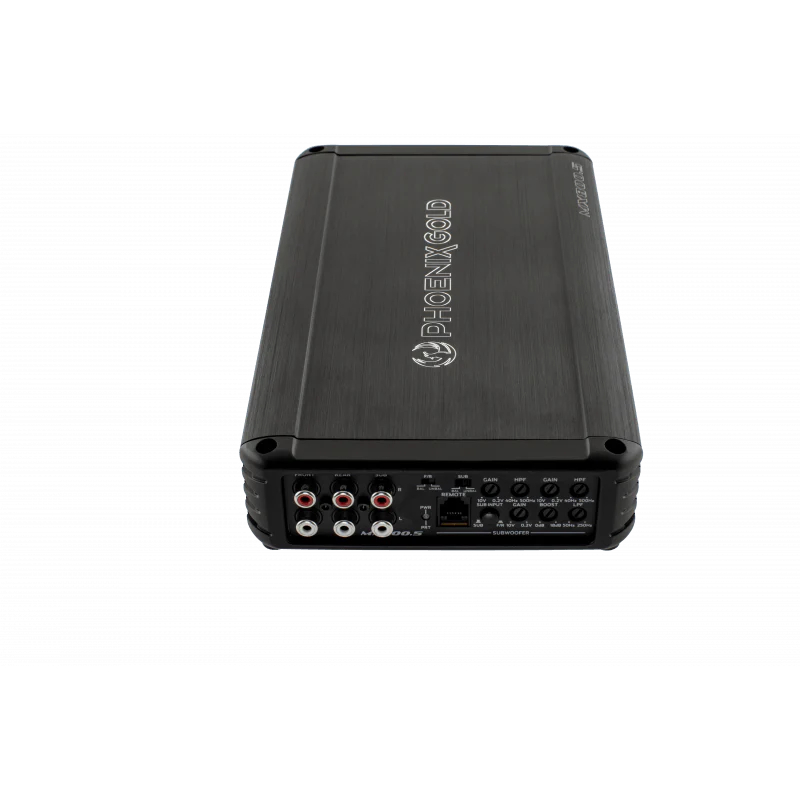

- Balanced/Unbalanced Inputs
- Provides input matching flexibility for noise rejection from source signal components.

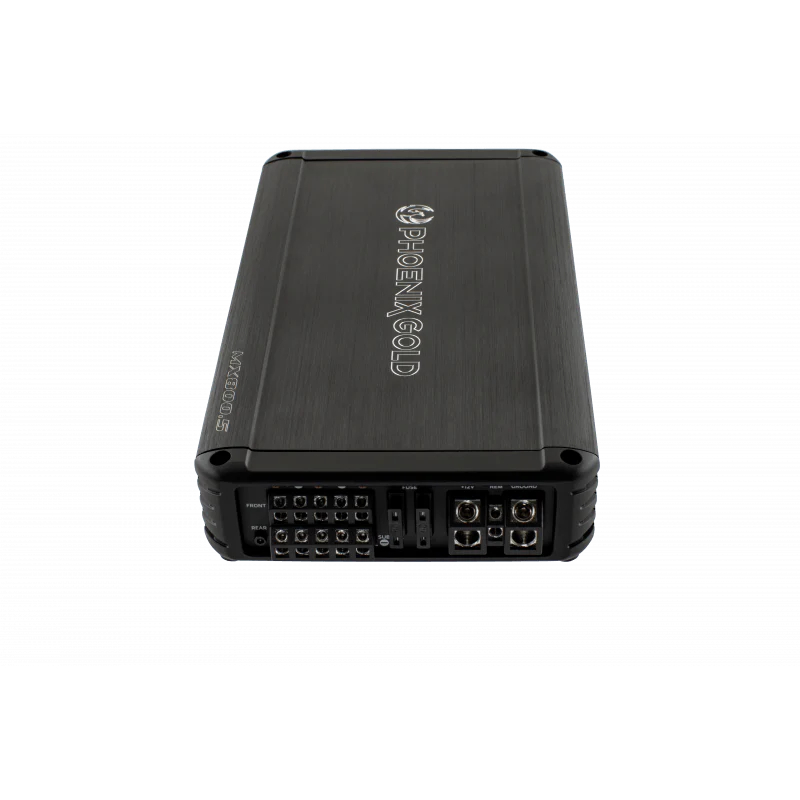

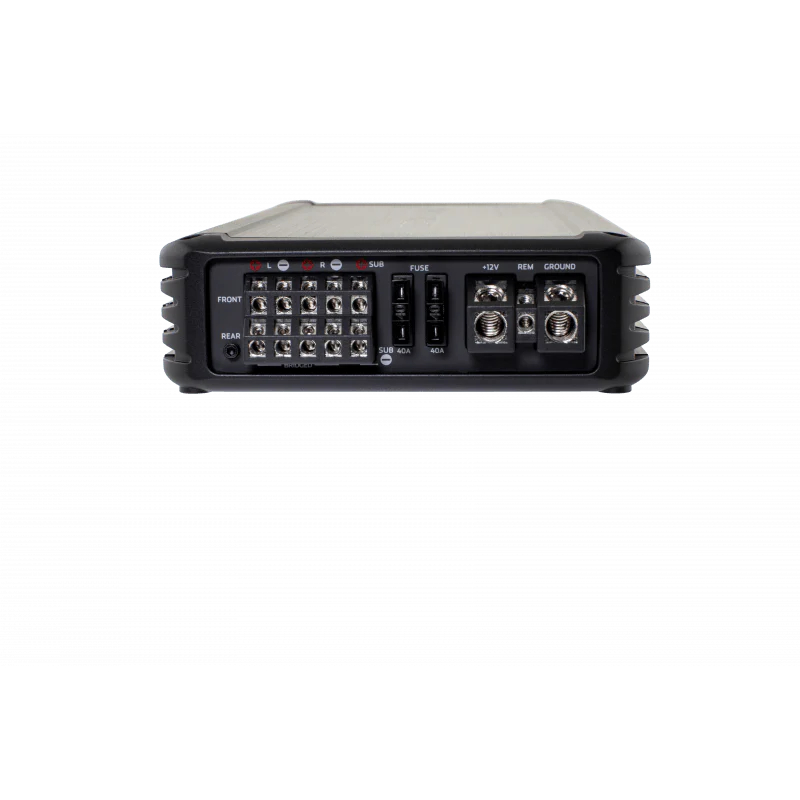

- Direct Insert Power and Speaker Terminals
- Decreased resistance for higher power transfer and efficiency
- High level inputs via RCA (balances / unbalanced) using the Stinger X12LINE
Specifications:
- Number of Channels: 5
- 4Ω: CH 1 - 4 70W x 4
- 2Ω: CH 1 - 4 100W x 4
- 4Ω: CH 5 300W x 1
- 2Ω: CH 5 400W x 1
- 3CH Mode: N/A
- Total RMS Power (Sum of rated power): 800W
- Bridgeable: NO
- Crossover Mode: HP/LP
- CH 1 - 4 40Hz - 500Hz @ 12dB / Oct Linkwitz Riley
- CH 5 50Hz - 250Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 4CH F/R or 6CH F/R/S
- Input Mode: Switchable Unbalanced / Balanced
- Input Sensitivity:
- .2v - 6v Unbalanced RCA Low-Level
- .5v - 10v Balanced RCA Hi-Level
- Processing: Bass Boost 0dB - +18dB @45hz
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response:
- Full Range CH 1 - 4 10Hz - 40kHz
- CH 5 15Hz - 250Hz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On Board Fusing: 2 x 40A ATC
- Recommended Inline Fuse: 70A
- Dimensions (L x W x H): 10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm
- UPC: 609098828918
- Weight: 1
