Phoenix Gold MX69CX MX 6x9" Dual Concentric Coaxial Speakers
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Shallow Mount
- • Dual Concentric Design
- • Polypropylene Carbon Impregnated Cone
- • High-Temperature Voice Coil
- • Phoeniroll Surround Technology
- • Silk Dome Tweeter
- • Corona Lens

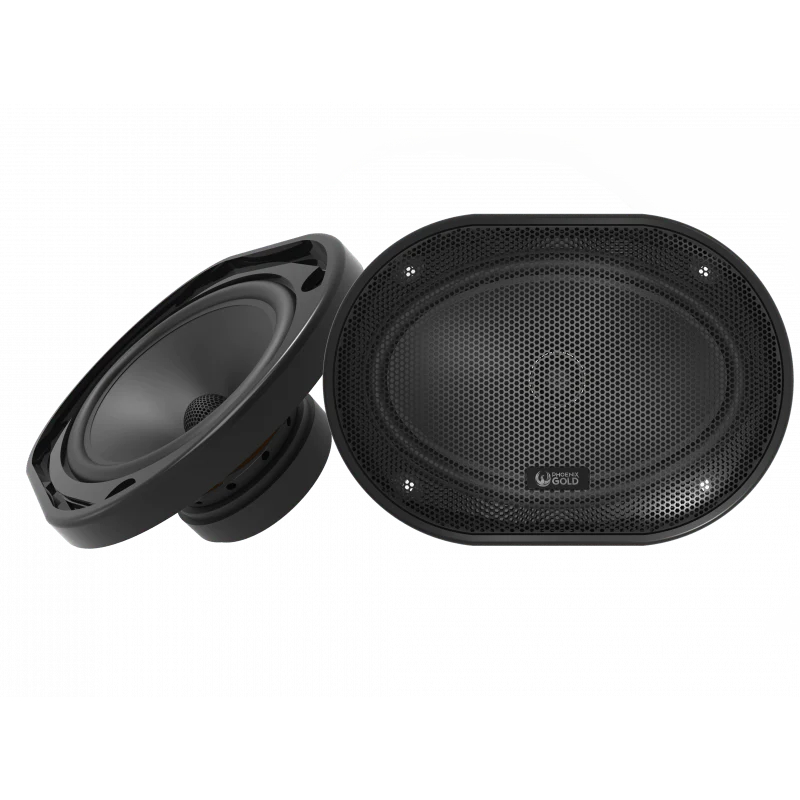

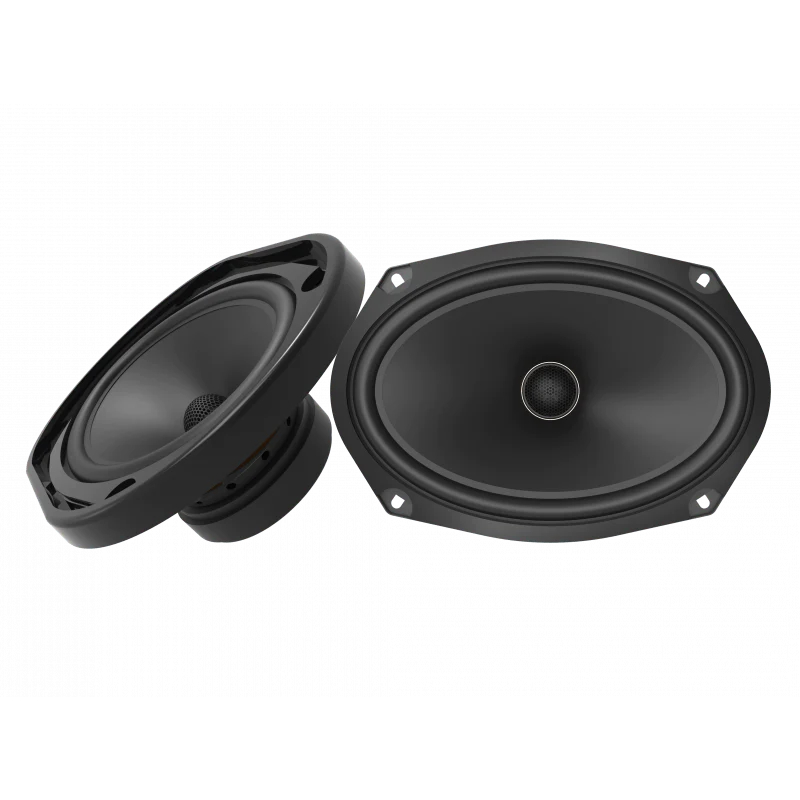

MX69CX Speaker
These model features Dual Concentric Coaxial Speaker featuring a Dual Concentric Coaxial Design which allows the sound of each driver to emanate from a single point, eliminating frequency interference and phase issues. The Corona Lens allows for better off-axis listening by producing a uniform and articulate sound field in all directions, resulting in correct phase and improved time alignment.
- Diameter : 6x9 Inch
- Sensitivity : 90 dB
- Impedance : 4 Ohm
- Frequency Response : 55-20000 Hz
- Peak Power Handling : 150 Watts
- RMS Power Handling : 100 Watts
Features:

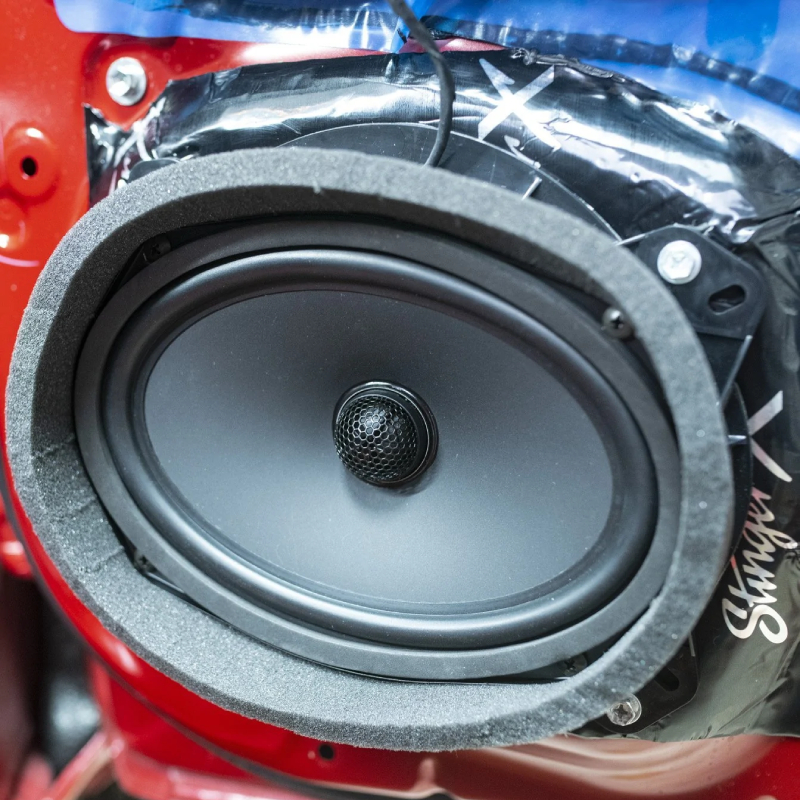

- Shallow Mount

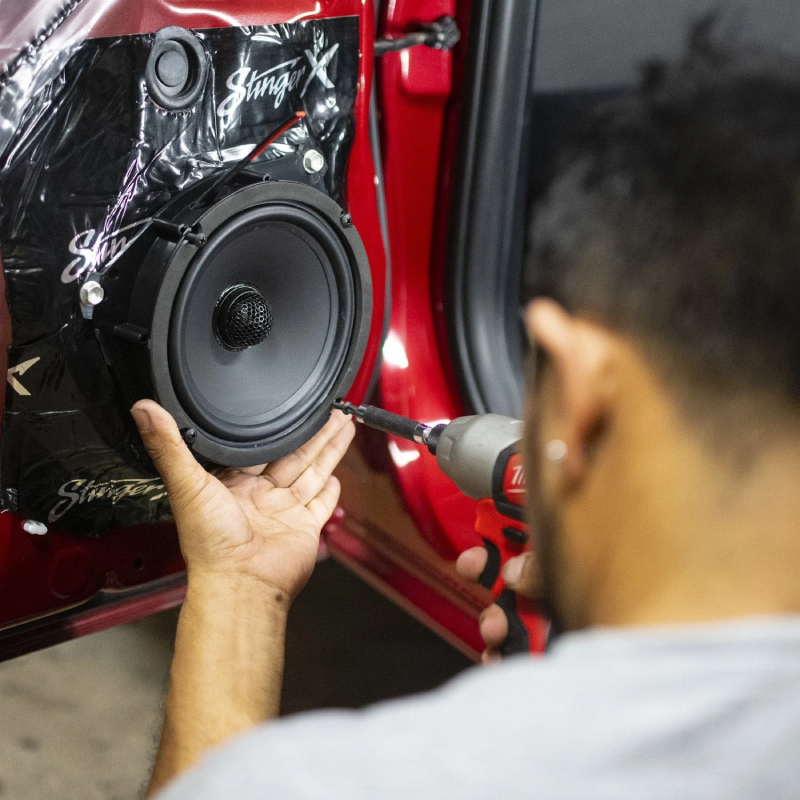

- Allows for easy installation behind factory panels
- Dual Concentric Design
- Provides excellent off-axis response as the woofer and tweeter share a common center thus focusing the sound of both drivers in a uniform field of sound resulting in premium sound quality from stock locations
- Polypropylene Carbon Impregnated Cone
- Strong yet lightweight material for crisp, accurate mid and low notes
- High-Temperature Voice Coil
- Our proprietary Torriform Technology provides superior current distribution while effectively dissipating heat
- Phoeniroll Surround Technology
- A Phoenix Gold Standard that supports smooth linear movement for optimal accuracy
- Silk Dome Tweeter
- delivers rich, warm treble with remarkable clarity and definition
- Corona Lens
- Our unique waveguide technology, focuses the tweeter correcting any phase cancellation that occurs in traditional “point source” speakers. The lens provides a smooth blend of the tweeter frequencies with mid woofer by dispersing the sound waves in a balanced fashion
Specifications
- Power Handling (RMS) 100w
- Peak Power Handling 150w
- Frequency Response 55hz-20khz
- Impedance 4ohm
- FS 55hz
- Vas 19.581Lrt
- Xmax 11mm
- Qts 0.592
- Sensitivity (1W/M) 90dB
- Cone Material PP cone
- Surround Material rubber surround
- Tweeter Size (mm) 25mm
- Tweeter Material silk
- Magnet diameter φ100x15mm
- Magnet Weight 469.5g
Dimensions
- Overall Diameter (Dimensions) 7.25x10.18in / 185x259mm
- Cutout Diameter 6.02 x 8.7in / 153 x 223 mm
- Mounting Depth 2.95in / 75mm
- Net Weight 1435g
- UPC: 609098829199
- Weight: 4
