Phoenix Gold Z110ABv2 Z Series 10" 80RMS (160W Peak Power Handling) 4-Ohms Active Loaded Subwoofer Enclosure
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10” active loaded subwoofer enclosure
- • Handles up to 160W peak power (80W RMS)
- • 4 ohms impedance
- • Nickel chrome plated polypropylene cone
- • >60dB signal-to-noise ratio
- • 10Hz - 200Hz frequency response
- • High and low inputs
- • Remote bass controller
- • Wiring kit included
Z-Series subwoofer

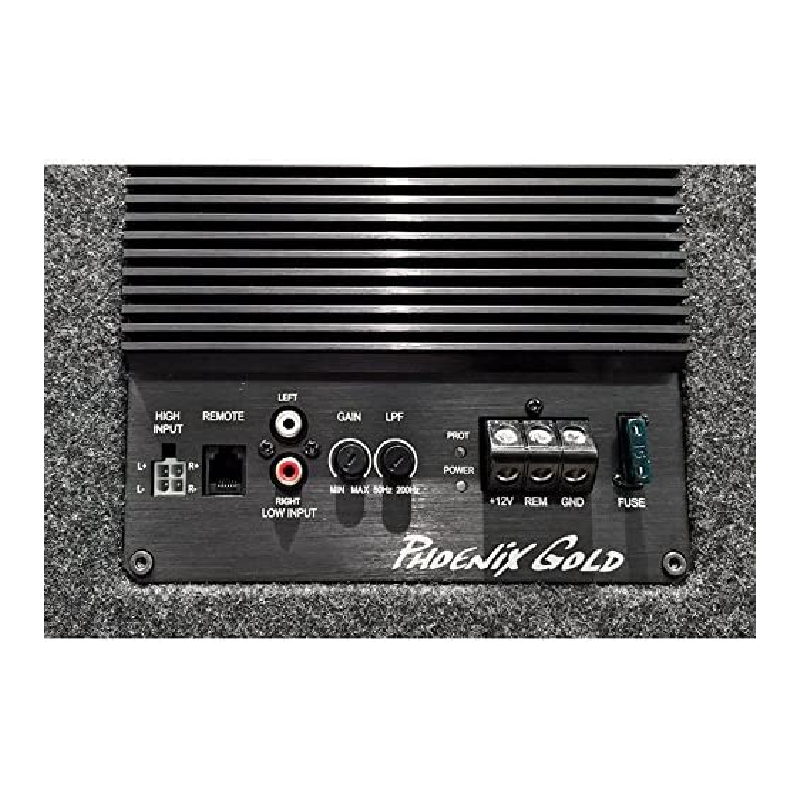

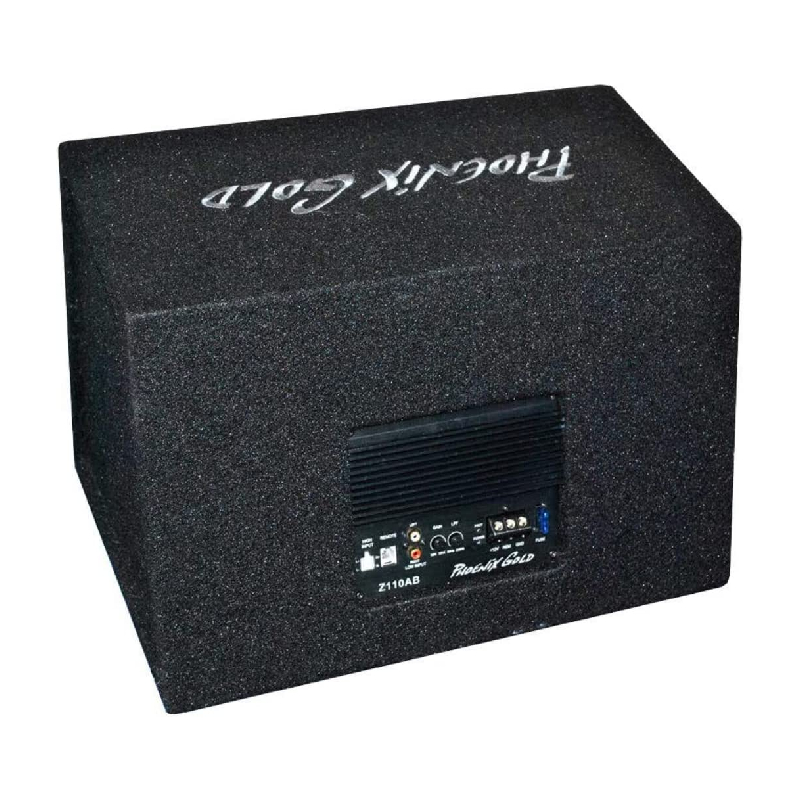

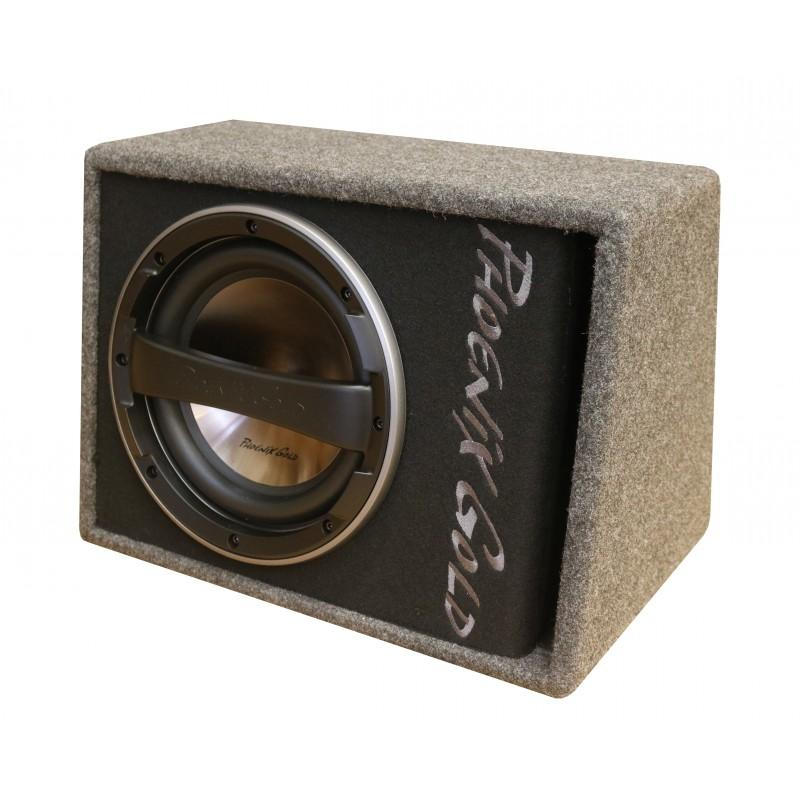

The Z110ABV2 is a 10" Z-Series subwoofer in an elegant bass reflex housing for anyone who wants to turn up neatly in their car. The sturdy MDF housing is characterised by its robust construction. The box size, volume and the fitting are perfectly matched. The integrated Class A/B amplifier offers plenty of power reserves and an adjustable low-pass filter for optimal sound adjustment. Equipped with extremely stiff diaphragm and fat ferrite magnet, the driver ensures high-level bass and deep bass with fast stride.
- Diameter : 10 Inch
- Maximum Power : 160 Watts
- Depth : 13 Inch
- Impedance : 4 Ohm
- Frequency Response : 10-200 Hz
- RMS Power Range : 80 Watts
- Speaker Size : 10 Inches
Features:
- 10” active loaded subwoofer enclosure
- Handles up to 160W peak power (80W RMS)
- 4 ohms impedance
- Nickel chrome plated polypropylene cone
- >60dB signal-to-noise ratio
- 10Hz - 200Hz frequency response
- High and low inputs
- Remote bass controller
- Wiring kit included
Product Details
Key Specs
- RMS Power: 80 watts
- Peak Power Handling: 160 watts
- Continuous Watts x Channel @ Ohms: 80W x 1 @ 4 ohms
- Amplifier Total Power Handling RMS: 80 watts
- Maximum Watts x Channel @ Ohms: 160W x 1 @ 4 ohms
- Amplifier Total Power Handling Maximum: 160 watts
- Impedance: 4 ohms
- Minimum Frequency Response: 10 hertz
- Maximum Frequency Response: 0.2 kilohertz
- Dual Voice Coils: No
- Woofer Size: 10 inches
- Woofer Composition: Nickel chrome electroplated polypropylene
- Woofer Surround Material: Rubber
General
- Product Name: Z 10” Active Loaded Subwoofer Enclosure with Integrated 160W Amplifier
- Brand: Phoenix Gold
- Number of Subwoofers Included: 1
- Model Number: Z110ABV2
- Color: Black/Charcoal
- Color Category: Multi
Audio Power
- RMS Power: 80 watts
- Peak Power Handling: 160 watts
- Integrated Amplifier: Yes
- Continuous Watts x Channel @ Ohms: 80W x 1 @ 4 ohms
- Amplifier Total Power Handling RMS: 80 watts
- Maximum Watts x Channel @ Ohms: 160W x 1 @ 4 ohms
- Amplifier Total Power Handling Maximum: 160 watts
- Amplifier Class: A/B
Audio
- Impedance: 4 ohms
- Minimum Frequency Response: 10 hertz
- Maximum Frequency Response: 0.2 kilohertz
- Signal-to-Noise Ratio (SNR): 60 decibels
Features
- Dual Voice Coils: No
- Grille Included: Yes
- Marine: No
- MOSFET Power Supply: Yes
- Low-Pass Crossover: Variable
- High-Pass Crossover: None
- Bass Boost: None
- Fan Cooled: No
Dimension
- Woofer Size: 10 inches
- Product Height: 13.5 inches
- Product Width: 18.75 inches
- Product Depth: 13 inches
- Product Weight: 32 pounds
Design
- Woofer Composition: Nickel chrome electroplated polypropylene
- Woofer Surround Material: Rubber
- Frame Material(s): Steel
Enclosure
-
- Enclosed: Yes
- Enclosure Type: Ported
- Box Material: MDF
- Box Covering Material: Carpet
- UPC: 5060037505522
- Weight: 32
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
