PAC  SW5

Heavy Duty Toggle Switch 20A, Each

Item #86877

Condition:   Brand New

Product Highlights

  • Heavy Duty Toggle Switch
  • 20A

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$999.99


Out of Stock Check out other products listed below
PAC Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


PAC Banner

PAC SW5 Heavy Duty Toggle Switch 20A, Each


We are a PAC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Weight: 0.13 lbs
  • • Width: 0.62 (inch)
  • • Height: 2.09 (inch)
  • • Depth: 1.14 (inch)
  • • Maximum Operating Temperature: 185 Degrees F
  • • Insulation Resistance: 500 VDC - 1000 megohms minimum
  • • Dielectric Strength: 1500 VAC, 1 minute
  • • Electrical Cycle Life: 10,000 Cycles
  • • Contact Resistance: 50 milliohms maximum
  • • Minimum Operating Temperature: -77 Degrees F
  • • Amp Rating: 20A at 125VAC (20A at 24 VDC)
  • • Name Plate Marking: On-Off
  • • Poles and Throws: SPST - Single Pole, Single Throw
  • • Number of Terminals: 2
Heavy Duty Toggle Switch 20A

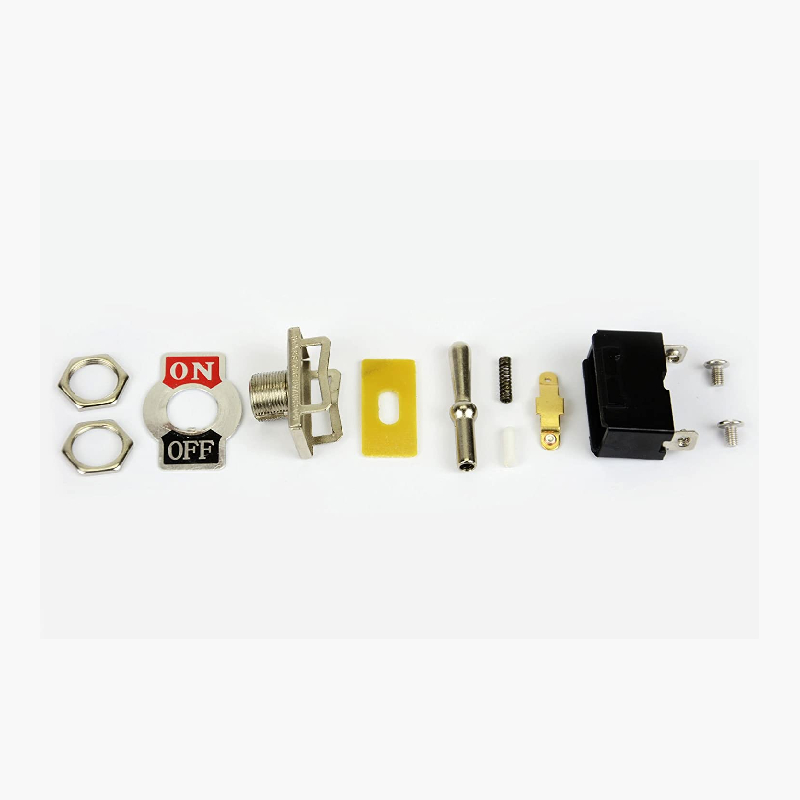

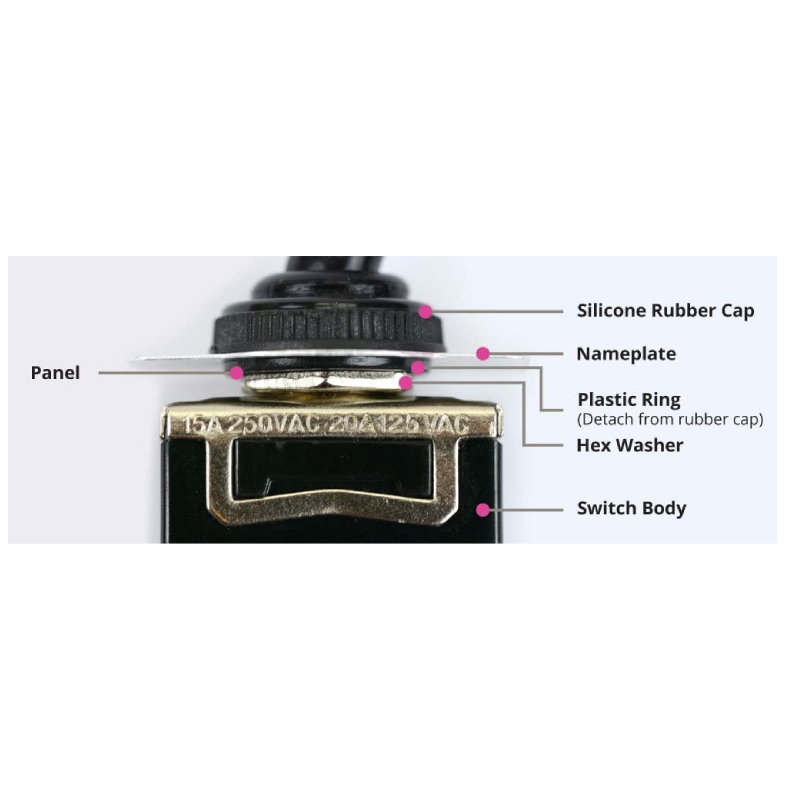

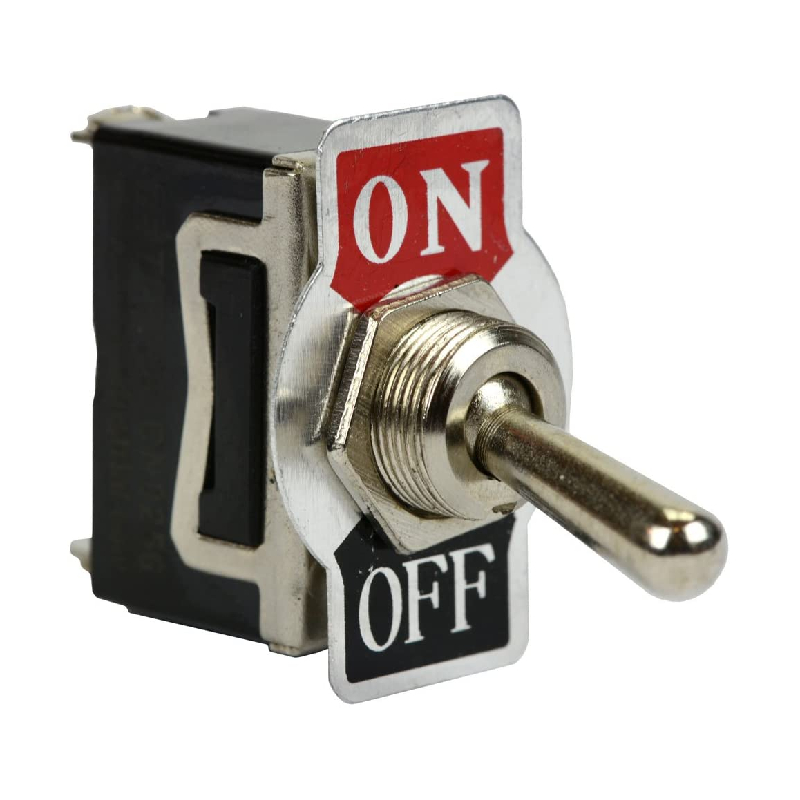

This heavy duty toggle switches are rated at 20 amps at 125 volts (AC). The clearly marked aluminum nameplate allows you to easily determine whether you are toggled on or off. The nameplate can be removed or secured with the included nut, ensuring a snug fit to your surface. Our toggle switches also have various terminals for wiring also come with an optional removable silicone cap that waterproof boot keeps moisture out with a copper thread.


SPECIFICATIONS



FEATURES


Features:

  • Weight: 0.13 lbs
  • Width: 0.62 (inch)
  • Height: 2.09 (inch)
  • Depth: 1.14 (inch)
  • Maximum Operating Temperature: 185 Degrees F
  • Insulation Resistance: 500 VDC - 1000 megohms minimum
  • Dielectric Strength: 1500 VAC, 1 minute
  • Electrical Cycle Life: 10,000 Cycles
  • Contact Resistance: 50 milliohms maximum
  • Minimum Operating Temperature: -77 Degrees F
  • Amp Rating: 20A at 125VAC (20A at 24 VDC)
  • Name Plate Marking: ON - OFF
  • Poles and Throws: SPST - Single Pole, Single Throw
  • Number of Terminals: 2
  • UPC:
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
