Alpine  R-A60F-Bundle3

Alpine R-A60F 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier + Infinity Reference 6001A 600W x 1 @2Ohms Class D Monoblock Car Amplifier

Item #87780

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

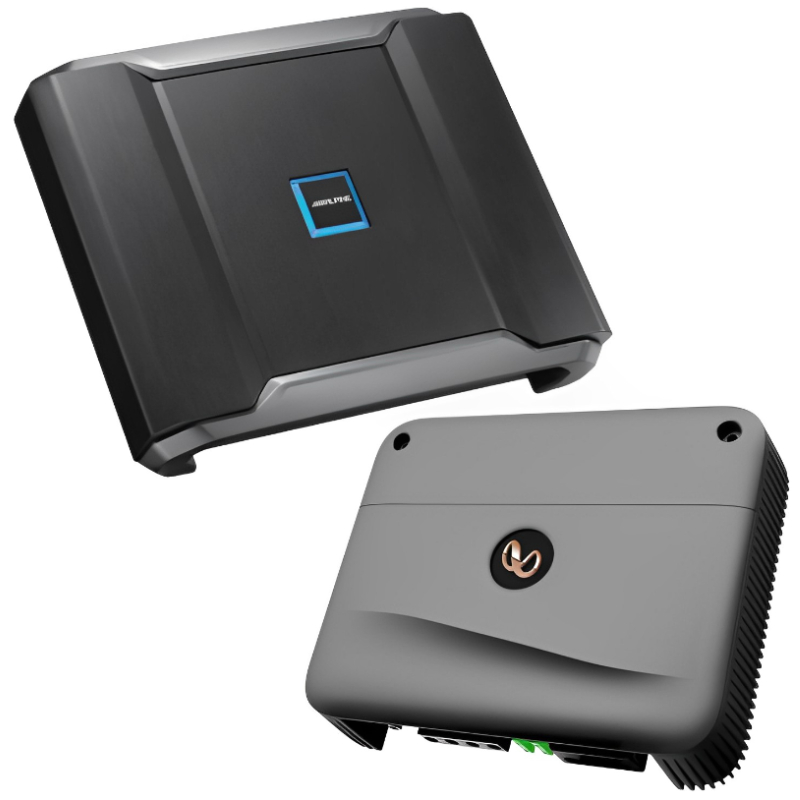

Alpine R-A60F-Bundle3 includes Alpine R-A60F 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier + Infinity Reference 6001A 600W x 1 @2Ohms Class D Monoblock Car Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Alpine R-A60F
  • • Infinity Reference 6001A

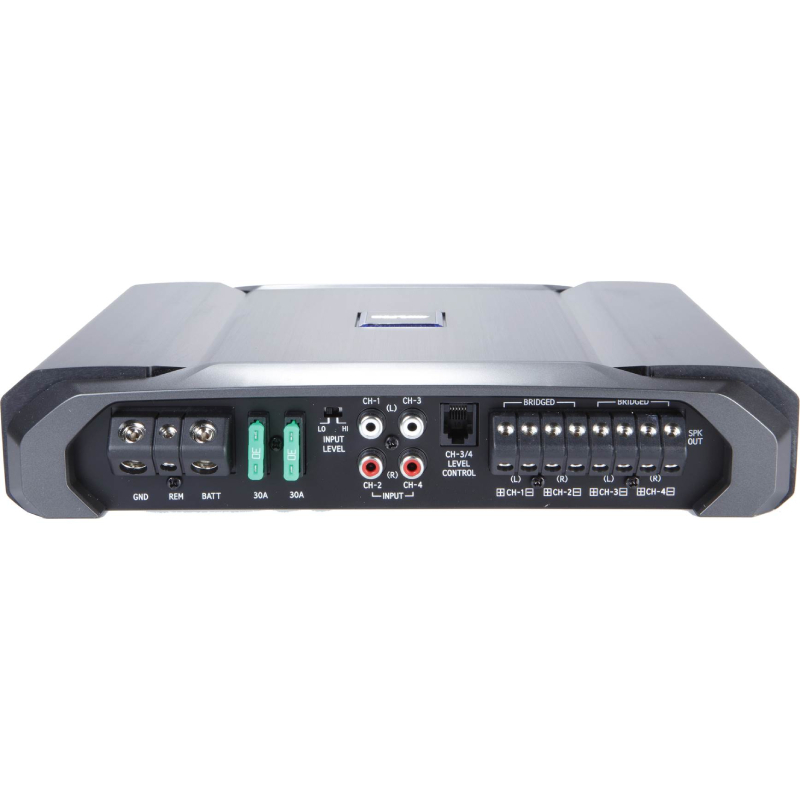

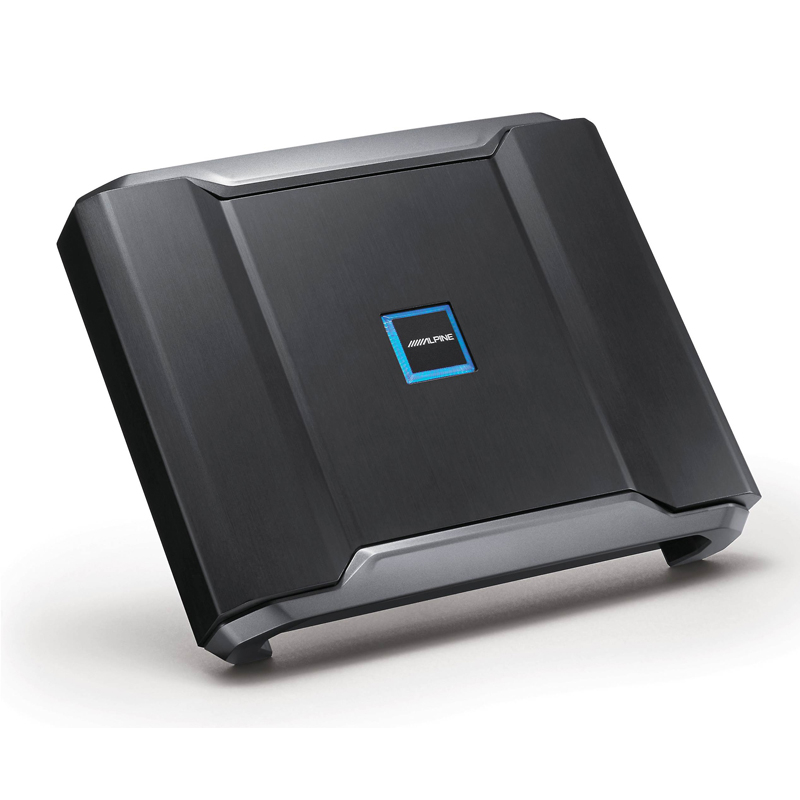

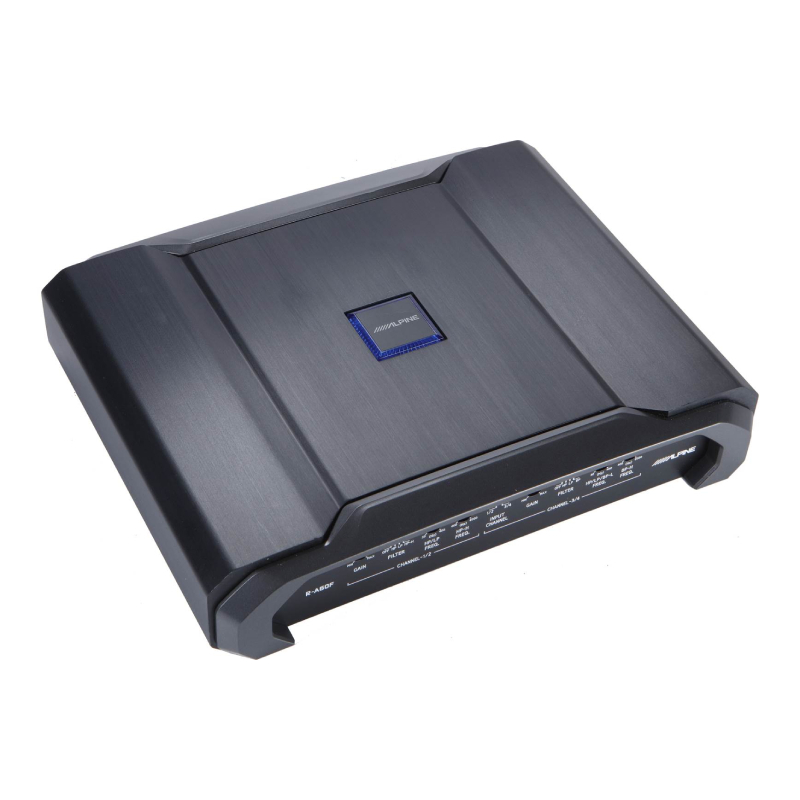

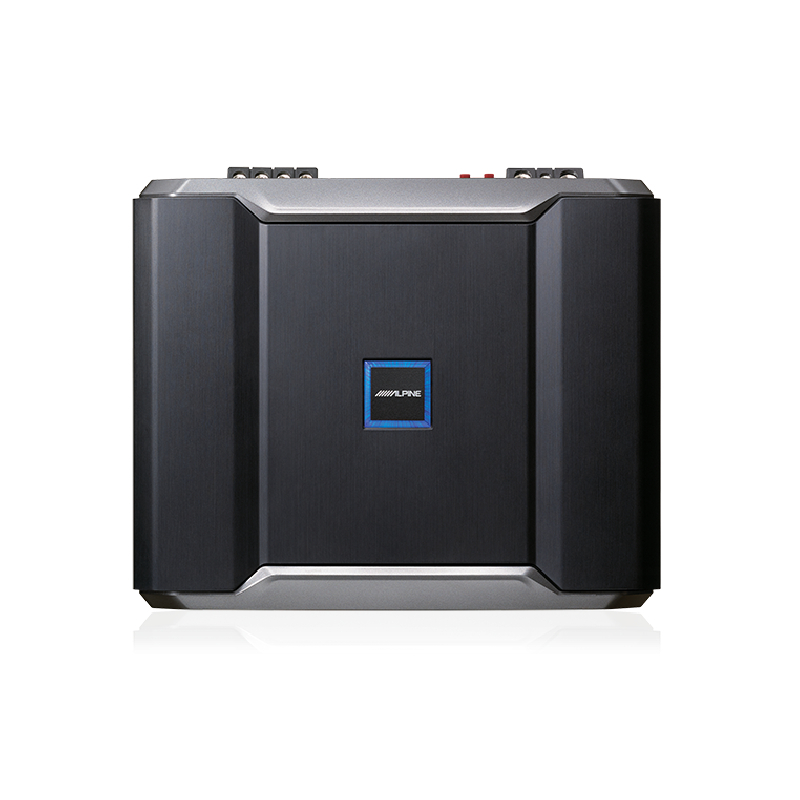

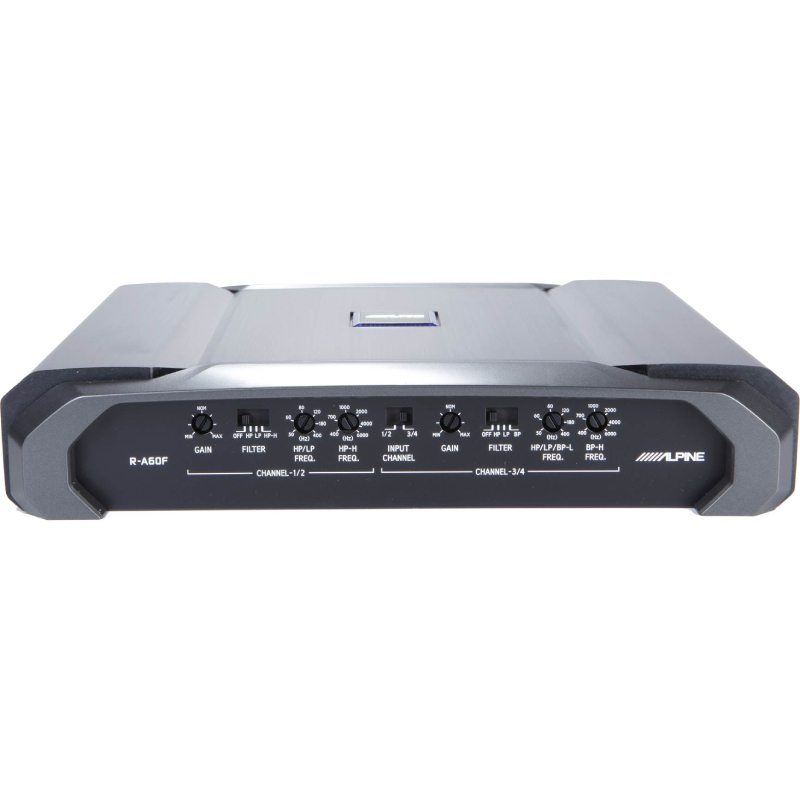

R-A60F R-Series 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier

R-A60F
HI-RESOLUTION AUDIO COMPLIANT

The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.

PROPER SOUND STAGE

This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model. This superior phase curve ensures a proper sound stage among the singers and instruments.

R-A60F

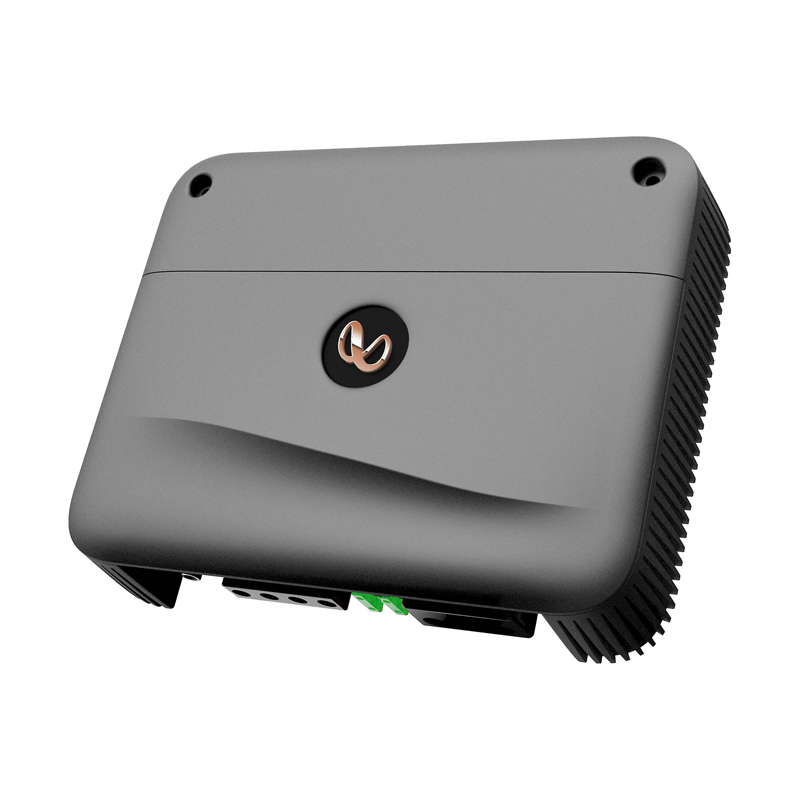

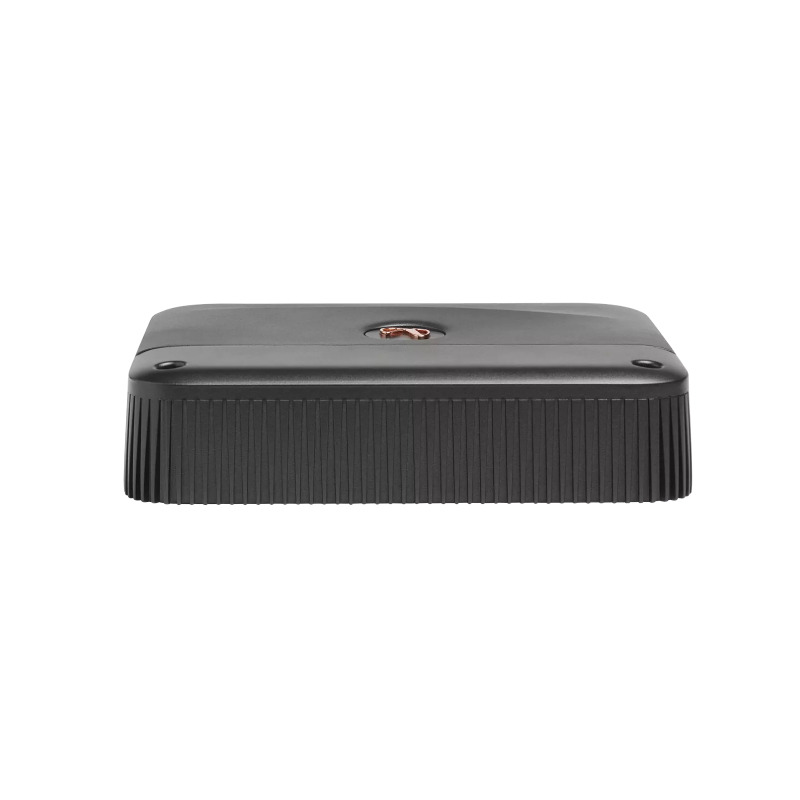

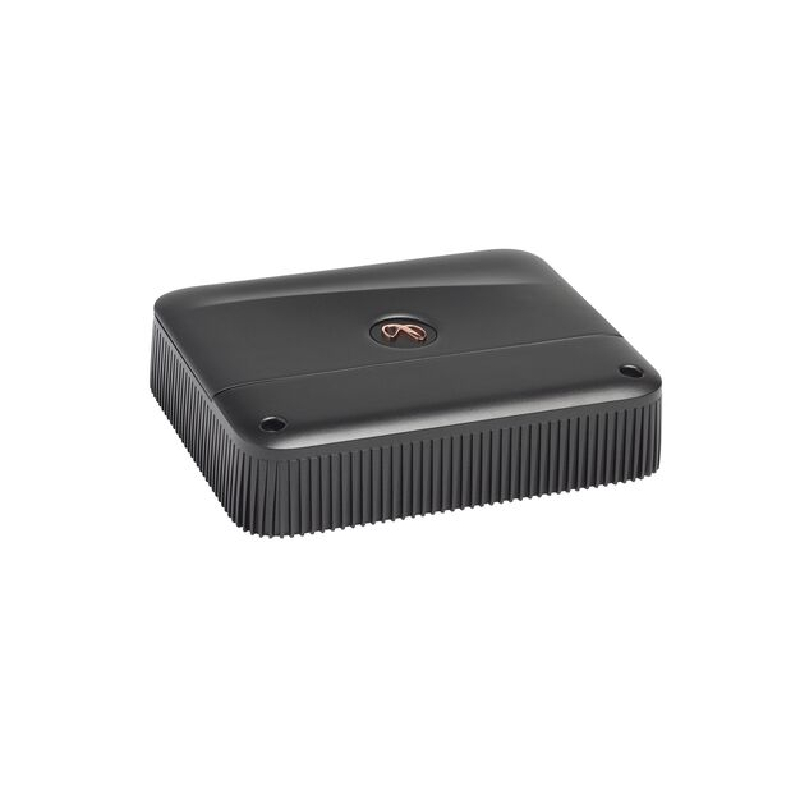

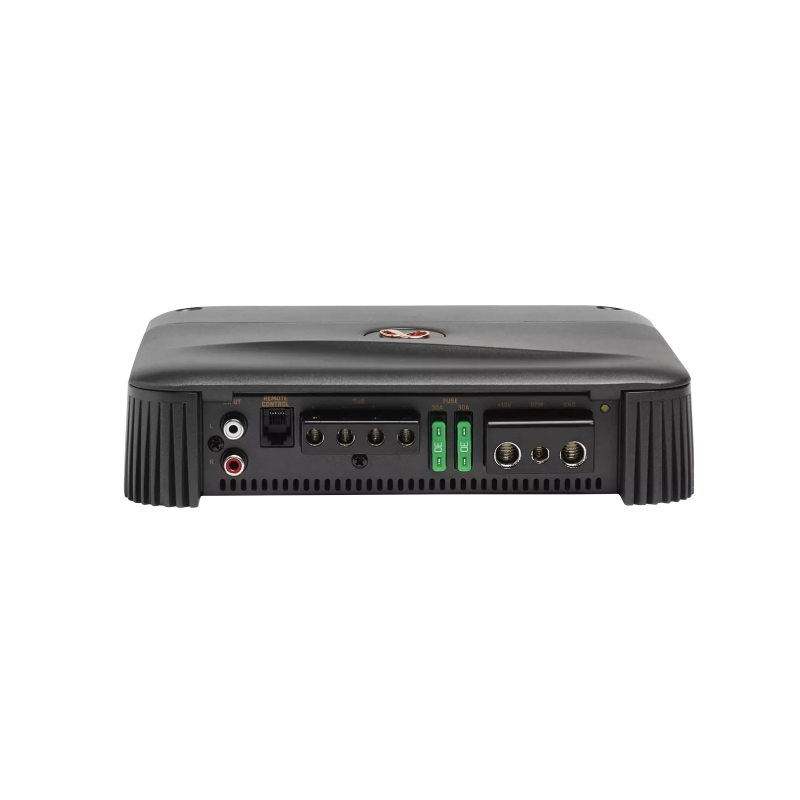

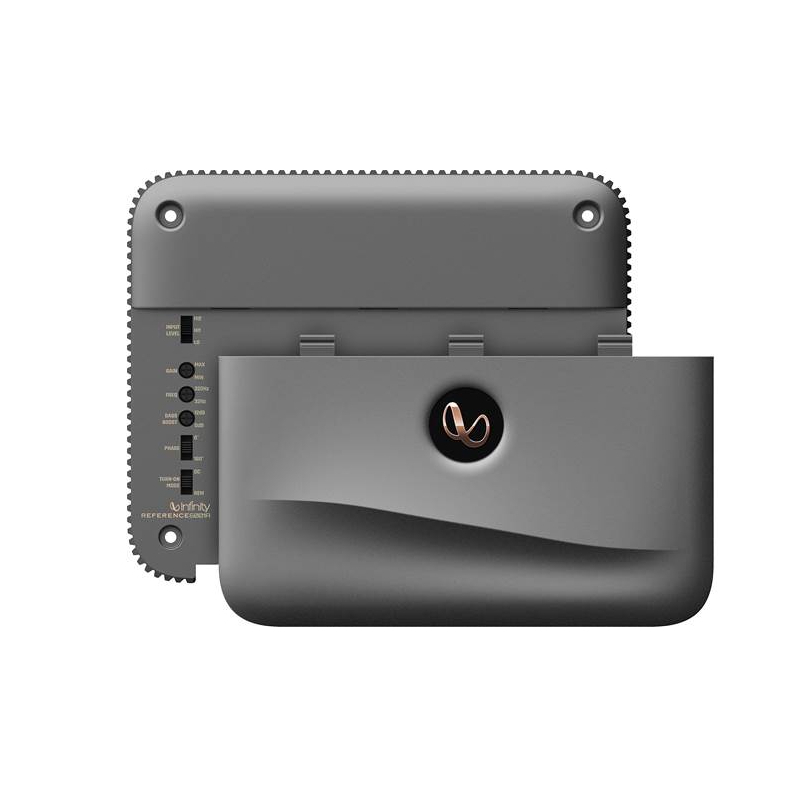

Reference 6001A Reference Series 600W x 1 @2Ohms Class D Mono Block Car Amplifier

Reference-6001A
Compact size

The Reference 6001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

Low noise and distortion

The Reference 6001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Reference-6001A

SPECIFICATIONS



FEATURES


R-A60F R-Series 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier

Specifications:

  • Alpine’s Class D Amplifier Circuit with Dual Post-Filter Feedback Loops
  • CTA-2006-B Power Rating: 100W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N); 150W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
  • Bridged: 300W x 2 (4ohm, 14.4V, ≤1% THD+N)
  • S/N ratio: >85dB (ref: 1W into 4 ohm), 106dB (at rated power)
  • THD+N ≤0.03% (ref: 1W into 4 ohm)
  • Frequency Response: 10Hz-45kHz (+/- 3dB)
  • Damping Factor >500



Reference 6001A Reference Series 600W x 1 @2Ohms Class D Mono Block Car Amplifier

Features:

  • Compact size
  • High and low level input
  • Variable crossover and bass boost
  • Low noise and distortion
  • Input Level Control
  • Full on-board protection
  • Phase Switch
  • RBC wired remote
  • Class D amp technology
  • Turn-on mode

Specifications:

  • Mono subwoofer car amplifier
  • 350 watts RMS x 1 at 4 ohms
  • 600 watts RMS x 1 at 2 ohms
  • Class D amp technology
  • Variable low-pass filter (32–320Hz, 12dB/octave)
  • Variable bass boost (0–12dB at 45Hz)
  • Phase switch (0, 180 degrees)
  • Preamp and speaker-level inputs
  • Fuse rating: 30A x 2
  • 8-gauge power and ground leads recommended —
  • wiring and hardware not included with amplifier
  • W x H x D = 220mm x 55.5mm x 180mm
  • W x H x D = 8-11/16" x 2-3/16" x 7-1/8"
  • UPC: 798418839083
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
