Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

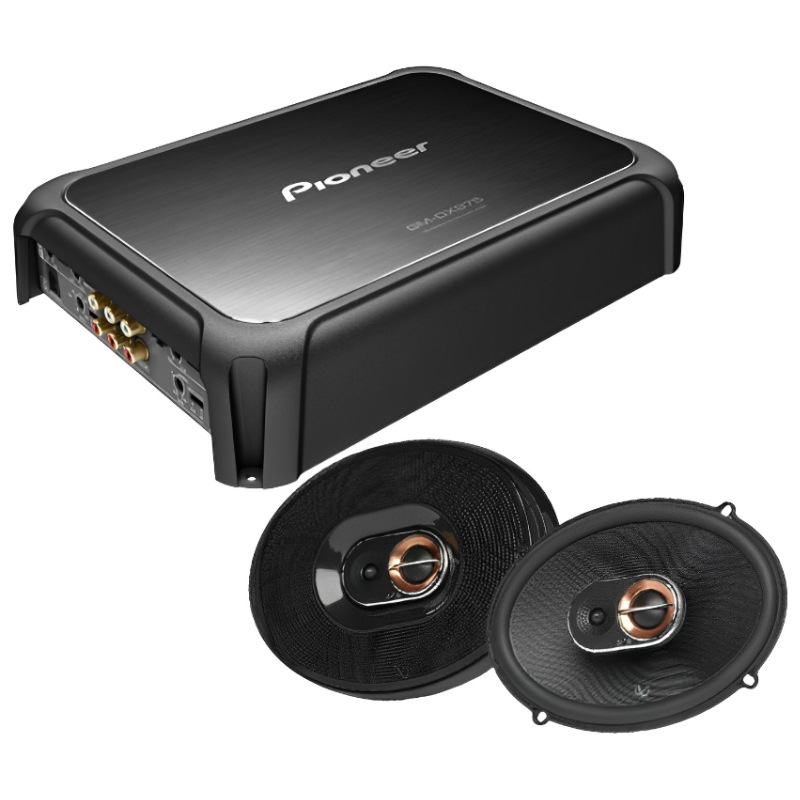

Pioneer GM-DX975-Bundle includes Pioneer GM-DX975 2000W Max Power Class D 5-Channel Amplifier + Infinity Kappa 693M 6x9” 360W Peak Power 3-Way Car Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Pioneer GM-DX975
- • Infinity Kappa 693M

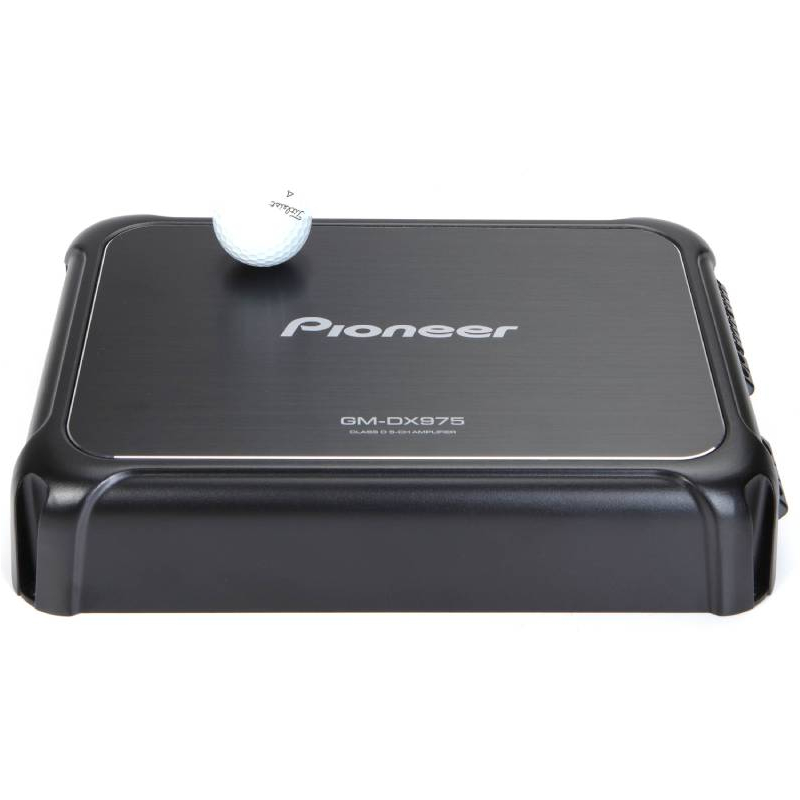

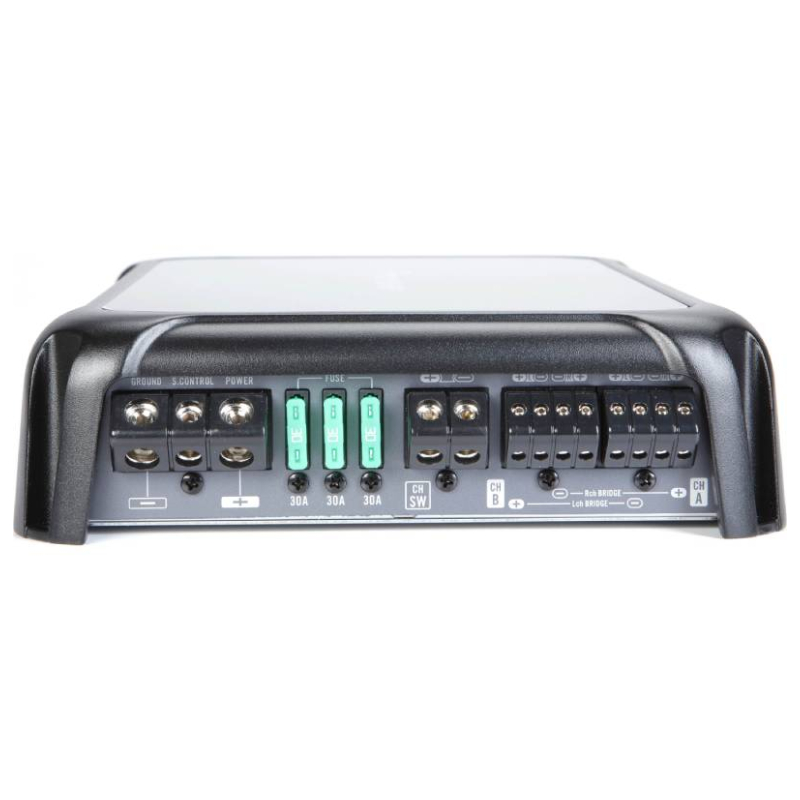

GM-DX975 GM Digital Series 2000W Max Power Class D 5-Channel Amplifier with Gold RCA Terminals, Hi-Res Audio Capable, HQ Sound Parts and Wired Bass Boost Remote
The Complete Package
GM-DX975 five-channel amplifier can power your entire car audio system, sending 75 watts RMS to each of your front and rear speakers while delivering up to 600 watts RMS to your sub. CTA-2006 compliant, this highly efficient Class D technology keeps this powerful amp running This small chassis will in a lot of out-of-the-way spaces.
Variable Low-Pass Filter
For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-DX975 LPF is adjustable from 40 Hz to 240 Hz.

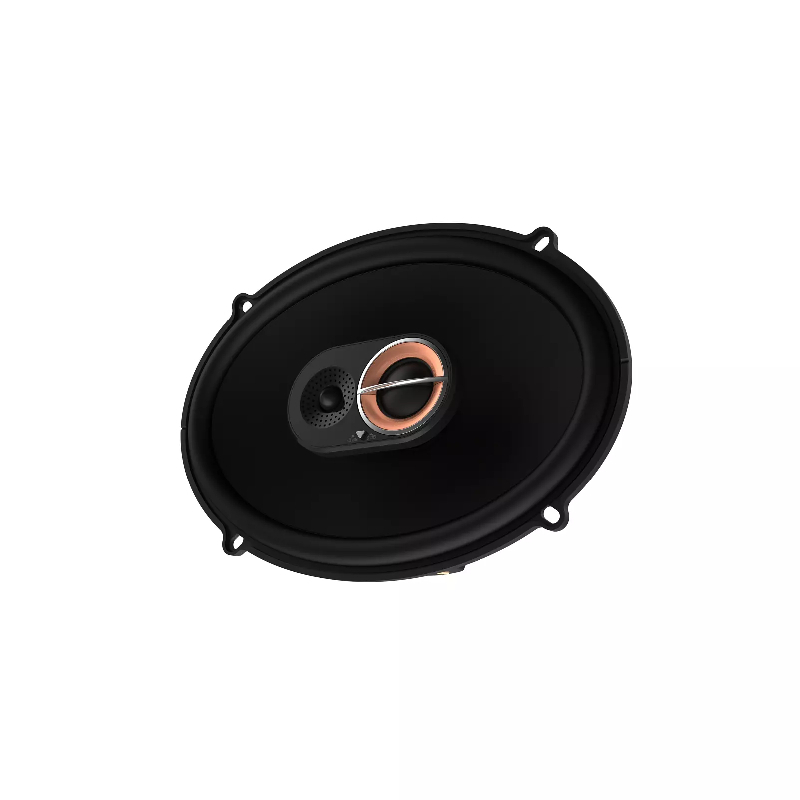

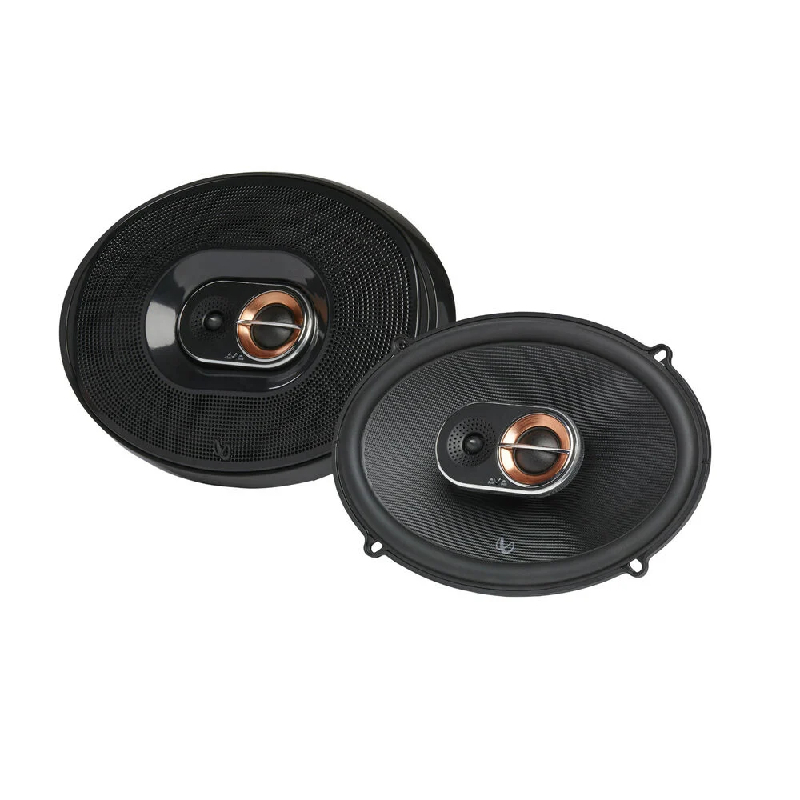

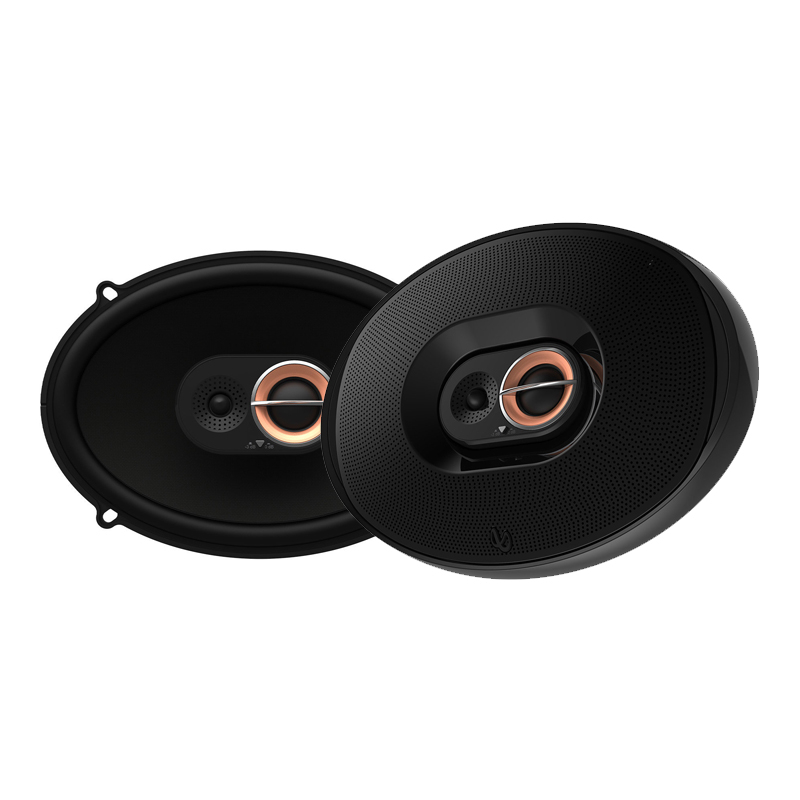

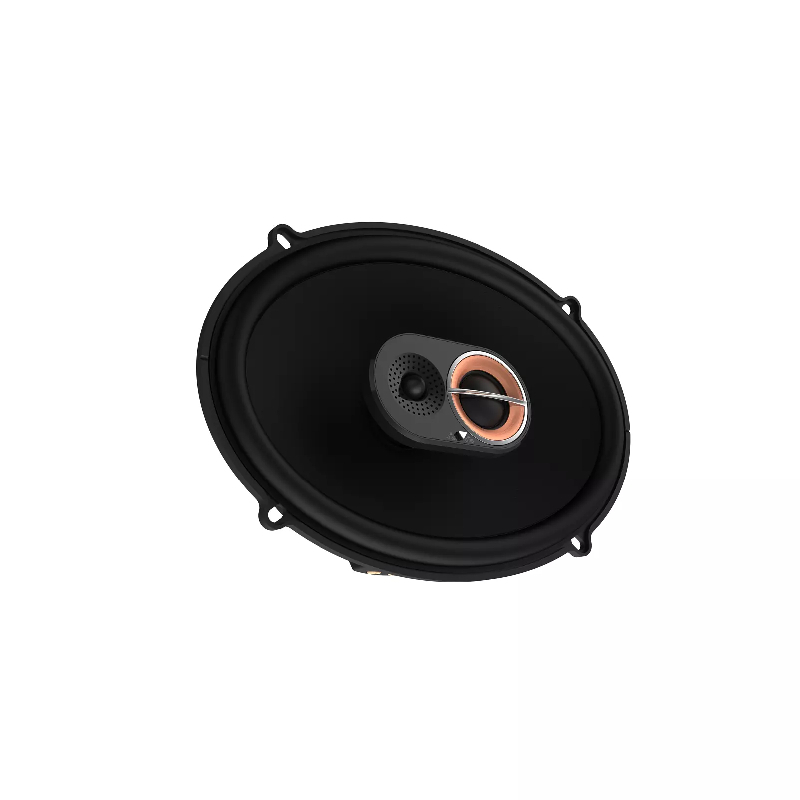

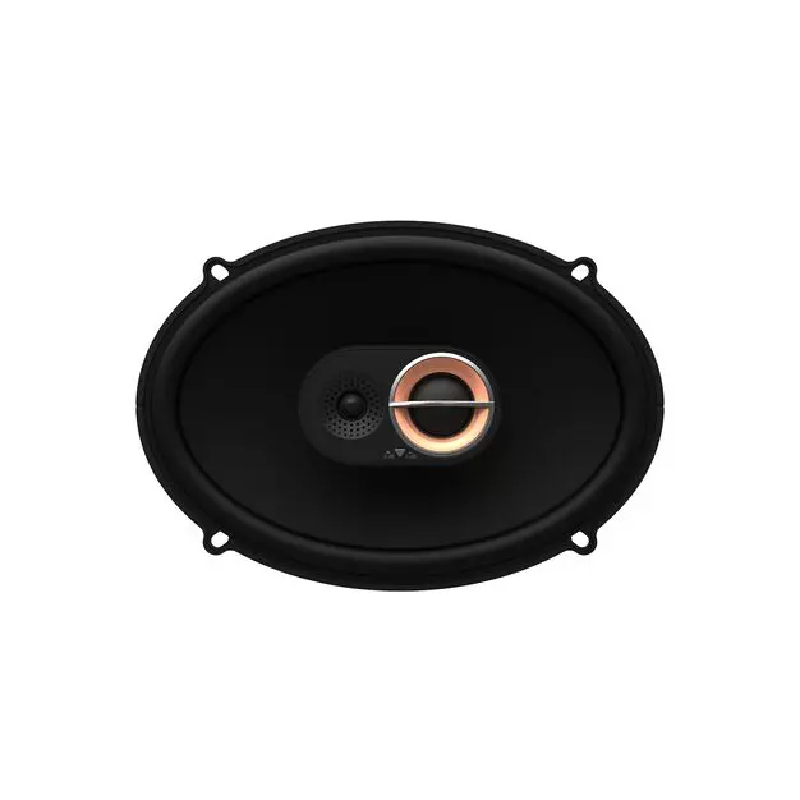

Kappa 693M Kappa Series 6x9” 120W RMS (360W Peak Power Handling) 3-Way Car Speakers
40kHz High-resolution Silk Dome Tweeter
Kappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.
Patented Plus One™ Glass Fiber Woofers
Infinity’s glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing.

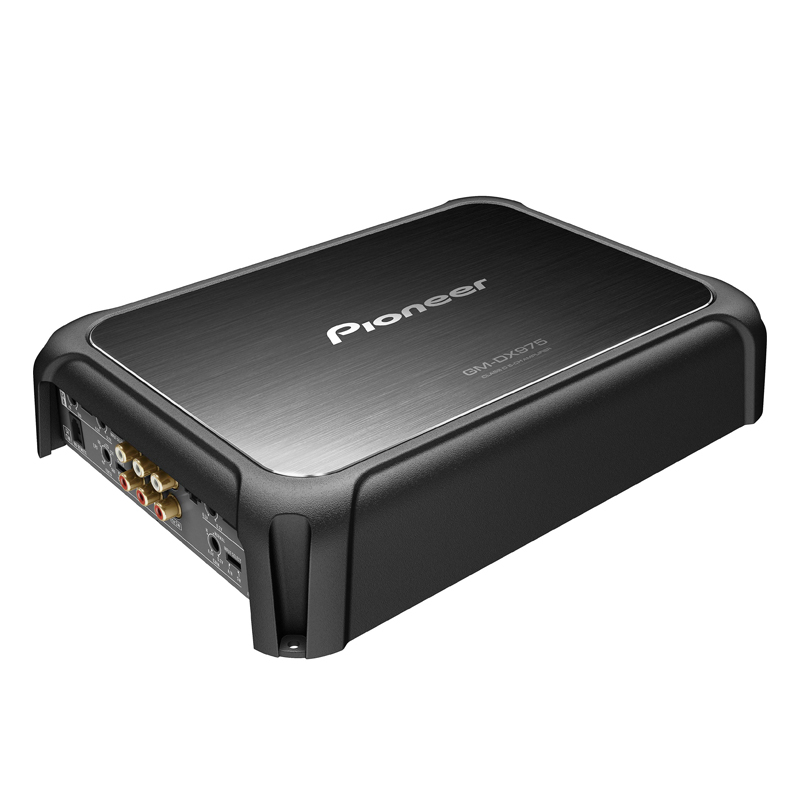

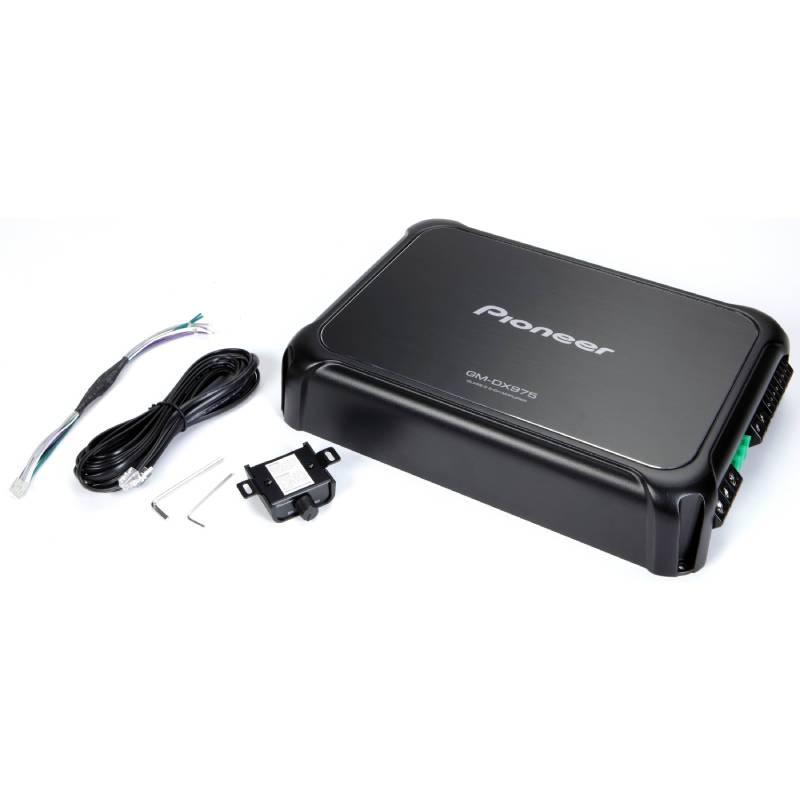

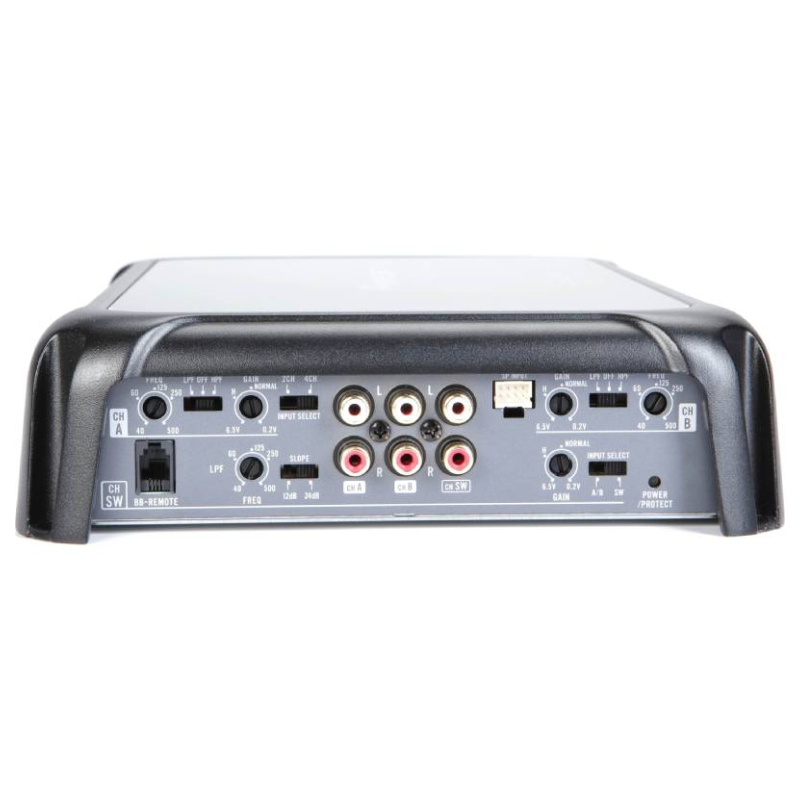

GM-DX975 GM Digital Series 2000W Max Power Class D 5-Channel Amplifier with Gold RCA Terminals, Hi-Res Audio Capable, HQ Sound Parts and Wired Bass Boost Remote
Features:
- RCA Inputs: 5-CH (Gold Plated)
- Amplifer Class: CLASS-D
- High Quality Sound Parts: Yes
- Hi-Res Certified: Yes
- Speaker Level Inputs: Yes
- Crossover Type: Adjustable HPF/LPF
- Bridgeable: Yes
Specifications:
- Continuous Power (RMS) Output at 2 Ohms: 100W x 4 (Main channel), 600W x 1 (Subwoofer channel)
- Continuous Power (RMS) Output at 4 Ohms: 75W x 4 (Main channel), 350W x 1 (Subwoofer channel)
- Continuous Power (RMS) Output - Bridged at 4 Ohms: 200W x 2 (Main channel), 350W x 1 (Subwoofer channel)
- Frequency Response
- A/B CH: 10 Hz ~ 50 kHz (+0dB, -3dB) / SUB CH: 10 Hz ~ 500 Hz (+0dB, -3dB)
- Total Harmonic Distortion (THD): A/B CH: <0.05% (1 kHz) / SUB CH: <0.05% (100Hz)
- Signal-to-Noise (SN) Ratio: > 94dB
- Fuse Rating: 30A x 3
- Low-Pass Crossover Frequency: 40 Hz
- Low Pass Slope (dB/octave): -12dB/oct (A/B CH) / -12dB/-24dB (SUB CH)
- High-Pass Crossover Frequency: 500 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0-18dB
- Bass Boost Remote: Yes
- Automatic Signal Sensing and Turn-On: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Terminal Type: Block
- Load Impedance Allowance (Ohms): 2 to 4
- Protection Control System: Yes
- Dimensions: 12.4" x 2" x 7.87"

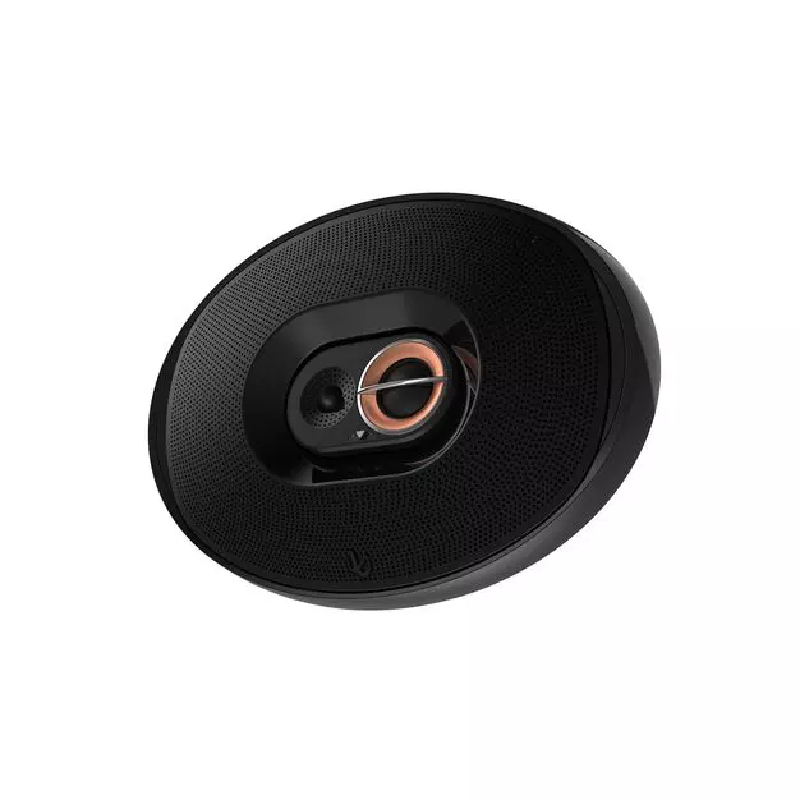

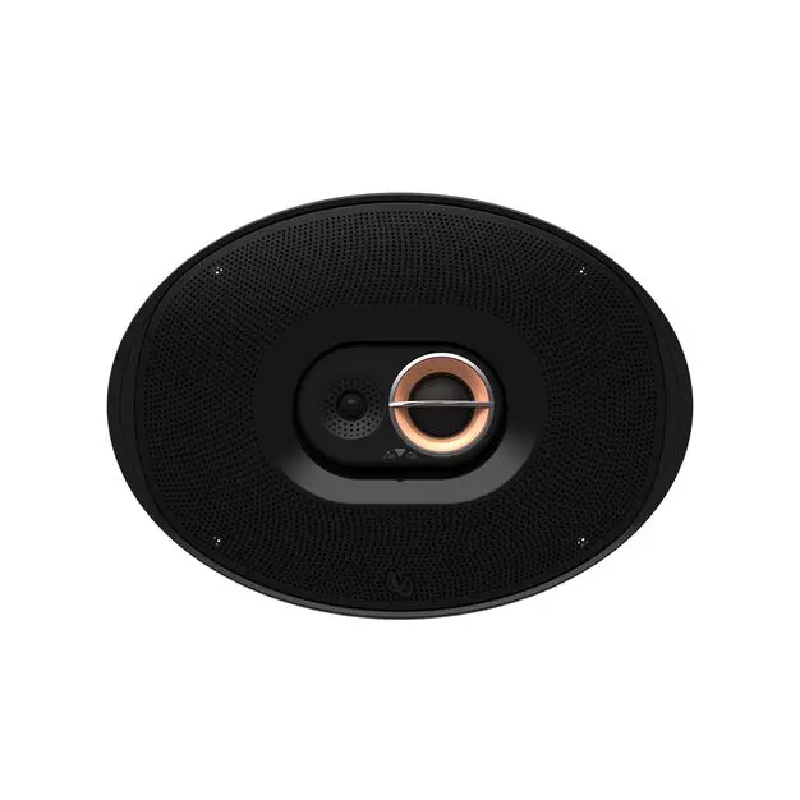

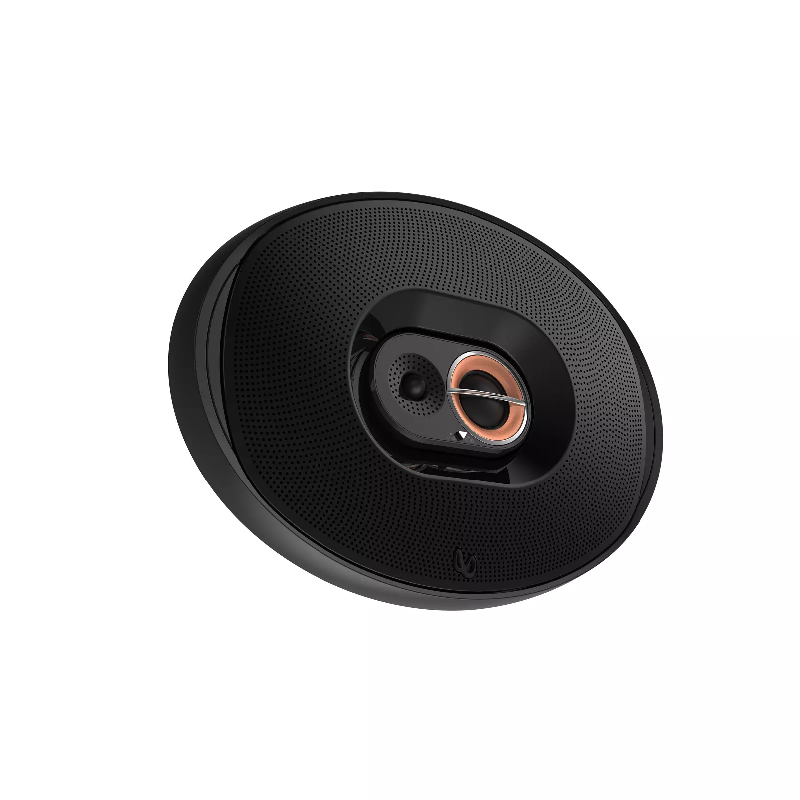

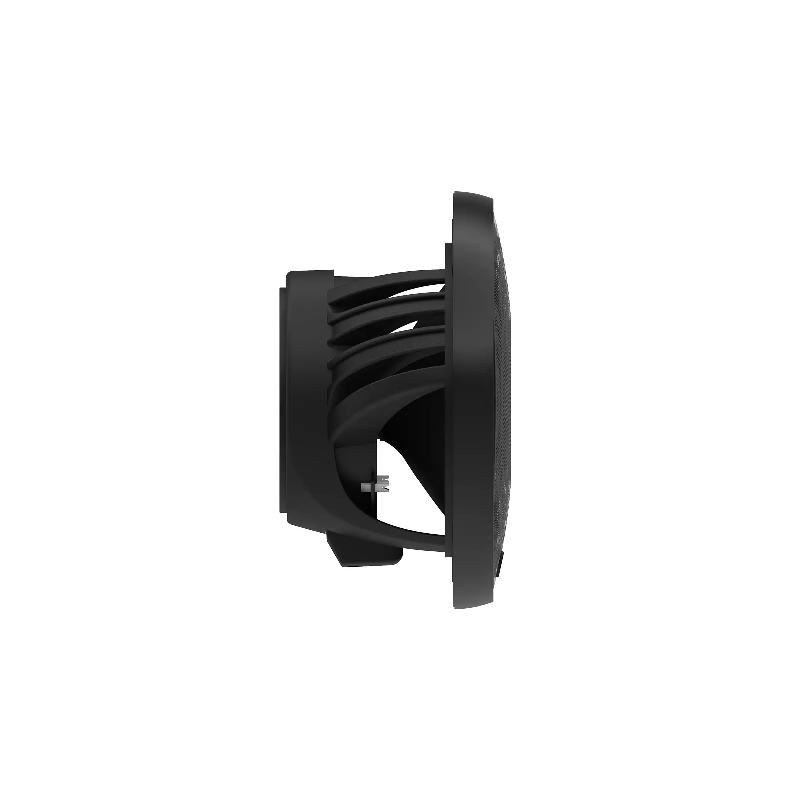

Kappa 693M Kappa Series 6x9” 120W RMS (360W Peak Power Handling) 3-Way Car Speakers
Specifications:
- Peak: 360 watts per pair / 180 watts each
- RMS: 120 watts per pair / 60 watts each
- Plus One+ glass-fiber woofer cone
- hi-roll rubber surround
- edge-driven silk dome tweeter and supertweeter
- 3 ohms impedance
- Frequency Response: 35-40,000 Hz
- Top-mount Depth: 3-3/16"
- Sensitivity: 94dB
- UPC: 798418843097
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
