JL Audio  XDM500/3

XDM Series 3-Channel 100W RMS x 2 + 300W RMS x 1 at 2 Ohms, Class-D Car/Marine Amplifier with NEXD™ Switching Technology

Item #87949

Condition:   Brand New

Product Highlights

  • XDM Series
  • 3-Channel
  • 100W RMS x 2
  • 300W RMS x 1 at 2 Ohms
  • Class-D Car/Marine Amplifier
  • NEXD™ Switching Technology

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$679.99

Reg. Price $749.99  Save $70.00
In Stock
In Stock

Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

JL Audio Banner for Onlinecarstereo

JL Audio XDM500/3 XDM Series 3-Channel 100W RMS x 2 + 300W RMS x 1 at 2 Ohms, Class-D Car/Marine Amplifier with NEXD™ Switching Technology


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

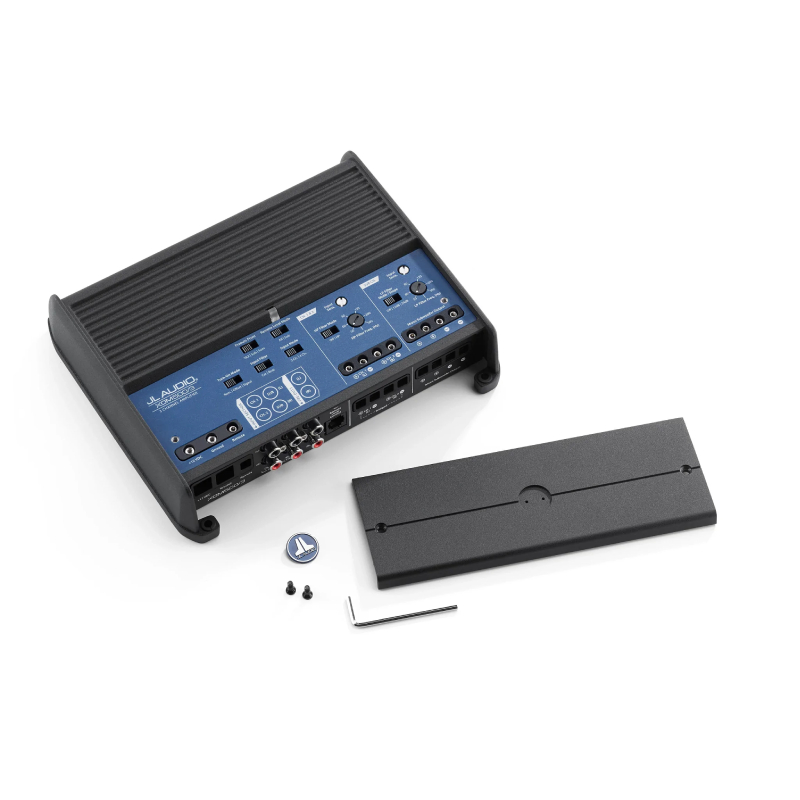

What's Inside?
  • • 3-Channel car/marine amplifier
  • • 2.5 mm Allen wrench
  • • Self-adhesive JL Audio badge
  • • Warranty information
  • Owner's Manual




Why Choose JL Audio XDM500/3 Marine Amplifier?

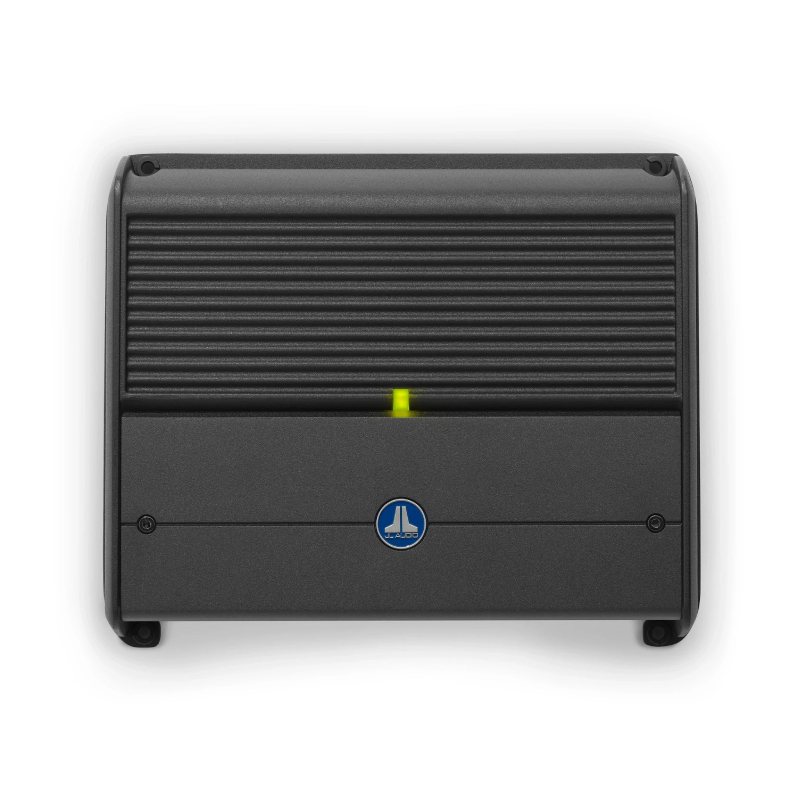

JL Audio XDM500/3 Marine Amplifier Top Down View
Hear the Difference!

Experience fidelity for all and crystal-clear audio in your boat or car with the xdm amplifier's exclusive dual-mode input filter and differential-balanced inputs for outstanding noise rejection, while the NEXD™ equipped advanced switching technology delivers reliable high-power output from a compact chassis by reducing current draw and heat, all benefiting from studio-grade signal processing featuring audiophile-grade, fully variable filters and calibrated potentiometers beneath a sealed security cover.

Uninterrupted Power and Built to Last!

With ADVANCED ROLLBACK PROTECTION, our innovative circuit design ensures the amplifier will never shut down due to thermal overload, keeping your music playing even under the most demanding conditions, all while offering flexible AUTO TURN-ON CAPABILITIES (via auto signal sensing, auto DC-offset sensing, or conventional +12 volt turn-on lead), and a BUILT TOUGH all-aluminum, powder-coated housing that inhibits corrosion and features a sealed security cover to protect controls from the elements.

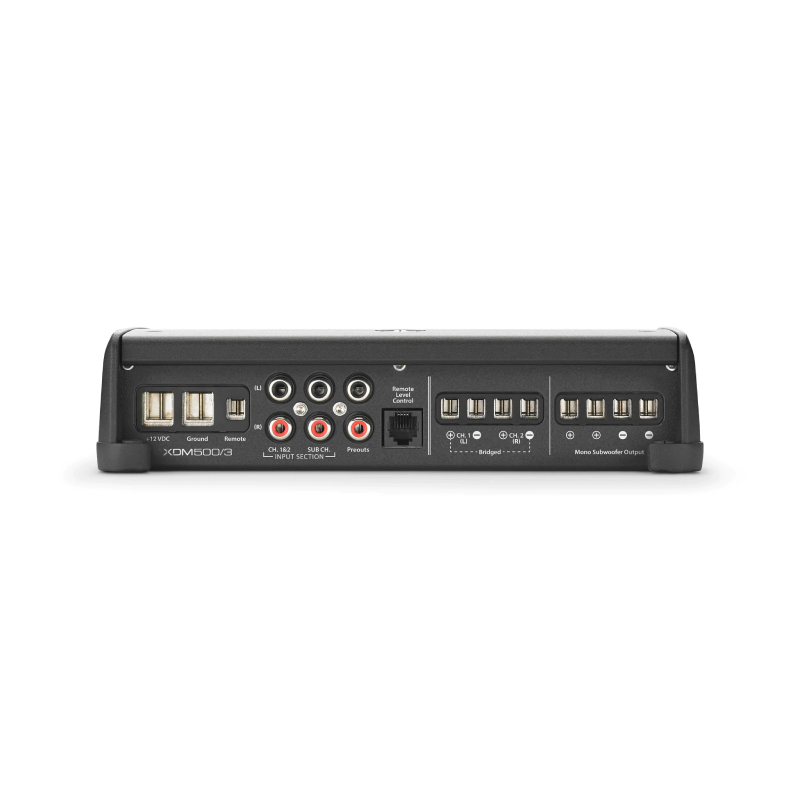

JL Audio XDM500/3 Marine Amplifier Rear Angle View

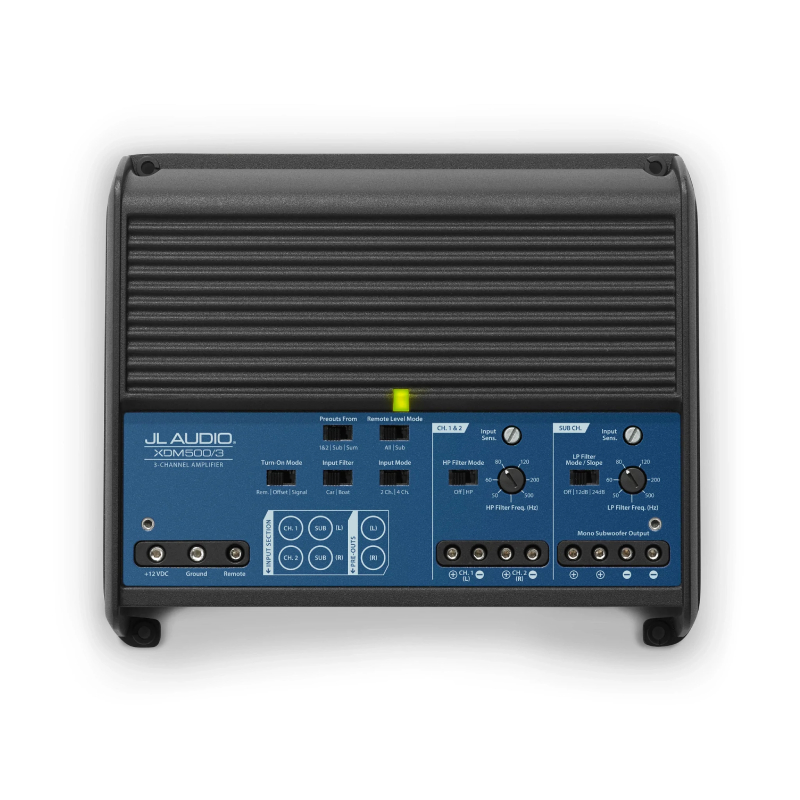

JL Audio XDM500/3 Marine Amplifier Overhead View Displayed with Removed Control Panel Cover
Power Your Entire System!

Our amplifier line offers complete flexibility, featuring FULL-RANGE STEREO variants available in 2, 4, 6, and 8 channels, specialized SYSTEM AMPLIFIERS with 3 models that power a whole system using 2 or 4 full-range outputs plus a dedicated subwoofer output, robust MONOBLOCK options with 300, 600, and 1000 watts, and versatile 24-VOLT OPTIONS available in XDM600/6-24V and XDM800/8-24V channel variants.


Frequently Asked Questions (FAQ)


  • • Why do my door speakers work but the subwoofer channel on my JL Audio XDM500/3 has no output?
    Check the mono channel input routing, crossover settings, and subwoofer wiring. A missing signal to the sub channel is the most common cause.
  • • Can I connect the XDM500/3 directly to a factory radio?
    Yes. The amplifier accepts both high-level speaker inputs and RCA inputs for easy OEM integration.
  • • Why does the amplifier enter protection mode after playing loudly for several minutes?
    This usually indicates overheating, low battery voltage, or a speaker load below the recommended impedance.
  • • Can I power two front speakers and one subwoofer with the XDM500/3?
    Yes. The amplifier is specifically designed to run a stereo pair of speakers and a dedicated mono subwoofer channel.
  • • Why do my speakers distort while the subwoofer still sounds clean?
    The front channel gains may be too high, or the high-pass crossover may not be configured correctly.
  • • Why do I hear a popping noise every time the amplifier turns on?
    This is commonly caused by incorrect remote turn-on wiring or poor grounding in the audio system.
  • • Can I use the XDM500/3 with a 2-ohm subwoofer?
    Yes. The mono subwoofer channel is designed to operate safely at the recommended minimum impedance.
  • • Why does the amplifier become very warm during long trips?
    Some heat is normal, but limited airflow or continuous high-volume playback can increase operating temperature.
  • • Does the XDM500/3 support an optional remote bass level control?
    Yes. It is compatible with JL Audio's optional HD-RLC remote controller for convenient bass adjustment.
  • • Why does the amplifier stay powered after I turn off my vehicle?
    The remote turn-on wire is likely connected to a constant 12-volt source instead of a switched accessory circuit.

SPECIFICATIONS


  • Low Frequency Response : 50–500 Hz
  • High Frequency Response : 50–500 Hz
  • Number of Channels : 3
  • Frequency Response : 12-22000 Hz
  • Built In Crossovers : Yes
  • Amplifier Class : D
  • Fuse Rating : 50 A

FEATURES


Features:

  • FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs provide outstanding noise rejection and crystal-clear audio performance in boats or cars.
  • EQUIPPED WITH NexD™: Advanced switching technology ensures exceptional efficiency, reducing current draw and heat while delivering reliable high-power output from a compact chassis.
  • STUDIO-GRADE SIGNAL PROCESSING: Each XDM amplifier features audiophile-grade signal processing with fully variable filters and calibrated potentiometers, all under a sealed security cover.
  • ADVANCED ROLLBACK PROTECTION: Innovative circuit design prevents shutdown due to thermal overload, keeping your music playing even under demanding conditions.
  • AUTO TURN-ON CAPABILITIES: Choose from three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead.
  • BUILT TOUGH: All-aluminum, powder-coated housing resists corrosion, and a sealed security cover protects controls from the elements.
  • FULL-RANGE STEREO: Available in 2, 4, 6, and 8 channel variants to suit your system needs.
  • SYSTEM AMPLIFIERS: Three models provide 2 or 4 full-range outputs plus a subwoofer output for complete system setups.
  • MONOBLOCK: Three models available with 300W, 600W, and 1000W outputs.
  • 24-VOLT OPTIONS: Available in 6 and 8 channel variants for high-voltage applications.



Specifications:

  • RMS Power Output: 75 W x 2 channels, 300 W x 1 channel
  • Peak Power Output: N/A
  • Power at 2 Ohms: 100 W x 2 channels
  • Power at 1 Ohm: N/A
  • Bridged Power: 200 W x 1 channel
  • Minimum Impedance Bridged: 4 Ω
  • Minimum Impedance Unbridged: 2 Ω
  • Best Frequency Response: 12 Hz – 22 kHz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 104 dB
  • Input Voltage: 14.4 V
  • Amplifier Class: D
  • Built-in DSP: No
  • Remote Control: Optional
  • Low-Pass Crossover Frequency: 50–500 Hz
  • Low-Pass Slope: 12 or 24 dB/octave
  • High-Pass Crossover Frequency: 50–500 Hz
  • High-Pass Slope: 12 dB/octave
  • Bass Boost: No
  • Fan Cooled: No
  • Fuse Rating: 50 A
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Dimensions (W x H x D): 8-9/16" x 2" x 7-1/8"
  • UPC: 699440986823
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • This amp has been solid from the get go. Clean sound and good power is what you will immediately notice after listening from the first time you are going to hook up your speakers from the amp. Great frequency response range and is perfect if you are going to add a sub on your system.

    Matty
    4/10/2024

  • This amplifier just blows me away! It's easy to set up, and its got that JL sound quality!

    JP Peterson
    6/6/2024

  • Such a nice from JL Audio. I've got all the power and sound I need.

    Stan
    9/22/2025
