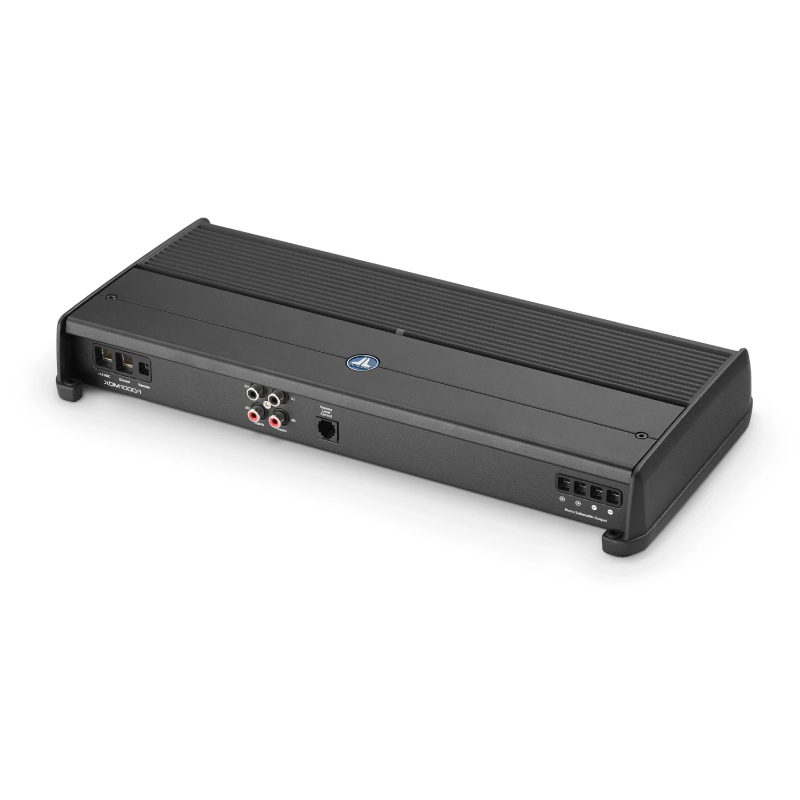

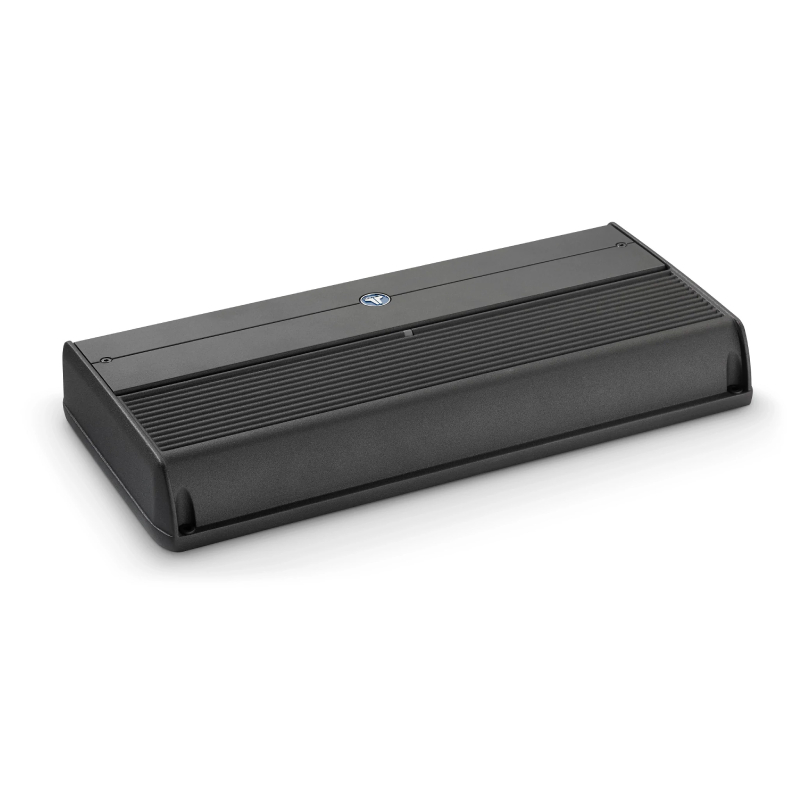

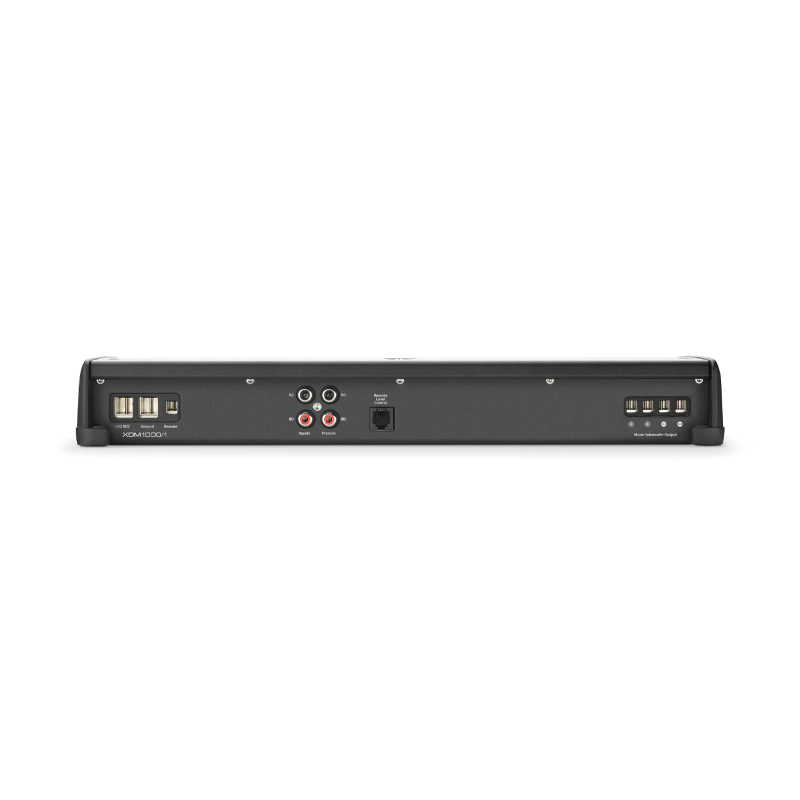

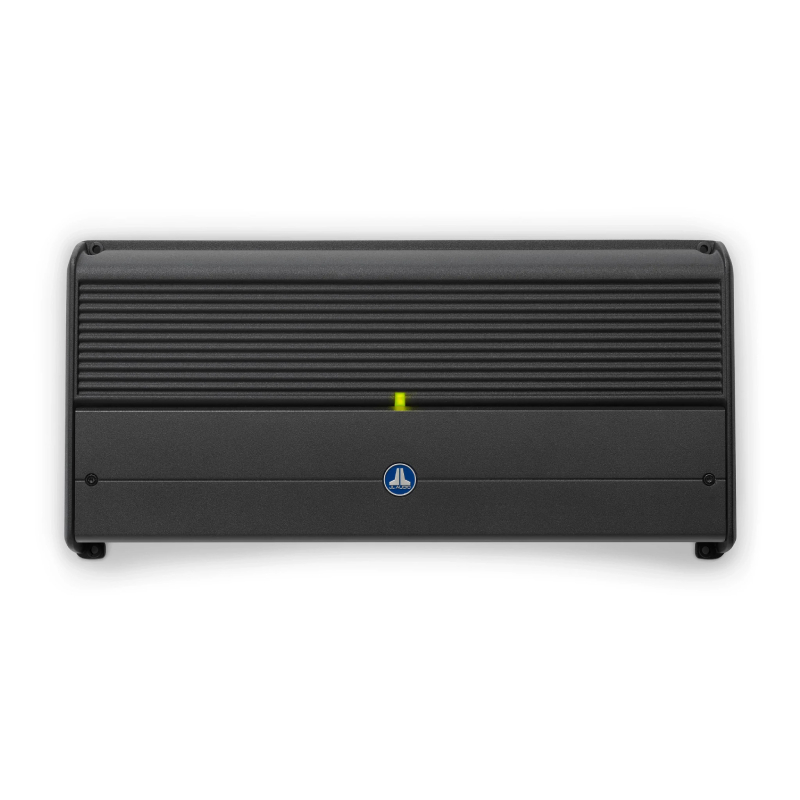

JL Audio XDM Series Class D Monoblock Car/Marine Amplifier
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• Monoblock Car/Marine Amplifier
• Owner's manual
High-speed NexD™ Switching Design
This monoblock subwoofer powerhouse employs our high-speed NexD™ switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed for Car or Boat Installations
Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Offers Continuously Variable Cutoff Frequency
Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

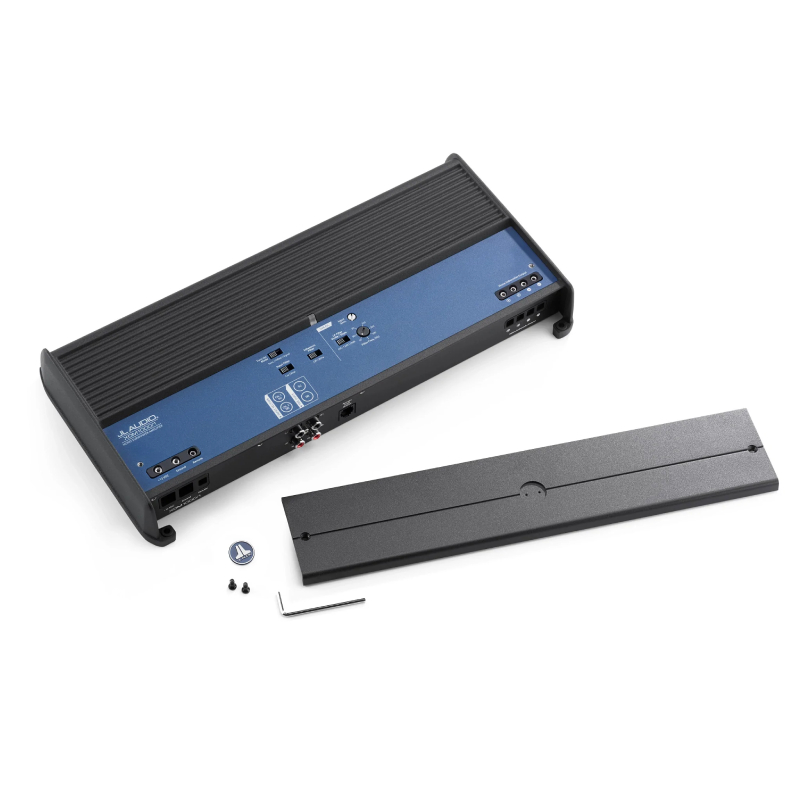

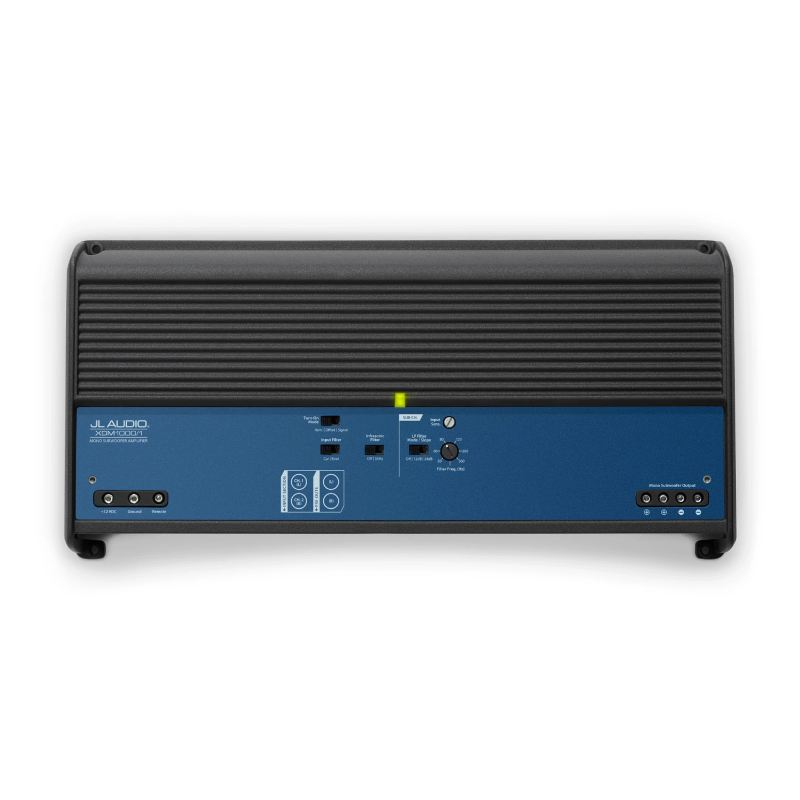

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Number of Channels : 1
Frequency Response : 7-500 Hz
RMS Power Output : 1000x1 Watts
Amplifier Class : D
Fuse Rating : 80 A
Rated Continuous (RMS) Power @ 14.4 V
600W RMS x 1 @ 4Ω
800W RMS x 1 @ 3Ω
1000W RMS x 1 @ 2Ω
N/A @ 1.5Ω
Rated Continuous (RMS) Power @ 12.5 V
500W RMS x 1 @ 4Ω
650W RMS x 1 @ 3Ω
800W RMS x 1 @ 2Ω
N/A @ 1.5Ω
Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power: >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >1000 / 50 Hz
Damping Factor @ 2 Ω: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Remote Subwoofer Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered
Height (H): 2.05 in / 52 mm
Width (W): 14.73 in / 374 mm
Depth (D): 7.09 in / 180 mm
