JL Audio XDM800/8 XDM Series 8-Channel 100W RMS x 8 at 2 Ohms, Class-D Full Range Car/Marine Amplifier with NexD™ Switching Technology
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

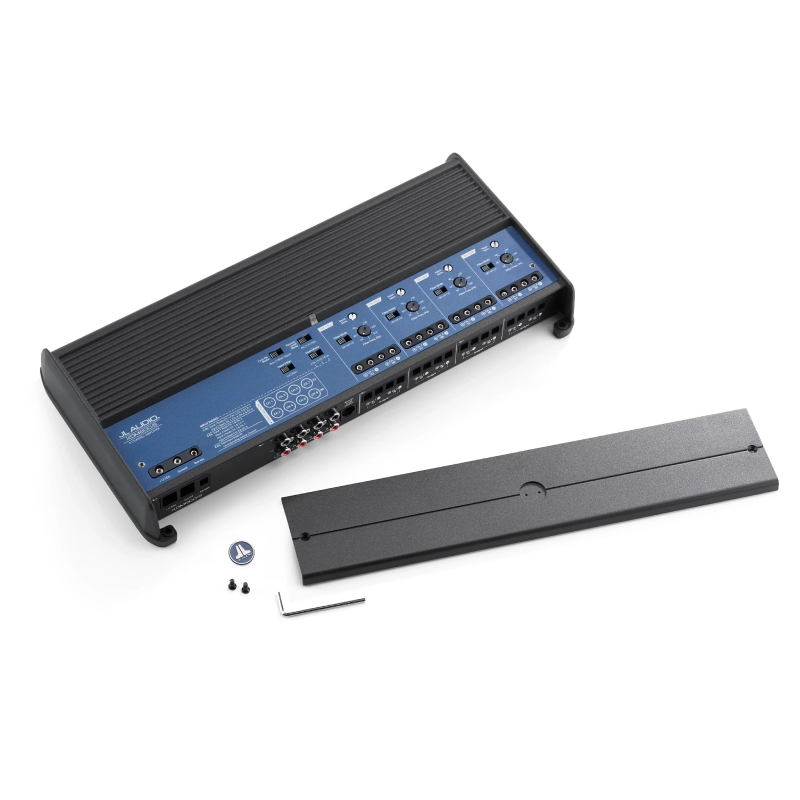

What's Inside?
- • 8-Channel car/marine amplifier
- • 2.5 mm Allen wrench
- • Self-adhesive JL Audio badge
- • Warranty information
- • Owner's Manual
Why Choose JL Audio XDM800/8 8-Channel Amplifier?
Cutting-edge Audio Equipment
JL Audio is renowned for its cutting-edge audio equipment, and the JL Audio XDM800/8 is a prime example of its commitment to excellence. The XDM800/8 is a versatile 8-channel amplifier with exceptional sound quality and performance. The JL Audio XDM800/8 is a powerhouse, offering an impressive power output of 800 watts RMS across its eight channels. This amplifier provides ample power to drive a complete audio system, allowing you to achieve a well-balanced and immersive soundstage.
Enjoying the Nuances of a Live Concert Recording
Whether rocking out to your favorite tunes or enjoying the nuances of a live concert recording, the XDM800/8 delivers exceptional power and precision. The XDM800/8 is designed for versatility and ease of installation. Its compact size and flexible configuration options suit various vehicle types and audio setups.
Unmatched Power, Advanced Signal Processing
For audio enthusiasts seeking a powerful and flexible 8-channel amplifier, the JL Audio XDM800/8 is a top choice. With its unmatched power, advanced signal processing, and versatile installation options, this amplifier takes your audio experience to new heights. Embrace the power and precision of the JL Audio XDM800/8 and enjoy an immersive and customized sound system to elevate your listening pleasure. The amplifier's efficient design ensures optimal power utilization while minimizing heat generation, ensuring reliable and efficient performance.
Frequently Asked Questions (FAQ)
- • Why are half of my speakers completely silent even though all 8 speakers are wired up correctly to the amplifier?
This is a signal routing configuration error. When using fewer than 4 pairs of RCA inputs, you must adjust the input routing toggle switches under the gasketed top cover to split and distribute the audio signal to the unpopulated channels.
- • The status LED on my XDM800/8 is glowing solid red and all audio has shut off. What should I do first?
A solid red LED means Protection Mode is active. Unplug all speaker wire terminal blocks from the side of the amplifier and cycle the power. If the light turns blue, your amp is healthy and you have a short circuit in your speaker wiring.
- • Why does my amplifier shut down or get extremely hot when I try to run four subwoofers off the bridged channels?
Bridging channel pairs increases the minimum allowable speaker impedance to 4 ohms. Wiring 2-ohm subwoofers or running multiple speakers in parallel below 4 ohms overloads the output stage, causing rapid thermal shutdowns.
- • I hear a constant, annoying high-pitched whine through my marine speakers that changes pitch when I accelerate the boat. How do I get rid of it?
This is alternator whine caused by a ground loop. Correct this by routing the amplifier's main ground cable directly to the negative battery distribution block or engine block, and keep RCA cables separated from 12V power lines.
- • Why is there a faint but persistent "hissing" sound coming from my high-end tweeters even when my stereo volume is turned down to zero?
This baseline hiss is caused by an elevated noise floor from incorrect gain staging. If your radio sends a strong pre-amp signal, flip the amplifier's Input Voltage switch to "High" and turn down the gain dials to eliminate the static.
- • Can I run standard 2-ohm speakers on all 8 channels without burning out the amplifier?
Yes. In a standard, unbridged configuration, the XDM800/8 is completely stable down to 2 ohms per channel, delivering a clean 100W RMS across all 8 zones. Do not drop below 2 ohms per channel or over-current protection will trip.
- • Why does the optional HD-RLC bass knob adjust the volume way too fast or completely fail to control the subwoofer channel?
This happens when a standard telephone or data cable is used instead of the original wire. The JL Audio system requires a specific internal pin architecture; generic cords scramble the connection and create massive dead zones.
- • Do I need to buy an external Line Output Converter (LOC) if I am connecting this amp to a factory radio?
No external box is needed. The amplifier accepts high-level speaker signals up to 8V directly through its RCA jacks. Splice your speaker lines onto RCA male adapter tails, plug them in, and set the Input Voltage switch to "High."
- • Why does my amplifier temporarily shut off every time my car refires its engine at a stoplight (Auto Stop-Start feature)?
During engine restarts, the starter draws massive current and drops vehicle line voltage below 10V, tripping low-voltage protection. Test your main battery health or install a voltage stabilizer on the amplifier's turn-on line.
- • Is the XDM800/8 fully waterproof, and can I mount it directly on an open boat deck or swim platform?
No, it is water-resistant, not waterproof. While it protects against humid salt air and minor splashes, it cannot survive heavy rain, washdown hoses, or standing water. Always mount it in a protected hull space, storage locker, or console.
- Number of Channels : 8
- Frequency Response : 12-22000 Hz
- Amplifier Class : D
- Fuse Rating : 80 A
Features:
- Marine-Grade 8-Channel Design: Built with marine-grade materials for boat or car installations, finished in a sleek black powder-coat with a gasketed removable top cover to protect the control panel
- High-Power Multi-Channel Output: Delivers 75W RMS x 8 @ 4Ω, 100W RMS x 8 @ 2Ω, or 200W RMS x 4 bridged @ 4Ω at 14.4V with ≤1% THD+N
- Clean & Dynamic Audio Specs: Provides a signal-to-noise ratio of 104 dB at rated power and 84 dB at 1 watt (A-weighted)
- NexD™ Class D Efficiency: Advanced switching amplifier technology combining exceptional sound quality, high efficiency, and compact design
- Advanced Rollback Protection: Intelligent thermal and low-impedance protection limits peak voltage instead of shutting down for uninterrupted playback
- Noise-Resistant Differential Inputs: Differential-balanced input architecture minimizes noise and alternator whine while ensuring OEM and aftermarket compatibility
- OEM Integration Ready: Supports direct speaker-level input using optional speaker wire to RCA adapters (sold separately)
- Smart Status LED Indicator: Single multi-color LED displays power-up, normal operation, thermal protection, over-current conditions, and low-voltage shutdown
- Low-Voltage Safety Shutdown: Complete shutdown occurs only when battery or remote turn-on voltage drops below 10 volts
- Efficient Passive Cooling Design: Outer shell engineered to dissipate heat effectively when exposed to proper airflow
- Secure Control Panel Cover: Factory-installed cover protects settings from accidental changes while maintaining a clean installation look
- Flexible Multi-Zone Gain Control: Four independent gain controls for channels 1&2, 3&4, 5&6, and 7&8
- Interference-Reducing Input Filter: Selectable Car or Boat input filter modes help eliminate electrical interference
- Multiple Turn-On Options: Supports remote turn-on, DC offset sensing, or signal-sensing activation
- Selectable Remote Level Control Zones: Optional remote can control all channels, channels 5–8, or channels 7–8 only
- Versatile Input Mode Selection: Supports 2-channel, 4-channel, or full 8-channel RCA input configurations
- Independent 4-Zone Crossovers: Individually adjustable crossovers for channels 1&2, 3&4, 5&6, and 7&8
- Selectable HP or LP Filtering: Each channel pair supports Off, High-Pass, or Low-Pass filtering at 12 dB/octave
- Wide Crossover Frequency Range: Adjustable crossover points from 50Hz to 500Hz for precise tuning
- Heavy-Duty Power Connections: Set-screw terminals accept 4 AWG power and ground wire
- External Fuse Requirement: Requires an external 80-amp main power fuse (not included)
- High-Capacity Speaker Outputs: Eight-channel speaker terminals accept 16–8 AWG wire and support bridged configurations
- Balanced RCA Preamp Inputs: Four pairs of differential-balanced RCA inputs support both preamp and speaker-level signals
- Remote Level Control Ready: RJ-14 connector supports optional wired remote for in-dash level adjustment
- System Expansion Friendly: Multiple XDM amplifiers can be controlled from a single remote using splitters and phone cables
Specifications:
- RMS Power Output (Watts x Channels): 75 x 8
- Peak Power Output (Watts x Channels): ---
- Power at 2 Ohms (Watts x Channels): 100 x 8
- Power at 1 Ohm (Watts x Channels): ---
- Bridged Power (Watts x Channels): 200 x 4
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Best Frequency Response: 12Hz – 22k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 104 dB
- Input Voltage: 14.4v
- Amplifier Class: D
- Built-in DSP: No
- Remote Control: Optional
- Low-Pass Crossover Frequency: 50-500 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50-500 Hz
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 80
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Width: 14-1/2 inches
- Height: 2 inches
- Depth: 7-1/8 inches
- UPC: 699440986861
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
